Fits John Deere B, BN, BW, 50, Muffler DR-4 R21827R And AB2700R

Name: Fits John Deere B, BN, BW, 50, Muffler DR-4 R21827R And AB2700R
SKU: AB2700R
Price: 67.0 USD
Availability: InStock

Fits John Deere B, BN, BW, 50, Muffler DR-4 R21827R And AB2700R

$67.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

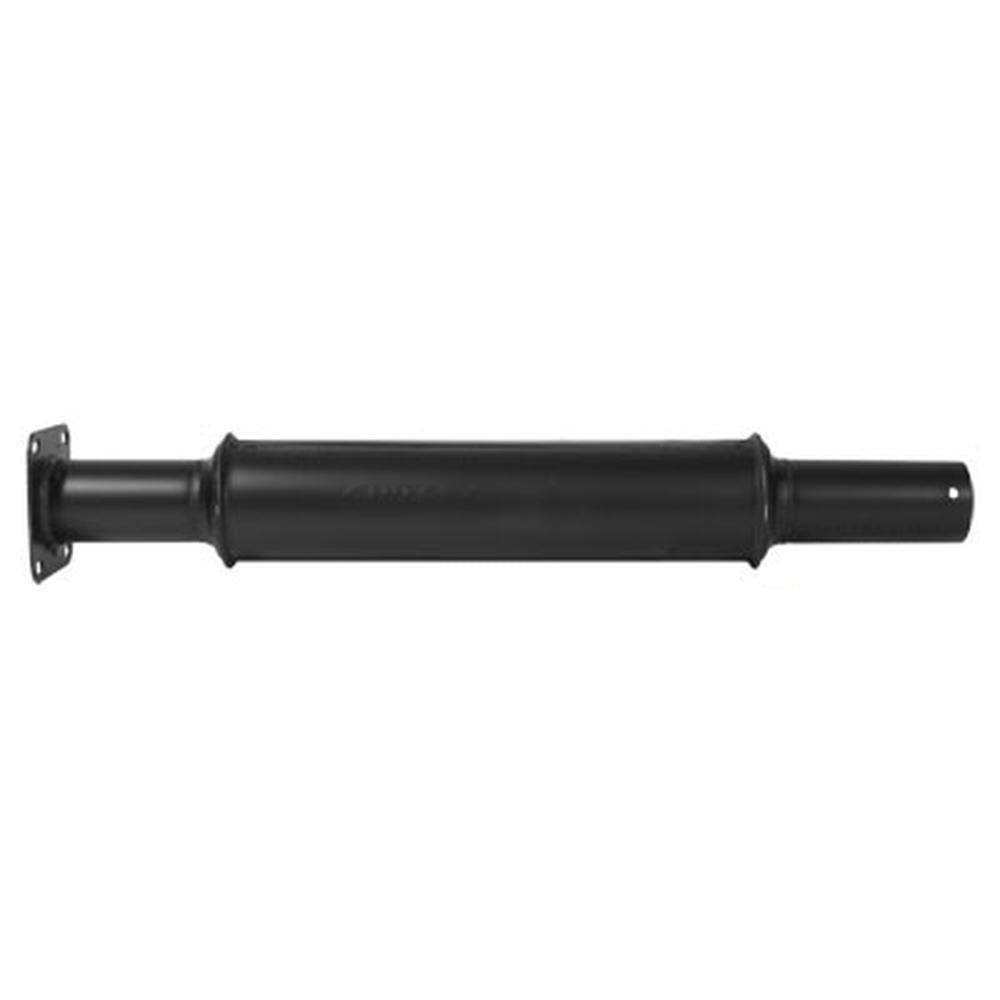

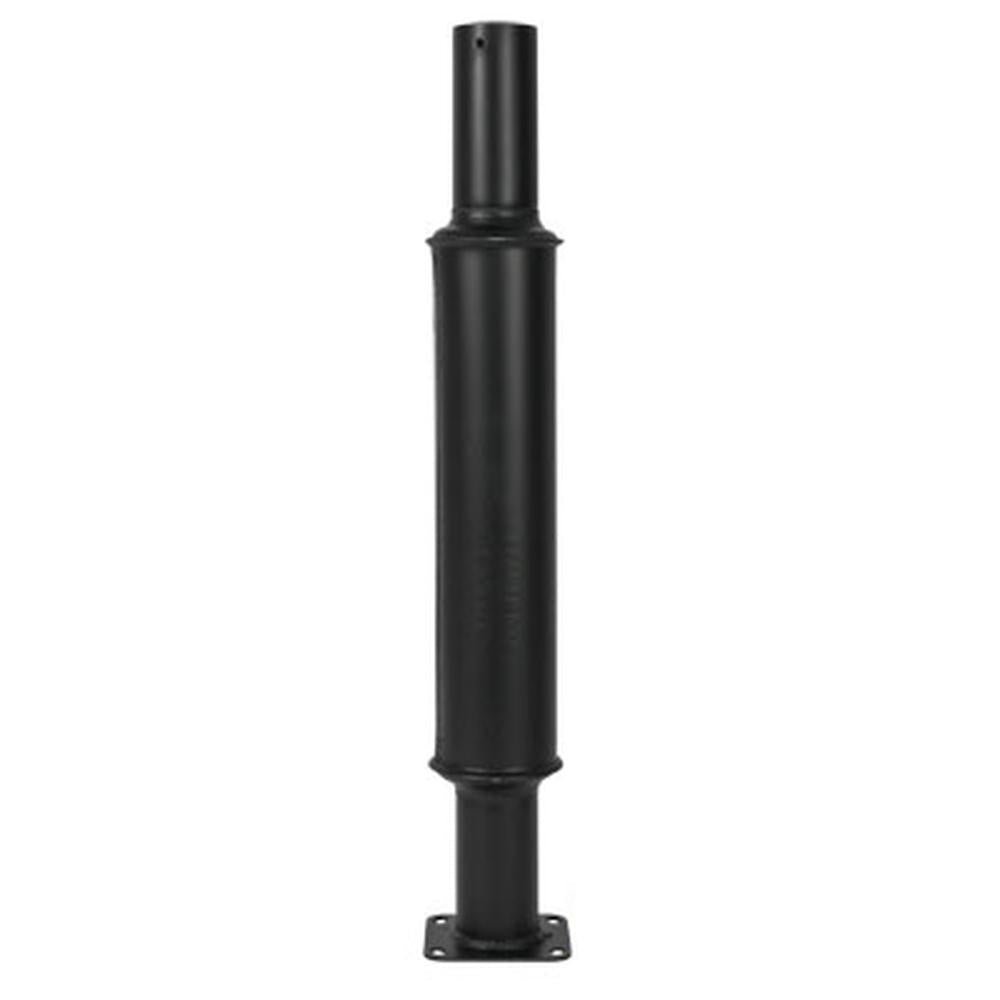

One New Aftermarket Replacement Muffler Fits John Deere Tractor Models: B, BN, BW (--ALL SN B96000>), 50, 520, 530 (--ALL 1953-1959 STANDARD MUFFLER)

Tech Info:

Vertical / Round Body - 3-1/4" Shell Diameter. Muffler Has 4 Bolt Mounting Plate, Uses AB3536R Manifold Pipe

Dimensions:

Dim A (1) A: 4-1/2" INLET LENGTH

Dim B (2) B: BACK PLATE

Dim C (3) C: 14-1/2" SHELL LENGTH

Dim D (4) D: 5" OUTLET LENGTH

Dim E (5) E: 2-1/4" OUTLET O.D.

Dim F (6) F: 24-1/2" OVERALL LENGTH

Replaces Part Number: AB2700R, R21827R, DR-4

Models This Part Fits:

B, 50 (standard muffler), 530, 50, 520 (standard muffler), BN, 520, BW (All 3 SN 96000-later), 530 (optional muffler), B BN BW 50 520 530 Muffler mount: Vertical Overall Length: 24-1/2" Shell Diameter: 3-1/4" Shell Length: 14-1/2" Inlet I.D.: Plate Inlet Length: 4-1/2" Outlet O.D.: 2-1/4" Outlet Length: 5 Color: Black Muffler has 4 bolt plate

Additional Information:

Outlet Outside Diameter: 2-1/4" Inlet Style: Plate Muffler mount: Vertical Body Type: Round Overall Length: 24-1/2" Shell Diameter: 3-1/4" Shell Length: 14-1/2" Inlet Length: 4-1/2" Outlet Length: 5 Muffler has 4 bolt plate
