AA6129R Disc Pulley Overhaul Clutch Kit Fits John Deere 60 620 630 Repair Rebuil

Name: AA6129R Disc Pulley Overhaul Clutch Kit Fits John Deere 60 620 630 Repair Rebuil
SKU: AA6129R-RE29790-KIT
Price: 195.0 USD
Availability: InStock

AA6129R Disc Pulley Overhaul Clutch Kit Fits John Deere 60 620 630 Repair Rebuil

$195.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Disc Pulley Overhaul Clutch Kit

Fits John Deere Tractor Models: 60, 620, 630

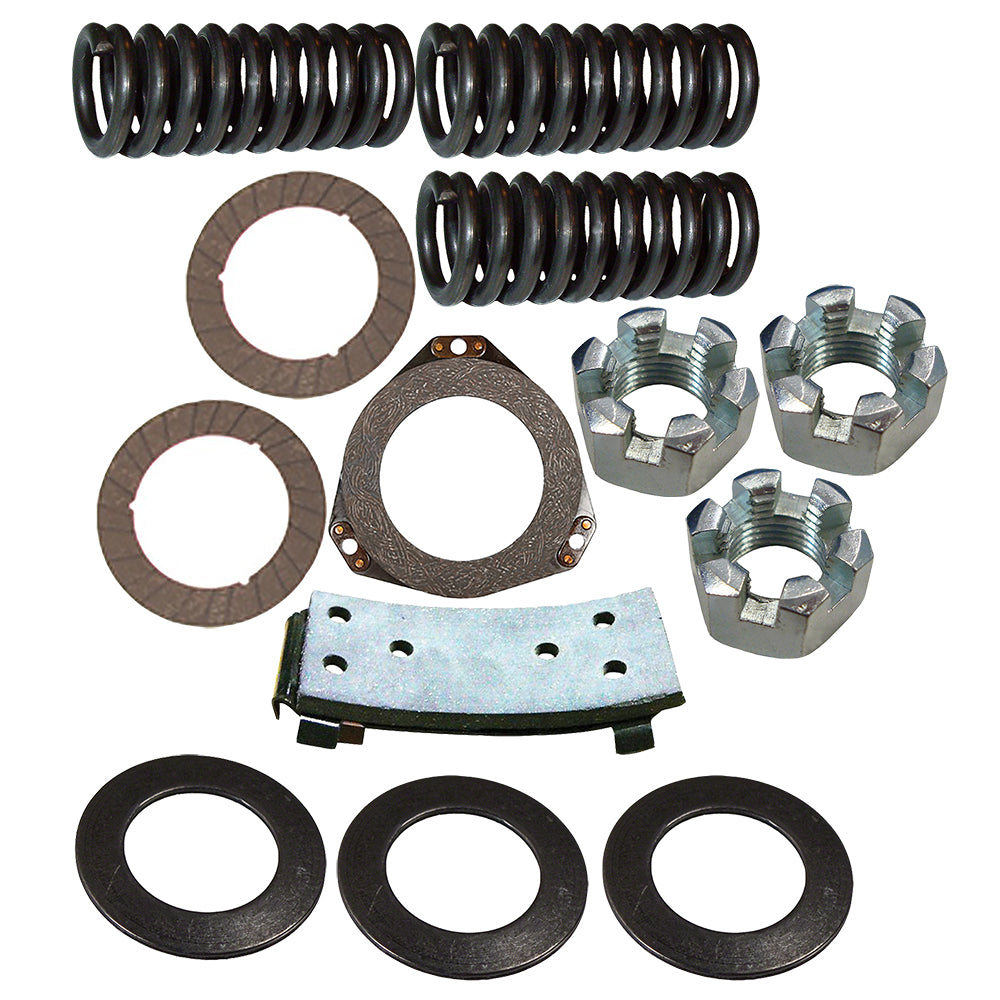

Kit Contains:

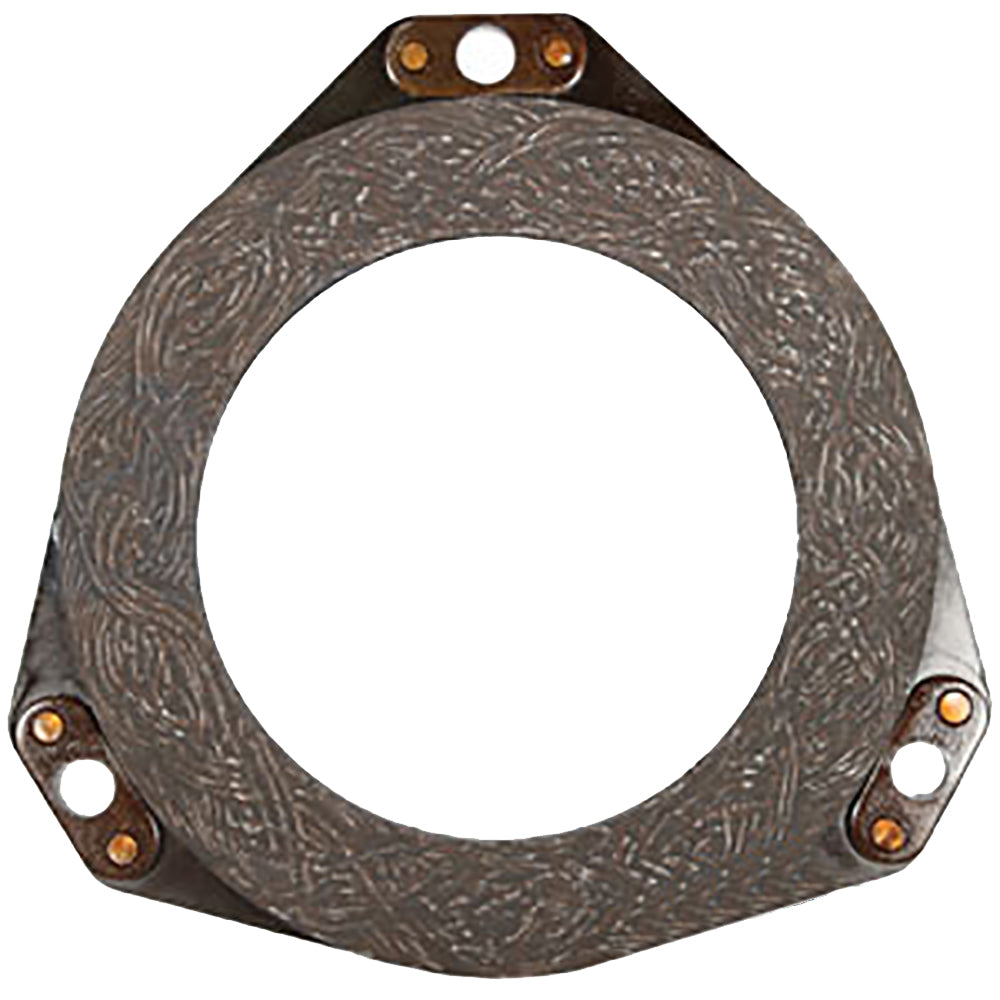

1 Pulley Clutch Discs w/Bonded Lining (AA6129R) 0.393" Thick

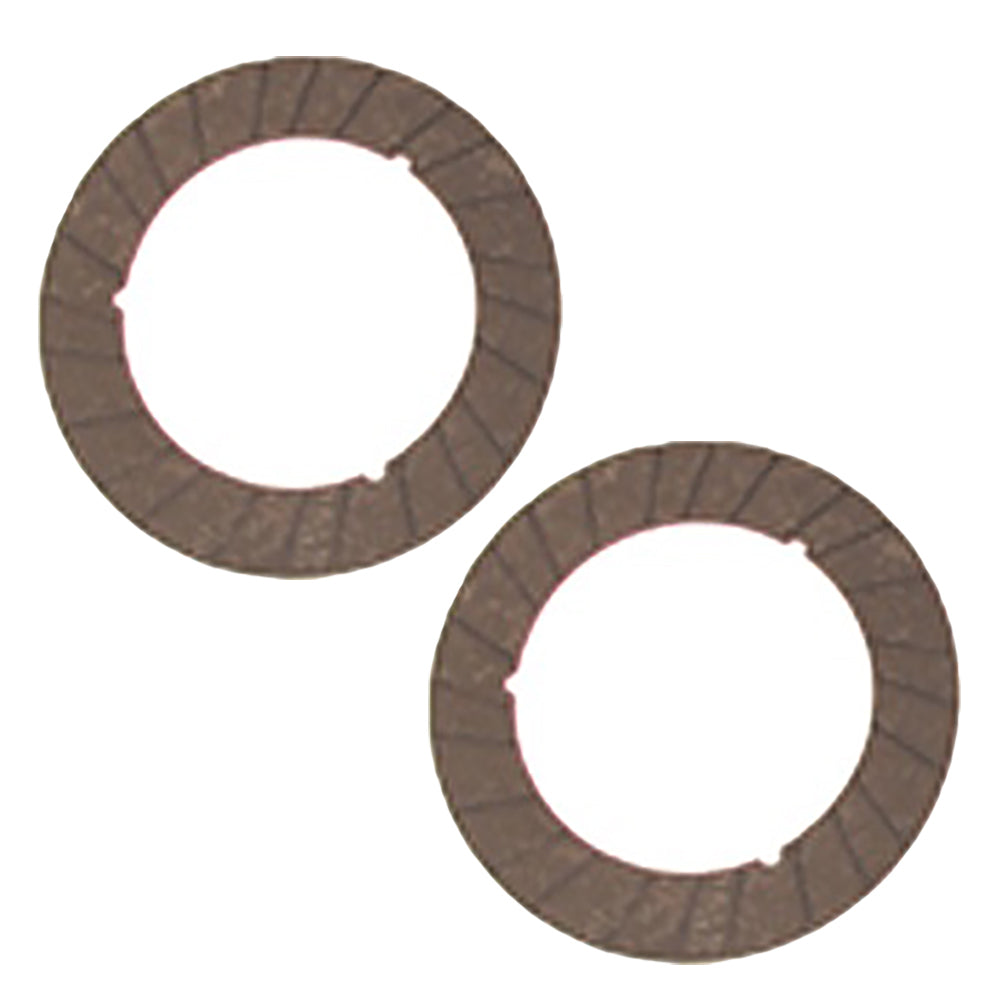

2 Floating Clutch Facing Discs (C614R) 10" OD 0.15" Thick 6.75" ID

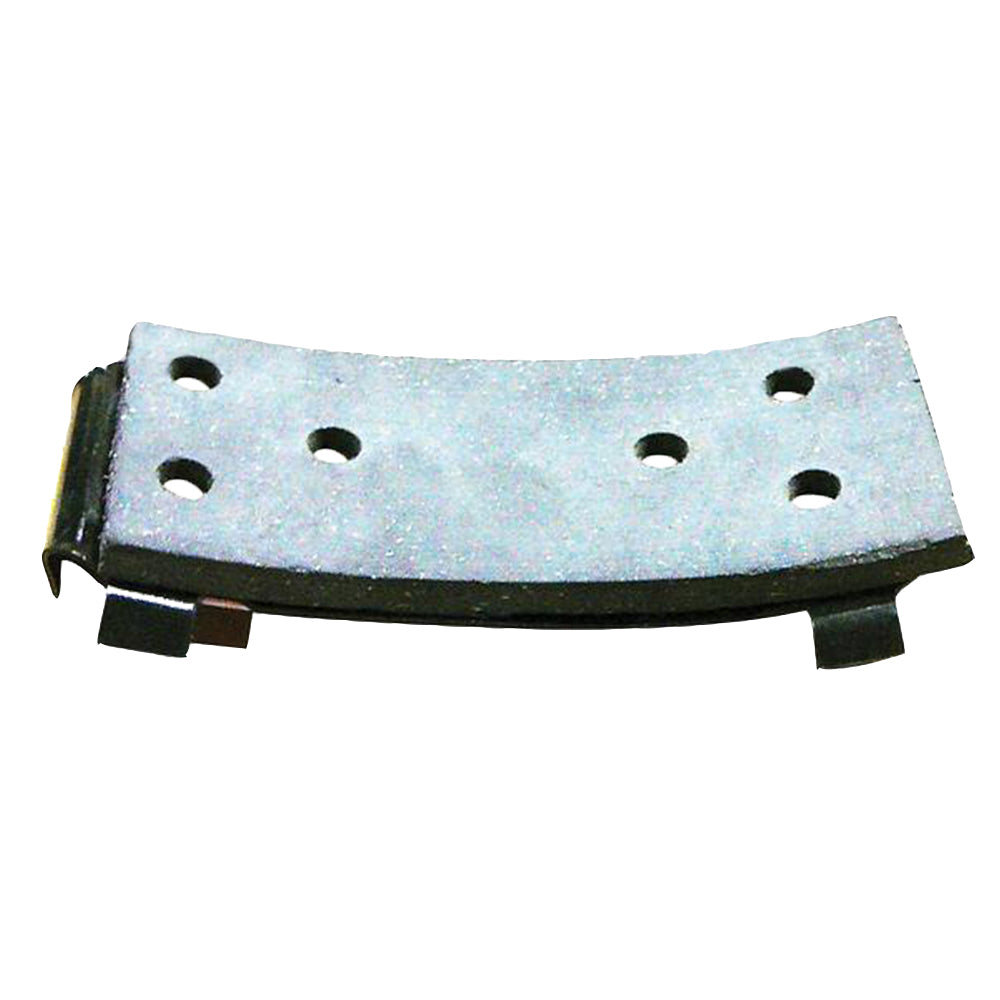

1 Belt Pulley Brake Pad Lining (RE29790)

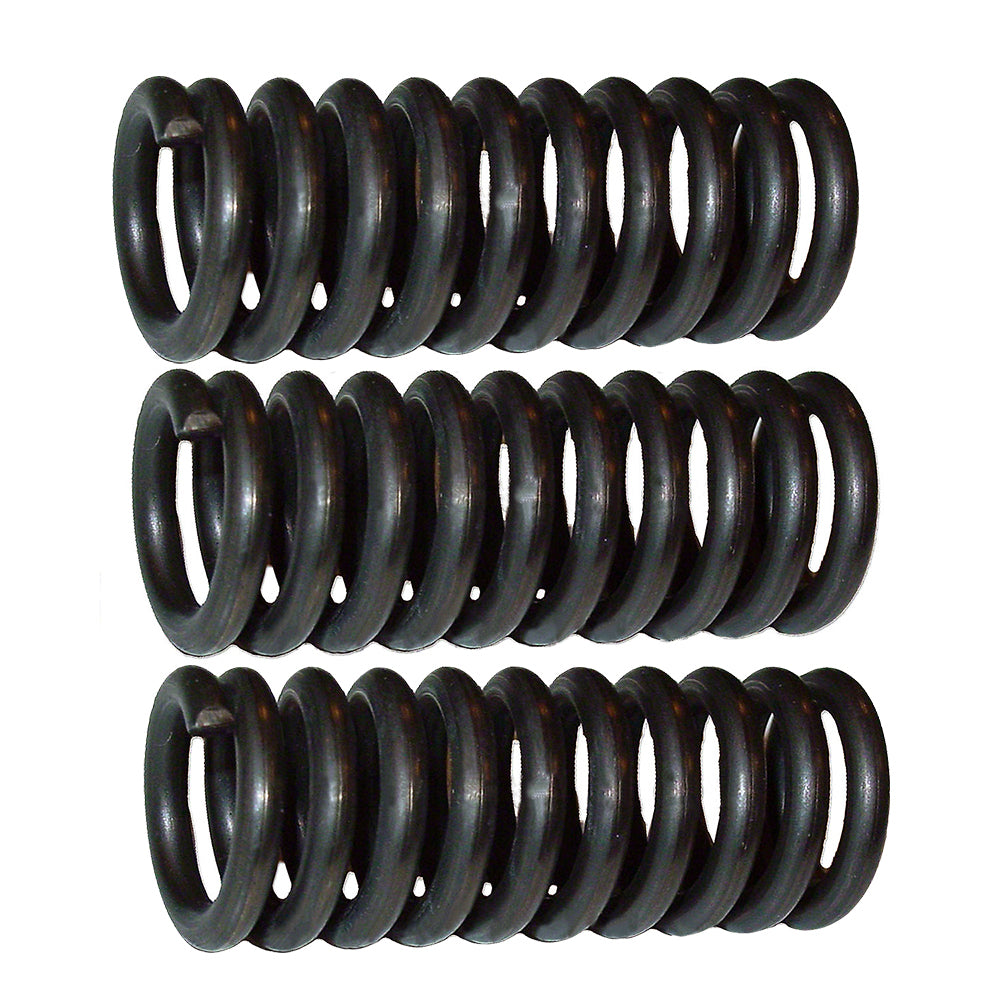

3 Clutch Disc Adjusting Springs (A352R) 1.915" Long

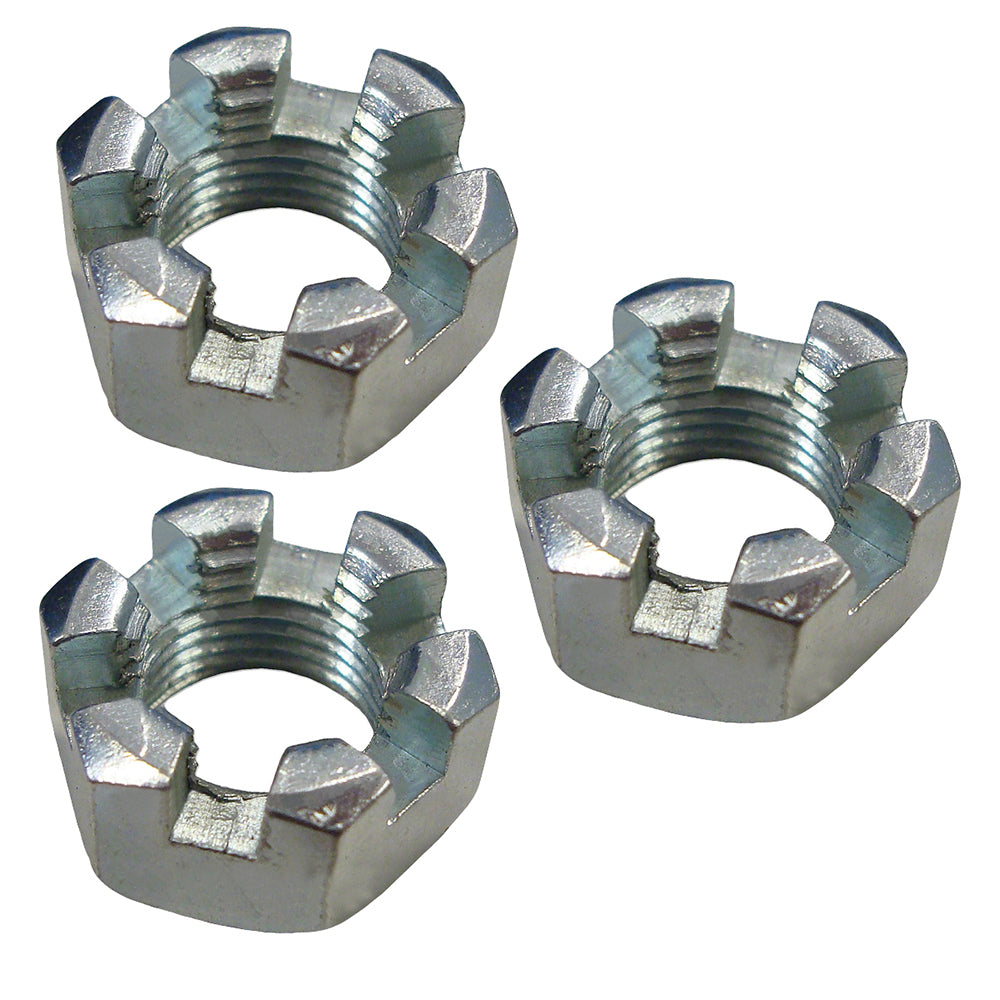

3 Clutch Adjusting Nuts (14H862) 9/16" 18NF Grade 5

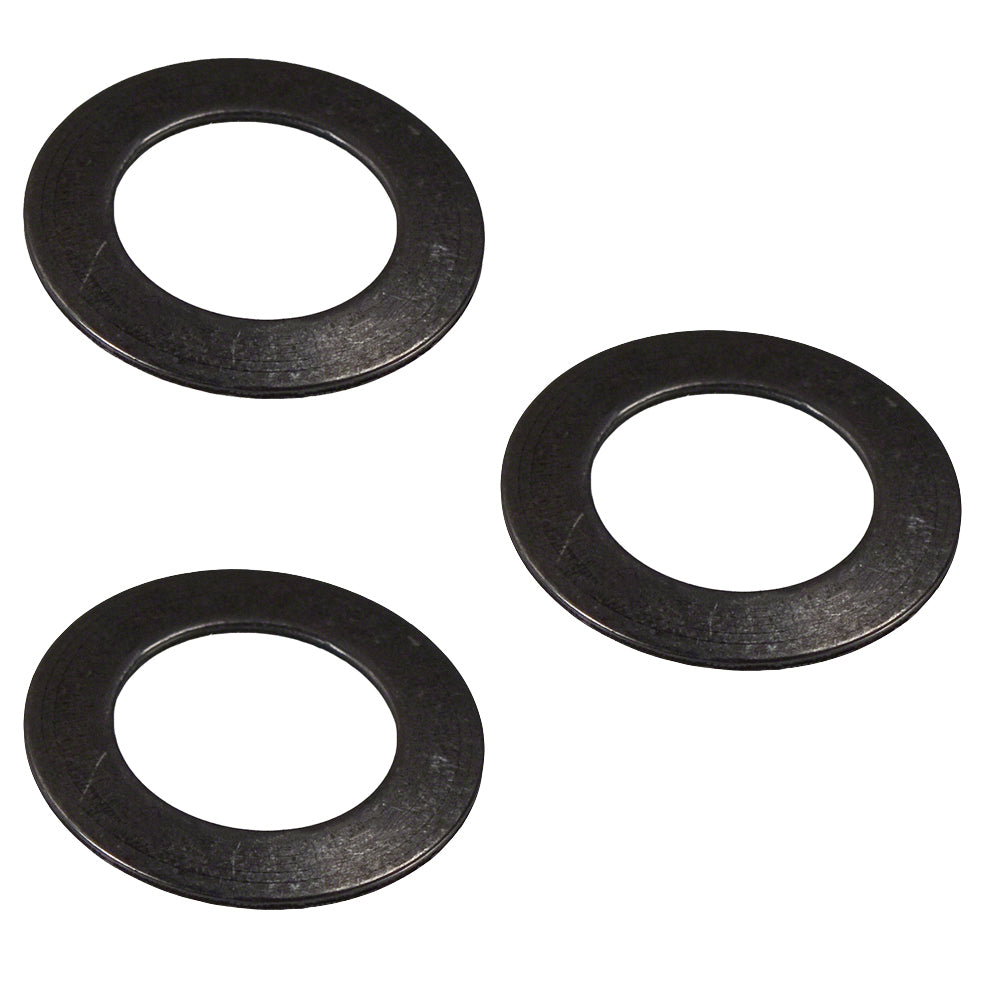

3 Clutch Pressure Plate Spring (Fits Belleville) Washers (Fits JDS1626) 0.572 ID 0.937 OD 0.035 Thick

Replaces Part Numbers:
AA6129R, C614R, RE29790, A352R, 14H862

Models This Part Fits:

530, 620, 520, 730, 720, 630

Additional Information:

(1) Facing Clutch Pulley 10" disc outside diameter 0.393" thick Replaces Part Numbers: AA5082R, AA6129 (2) Facing Clutch Disc 10" outside diameter (OD) 6-3/4" inside diameter (ID) 0.150" thick The side with the grooves faces the driving disc 1-5/8" lining width Replaces Part Numbers: R90215, C614R (1) Brake Pad Pulley Non-asbestos lining with countersunk brass rivets Replaces Part Numbers: AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Spring 1.915" long 0.740" outside diameter 0.500" inside diameter 0.120" wire thickness The clutch disc adjusting spring mounts to the outer cast iron adjusting disc 3 springs used per tractor Replaces Part Numbers: A352R (3) Clutch Adjusting Nut 9/16" - 18 NF Grade 5 Slotted hex nut, 9/16" 3 used per tractorReplaces Part Numbers: 14H862, AD2850R, D2789R, R20228 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" inside diameter 0.937" outside diameter 0.035" thick Spring steel Torque initially to 15 FT pounds, then adjust as needed Use to smooth out the hand clutch engagement 3 used per tractor Replaces part Numbers: JDS1626
