AA6129R C614R AB4748R A4355R Overhaul Clutch Repair Kit Fits John Deere 620

Name: AA6129R C614R AB4748R A4355R Overhaul Clutch Repair Kit Fits John Deere 620
SKU: A4355R-A352R-KIT
Price: 725.0 USD
Availability: InStock

AA6129R C614R AB4748R A4355R Overhaul Clutch Repair Kit Fits John Deere 620

$725.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Clutch Overhaul Kit

Fits John Deere Models: 620, 630

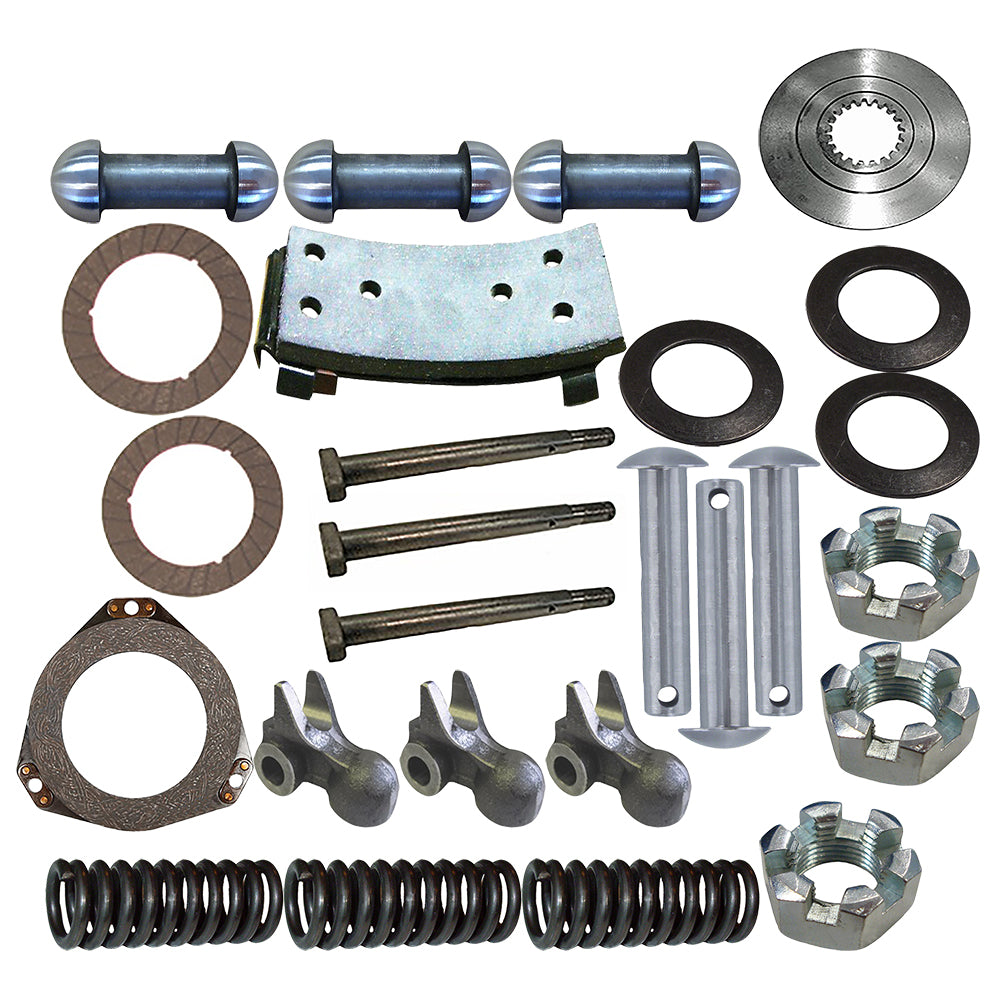

Kit Includes:

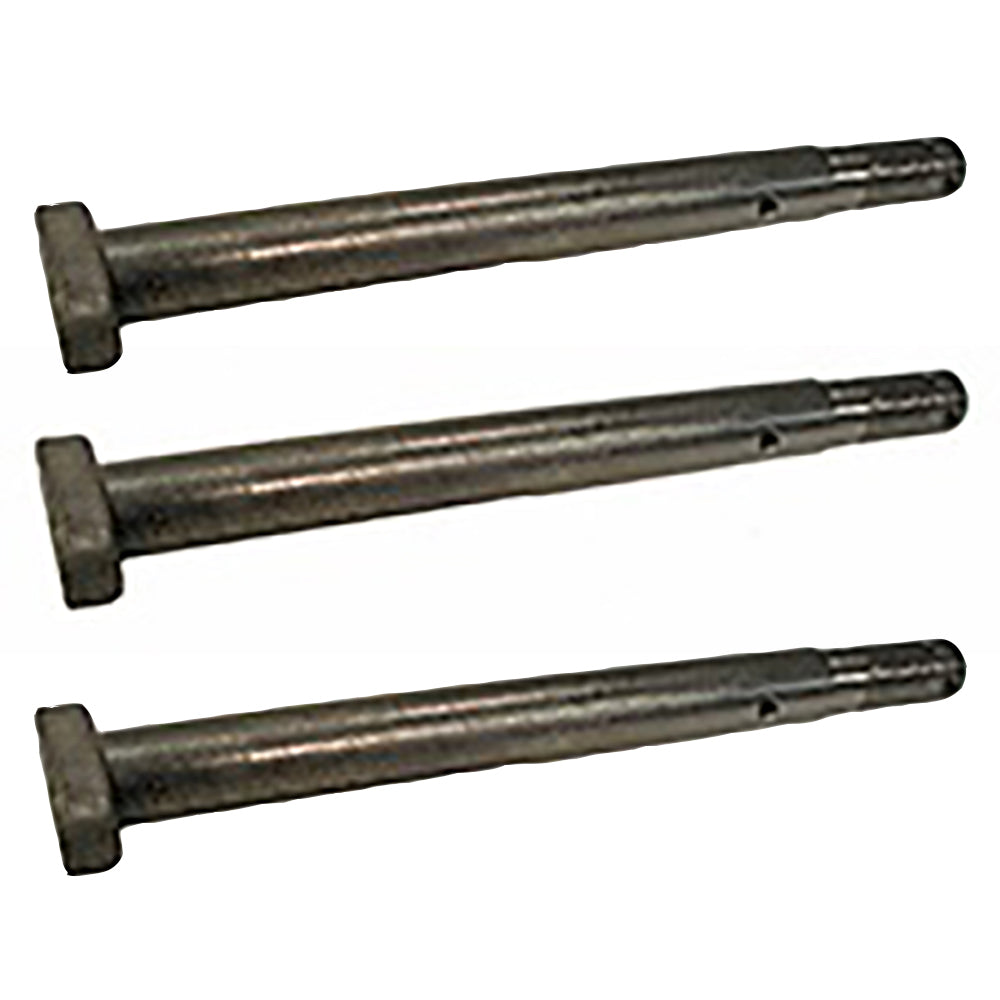

(3) Clutch Operating T-Bolts (A4354R)

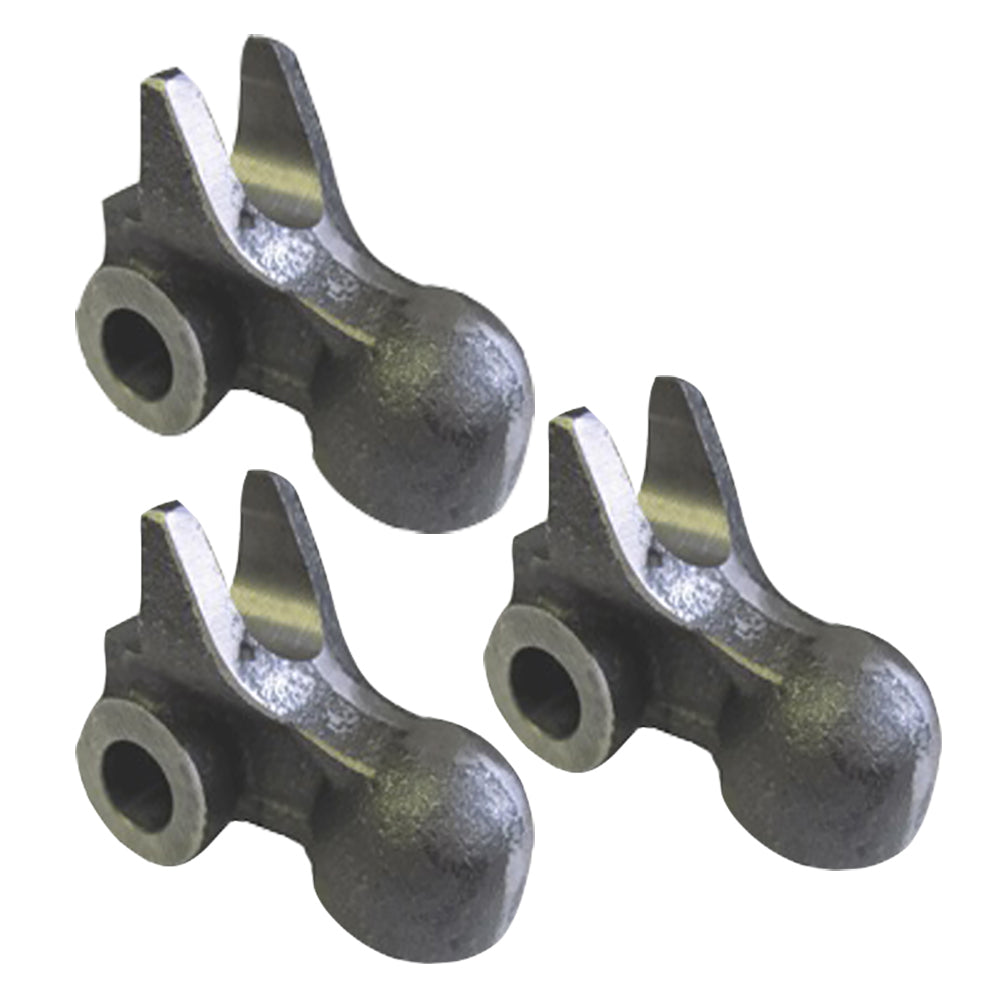

(3) Clutch Dogs (C74R)

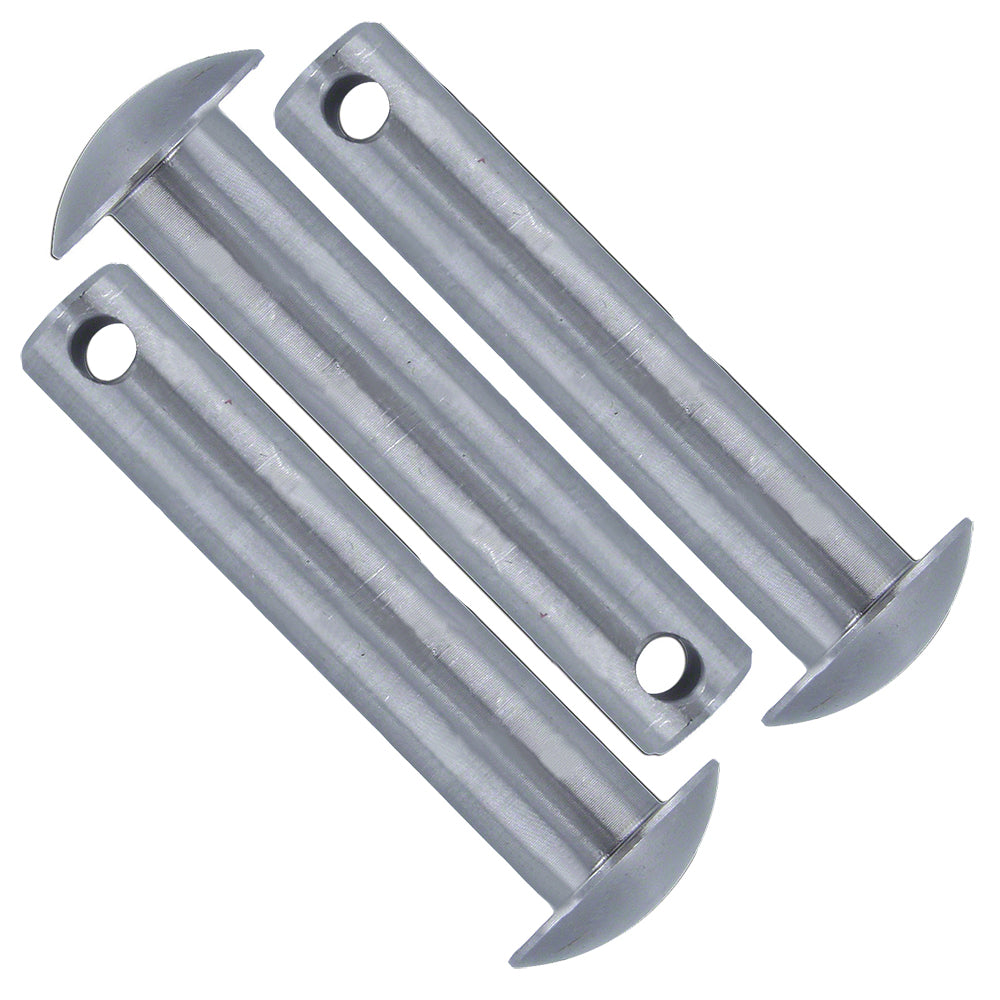

(3) Clutch Dog Pins (D355R)

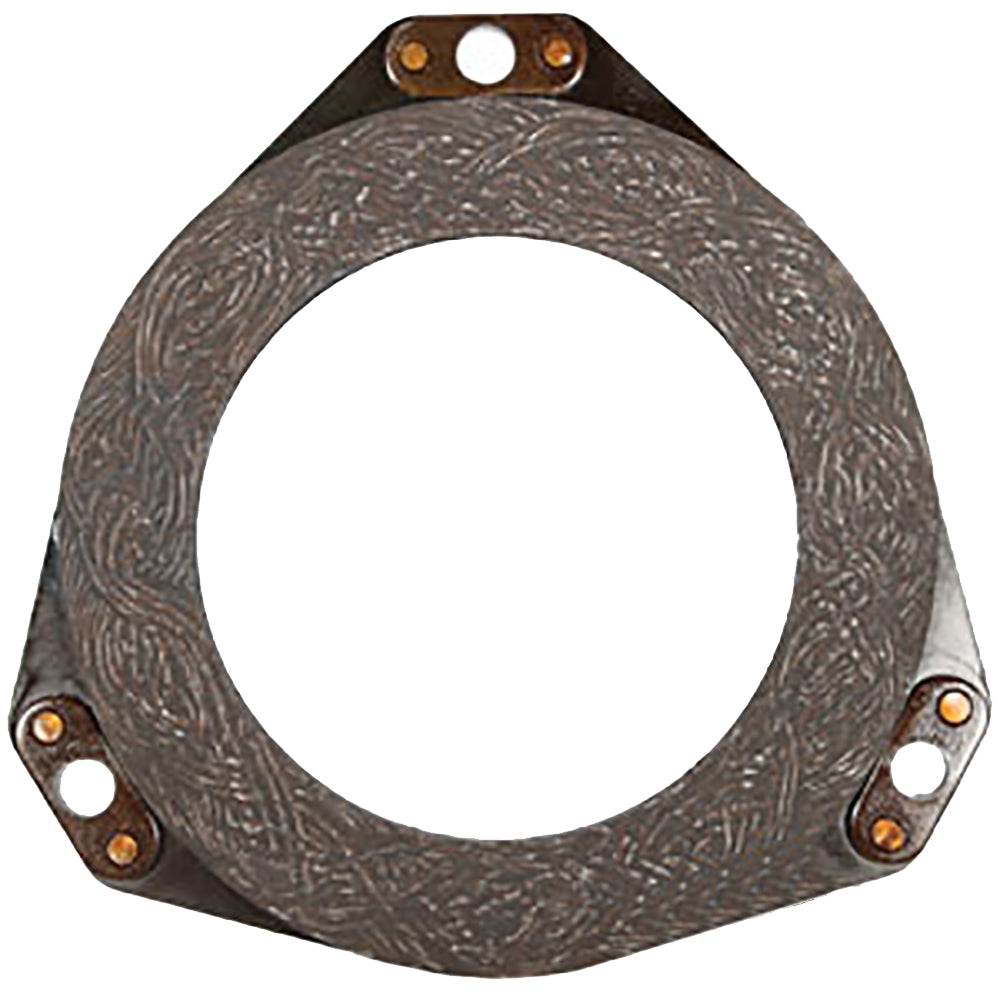

(1) Pulley Clutch Discs w/Bonded Lining (AA6129R)

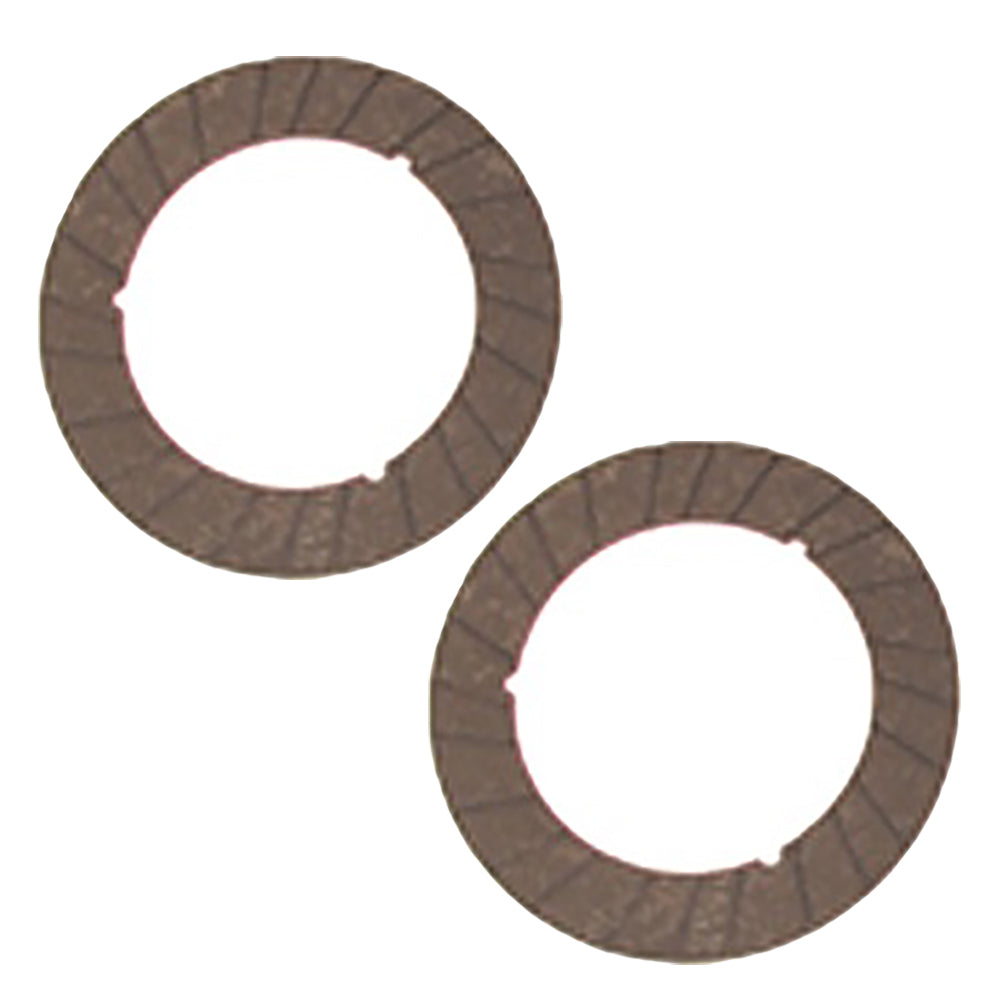

(2) Floating Clutch Facing Discs (C614R)

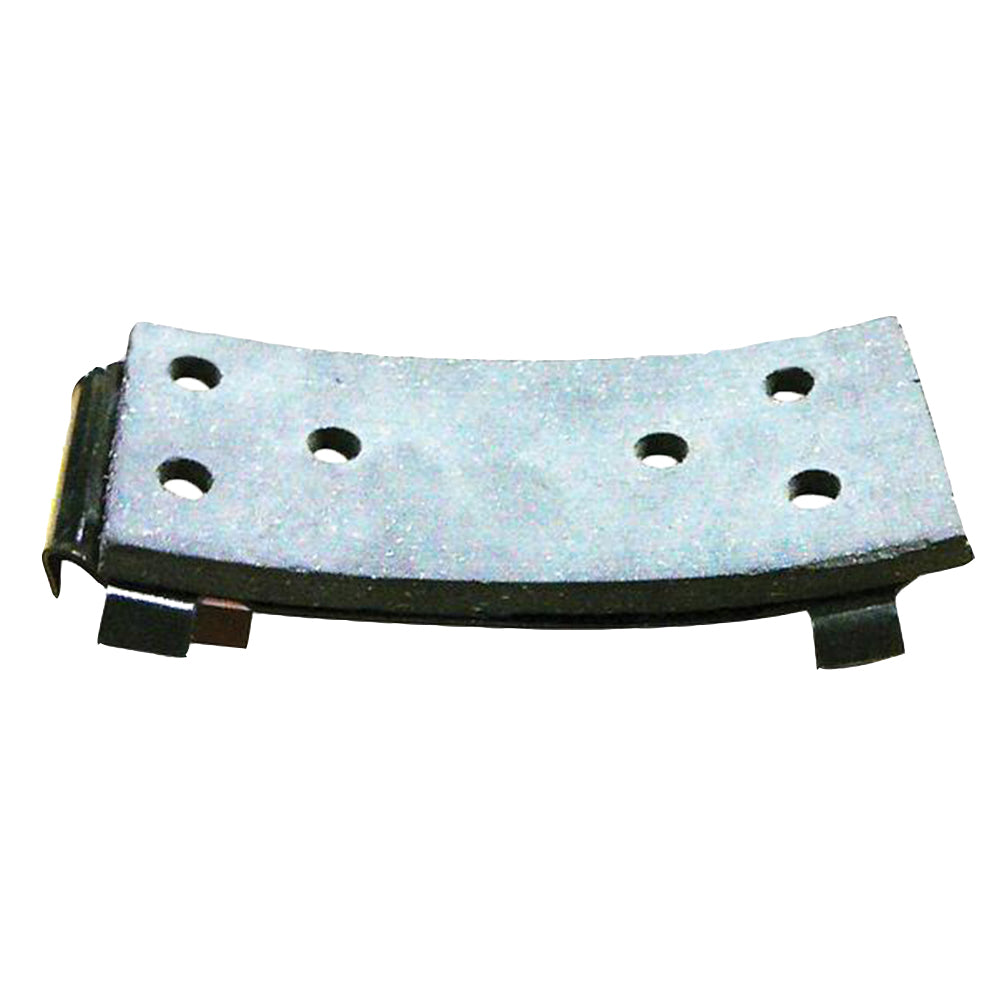

(1) Belt Pulley Brake Pad Lining (RE29790)

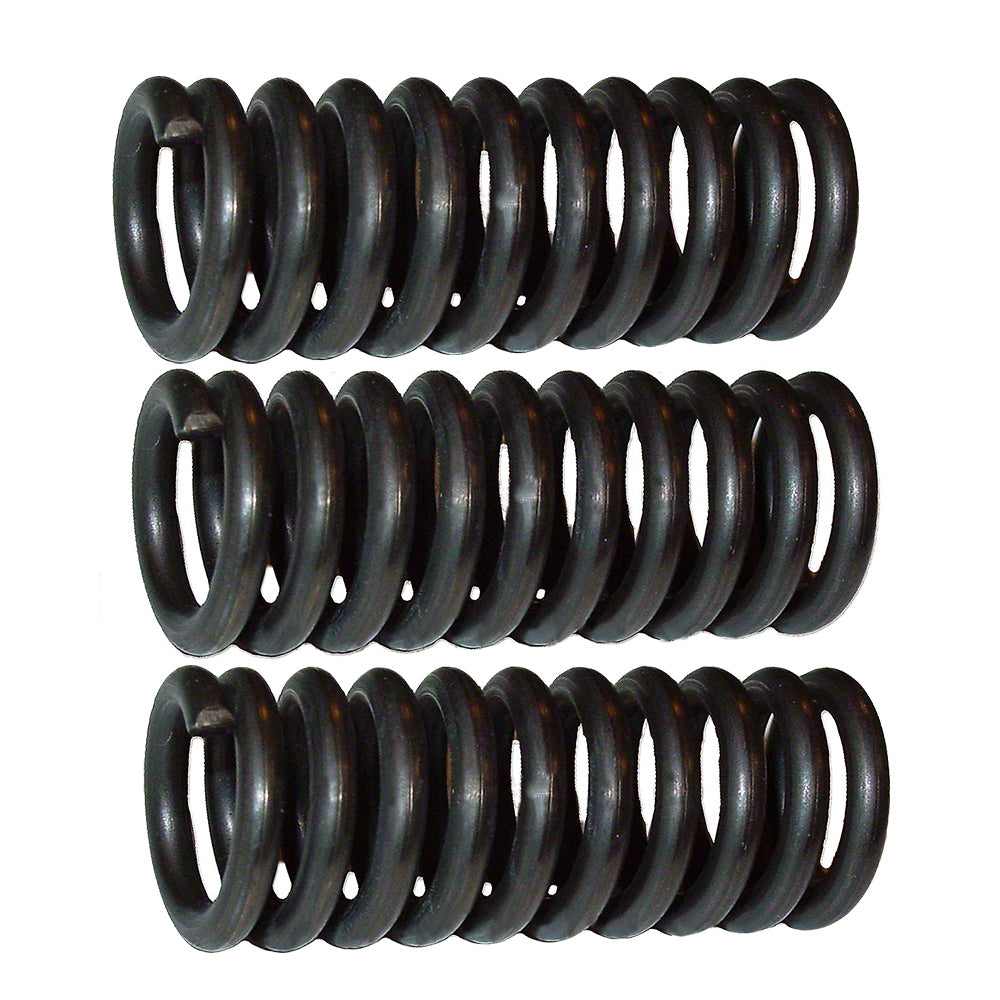

(3) Clutch Disc Adjusting Springs (A352R)

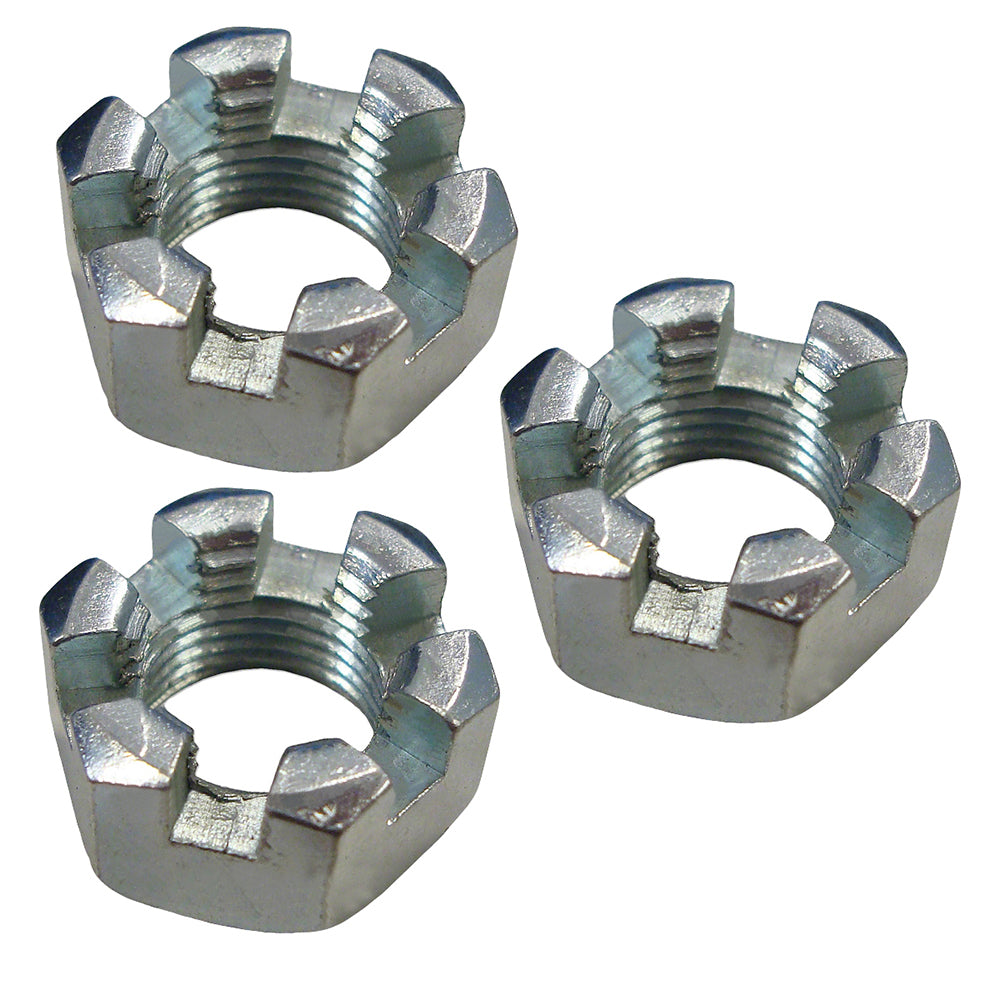

(3) Clutch Adjusting Nuts (14H862)

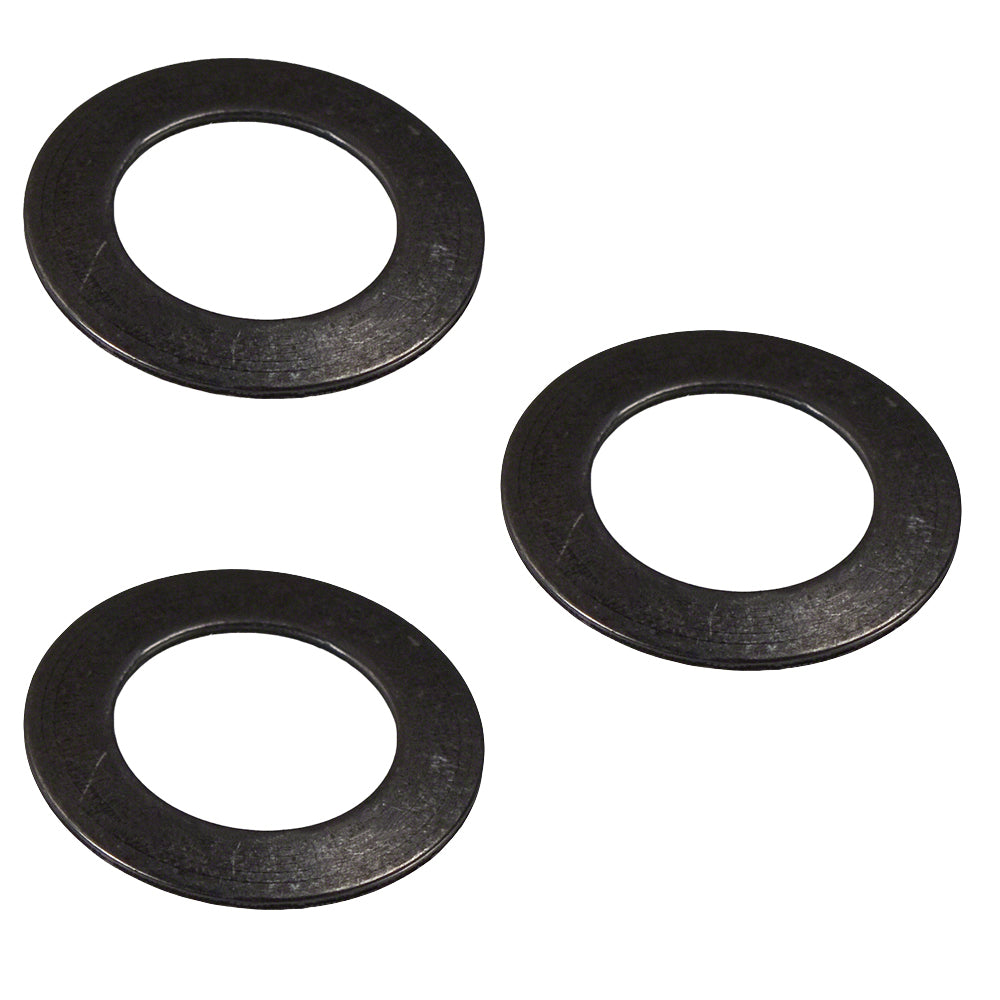

(3) Clutch Pressure Plate Spring (Fits Belleville) Washer (Fits JDS1626)

Models This Part Fits:

G, GW, 630, GP, D, 70, 620, 720, 730, GM, DI, GN, GH

Additional Information:

(3) Clutch Operating Bolt 9/16" diameter 6-7/16" overall length Replaces Part Numbers: A4354R (3) Clutch Dog 3 required per tractor Replaces Part Numbers: C74R (3) Clutch Dog Pin 0.495" diameter 2.500" usable length 3 used per tractor Replaces Part Numbers: D355R (1) Facing Clutch Pulley 10" disc outside diameter 0.393" thick Replaces Part Numbers: AA5082R, AA6129 (2) Facing Clutch Disc 10" outside diameter (OD) 6-3/4" inside diameter (ID) 0.150" thick The side with the grooves faces the driving disc 1-5/8" lining width Replaces Part Numbers: R90215, C614R (1) Brake Pad Pulley Non-asbestos lining with countersunk brass rivets Replaces Part Numbers: AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Spring 1.915" long 0.740" outside diameter 0.500" inside diameter 0.120" wire thickness The clutch disc adjusting spring mounts to the outer cast iron adjusting disc 3 springs used per tractor Replaces Part Numbers: A352R (3) Clutch Adjusting Nut 9/16" - 18 NF Grade 5 Slotted hex nut, 9/16" 3 used per tractor; sold individually Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" inside diameter 0.937" outside diameter 0.035" thick Spring steel Torque initially to 15 FT pounds, then adjust as needed Use to smooth out the hand clutch engagement 3 used per tractor Replaces part Numbers: JDS1626 (3) Clutch Dog Toggle 1.999" overall length Three (3) used per tractor Note: When installing, the end with the hole fits into the clutch dog Replaces part Numbers: C434R (1) Clutch Slider Disc 9.910" outside diameter 0.247" thick 20 splines 3-5/8" spline inside diameter Replaces Part Numbers: AF1247R
