AA2214R Muffler Fits John Deere A AR AN AW AWH G GN GH 60 620 Tractors

Name: AA2214R Muffler Fits John Deere A AR AN AW AWH G GN GH 60 620 Tractors
SKU: AA2214R
Price: 99.0 USD
Availability: InStock

AA2214R Muffler Fits John Deere A AR AN AW AWH G GN GH 60 620 Tractors

$99.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

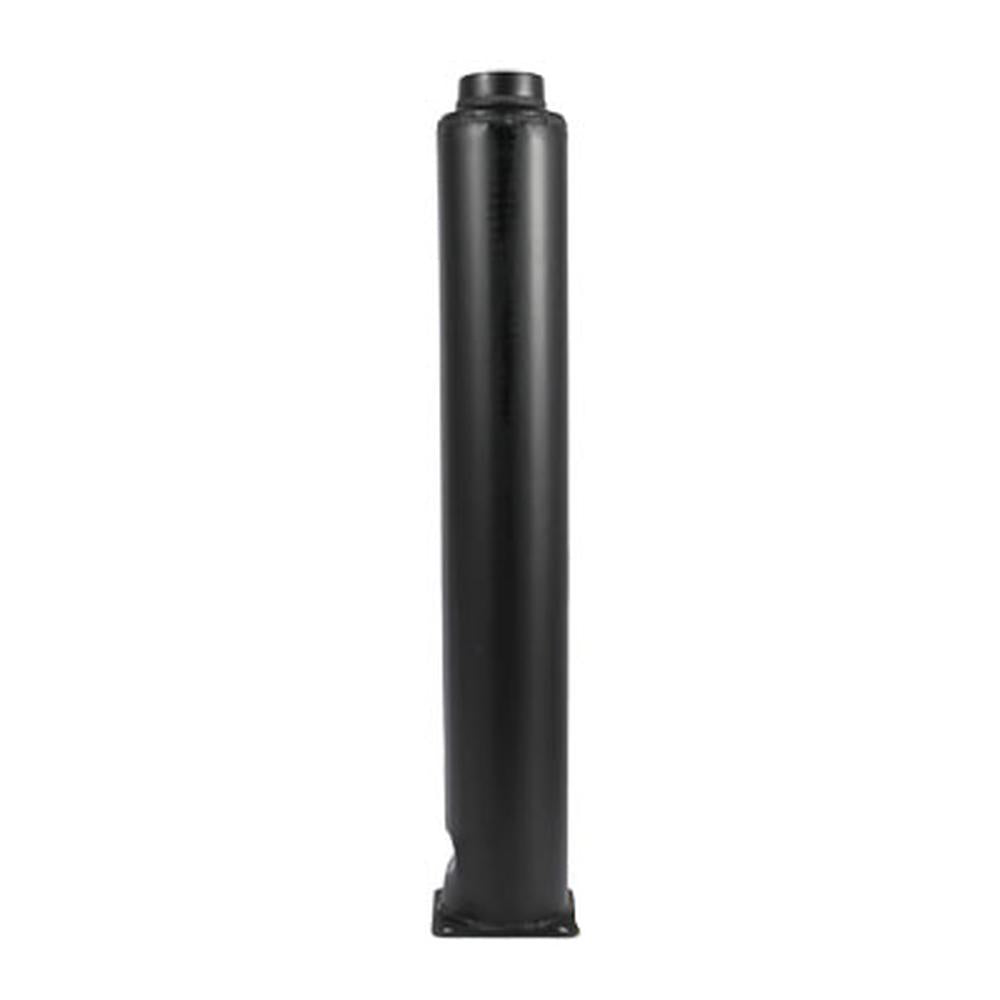

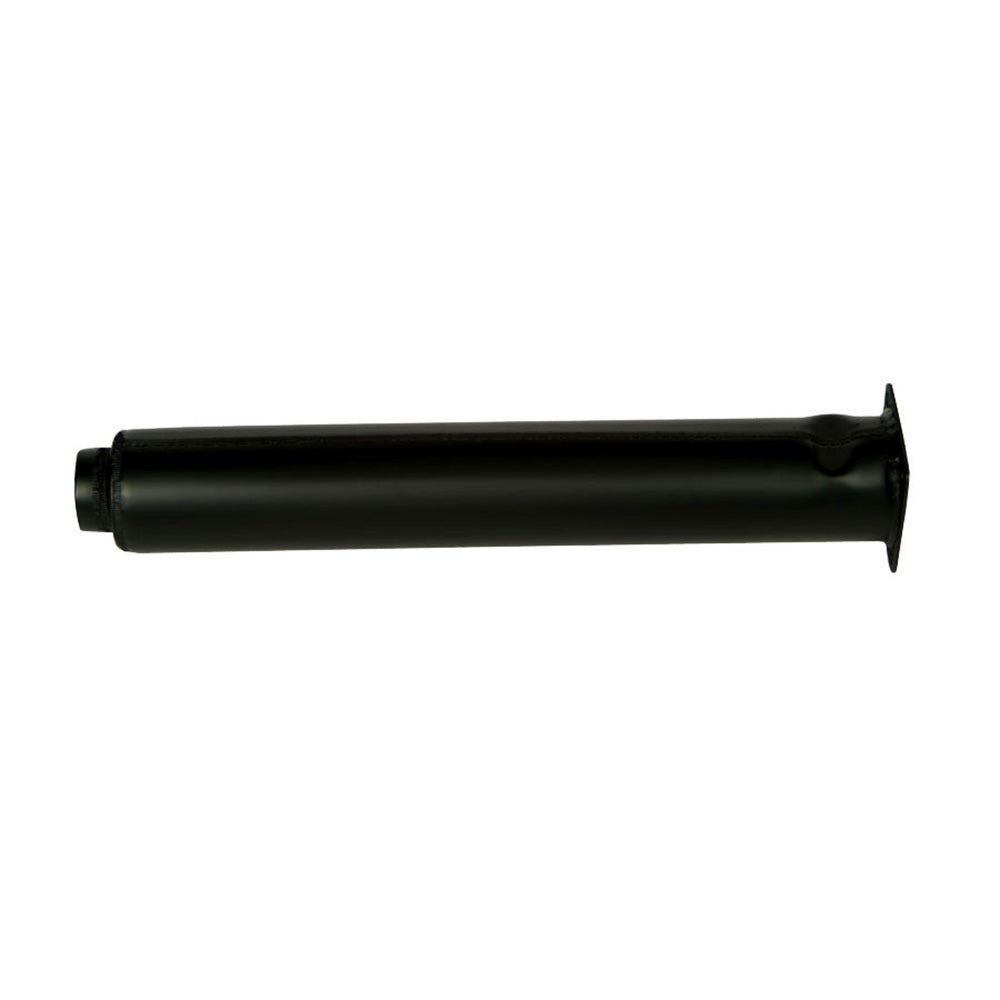

One New Aftermarket Replacement Vertical Muffler

Fits John Deere Tractor Models:
A, AN, AR, AW, AWH (-- ALL 1933-1952), G, GH, GW (-- ALL S/N 410000> 1938-1953), 60, 620, 70, 720 (-- ALL Standard Muffler)

HAS INDENT.

Notes:
Vertical / Round Body - 3-3/4" Shell Diameter
Muffler Has a 4 Bolt Mounting Plate, Uses AA4014R Manifold Pipe

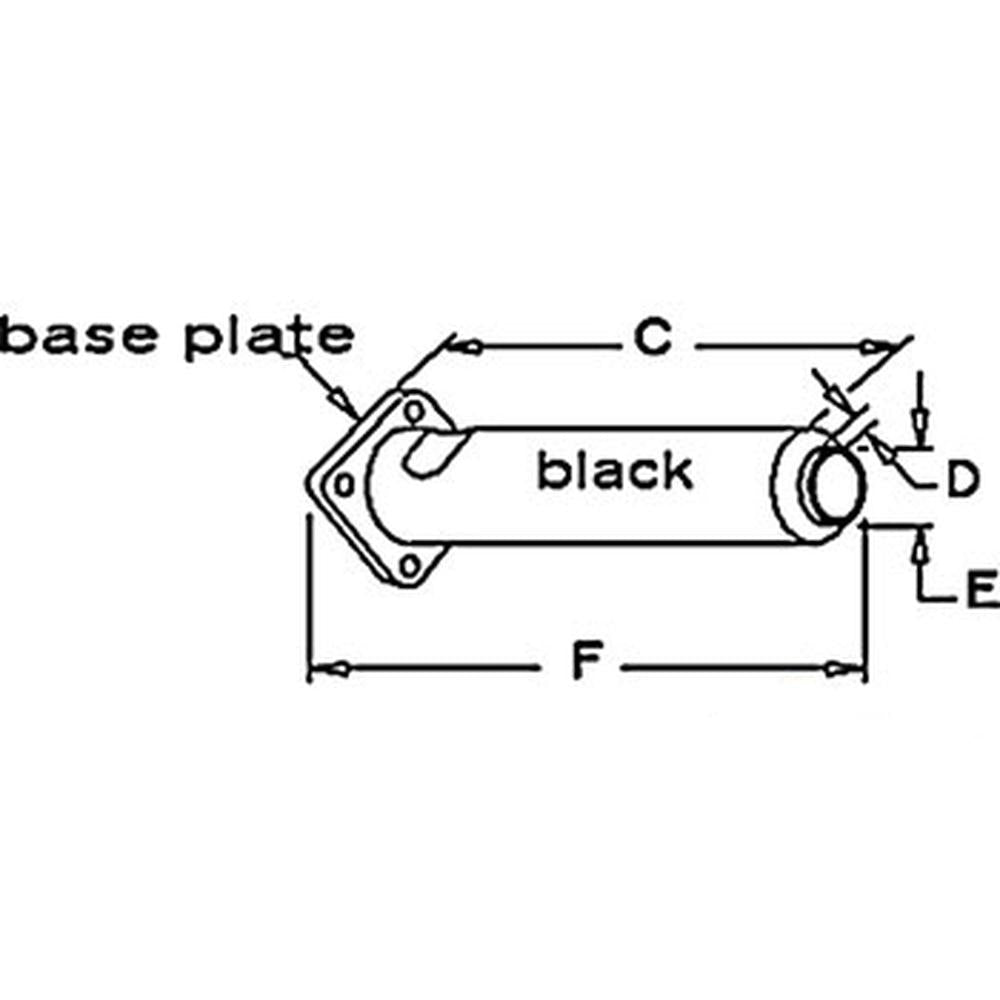

Dimensions:
- 23" Shell Length
- 1" Outlet Length
- 2-1/2" Outlet O.D.
- 24-1/2" Overall Length

Replaces Part Number(s):
AA2214R, AF3770R, AA2214, DR-3

Models This Part Fits:

70, 620, A, AR, A G 60 620 70 720 630 730 With Dent Muffler mount: Vertical Overall Length: 24-1/2" Shell Diameter: 3-3/4" Shell Length: 23" Inlet I.D.: Plate Outlet O.D.: 2-1/2" Outlet Length: 1" Muffler has 4 bolt plate Standard Equipment Color: Black, G, 720

Additional Information:

Displays the dent that allows for the steering shaft clearance Includes 4 bolt mounting plate at inlet 23" shell length 3-3/4" shell diameter 1" outlet length 2-1/2" outlet outside diameter 24-1/2" overall length
