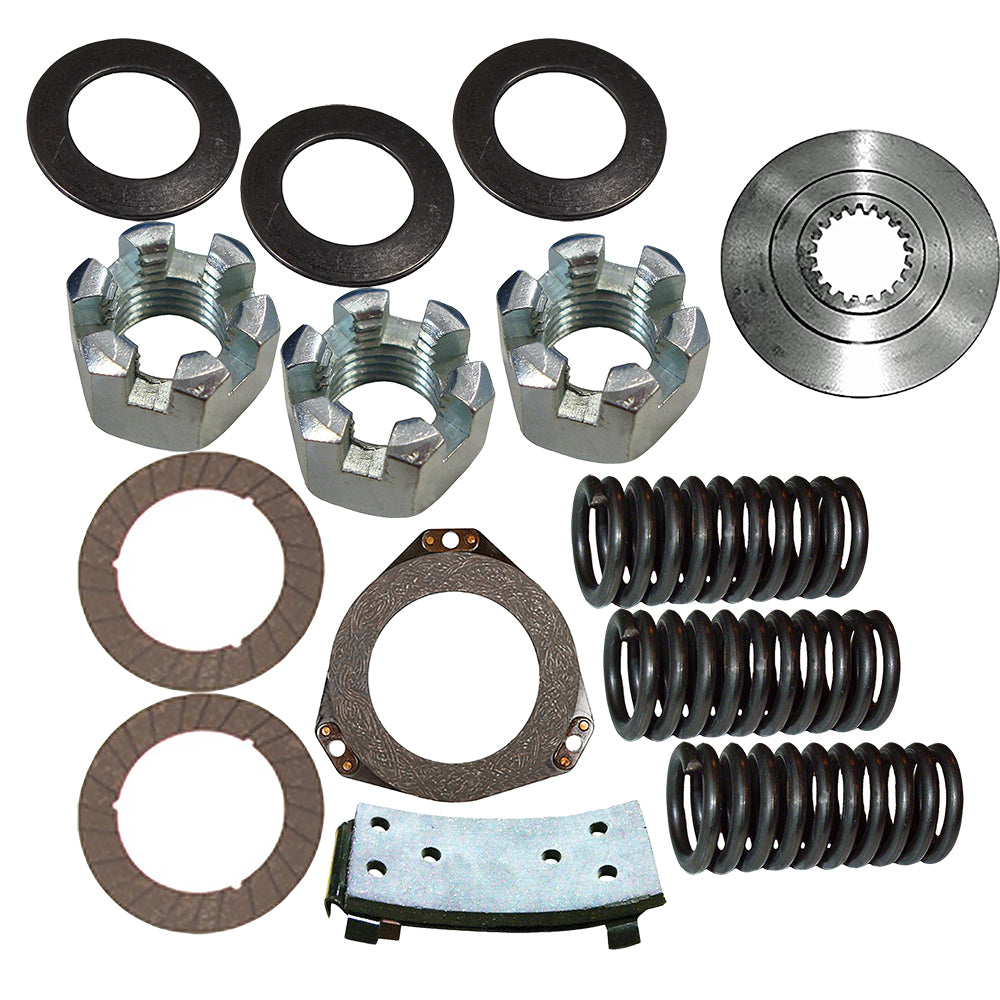

A4355R Clutch Slider Disc and Clutch Repair Kit Fits John Deere 60 620 630

Models This Part Fits:

630, 60, 620

Additional Information:

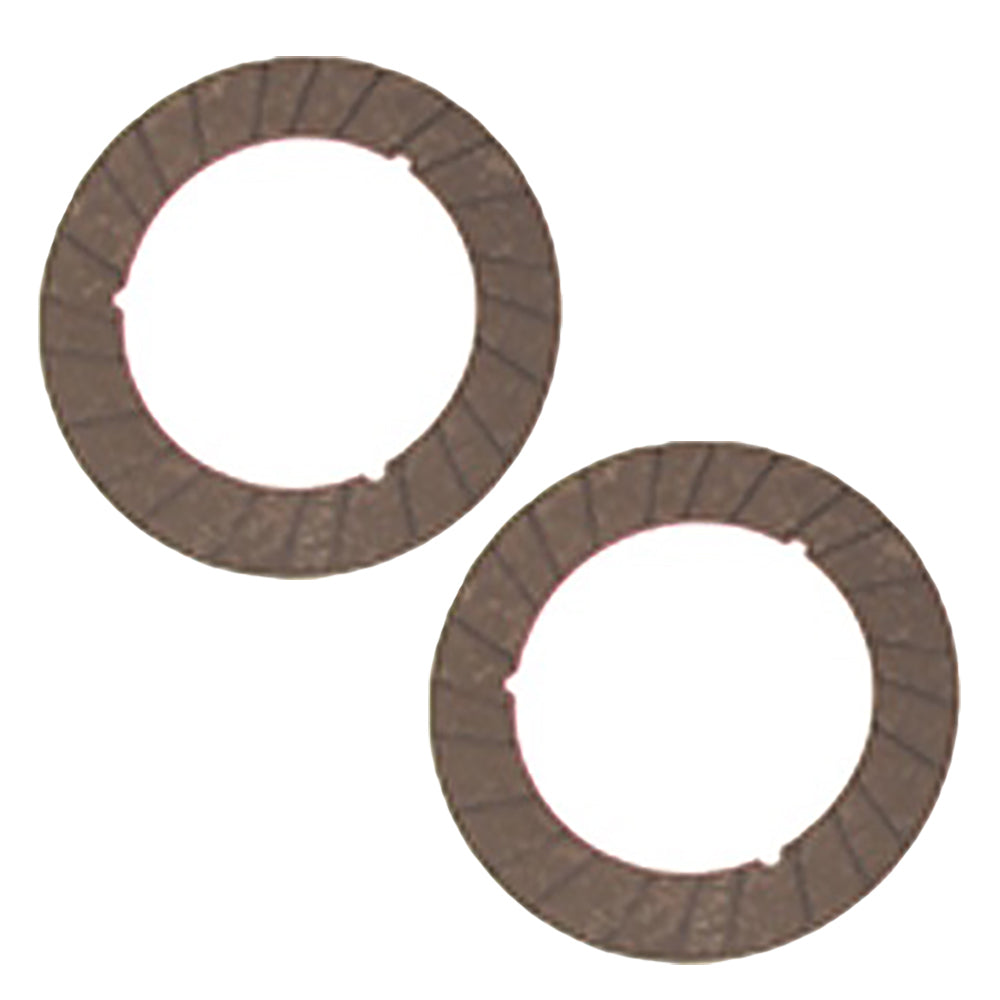

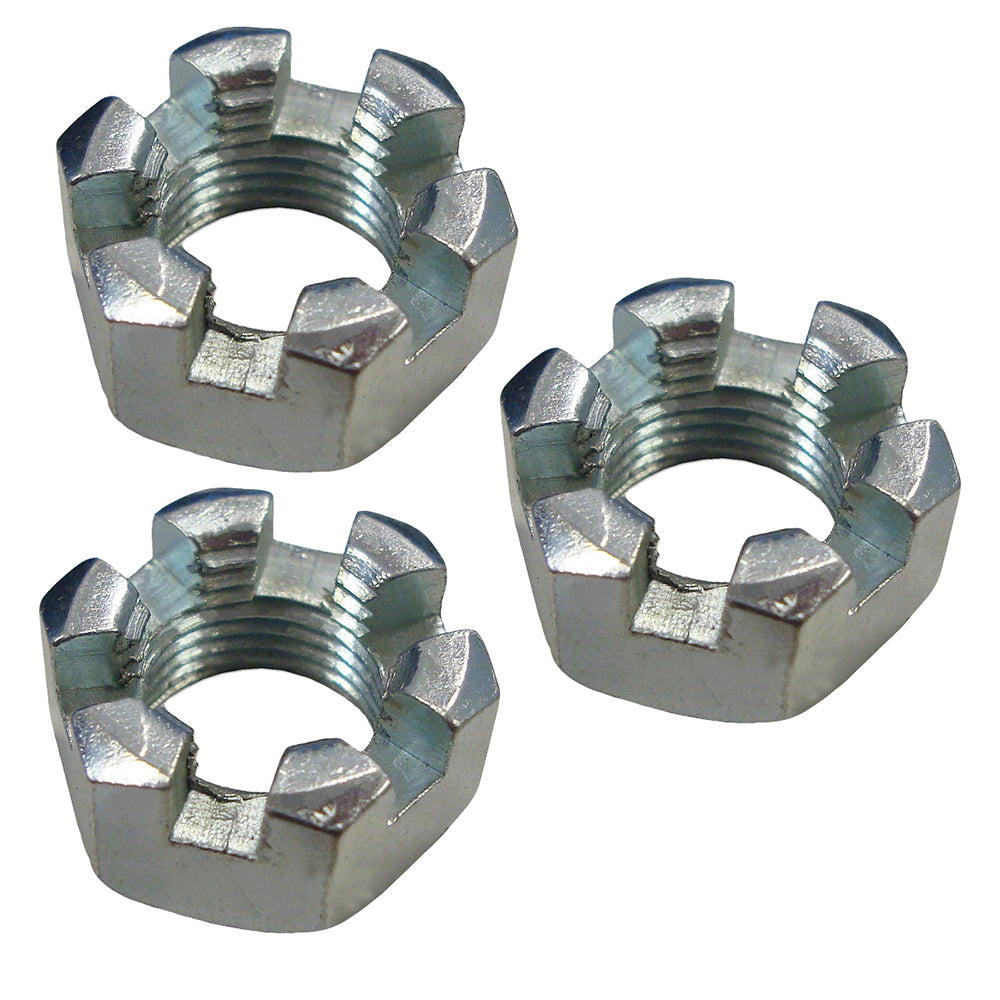

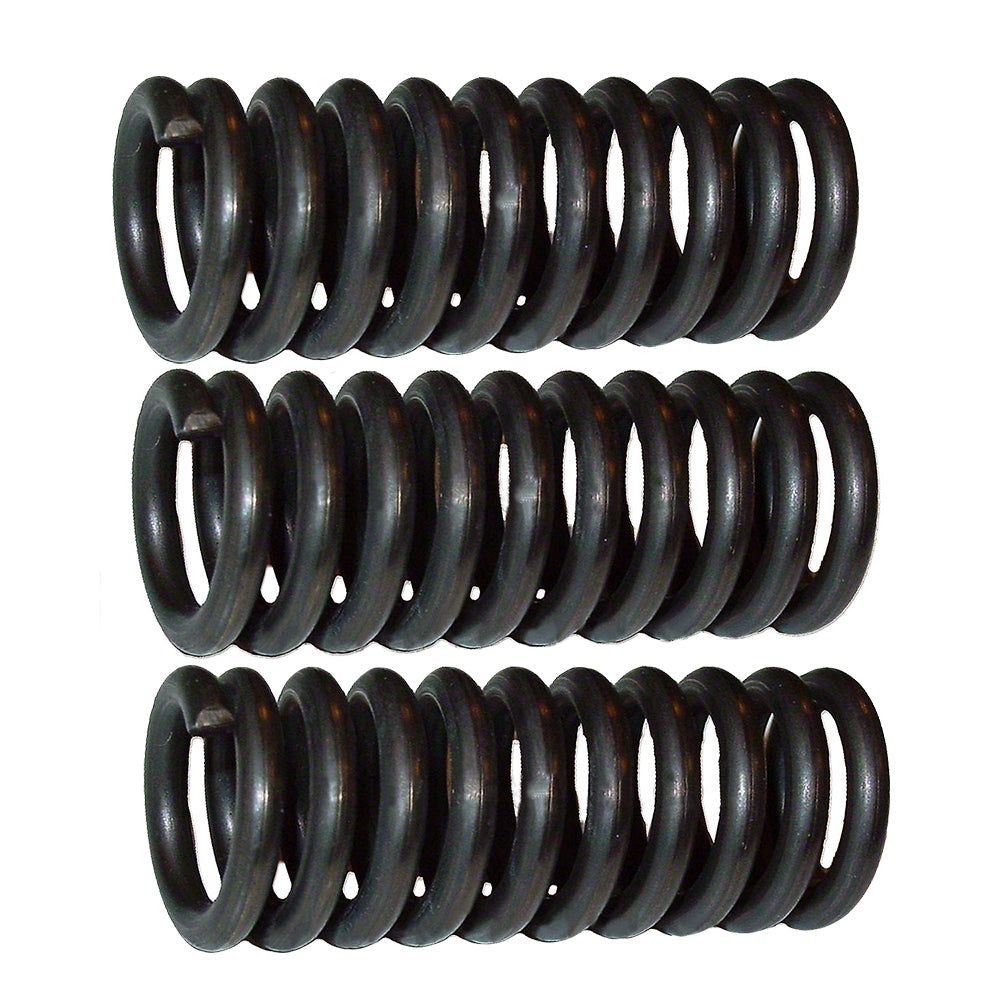

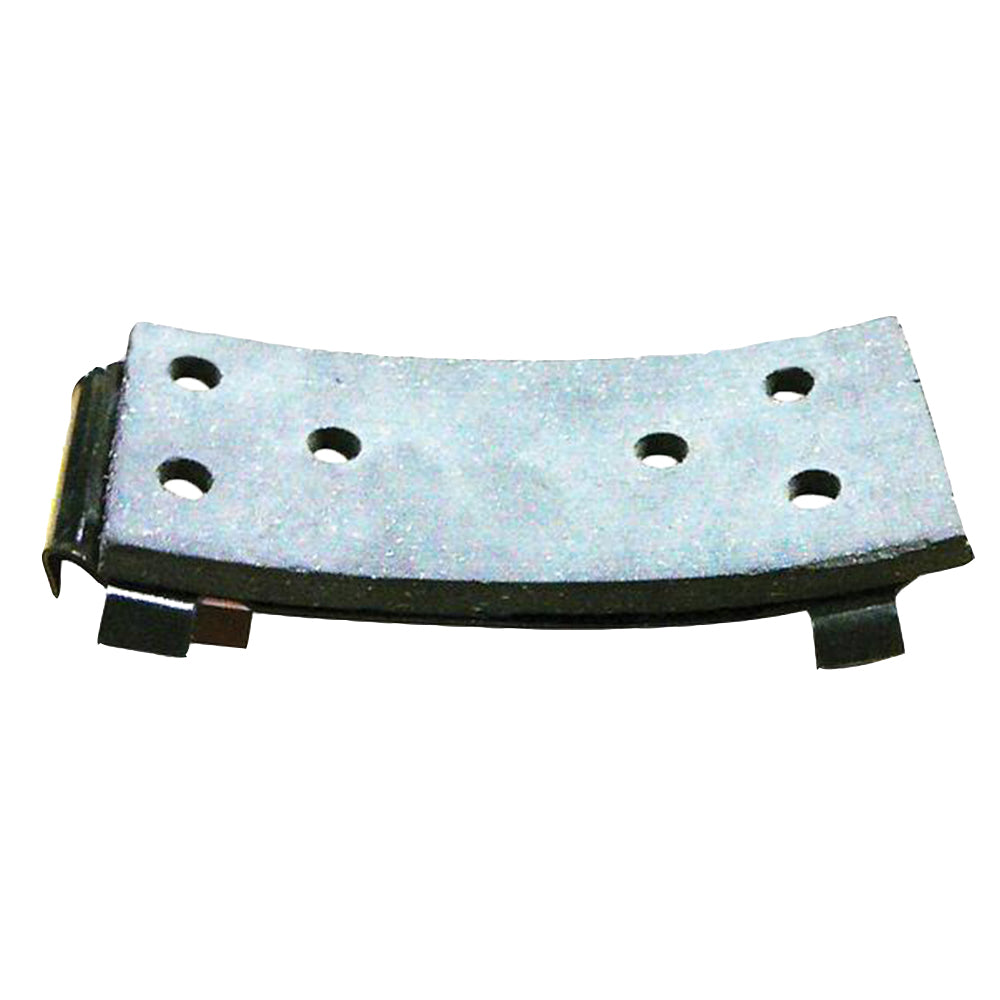

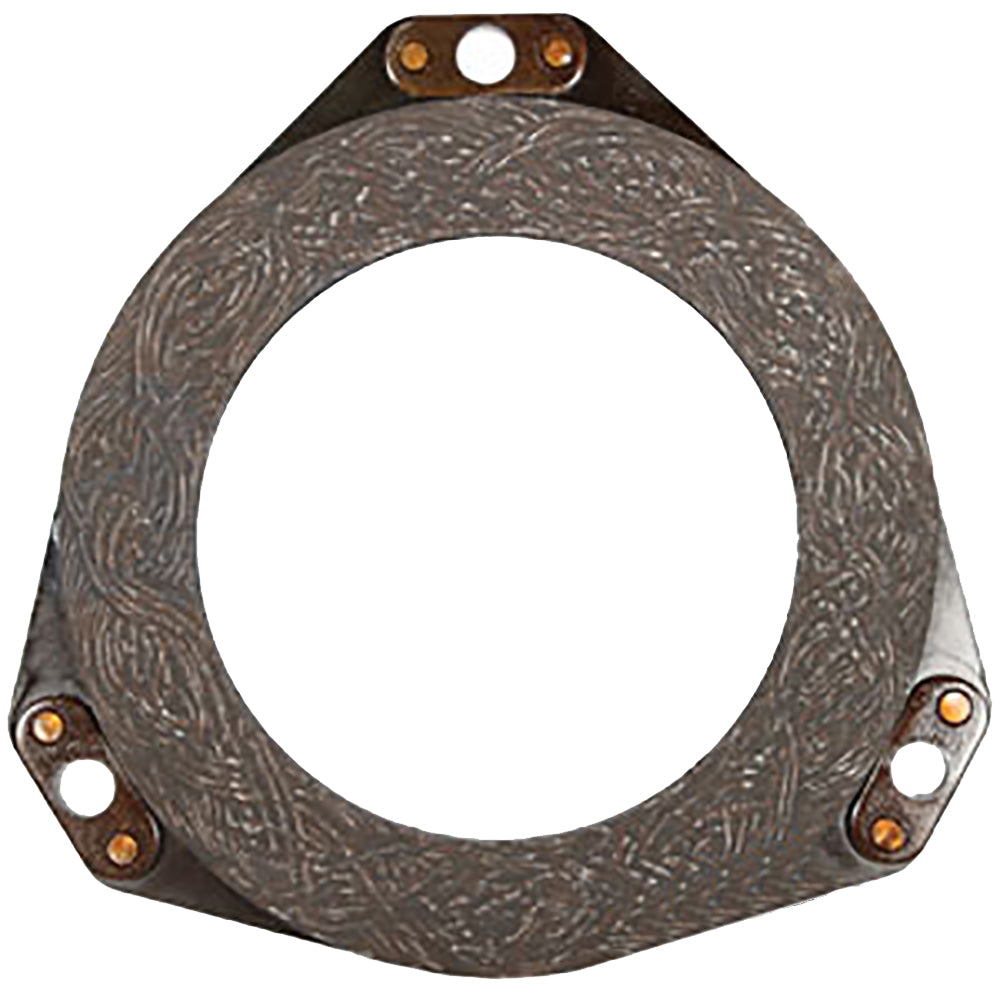

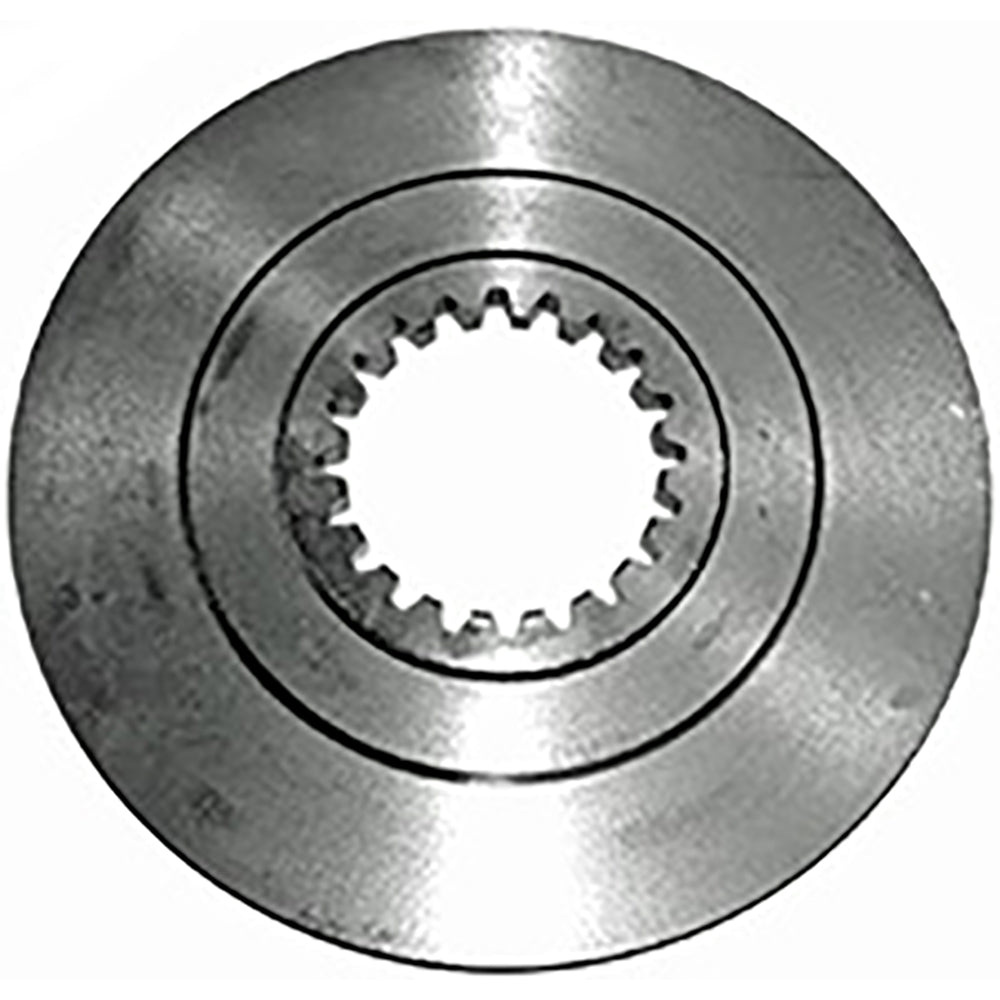

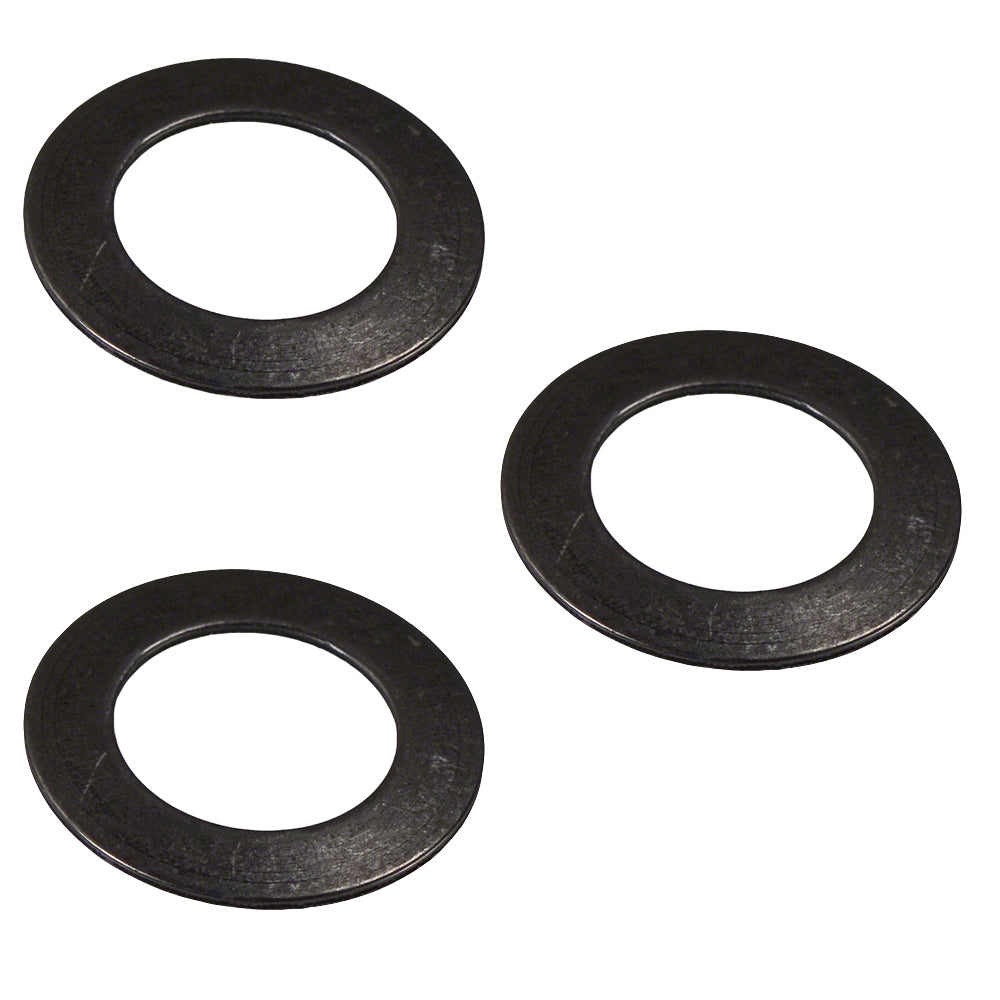

(1) Facing Clutch Pulley 10" disc outside diameter 0.393" thick Replaces Part Numbers: AA5082R, AA6129 (2) Facing Clutch Disc 10" outside diameter 6-3/4" inside diameter 0.150" thick The side with the grooves faces the driving disc 1-5/8" lining width Replaces Part Numbers: R90215, C614R (1) Brake Pad Pulley Non-asbestos lining with countersunk brass rivets Replaces Part Numbers: AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Spring 1.915" long 0.740" outside diameter 0.500" inside diameter 0.120" wire thickness The clutch disc adjusting spring mounts to the outer cast iron adjusting disc 3 springs used per tractor Replaces Part Numbers: A352R (3) Clutch Adjusting Nut 9/16" - 18 NF Grade 5 Slotted hex nut, 9/16" 3 used per tractor Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" inside diameter 0.937" outside diameter 0.035" thick Spring steel Torque initially to 15 FT pounds, then adjust as needed Use to smooth out the hand clutch engagement 3 used per tractor Replaces part Numbers: JDS1626 (1) Clutch Slider Disc 9.910" outside diameter 0.247" thick 20 splines 3-5/8" spline inside diameter Replaces Part Numbers: AF1247R

Reference Numbers:

AA5082R, AA6129, R90215, C614R, AB4748R, AF4748R, RE29790, A352R, 14H862, R20228, D2789R, AD2850R, JDS1626, AF1247R

Product Category:

Agriculture
