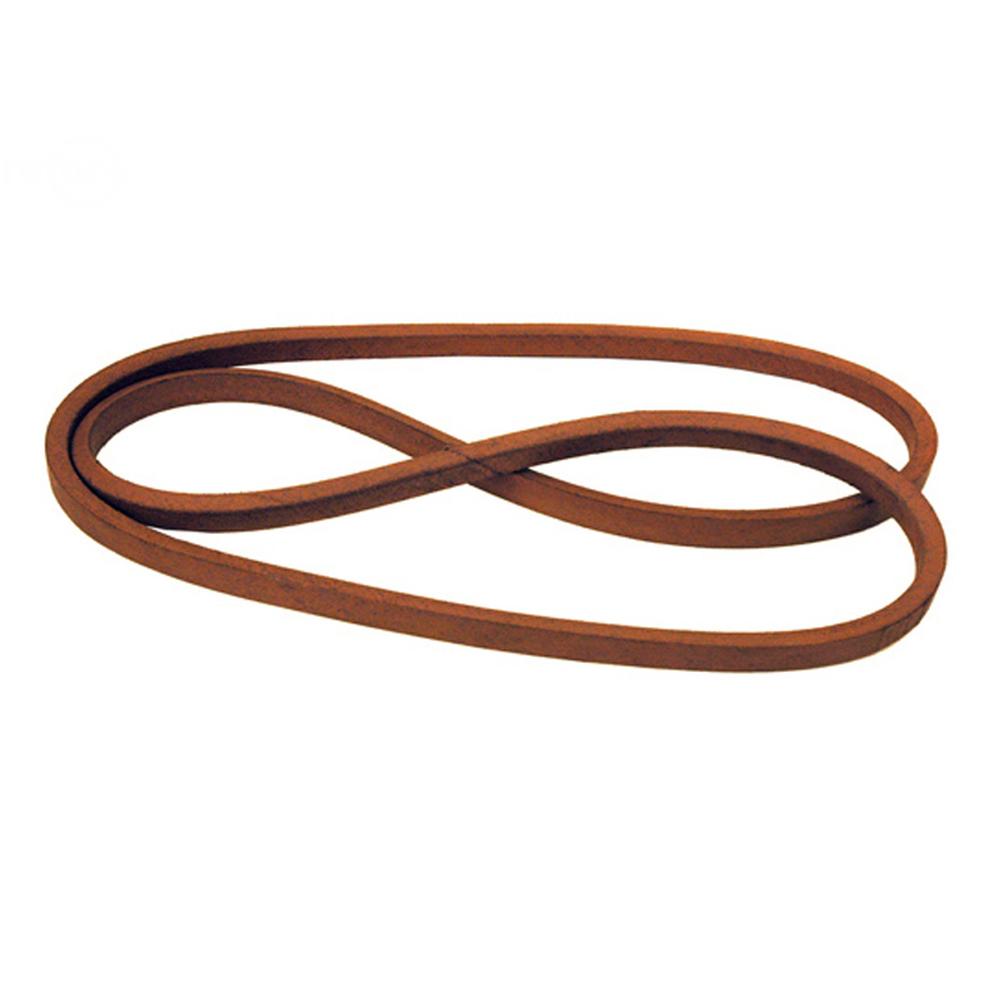

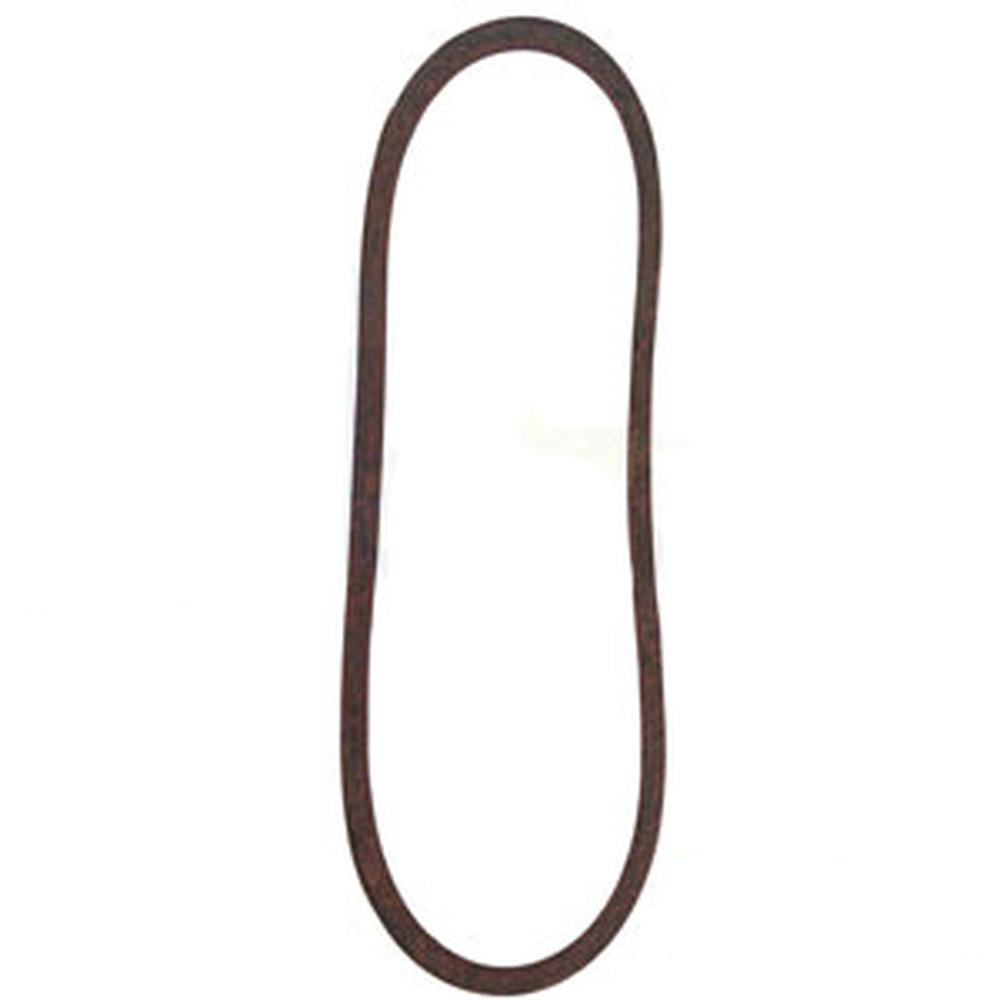

A28K/4L300K Pix Belt Made With Kevlar Compatible With Murray 3526MA, 37X65

Name: A28K/4L300K Pix Belt Made With Kevlar Compatible With Murray 3526MA, 37X65
SKU: AGER798707
Price: 19.0 USD
Availability: InStock

A28K/4L300K Pix Belt Made With Kevlar Compatible With Murray 3526MA, 37X65

$19.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Kevlar Drive Belt for Murray and Sears Craftsman Rear Engine Riders

This PIX A28K/4L300K drive belt is made with aramid (Kevlar) cord material for superior strength and heat and oil resistance. It serves as the motor-to-transaxle drive belt on Murray and Sears Craftsman 25-inch and 30-inch rear engine riders with transaxle, routing power from the engine to the drive wheels.

Specifications

Belt Type: A/4L Section, Wrapped V-Belt
Width: 1/2"
Length: 30-3/16" (approx. 30.25")
Thickness: 0.308"
Cord Material: Aramid (Kevlar) - heat and oil resistant

Compatible Models

Murray Rear Engine Riders (25" and 30" Decks): 25500X92A, 2550092A, 25511X1A, 25511X1C, 25515A, 25515B, 25515C, 25517X10A, 30500X92A, 30503X11A, 30504X20E, 30504X92A, 30505X92A, 30508X34A, 30534X1A, 30535X1A, 30535X1B, 30535X1C, 30535X1D, 305351B, 30536X1A, 30537X1A, 30538X1A, 30539X1A, 30539X1B, 30540A, 30540X5A, 30540X10A, 30540X20F, 30540X20G, 30540X29A, 30540X29B, 30540X29D, 30540X66F, 30540X67A, 30540X67C, 30540X67D, 30540X67F, 30540X98A, 30540X98B, 30541A, 30542X58A, 30543X4A, 30544X92A, 30544X92B, 30544X92C, 30544X92D, 30544192A, 30545X92A, 30545X92B, 30545X192A, 30546X4A, 30546X99A, 30546X199A, 30550A, 30550B, 30550C, 30550D, 30550E, 30550F, 30550G, 30550H, 30550X30A, 30550X92A, 30550X92B, 30550X92C, 30550X92D, 30550X100A, 30550X199A, 30551A, 30551B, 30551D, 30552X12A, 305518, 30560A, 30560B, 30560C, 30560D, 30560E, 30560F, 30560X5B, 30560X5D, 30560X20E, 30560X50A, 30560X50C, 30560X51A, 30560X51B, 30560X51C, 30560X59A, 30560X60B, 30560X66B, 30560X70D, 30560C15A, 305060X1A, 3055A, 3055X92A, 3056

Sears/Craftsman Rear Engine Riders: 502.154190, 502.251220, 502.251250, 502.254110, 502.254111, 502.254112, 502.254113, 502.254114, 502.254160, 502.254180, 502.254190, 502.255010, 502.255011, 502.255020, 502.255030, 502.255040, 502.255050, 502.255060, 502.255071, 502.255090, 502.255091, 502.255092, 502.255093, 502.255094, 502.25516A, 502.255170, 502.255171, 502.255172, 502.256210, 502.257310, 502.257330, 502.258170

Sears/Craftsman (536 Series): 536.270111, 536.270112, 536.270211, 536.270212

Replaces Part Number(s):

37X65, 37X65MA, 037X65MA, 3526MA, B1037X64MA, B1037X65MA, MXV4300, 2058, 32668MA, 37X37, 514132M1, 704081

Aftermarket Interchange Numbers

Stens 265-265, Oregon 75-065, 75065, Silver Streak 66-065, Rotary 127245, Napa 6453BR, Zip-Laser 95216, Dealers Choice 37X65DC, A&I 4402432, Vapormatic V9L0077, MTD 754-0278, 954-0278

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

502.254110, 502.255030, 30545X192A, 30551B, 30535X1B, 502.256210, 30536X1A, 502.255092, 30550X199A, 502.254180, 30560C, 30550X30A, 30540A, 30534X1A, 502.255171, 502.254111, 30552X12A, 30560C15A, 502.254114, 502.255094, 30544192A, 30560D, 30540X98A, 536.270212, 30560X20E, 502.251250, 305060X1A, 30550X92A, 30550D, 30560F, 30544X92D, 30551D, 30550B, 30535X1A, 30540X66F, 30550X100A, 30542X58A, 502.25516A, 30535X1D, 30544X92C, 30504X92A, 502.255071, 30508X34A, 30550C, 30539X1B, 502.257330, 25515C, 30550G, 536.270211, 502.255010, 536.270112, 30560X66B, 30550F, 30560B, 2550092A, 25511X1C, 25500X92A, 25515A, 30540X20F, 30503X11A, 30560X5B, 30500X92A, 30537X1A, 30538X1A, 30560X51B, 30 INCH REAR ENGINE (w/ transaxle), 502.154190, 30544X92A, 502.255020, 502.255093, 30540X67D, 30505X92A, 30540X29B, 502.255091, 30546X99A, 30560X59A, 3056, 30560X50C, 30560E, 30540X67A, 502.255050, 30543X4A, 25515B, 502.255090, 30550X92B, 30546X4A, 30541A, 502.255060, 30545X92B, 30545X92A, 30540X10A, 30540X98B, 30560X50A, 30540X5A, 3055X92A, 30550X92C, 30550A, 30560X51C, 536.270111, 30540X29A, 30535X1C, 502.251220, 502.255040, 502.257310, 30550X92D, 30560X70D, 30551A, 30546X199A, 30550H, 502.254113, 3055A, 305351B, 502.254160, 30544X92B, 30550E, 30504X20E, 25511X1A, 502.254112, 30540X20G, 30540X67C, 30540X67F, 502.255011, 502.255172, Rear Engine Rider with Transaxle, 30560X51A, 305518, 30560X5D, 30539X1A, 30560A, 502.254190, 25517X10A, 30560X60B, 30540X29D, 502.255170, 502.258170
