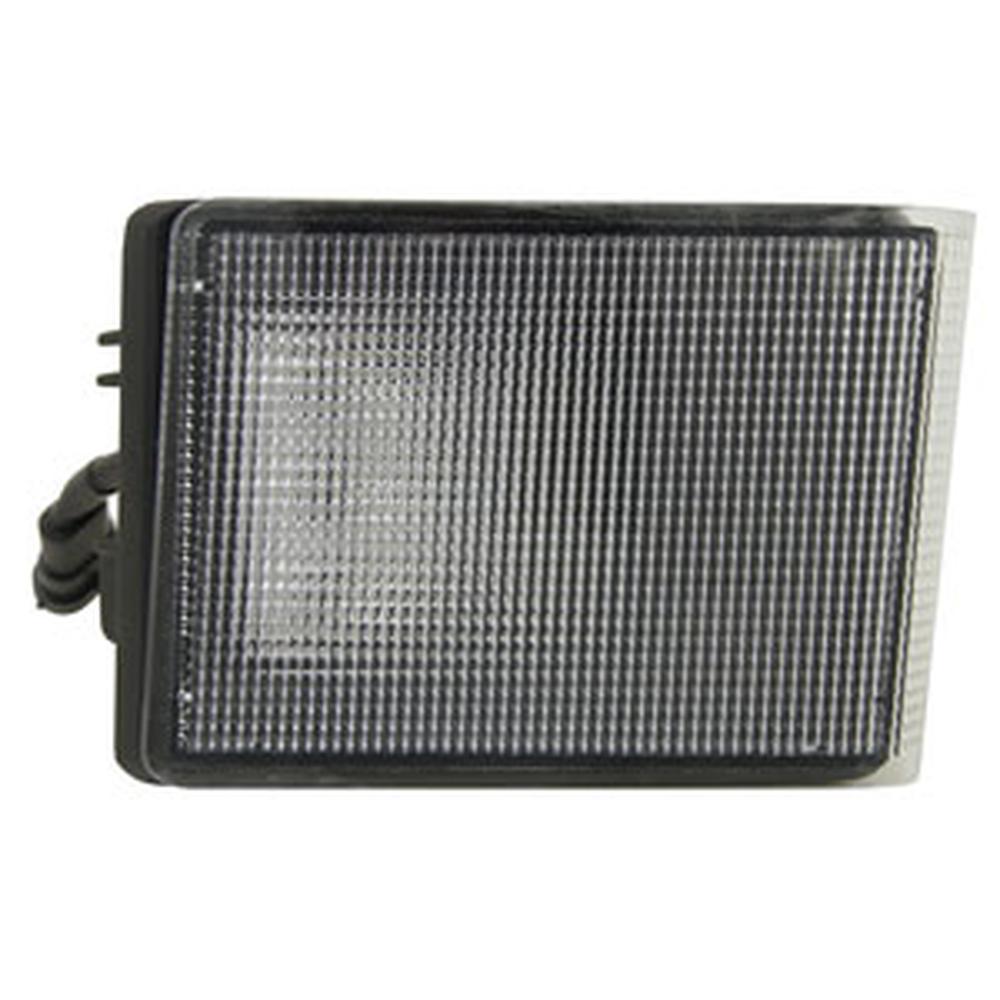

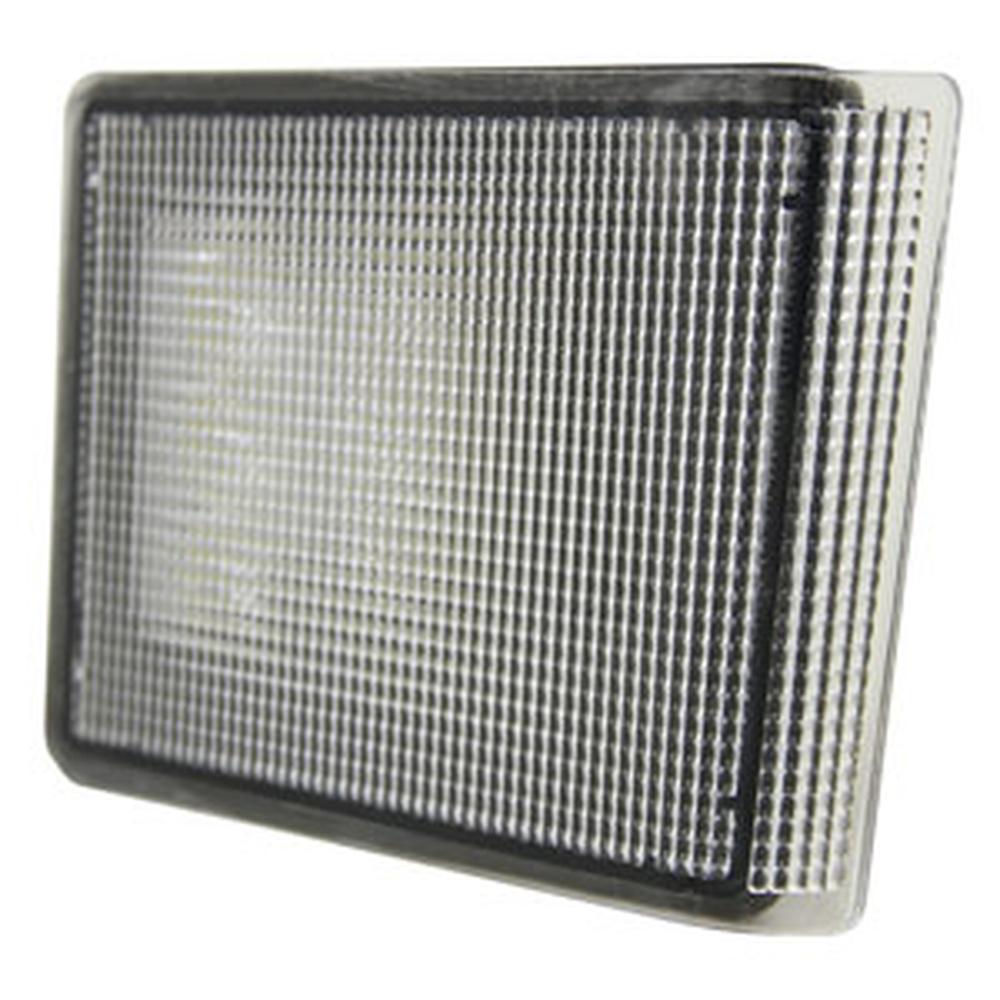

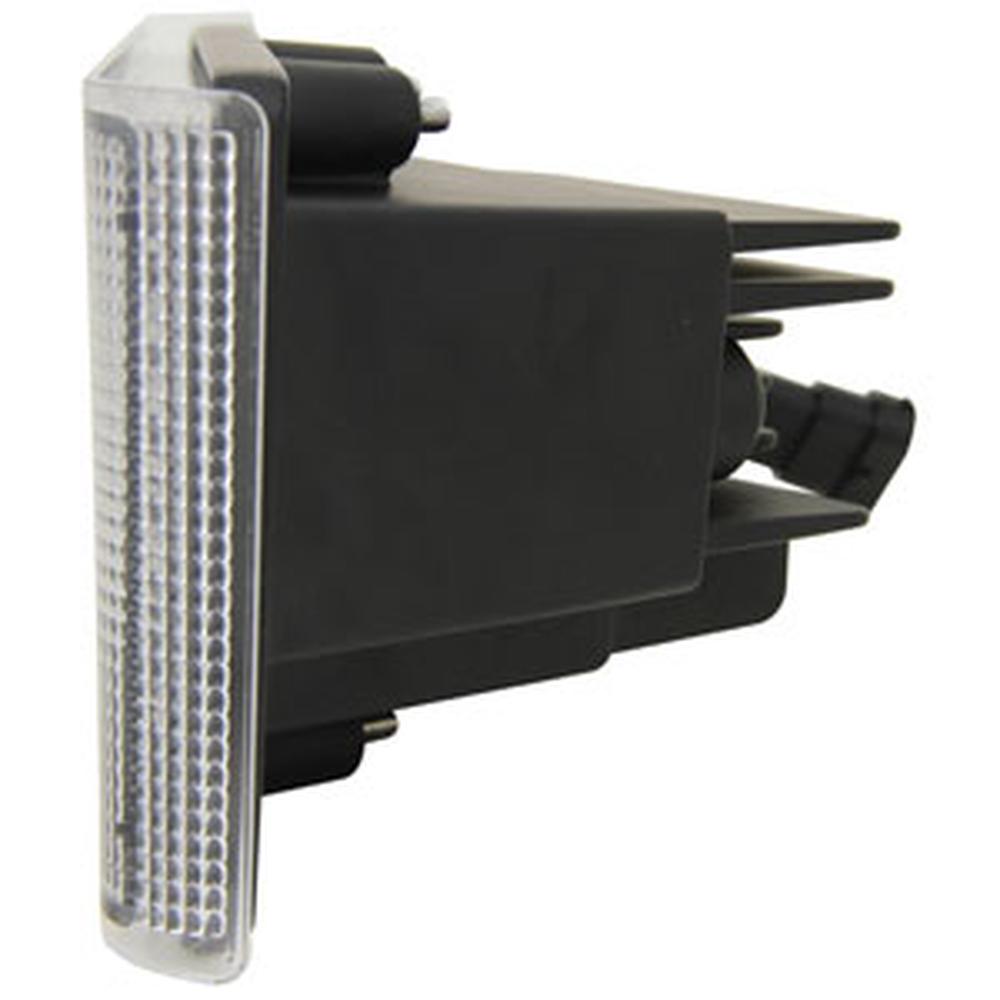

A-WL1565R Work Lamp, LED; Rectangle, Flood, Right Corner Light
A-WL1565R Work Lamp, LED; Rectangle, Flood, Right Corner Light
Couldn't load pickup availability
One New Aftermarket Replacement LED Rectangle Flood Work Lamp - Right Hand Corner Light Fits John Deere (Fits JD) Tractors and Sprayers
This rectangular flood beam LED work lamp mounts at the right-hand corner of the hood on compatible Fits John Deere (Fits JD) tractors and self-propelled sprayers, providing wide-area illumination during low-light field and road operation. Built with a die-cast aluminum body and polycarbonate lens, this lamp runs on 10-30V and draws 2.50 amps at 12V or 1.25 amps at 24V, making it compatible with standard tractor electrical systems. The 5700K color temperature and flood beam pattern deliver broad, cool-white light coverage. Includes a built-in premium EMC noise suppression filter.
Specifications
- Body: Rectangle, Die-Cast Aluminum
- Lens: Polycarbonate
- Light Pattern: Flood
- Color Temperature: 5700K
- Diodes: 6 x 5 Watt
- Effective Lumens: 2,650
- Raw Lumens: 3,300
- Voltage: 10-30V DC
- Current Draw: 2.50 Amps @ 12V / 1.25 Amps @ 24V
- EMC Noise Suppression Filter: Built-in
- Side: Right Hand (RH)
Compatible Models
Fits John Deere Self-Propelled Sprayers: 4700, 4710, 4720
Fits John Deere Tractors: 7600, 7610, 7700, 7710, 7800, 7810
Replaces Part Number(s):
RE151565, RE39346
New aftermarket replacement part - not remanufactured, not used.
