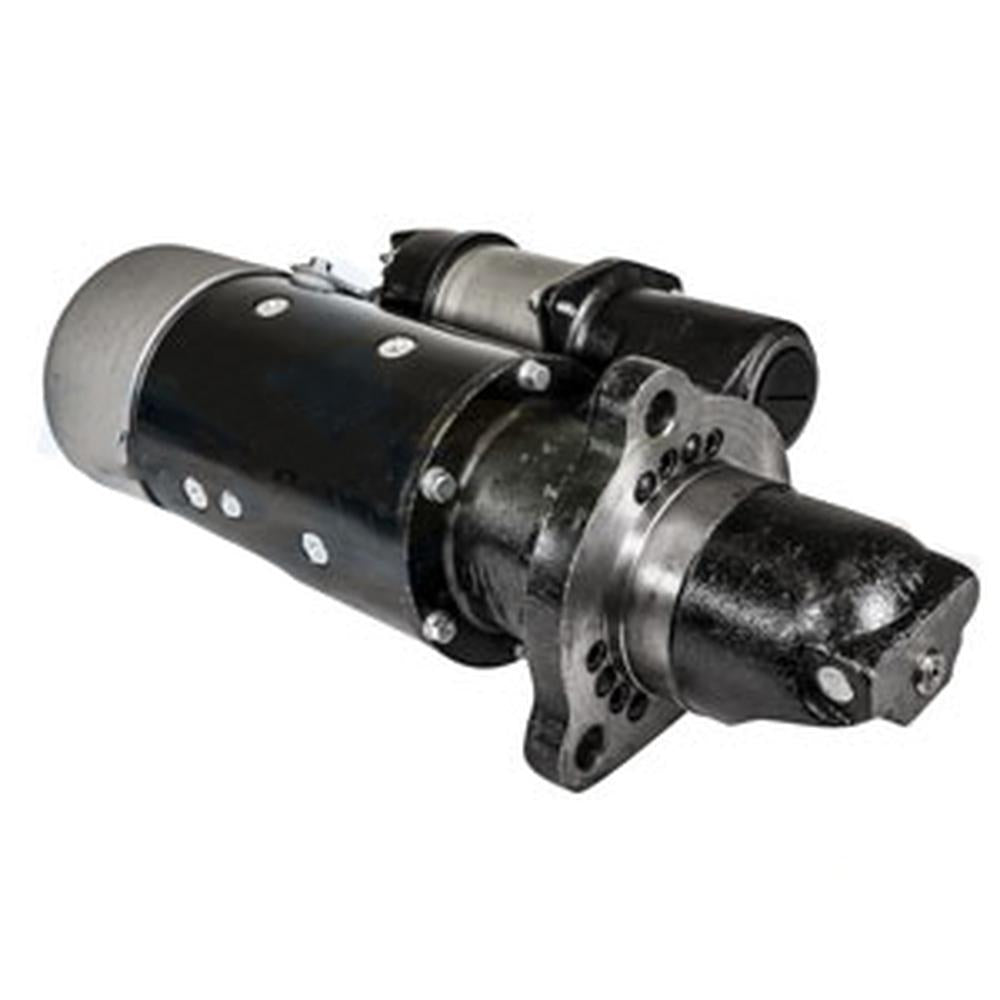

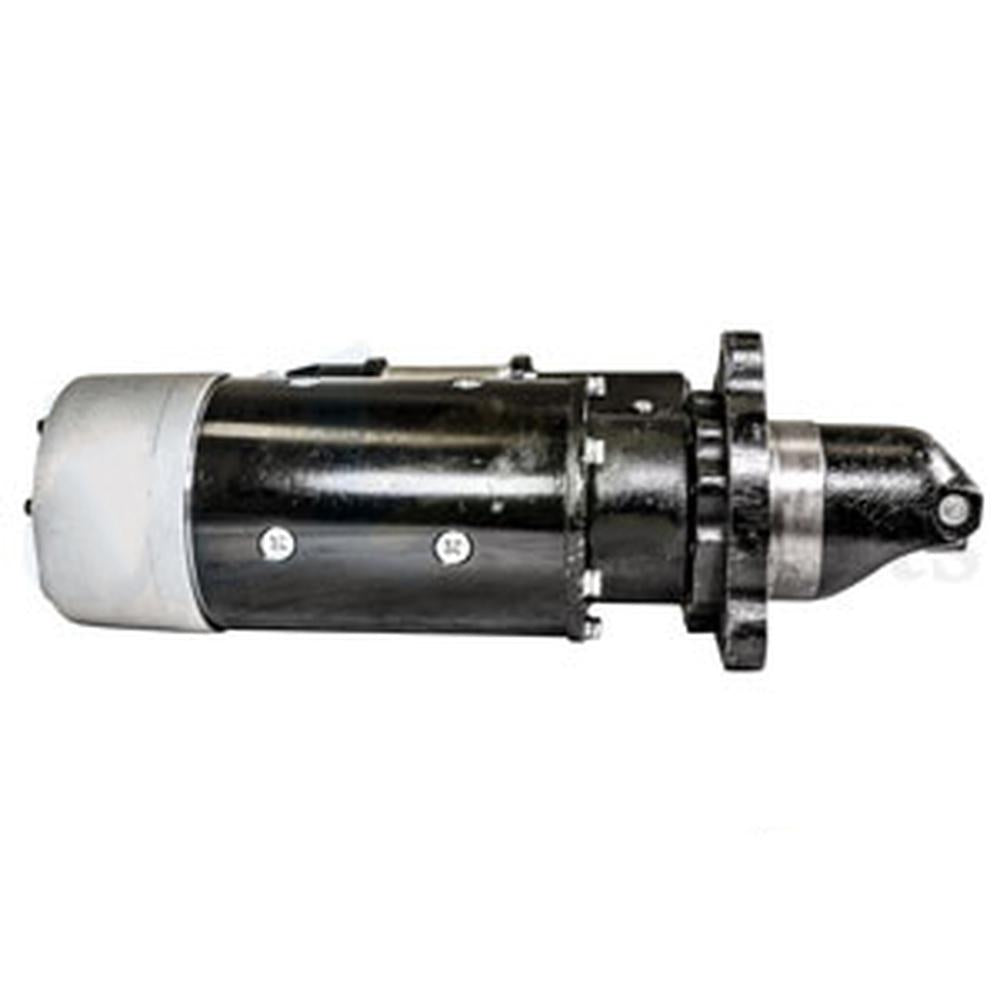

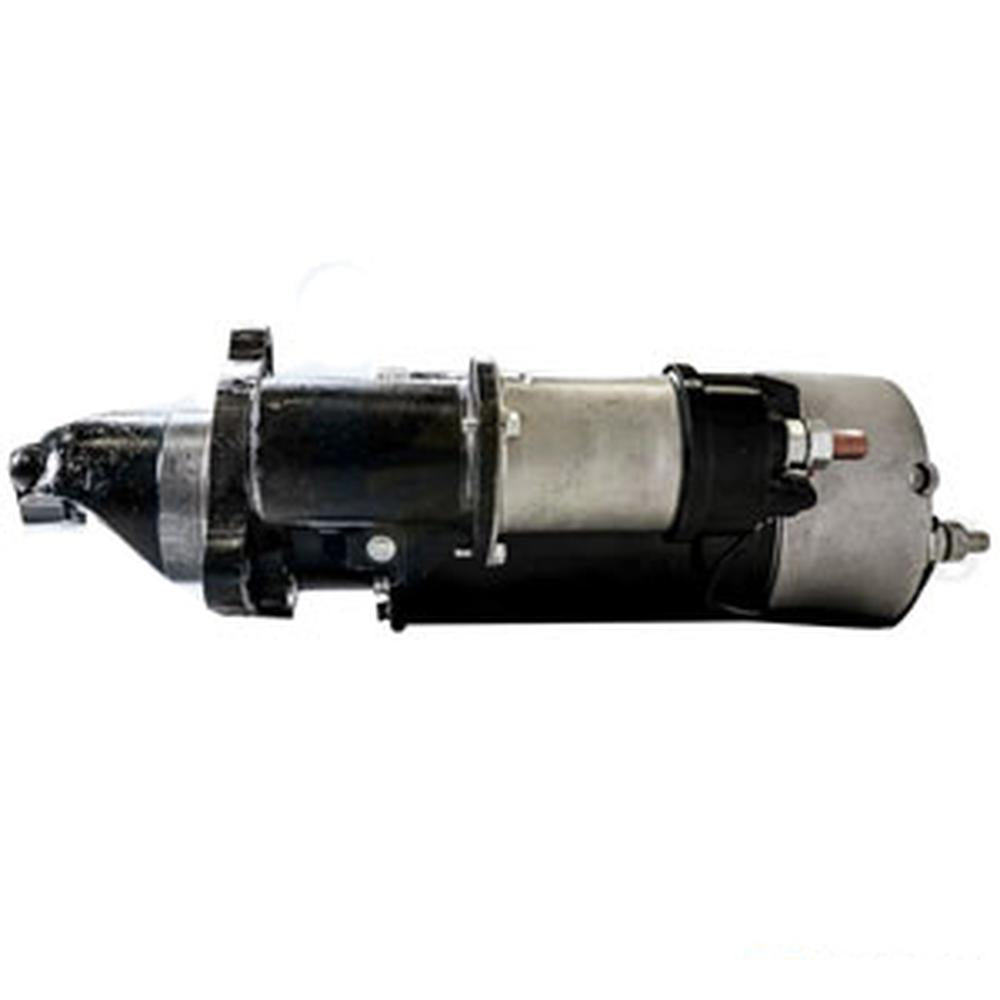

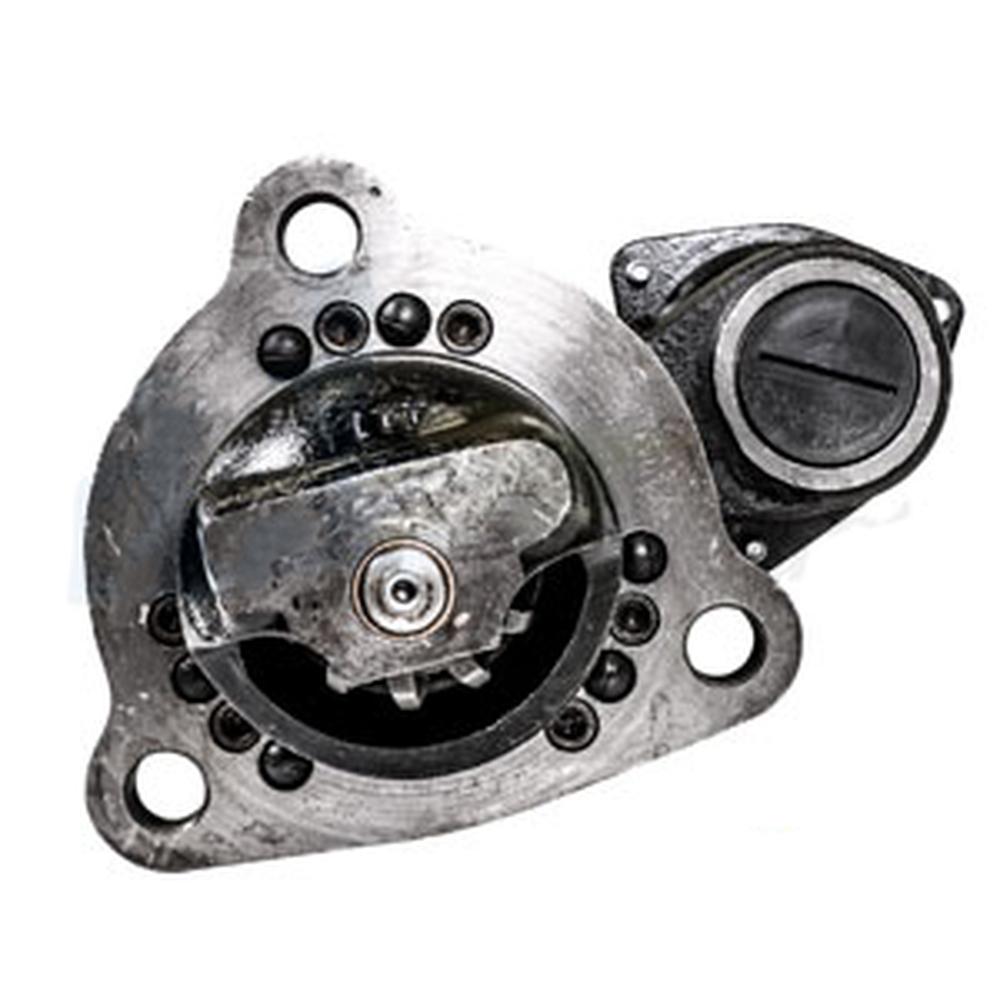

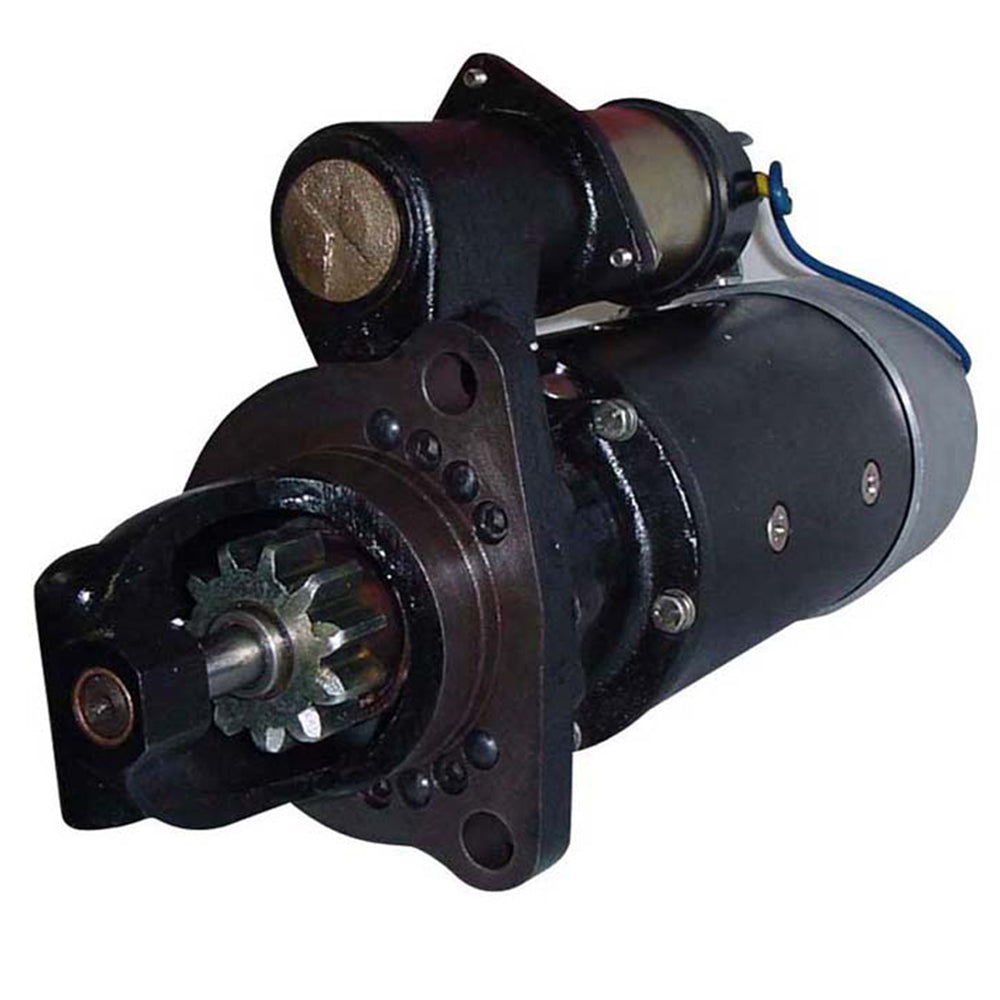

A-V102746-AI Starter, Fits Delco

A-V102746-AI Starter, Fits Delco

$703.00 CAD
$703.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Starter Fits John Deere, Fits Case/International Harvester, Fits Caterpillar, Fits Ford/New Holland, and Cummins-Powered Equipment

This 12-volt, 7.3 kW direct drive (DD) starter is a Fits Delco 42MT-type unit designed for heavy-duty agricultural tractors, forage harvesters, wheel loaders, and industrial/construction equipment powered by large diesel engines. It features an 11-tooth drive gear, clockwise rotation, overcrank protection, and a rotatable drive-end housing. Replaces OEM part number RE53695 (Fits John Deere) and a broad range of cross-reference numbers listed below.

Specifications

  • Voltage: 12V
  • Power: 7.300 kW (9.789 HP)
  • Starter Type: Direct Drive (DD) - Fits Delco 42MT
  • Rotation: Clockwise
  • Number of Teeth: 11
  • Gear OD: 2.201 in (55.900 mm)
  • Overall Length: 19.728 in (501.100 mm)
  • Solenoid Position: 82 degrees
  • Mount Hole ID 1 & 2: 0.660 in (Unthreaded)
  • Overcrank Protection: Yes

Compatible Models

Fits John Deere Tractors and Forage Harvesters: 530, 531, 535, 540, 541, 545, 570, 630, 631, 632, 634, 640, 641, 642, 644, 2100, 2115, 5730, 5830, 6950, 8560, 8570, 8630, 8760, 8770, 8850, 8870, 8960, 8970, 9170, 9180, 9250, 9260, 9270, 9280, 9350, 9370, 9380, 9390, 9480, 9482, 9680, 9682, 9880

Fits Case/International Harvester Tractors: 7588, 7788, 9150, 9170, 9180 (w/Cummins engine), 9250, 9260, 9270, 9280, 9350, 9370, 9380, 9390, STX375, STX425, STX450, W3, 580, 580C, 580CK, 530CK

Steiger Tractors: BEARCAT, COUGAR, LION, PANTHER, TIGER, CR1225, CR1280, KR1225, KR1280, PT225, PT270, PT280 (PTA280), PT297 (PTA297), PT310 (PTA310), PT325 (PTA325), PT251 (PTA251), PT270 (PTA270)

Fits Caterpillar Engines: 3406, 3408, 3412, C10, C12, C13, C15, C16

Fits Ford/New Holland: 1156, 1156V, 876V, 936V, 946V (forage harvesters and industrial)

Replaces Part Number(s):

RE53695, 107717A1, 20-2383T91, 20-2384T91, 263819C91, 6513, 6548, 0R2191, 2N2761, 3E7863, 8C3652, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 3604665R, 3604665RX, RE24305, RE41754, TY6728, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035

Aftermarket Interchange Numbers

Lester: 6513, 6548. Also interchanges with aftermarket numbers V102746, V90562.

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

570, 5730, 545, 8970, Construction Equipment, 641, 1156, W3, 9170, PANTHER, COUGAR, 9250, 8560, 530, 5830, 9380, 9350, 8870, 9680, PT270 Steiger, PTA325 Steiger, 8630, 8960, C10, 3406, 9260, 9390, C12, 530CK, PTA251 Steiger, STX425, 541, KR1225 Steiger, C16, PTA310 Steiger, TIGER, 6950, 580CK, 946V, 531, 936V, 9480, BEARCAT, 580C, PTA280 Steiger, 634, 580, 1156V, 856V, C13, 8760, 632, 9370, 3412, LION, KR1280 Steiger, 640, STX450, 630, PTA297 Steiger, 540, STX375, 8850, Agricultural Machinery, CR1280 Steiger, CR1225 Steiger, 8770, PTA270 Steiger, 631, 9282, 3408, 9270, PT225 Steiger, 9682, 9482, 644, 2115, 642, 2100, 9280, 876V, 8570, C15, 535, 9880, 9180

Additional Information:

Volt: 12 Power: 7.300 KW HP: 9.789 Rotation Direction: Clockwise Electric Starter Type: Direct Drive (Dd) Number of Teeth: 11 Gear OD: 2.201" Gear OD: 55.900 mm Solenoid Position: 82 Length: 19.728" Length: 501.100 mm Mount Hole ID 1: 0.660" Mount Hole 1 Type: Unthreaded Mount Hole ID 2: 0.660" Mount Hole 2 Type: Unthreaded Mount Hole 3 Type: Unthreaded Overcrank Protection: True Solenoid Position: 82

Reference Numbers:

783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, RE24305, RE41754, RE53695, TY6728, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, 6513, 6548, 107717A1, 20-2383T91, 20-2384T91, 263819C91, 3604665R, 3604665RX, 0R2191, 2N2761, 3E7863, 8C3652
