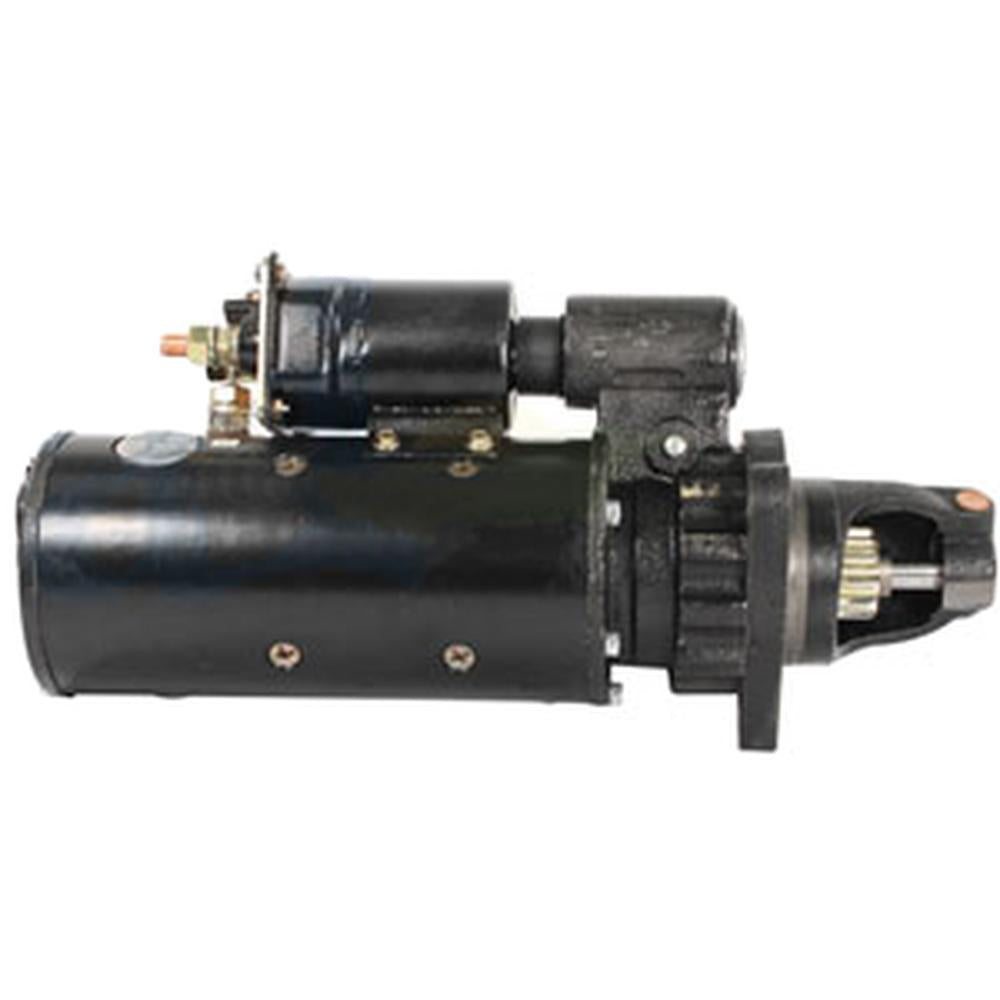

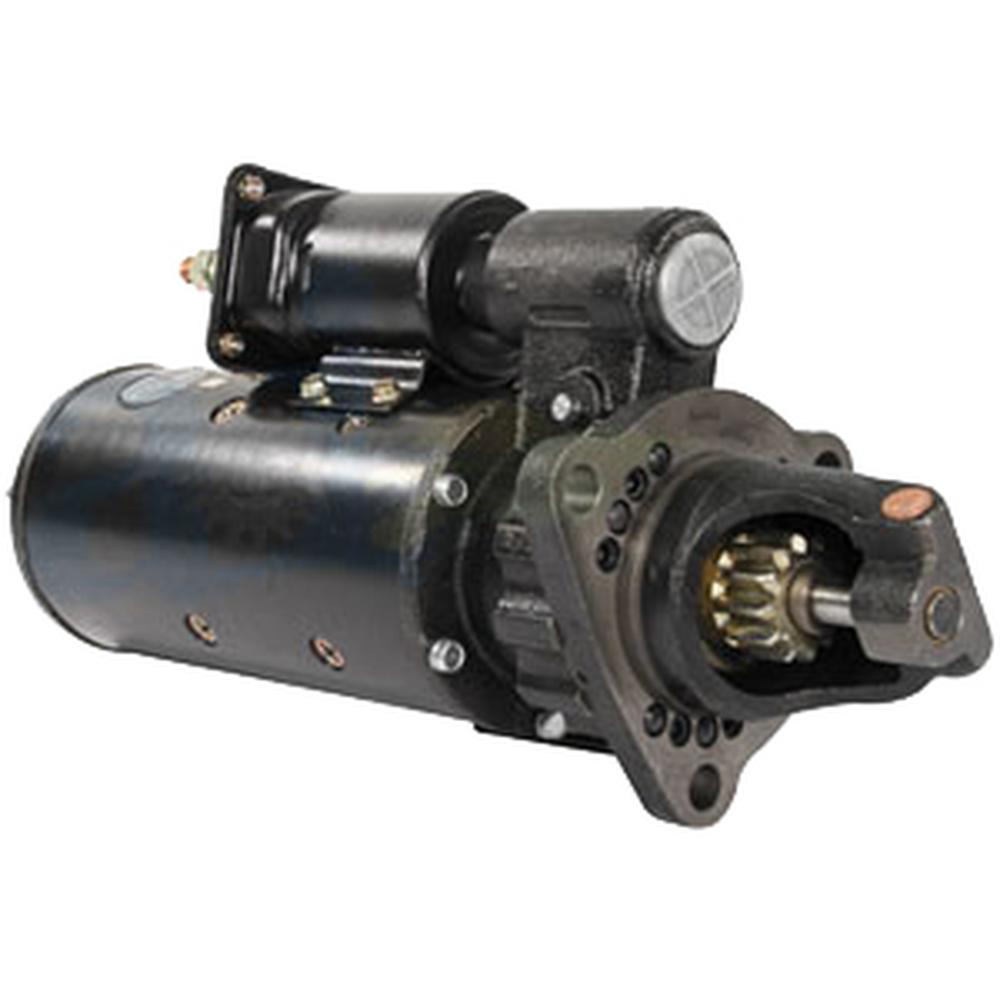

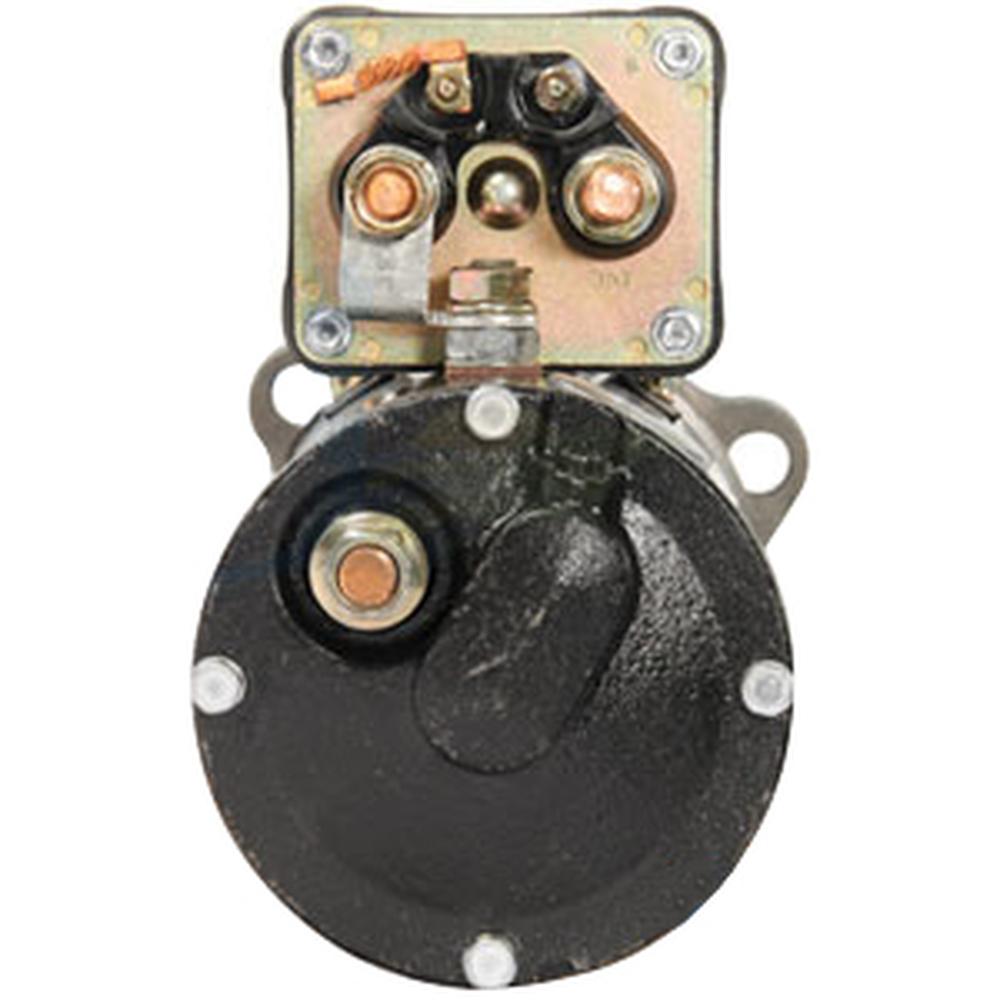

A-TS-1500-AI Starter, Fits Delco

One New Aftermarket Replacement Starter for John Deere (JD) Tractors - Delco 42MT Style

This 12-volt Delco-style starter motor is a direct-fit aftermarket replacement for John Deere large-frame tractors and equipment. It mounts to the engine in the original Delco 42MT/39MT configuration with clockwise rotation and a 12-tooth pinion drive, providing reliable cold and hot cranking across John Deere's 9 Series row-crop and scraper-special tractors as well as select earlier models.

Specifications

• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth: 12
• Type: Delco 42MT Style DD
• Pinion Pitch: 8/10
• Solenoid Position: 82 (rotatable flange)

Compatible Models

John Deere (JD) Tractors: 5010, 5020, 7520, 8450, 8560, 8570, 8630, 8650, 8760 (s/n 004321 and earlier), 8770, 8870, 9100, 9120, 9200, 9220, 9300, 9300T, 9320, 9400, 9400T, 9420, 9520, 9620

Note: The John Deere 8760 has a serial number restriction - fits s/n 004321 and earlier only. Verify fitment for your specific serial number before ordering.

Replaces Part Number(s):

SE501453, TY6730

Aftermarket Interchange Numbers

AR102188, RE38633, RE41756, RE61547, RE69590, 0R2189 (Caterpillar), 0R5218 (Caterpillar), 10461021 (Delco Remy), 10461032 (Delco Remy), 10461034 (Delco Remy), 10478803 (Delco Remy), SDR0028, SDR0122, SDR0125, SDR0221, SDR0471

New aftermarket replacement part - not remanufactured, not used.
