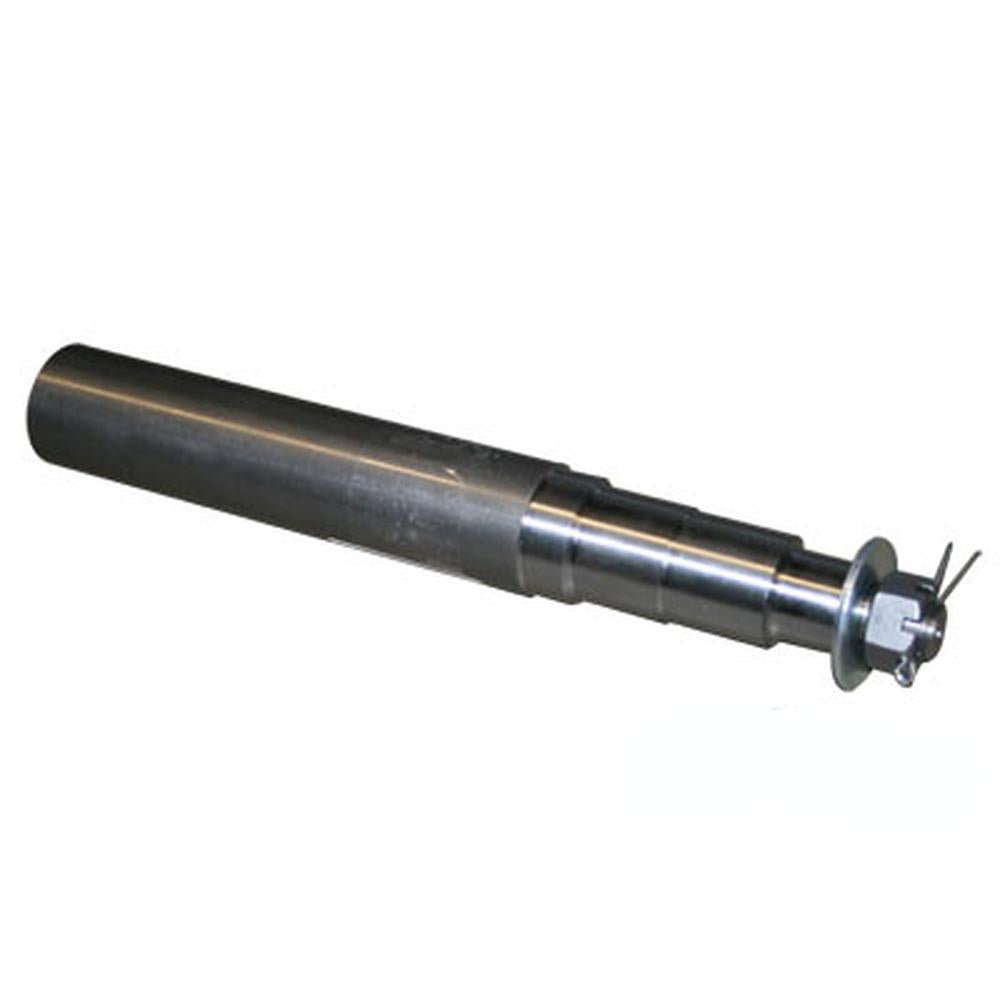

One New Aftermarket Replacement Spindle for Agricultural Implement Hubs
This aftermarket replacement spindle is designed for use with 6-bolt agricultural implement hubs. It serves as the axle stub on which the hub and wheel assembly mount, and is commonly used on planter transport wheels, grain cart axles, header trailers, and other pull-type implement running gear. The SP4910 spindle is sold on dimensional specifications and is matched to the appropriate hub by bolt pattern, pilot diameter, spindle diameter, length, and thread size.
Specifications
- Spindle Diameter: 2-1/8 in.
- Overall Length: 15-7/16 in.
- Thread Size: 7/8 in.
- Hub Bolt Pattern: 6-bolt
Replaces Part Number(s):
SP4910, A-SP4910-AI
Verify hub bolt pattern, spindle diameter, overall length, and thread size against your existing spindle before ordering. New aftermarket replacement part - not remanufactured, not used.
