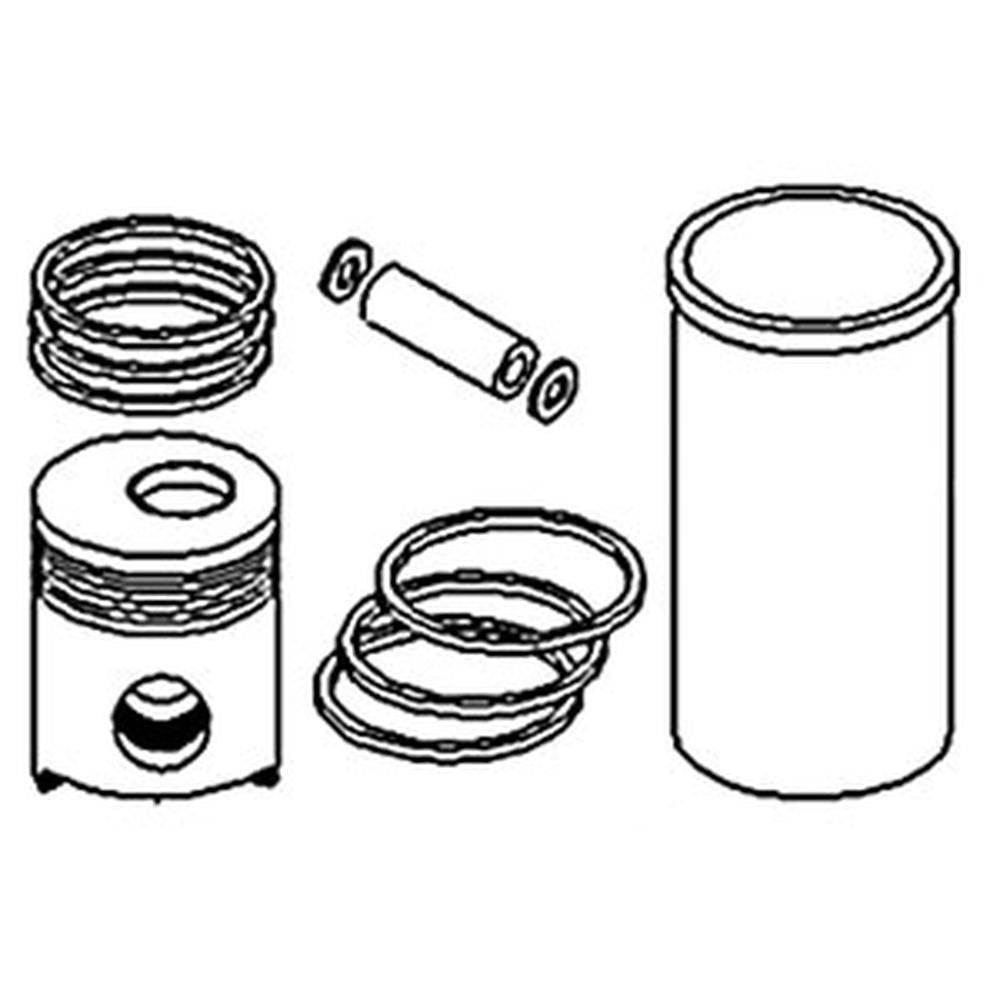

A-RK164 Piston with Rings (Std)

One New Aftermarket Replacement Piston with Rings (Standard) Fits International Harvester (IH) Agricultural and Industrial Equipment

This standard-bore piston with rings is a direct replacement for the Fits International Harvester C135 engine. The C135 is a 4-cylinder, 2.2L wet-sleeve engine used in a range of Fits International Harvester tractors, crawlers, industrial machines, and hay equipment. Standard (Std) bore size is 3.250 inches. This piston-and-ring assembly is sold as a single-cylinder unit and is intended for engines where the original bore dimensions are intact or where sleeves have been renewed to standard size.

The C135 engine features two compression rings per piston and one oil control ring. Proper ring fitment ensures correct combustion chamber sealing, oil control, and compression retention during engine rebuild or overhaul.

Specifications

• Bore Size: 3.250" (Standard)
• Compression Rings per Piston: 2
• Oil Ring per Piston: 1
• Engine: Fits International Harvester C135
• Sold as: Single-cylinder unit

Compatible Models

Fits International Harvester - Tractors: 330, 340, 404

Fits International Harvester - Construction and Industrial: T340, TC5, 500, 2404

Fits International Harvester - Crawlers/Dozers: T340, TC5, 500

Fits International Harvester - Hay Equipment: 201

Fits International Harvester - Engine: C135

Replaces Part Number(s):

374478R1, 371478R2

New aftermarket replacement part - not remanufactured, not used.
