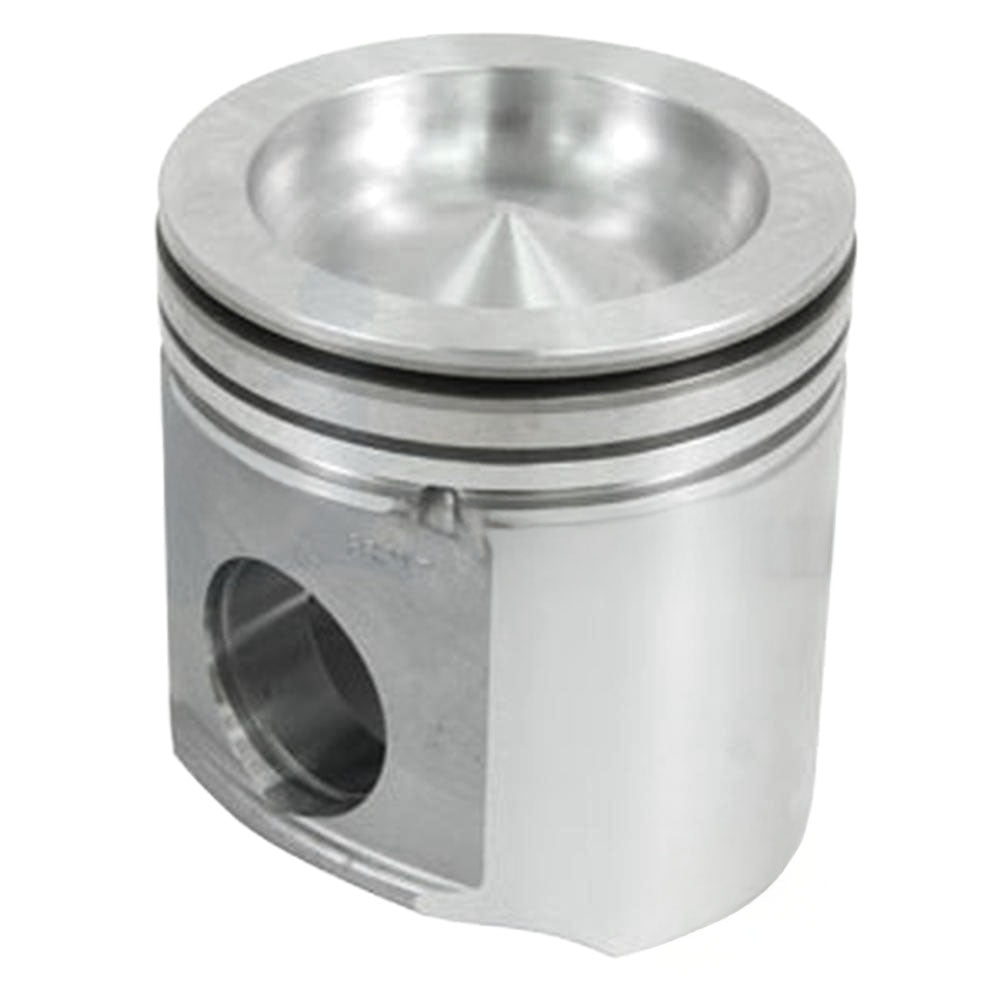

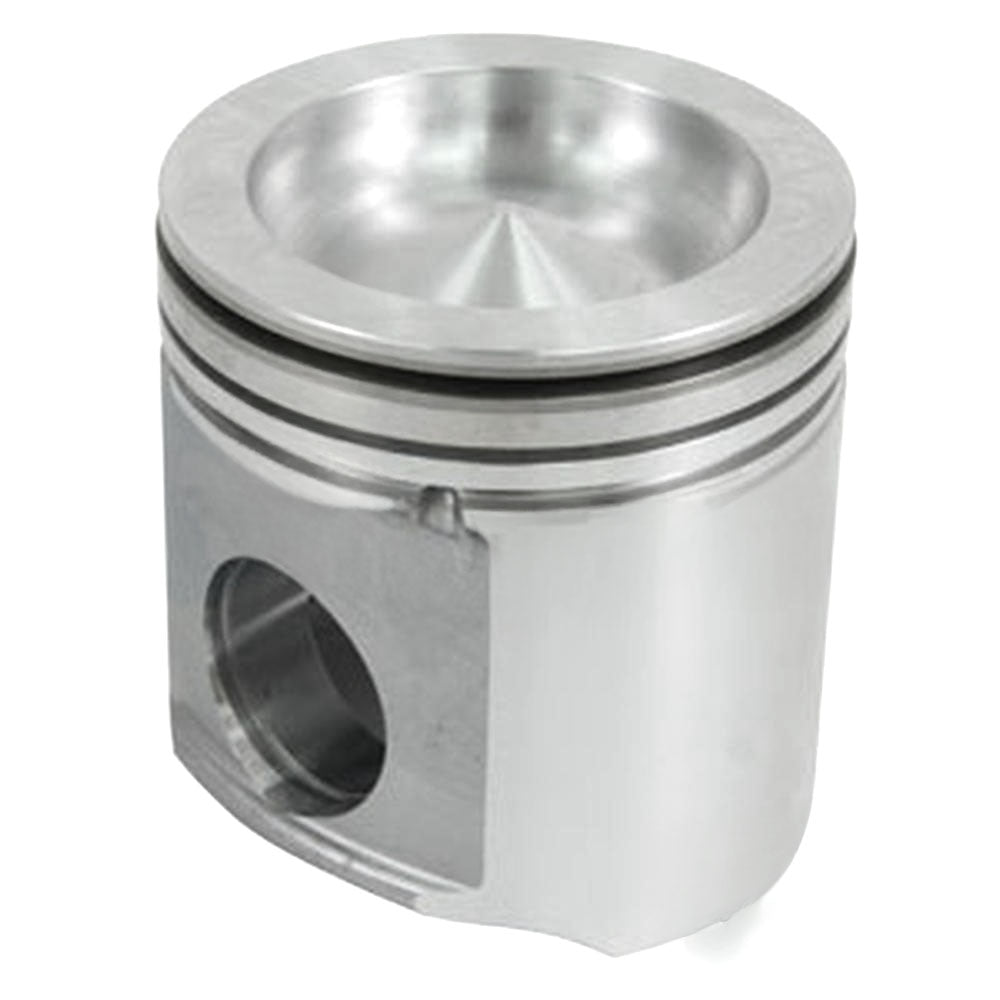

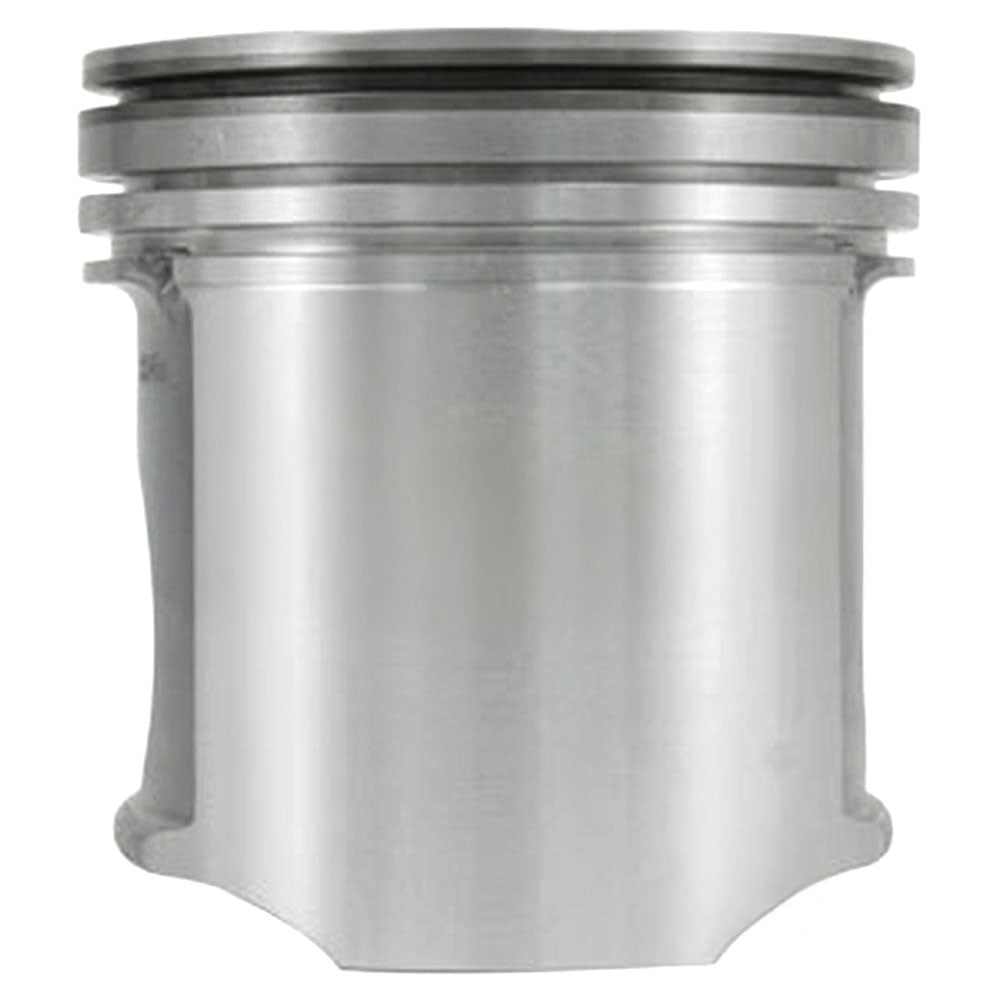

A-RE515037 Piston

One New Aftermarket Replacement Piston Fits John Deere PowerTech 4045 / 6068 Diesel Engines

This aftermarket replacement piston Fits John Deere PowerTech 4045T/H and 6068T/H diesel engines running Tier 2 and Tier 3 emissions configurations with 4 valves per cylinder and High Pressure Common Rail (HPCR) fuel injection. The piston is marked RE515037 and installs in the cylinder bore of these 4.5L and 6.8L engines used across a wide range of Fits John Deere agricultural tractors and construction equipment. Verify the piston number stamped on your existing piston before ordering.

Specifications

• Bore Diameter: 4.19 in (106.5 mm)
• Pin Diameter: 1.625 in (41.30 mm)
• Compression Height: 71.71 mm
• Piston Length: 104.60 mm

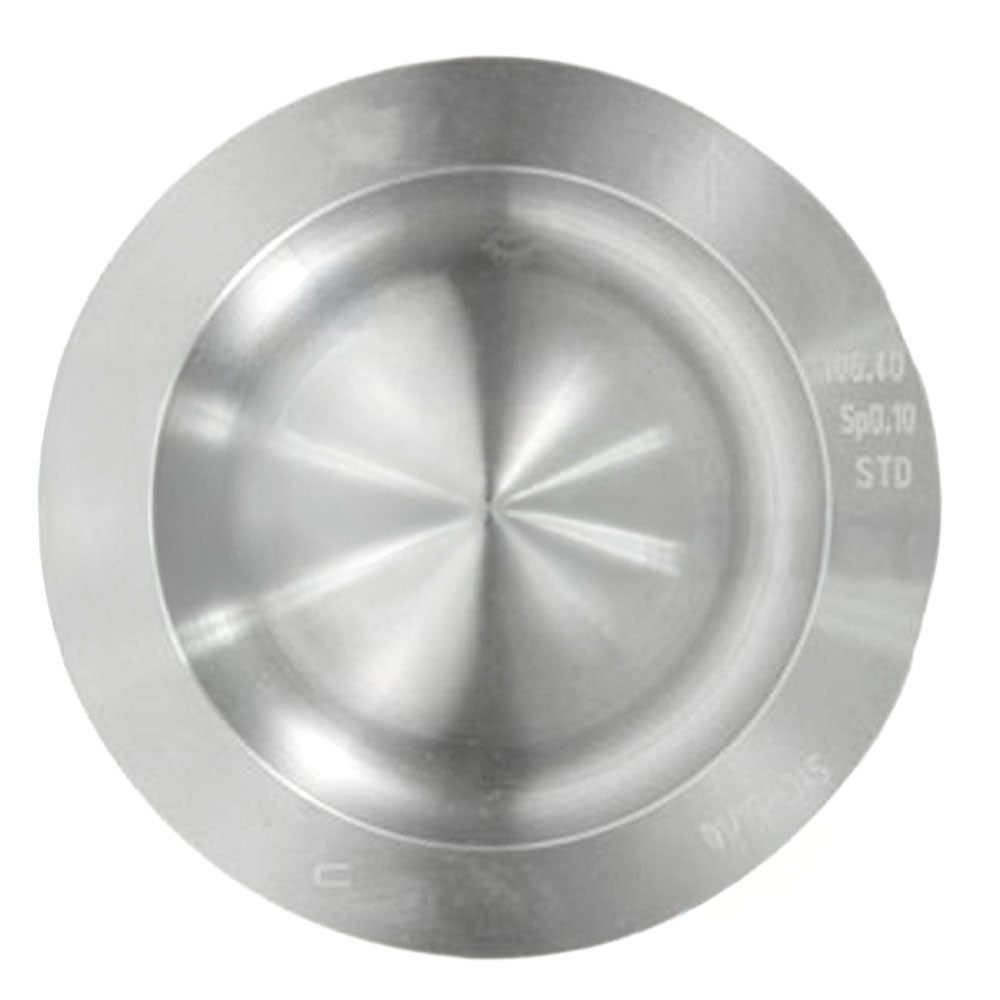

• Bowl Diameter: 57.00 mm
• Bowl Depth: 25.50 mm
• Ring Heights: 3 mm / 2.5 mm / 3.5 mm
• Engine Type: 6-cylinder (6068) and 4-cylinder (4045), 4 valves per cylinder
• Emission Tier: Tier 2 and Tier 3
• Piston Code: 4836 (6068), 4837 (4045)

Compatible Models

Fits John Deere Agricultural Tractors (6068T/H engine): 6530, 6630, 6830, 6920S, 6930, 7130, 7230, 7330, 7420, 7430, 7520, 7530

Fits John Deere Agricultural Tractors (4045T/H engine): 6230 Premium, 6330 Premium, 6420, 6430 Premium

Fits John Deere Construction Equipment (4045T/H engine): 310K, 310L, 310SK, 310SL, 280, 280 Series II, 444HCL, TC444H, 450G, 455G, 550G, 550H, 555G, 650G

Fits John Deere Forestry / Industrial (4045T/H engine): 810D, 810E, 1010D, 1010E

Fits John Deere Engine Codes: 4045HL480, 4045HL482, 4045HBZ02, 4045HT085, 6068HL480, 6068HL481, 6068HL482, 6068HL484, 6068HL487, 6068HL488

Replaces Part Number(s):

RE515037, A-RE515037

Aftermarket Interchange Numbers

RE505102, RE509540, RE55512, RE507852, RE527844, RE66820, RE48818, RE15674, R116397, RE530616

New aftermarket replacement part - not remanufactured, not used.
