A-RBX34-AI X Hub
A-RBX34-AI X Hub
Regular price
$62.00 CAD
Regular price
Sale price
$62.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

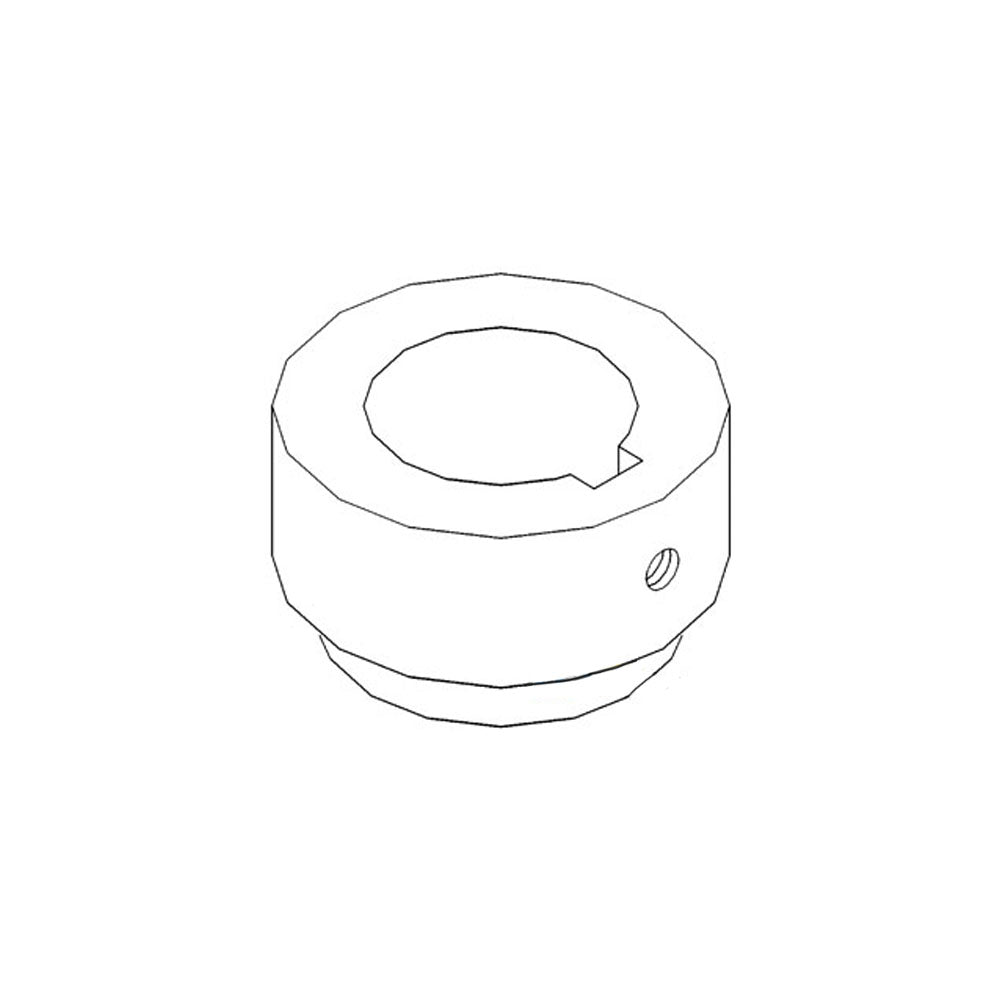

One New Aftermarket Replacement X Series Weld-On Hub - 3/4" ID Bore, Fits 2" ID Sprocket/Pulley
This X Series weld-on hub is designed to be permanently welded onto flat-plate sprockets or pulleys, providing a precision-bored shaft engagement point for roller chain and belt drive assemblies. It accepts a 3/4" round bore shaft and is engineered to fit sprockets and pulleys with a 2" ID weld-on seat. X Series hubs are a widely used standard in agricultural, industrial, and power transmission applications.
Specifications
- Bore (ID): 3/4"
- Fits Sprocket/Pulley ID: 2"
- Outside Diameter: 2-1/2"
- Length Thru Bore (LTB): 1.437"
- Keyway Size: 3/16" x 3/32"
- Material: 1020CD carbon steel
- Finish: Black oxide for corrosion resistance
- Includes keyway and 2 set screws
- Hub Series: X Series
Compatible With
Fits any X Series weld-on sprocket or pulley with a 2" ID weld seat. Compatible with standard X Series hub sprockets used across agricultural equipment, conveyor systems, and general power transmission machinery.
Replaces Part Number(s):
A-RBX34-AI, RBX34
New aftermarket replacement part - not remanufactured, not used.
