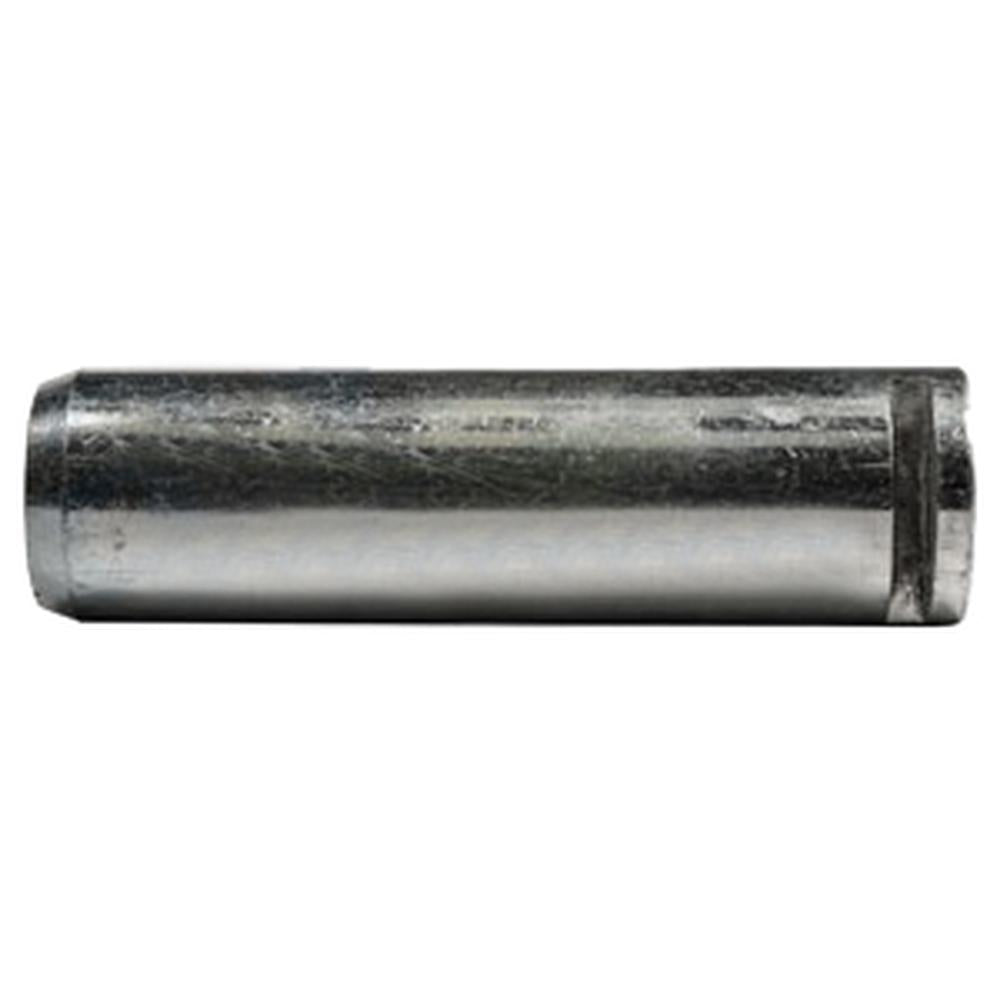

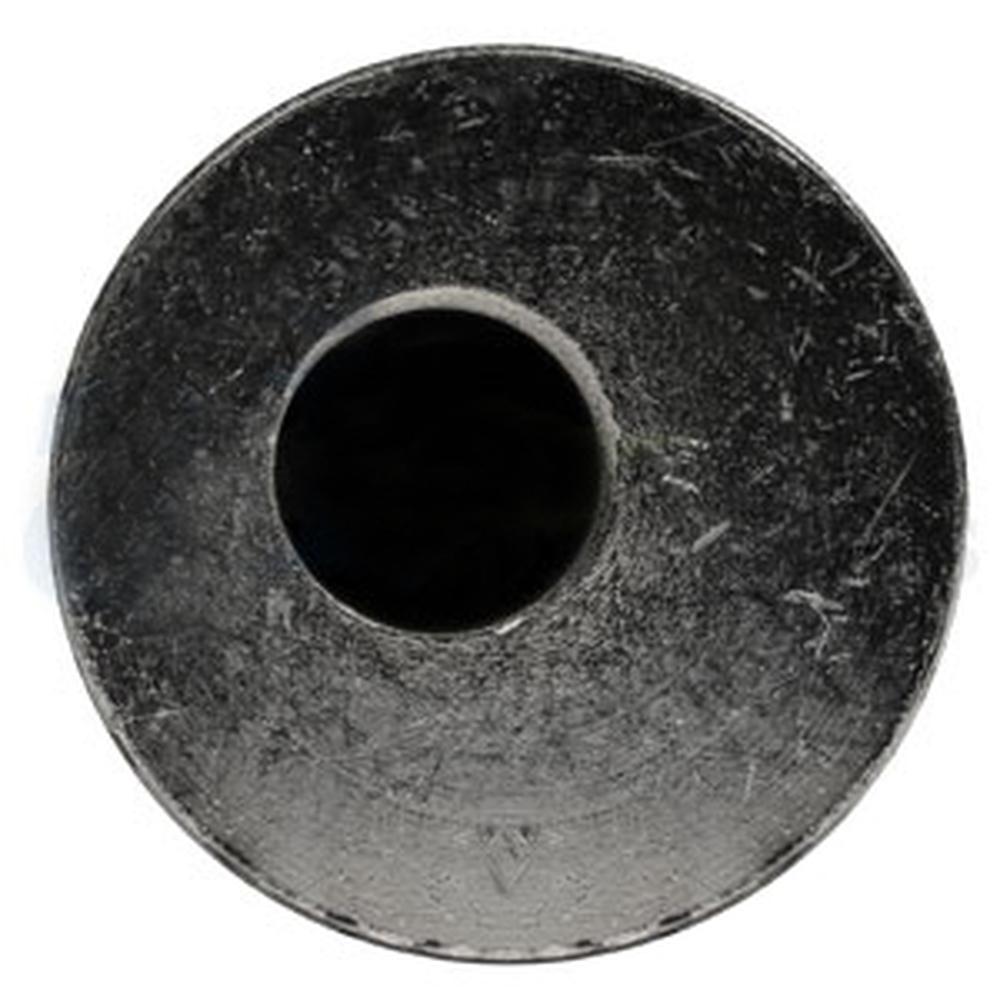

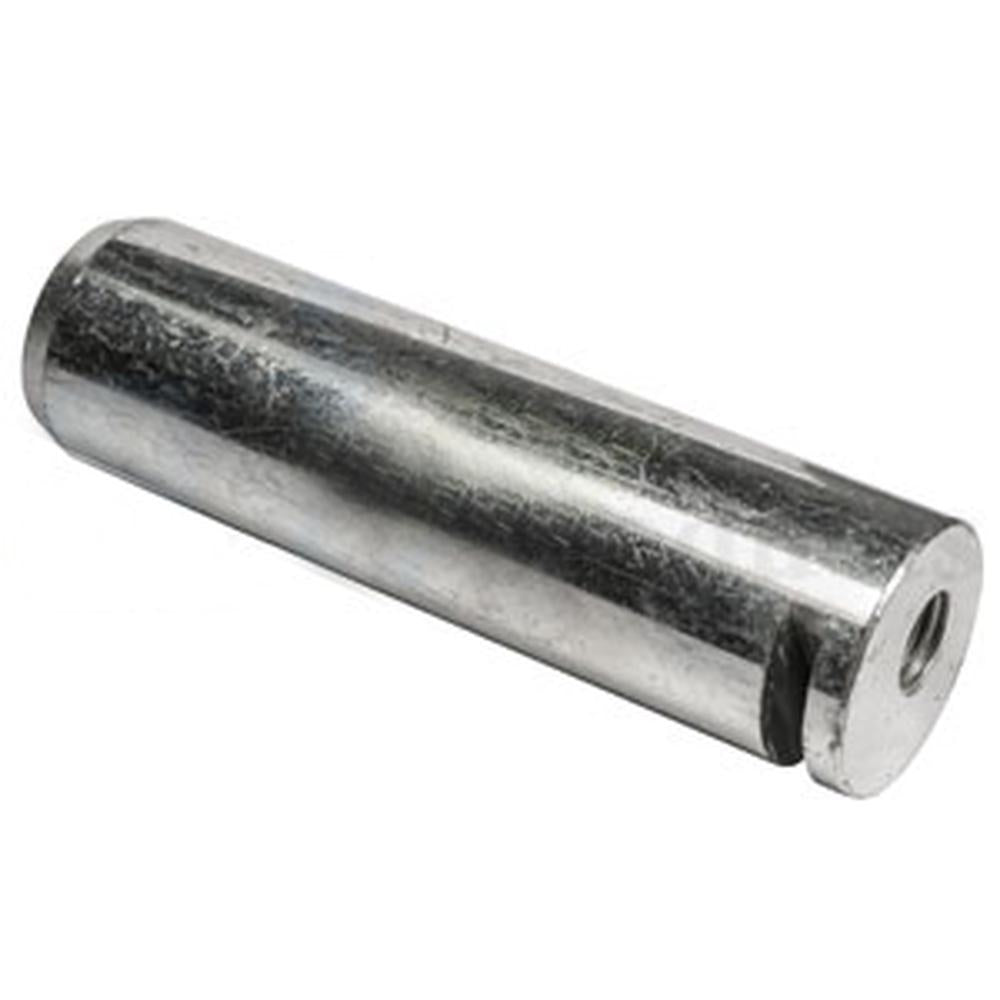

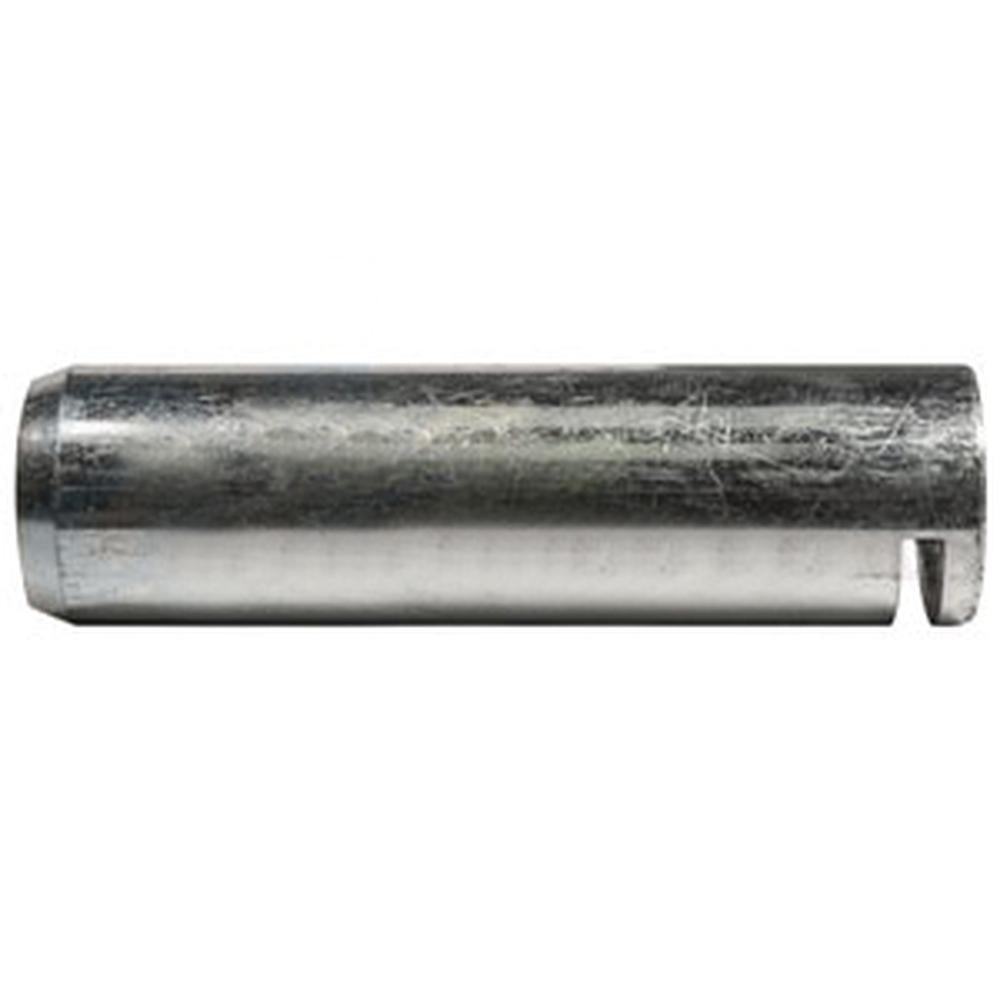

A-R270869-AI Pin; Rockshaft Lift Cylinder

One New Aftermarket Replacement Rockshaft Lift Cylinder Pin for John Deere (JD) Tractors

This pin connects the hydraulic lift cylinder to the rockshaft assembly on the rear three-point hitch system of John Deere large-frame row-crop tractors. It is a precision-fit component critical to the raising and lowering function of the hitch. Verify your tractor's serial number against the fitment list below before ordering -- serial number restrictions apply to several models.

Specifications

• Length: 5.591"
• Outside Diameter: 1.572"
• Thread Size: .630"

Compatible Models

John Deere 7R Series: 7200R (s/n 080000 and earlier), 7210R (s/n 080001 and later), 7215R (s/n 080000 and earlier), 7230R, 7250R (s/n 080001 and later), 7260R (s/n 080000 and earlier), 7270R (s/n 080001 and later), 7280R (s/n 080000 and earlier), 7290R (s/n 080001 and later), 7310R (s/n 080001 and later)

John Deere 8 Series / 8R Series: 8130, 8230, 8230T, 8330, 8330T, 8430, 8530, 8225R (s/n 000101-053099; 120000 and later), 8235R (s/n 016001-090000), 8245R (s/n 000101-053099; 090001 and later), 8260R (s/n 016001-090000), 8270R (s/n 000101-053099; 090001 and later), 8285R (s/n 016001-090000), 8295R (s/n 000101-053099; 090001 and later), 8295RT (s/n 900101-907100), 8310R (s/n 016001-090000), 8310RT (s/n 902501-912000), 8320R (s/n 000101-053099; 090001 and later), 8320RT (s/n 900101-907100; 912001 and later), 8335R (s/n 016001 and later), 8335RT (s/n 902501-912000), 8345R (s/n 000101-053099; 090001 and later), 8345RT (s/n 900101-907100; 912001 and later), 8360R (s/n 016001-090000), 8360RT (s/n 902501-912000), 8370R (s/n 090001 and later), 8370RT (s/n 912001 and later)

Replaces Part Number(s):

R270869, A-R270869, A-R270869-AI

New aftermarket replacement part - not remanufactured, not used.
