A-OL100H-AI 100 Hvy Offset Link (USA)
A-OL100H-AI 100 Hvy Offset Link (USA)
Couldn't load pickup availability

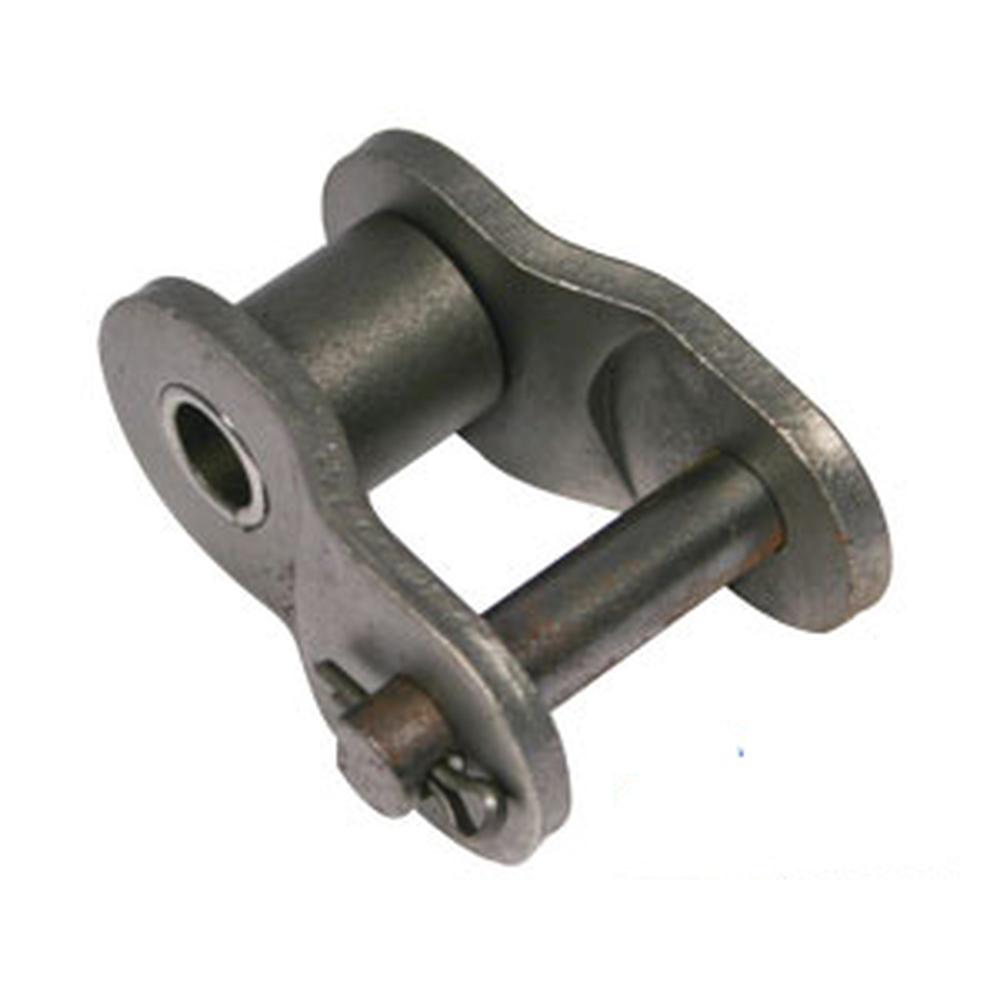

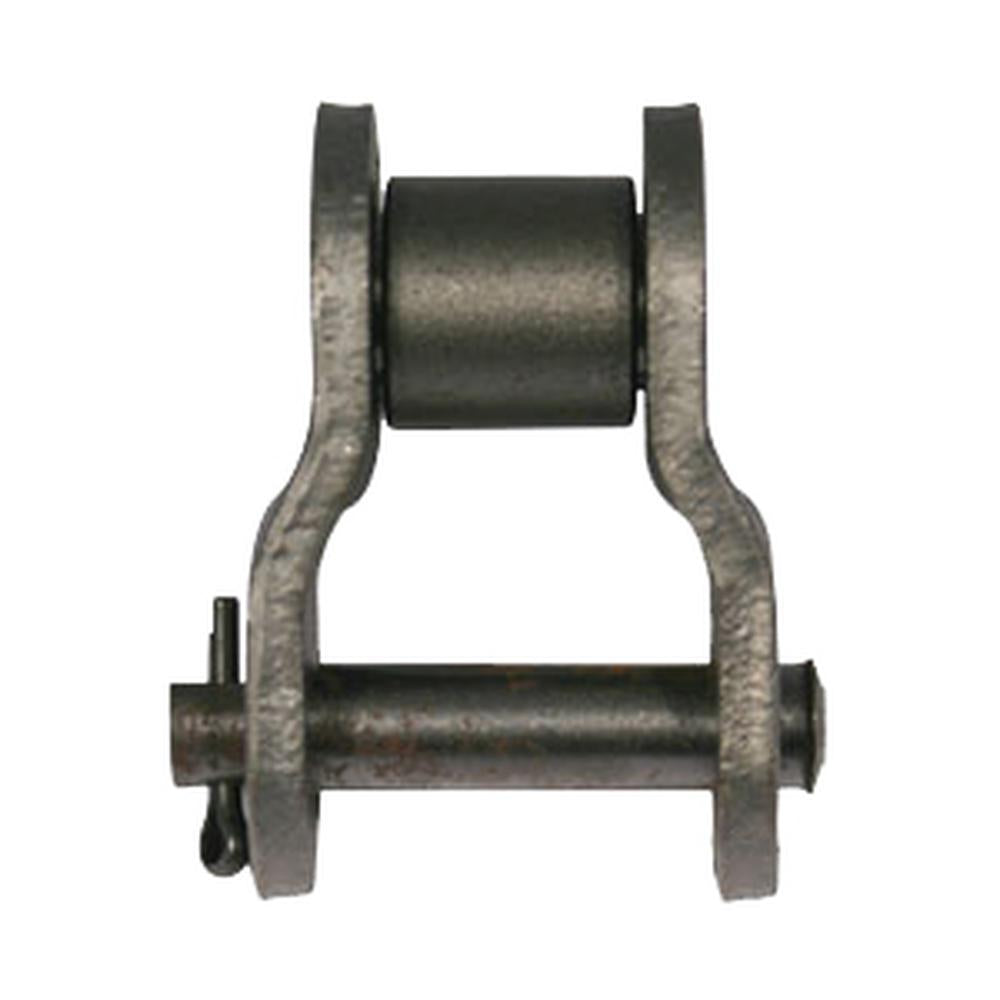

One New Aftermarket Replacement #100H Heavy Series Roller Chain Offset Link
This #100H heavy series roller chain offset link (also called a half link) is used to add an additional link to a strand of #100H heavy duty roller chain, or for making miscellaneous repairs when a chain requires an odd number of pitches. It is made from carbon/alloy steel and conforms to ANSI B29.1 standards. The heavy series features thicker side plates compared to standard #100 chain links, providing increased strength, fatigue resistance, and shock load capability. Suitable for agricultural equipment, construction equipment, conveyor systems, material handling equipment, and other power transmission applications.
Specifications
- Chain Size: #100H Heavy Series
- Pitch: 1-1/4 in (1.250 in)
- Inner Width: 3/4 in (0.750 in)
- Roller Diameter: 0.750 in
- Pin Diameter: 0.375 in
- Link Plate Height: 1.188 in
- Link Plate Thickness: 0.189 in
- Material: Carbon/Alloy Steel
- Standard: ANSI B29.1
- Strands: Single (1)
Interchange / Replaces Part Number(s):
A-OL100H-AI, OL100H, 100H-1 OL, OL 100H-1, PHC 100H-1 O/L, RS100H-1 OL, 20AH-1 OL, OL 20AH-1
New aftermarket replacement part - not remanufactured, not used.
