A-MW-16-16-AI Hose End, Male Standpipe
A-MW-16-16-AI Hose End, Male Standpipe
Couldn't load pickup availability
One New Aftermarket Replacement Hose End, Male Standpipe - MW-16-16 Series

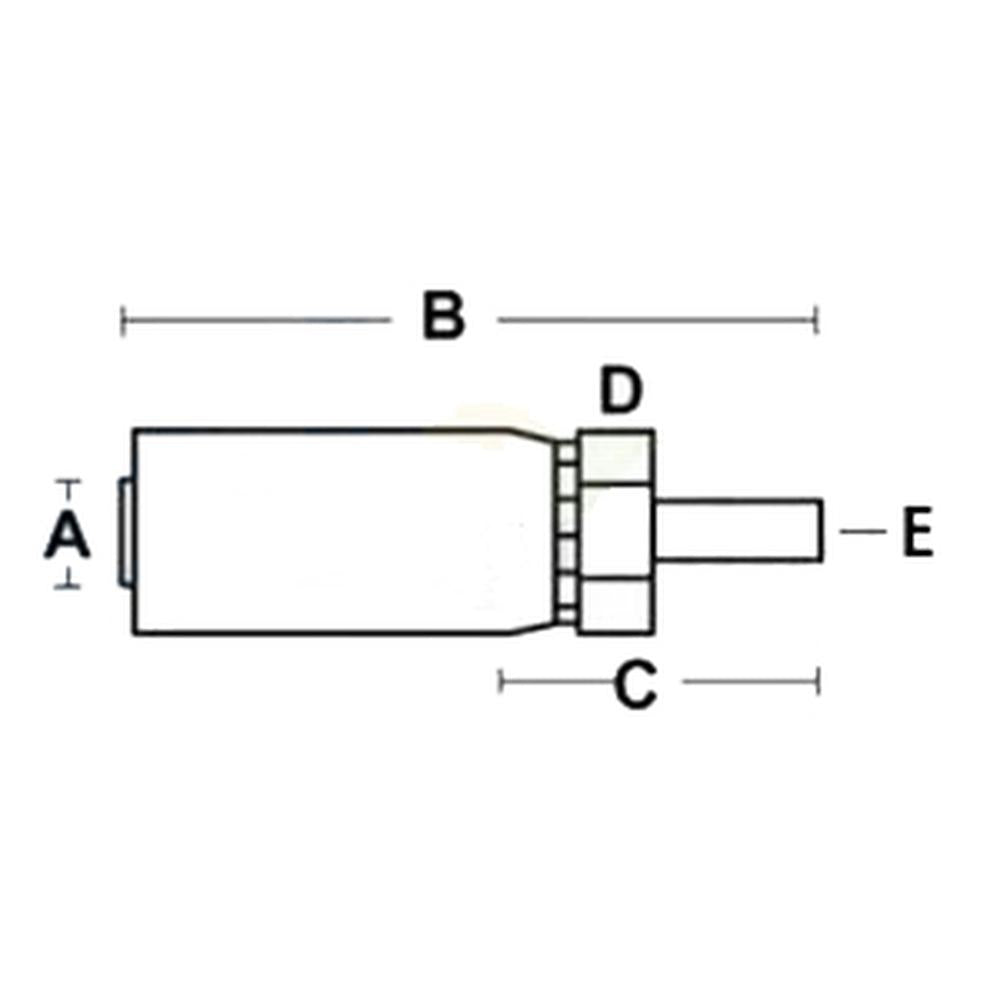

This Male Standpipe rigid hose end fitting (part number A-MW-16-16-AI) is a straight, rigid-style hydraulic hose end used to terminate braided hydraulic hose to a male standpipe port. The MW-16-16 designation indicates a 1-inch hose ID with a 1-inch standpipe thread end. This fitting style is widely used in agricultural, construction, and industrial hydraulic systems to connect high-pressure braided hose to pumps, valves, cylinders, and manifolds.
Specifications
- Series: MW Male Standpipe Rigid
- Hose ID: 1 inch (Dash 16)
- Thread End: Dash 16 (1 inch male standpipe)
- Orientation: Straight
- Style: Rigid (non-swivel)
Compatible Hose Types
- SAE 100R1SN
- SAE 100R2SN
- SAE 100R16S
- SAE 100R17
- SAE 100R12
- SAE 100R13
- SAE 100R4
Replaces Part Number(s):
MW-16-16, A-MW-16-16-AI
Universal hydraulic fitting - verify hose ID, thread size, and standpipe configuration before ordering. Suitable for use across agricultural, construction, and industrial hydraulic hose assemblies.
New aftermarket replacement part - not remanufactured, not used.
