A-MPX-04-02-W-AI (HW-MPX) Male NPTF Pipe - Swivel - Straight
A-MPX-04-02-W-AI (HW-MPX) Male NPTF Pipe - Swivel - Straight
Regular price
$61.00 CAD
Regular price
Sale price
$61.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

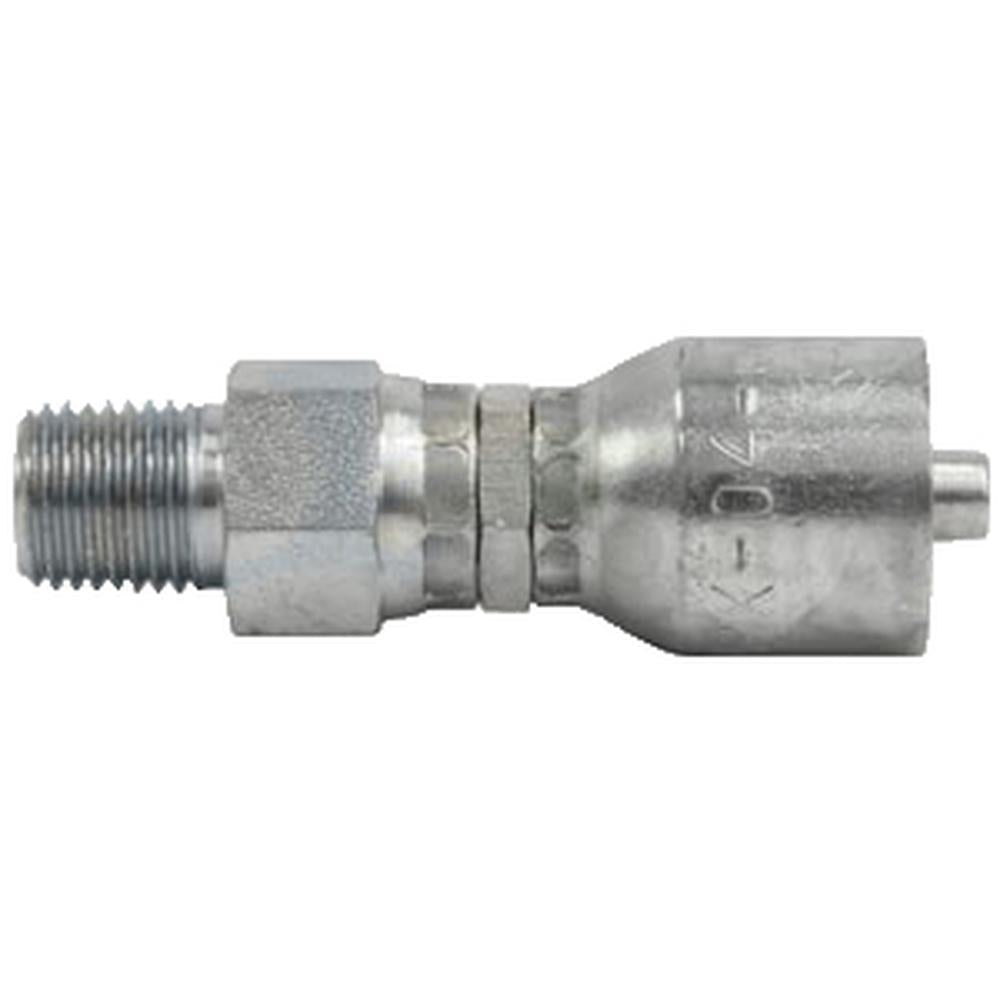

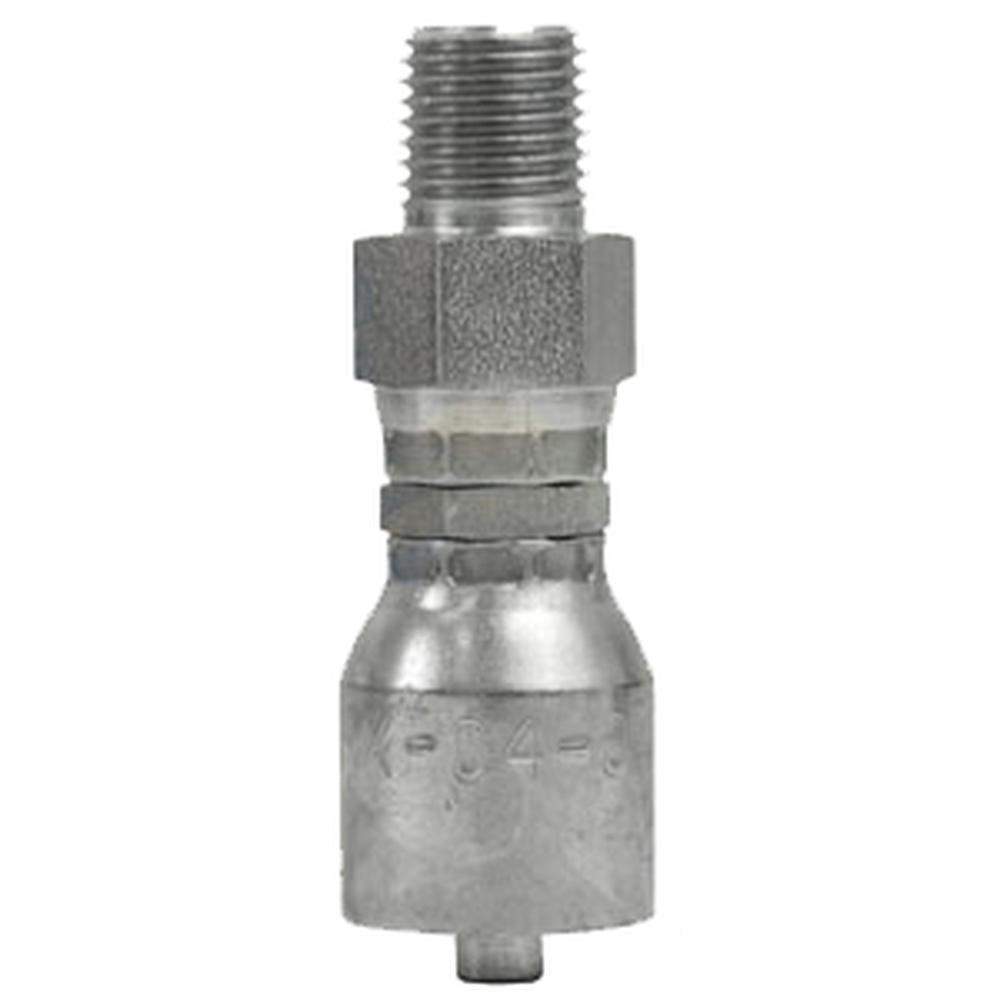

One New Aftermarket Replacement Male NPTF Pipe Swivel Straight Crimp Fitting (HW-MPX) - 1/8" NPT x 1/4" Hose ID
This MPX-04-02 male NPTF pipe swivel straight crimp fitting connects a 1/4" ID wire braid hydraulic hose to a 1/8" NPTF male pipe thread port. The swivel design allows the hose to be positioned without twisting during installation, making it well suited for hydraulic systems on agricultural equipment, construction machinery, and industrial applications. Designed for use with 1-wire and 2-wire braided hose.
Specifications
- Fitting Type: Male NPTF Pipe Swivel - Straight
- Hose I.D. (Dash Size): -04 (1/4")
- Thread Size (Dash): -02 (1/8")
- Industry Nominal Thread Size: 1/8-27 NPTF
- Male Thread O.D.: 13/32" (0.41")
- Female Thread I.D.: 3/8" (0.38")
- Connection Style: Crimp (permanent)
- Compatible Hose: 1-wire and 2-wire braided hydraulic hose, thermoplastic, pressure wash hose
Replaces Part Number(s):
A-MPX-04-02-W-AI, MPX-04-02
New aftermarket replacement part - not remanufactured, not used.
