A-K4037-AI Bearing (WPS106GRC)

Name: A-K4037-AI Bearing (WPS106GRC)
SKU: A-K4037-AI
Price: 43.0 USD
Availability: InStock

A-K4037-AI Bearing (WPS106GRC)

$43.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Spherical Ball Bearing (WPS106GRC) for New Idea, Fits Case/International Harvester, Fits John Deere, Hesston and More

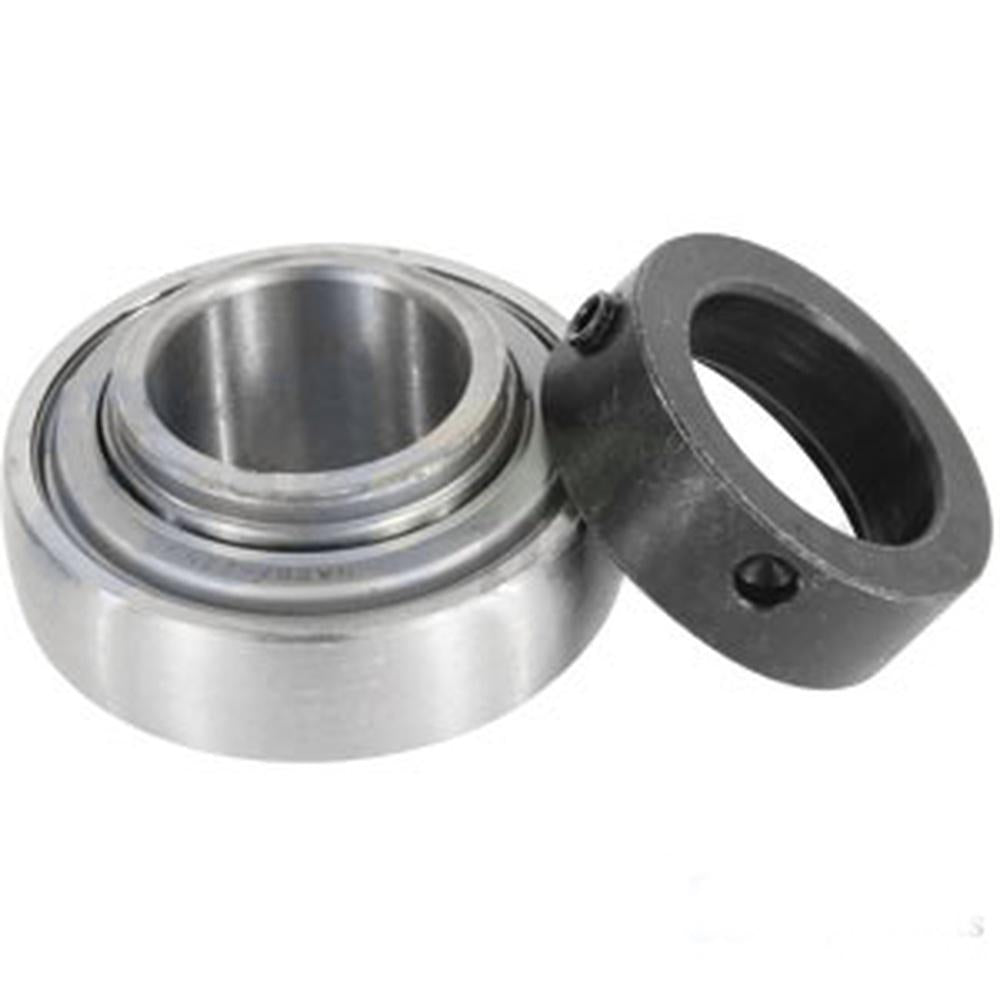

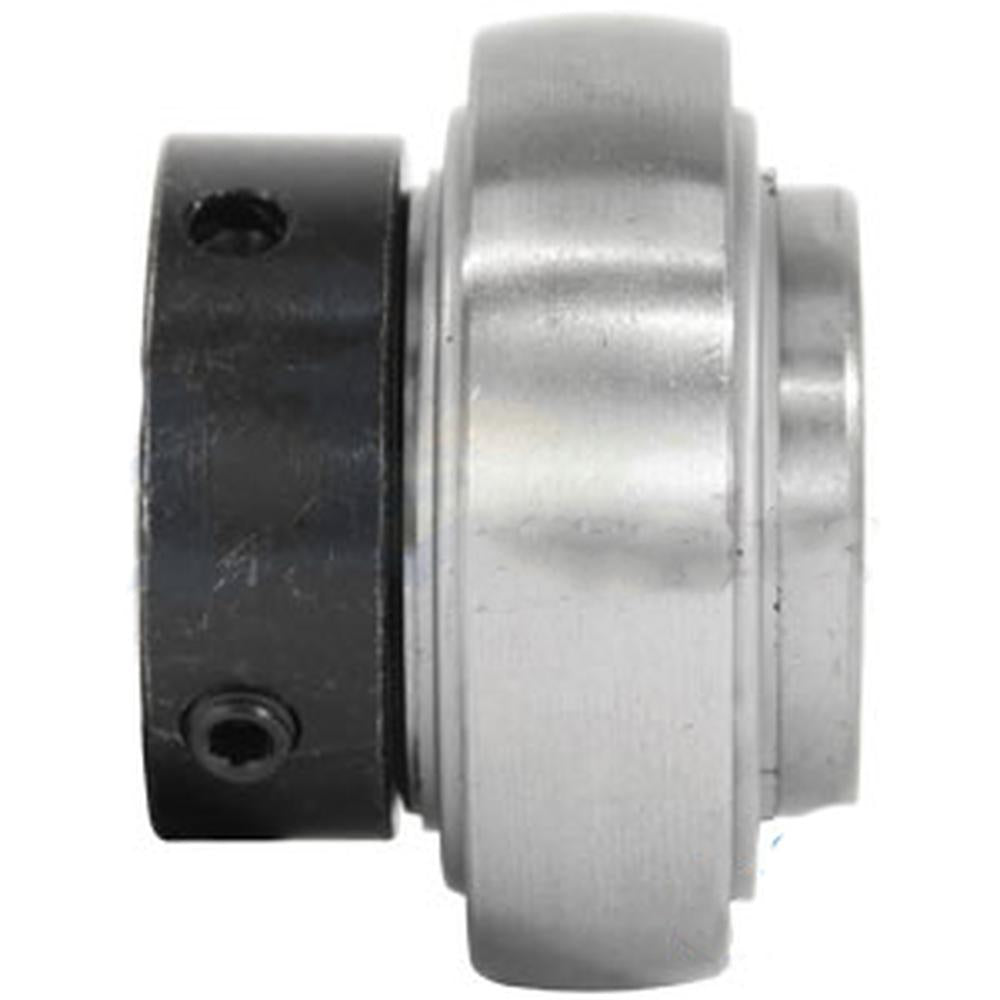

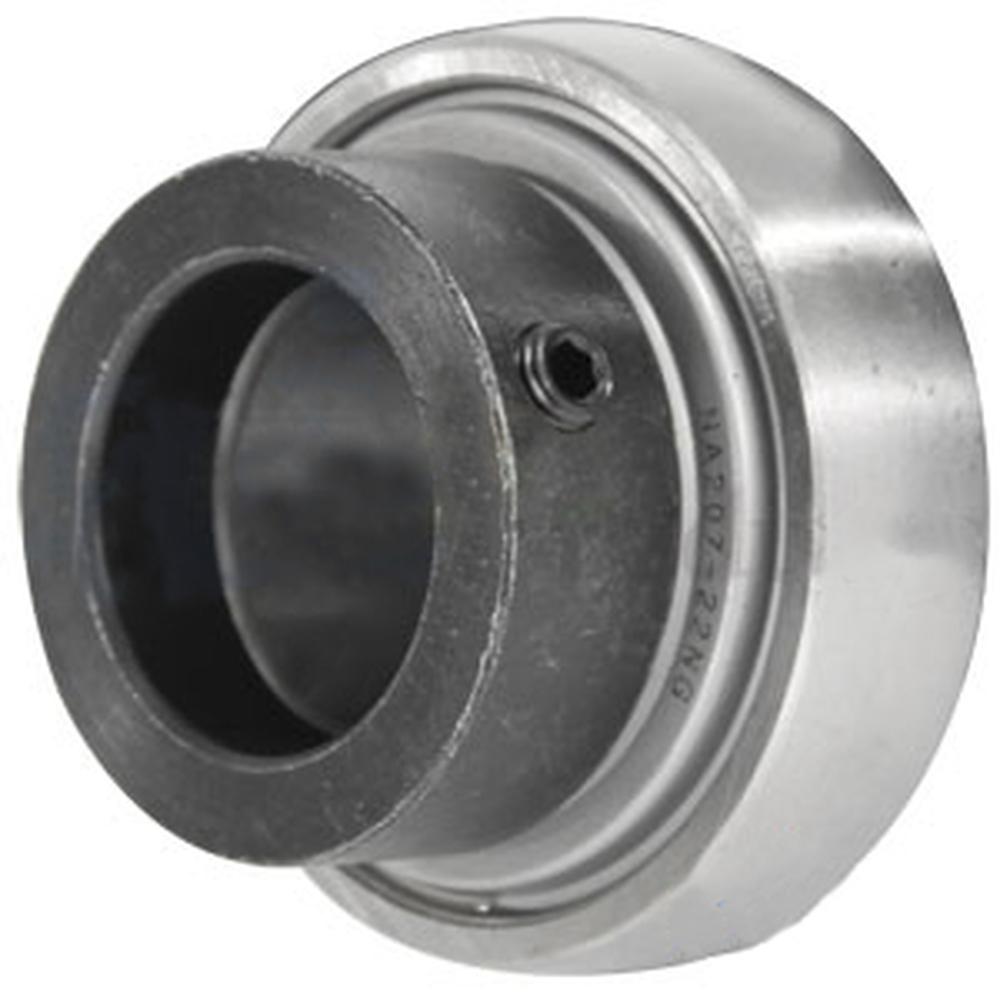

This wide inner ring spherical ball bearing (industry number WPS106GRC) is a direct aftermarket replacement for K4037 and cross-referenced OEM numbers used across a broad range of agricultural equipment including combines, balers, swathers/windrowers, mower conditioners, manure spreaders, and corn pickers. The spherical outer race allows for shaft and housing misalignment, while the eccentric locking collar secures the bearing firmly to the shaft. Supplied double-sealed and pre-lubricated (greaseable/relubricable).

Specifications

Bearing Type: Wide Inner Ring Spherical Ball Bearing Insert
Inner Diameter: 1-3/8 in (1.375 in / 34.928 mm)
Outer Diameter: 2.8346 in (72 mm)
Overall Width: 2.0194 in (51.294 mm)
Inner Race Width: 1.484 in
Outer Race Width: 0.748 in
Bore Type: Round
Locking Device: Eccentric Locking Collar (included)
Enclosure: Double Sealed
Lubrication: Pre-lubricated, Greaseable
Radial Dynamic Load Capacity: 5,800 lbf
Radial Static Load Capacity: 3,450 lbf
Max RPM: 2,250

Compatible Models

Fits Case/International Harvester Combines: 615, 715, 815, 915, 1420, 1440, 1460, 1470, 1480, 1482, 1660, 1666, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 3300 (ASN 200000), 4400 (ASN 201251), 4420, 4650, 4655, 4755, 4790, 4900, 4910, 6600 (ASN 206200), 6620, 7700 (ASN 213300), 7720, 8820

Fits John Deere: General harvesting and hay equipment applications

New Idea / Hesston: Mower conditioners, balers, swathers/windrowers

Also fits: Corn pickers, manure spreaders, and other harvesting and hay equipment from multiple manufacturers

Replaces Part Number(s):

K4037, WPS106GRC, 3242414, 050864, 50864, 711861, 712307, JD9275, JD9319, 611582R91, 611583R91, 80553C91, 517618R91, T18852, F86574, 15271SW, HC207-22, 012630, HIB10-0093

Aftermarket Interchange Numbers

NTN WPS106GRC, BCA WPS106GRC, National WPS-106-GRC

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1666, 815, 4755, 8820, Mower conditioners, 4650, 4420, 1682, 2577, 4655, 1482, Other harvesting and hay equipment, 1660, 715, 6620, 1420, Farming Equipment, Manure spreaders, 1480, 2377, Agricultural Equipment, 4790, 6600 (ASN 206200), 2344, 2588, 2166, 7700 (ASN 213300), 2366, 3300 (ASN 200000), 615, 1688, 4910, 2144, 1460, 4900, 914, 4400 (ASN 201251), 1470, 1440, Corn pickers, Agricultural, 2188, 7720, 915, 1680, 2388

Additional Information:

Includes Lock Ring: Self-aligning Bearing Type Spherical Ball Bearing: Greaseable Inner Diameter: 1.380" Inner Diameter: Type Round Outer Diameter: 2.840" Width Overall: 2.020"

Reference Numbers:

012630, K4037, 15271SW, HC207-22, JD9275, JD9319, 611582R91, 80553C91, 517618R91, 50864, 611583R91, T18852, F86574, 050864, 711861, 712307, 3242414, WPS106GRC
