A-JD9127-AI Bearing Cup

One New Aftermarket Replacement Bearing Cup Fits John Deere (Fits JD) Combines and Agricultural Equipment

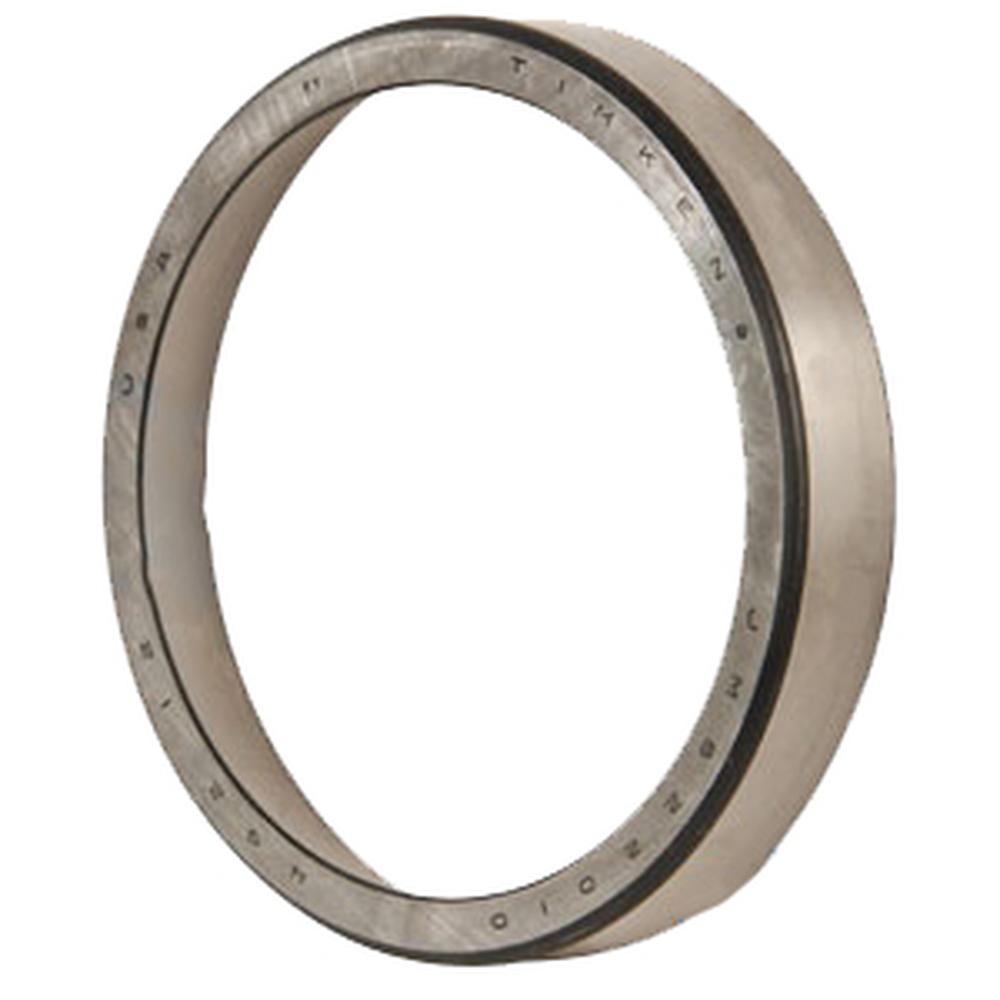

This tapered roller bearing cup (outer race) is a direct aftermarket replacement Fits John Deere OEM part number JD9127. The cup pairs with a matching tapered roller bearing cone to form a complete single-row tapered roller bearing assembly, supporting both radial and axial loads in high-load agricultural drivetrain and axle applications. It also crosses to Fits Case/International Harvester and Fits New Holland applications via the interchange numbers listed below.

Specifications

• Type: Tapered Roller Bearing Cup (Single Cup / Outer Race)
• Outside Diameter: 6.496 in (165 mm)
• Cup Width: 1.0433 in (26.5 mm)
• Max Housing Fillet Radius: 0.100 in
• Series: M822000

Compatible Equipment

Fits John Deere (Fits JD): Combines and agricultural equipment using OEM bearing cup JD9127 / RE293316. Cross-reference your make, model, and serial number to confirm fitment.

Fits Case / Fits Case-IH / Fits International Harvester (IH): Equipment using A-274842, 274842, 274843, 80274843, 2999738M1, or 1277315C1 / 1277315C91.

Fits New Holland: Applications cross-referencing JD9127 / JM822010.

Replaces Part Number(s):

JD9127, RE293316, JM822010, A-274842, 274842, 274843, 80274843, 2999738M1, 86505062, 80274842, 564121C1, 16-720T1, 1277315C91, 302173A1, 1277315C1, S301247, L33732

New aftermarket replacement part - not remanufactured, not used.
