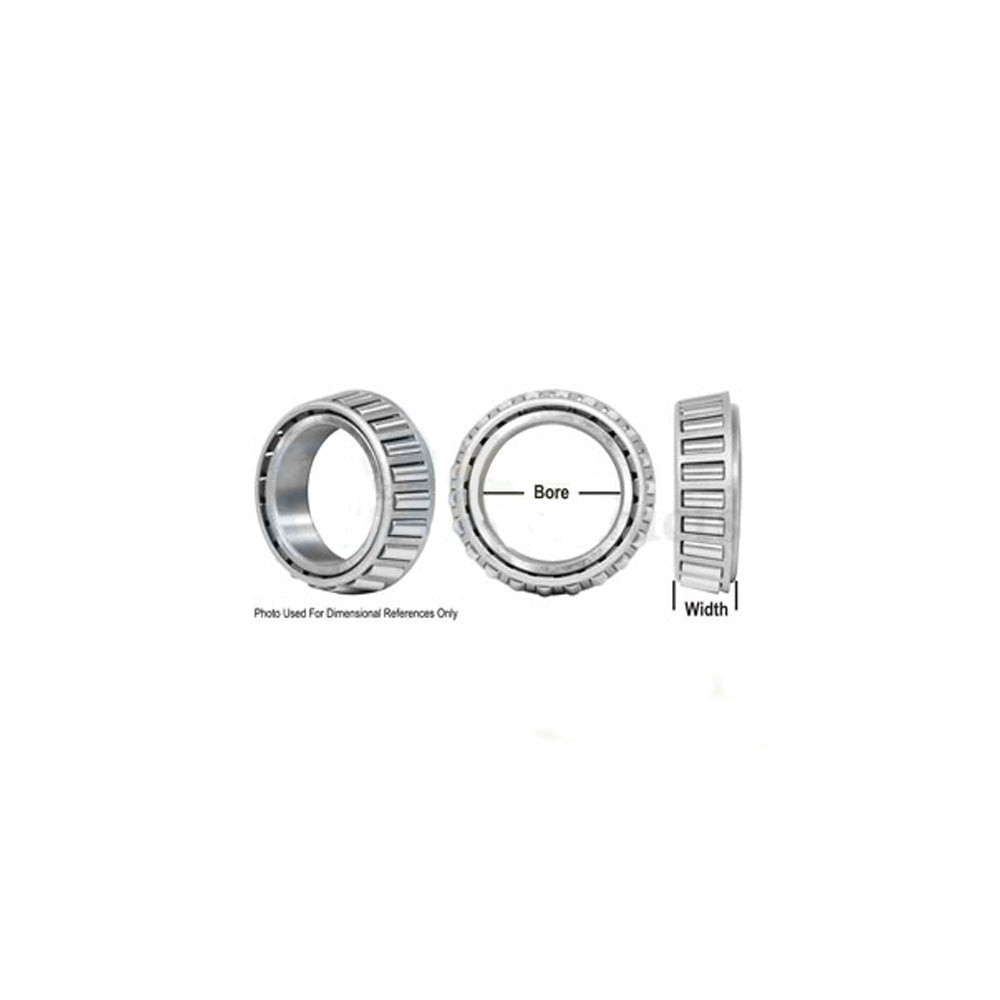

A-HM807046-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Tapered Roller Bearing Cone for Agricultural, Construction, and Industrial Equipment

This single tapered roller bearing cone (inner ring assembly) is a direct replacement for OEM part number HM807046. The cone pairs with a compatible HM807010 or HM807011 cup (outer ring, sold separately) to form a complete single-row tapered roller bearing capable of supporting combined radial and axial loads. Commonly used in drive axles, steer axles, gearboxes, transmissions, wheel hubs, and hoisting equipment across agricultural, construction, and mining applications.

Specifications

• Type: Single Cone, Tapered Roller Bearing (TS - Tapered Single, Imperial)
• Bore (I.D.): 2.000 in
• Cone Width: 1.437 in (1-7/16 in)
• Shaft Fillet Radius (Max): 0.14 in
• Series: HM807000
• Bore Type: Straight
• Material: High-alloy steel
• Cup sold separately (compatible cup: HM807010 or HM807011)

Compatible Applications

This bearing is a standard inch-series tapered roller bearing used across a broad range of agricultural, construction, and industrial equipment including tractors, combines, wheel hubs, drive and steer axles, gearboxes, conveyors, and mining machinery. Verify fitment against your equipment's bearing specification before ordering.

Replaces Part Number(s):

HM807046, A-HM807046-P-AI

Aftermarket Interchange Numbers

Timken HM807046, SKF HM807046, NTN HM807046, Koyo HM807046, NSK HM807046

New aftermarket replacement part - not remanufactured, not used.
