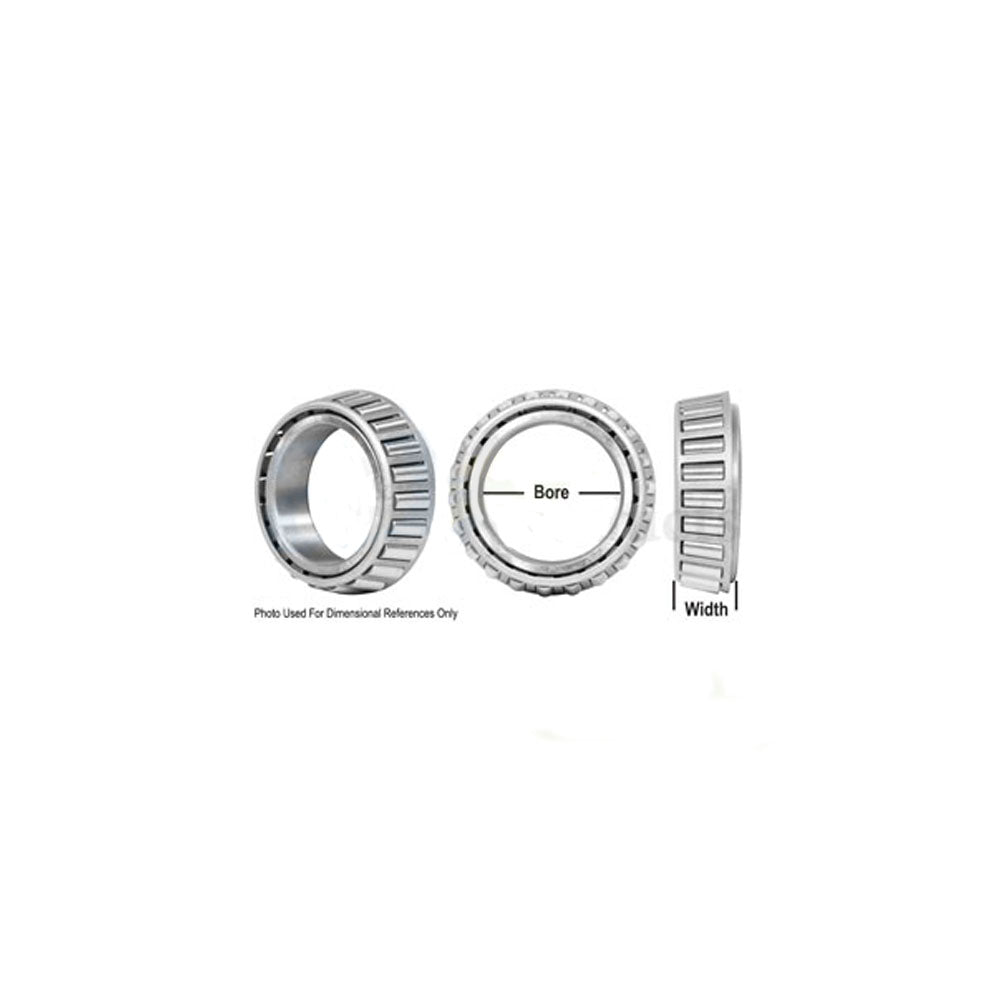

A-HM803149-I-AI Cone, Tapered Roller Bearing
A-HM803149-I-AI Cone, Tapered Roller Bearing
Regular price
$67.00 CAD
Regular price
Sale price
$67.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Cone, Tapered Roller Bearing - HM803149
This tapered roller bearing cone (inner ring assembly) is a single-row, imperial-series bearing designed to handle both radial and axial loads. It is typically mounted in opposing pairs on a shaft and is widely used in agricultural equipment, construction equipment, gear reducers, drive axles, and other demanding industrial applications. The matching cup number is HM803110.
Specifications
- Type: Tapered Roller Bearing Cone (Inner Ring Assembly)
- Bore (ID): 1.750 in (44.45 mm)
- Outer Diameter: 3.500 in (88.9 mm)
- Width: 1.156 in (29.37 mm)
- Corner Radius: 0.14 in
- Series: Imperial (Inch)
- Material: Chrome Steel
Replaces Part Number(s):
HM803149, A-HM803149-I-AI
Aftermarket Interchange Numbers
Timken HM803149, NTN 4T-HM803149, Koyo HM803149, SKF HM803149, Bower/Federal Mogul HM803149, JCB 907/09000
New aftermarket replacement part - not remanufactured, not used.
