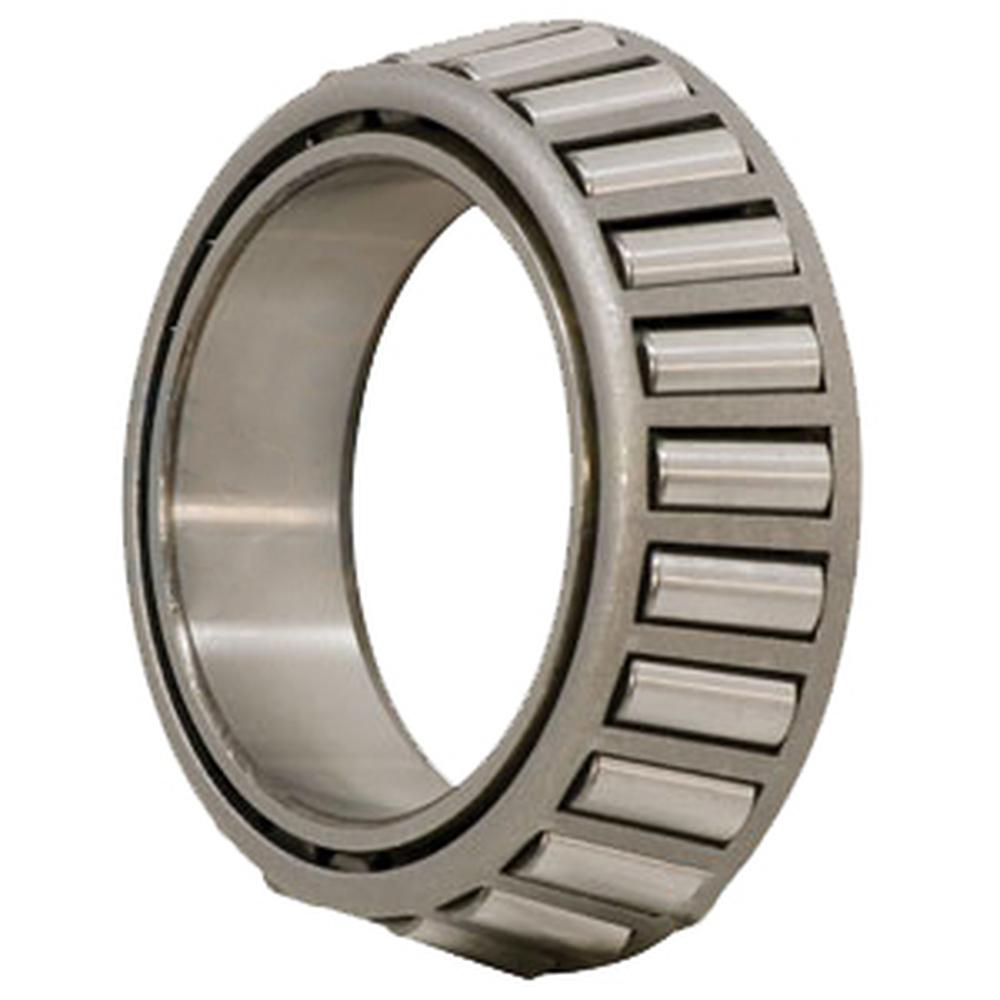

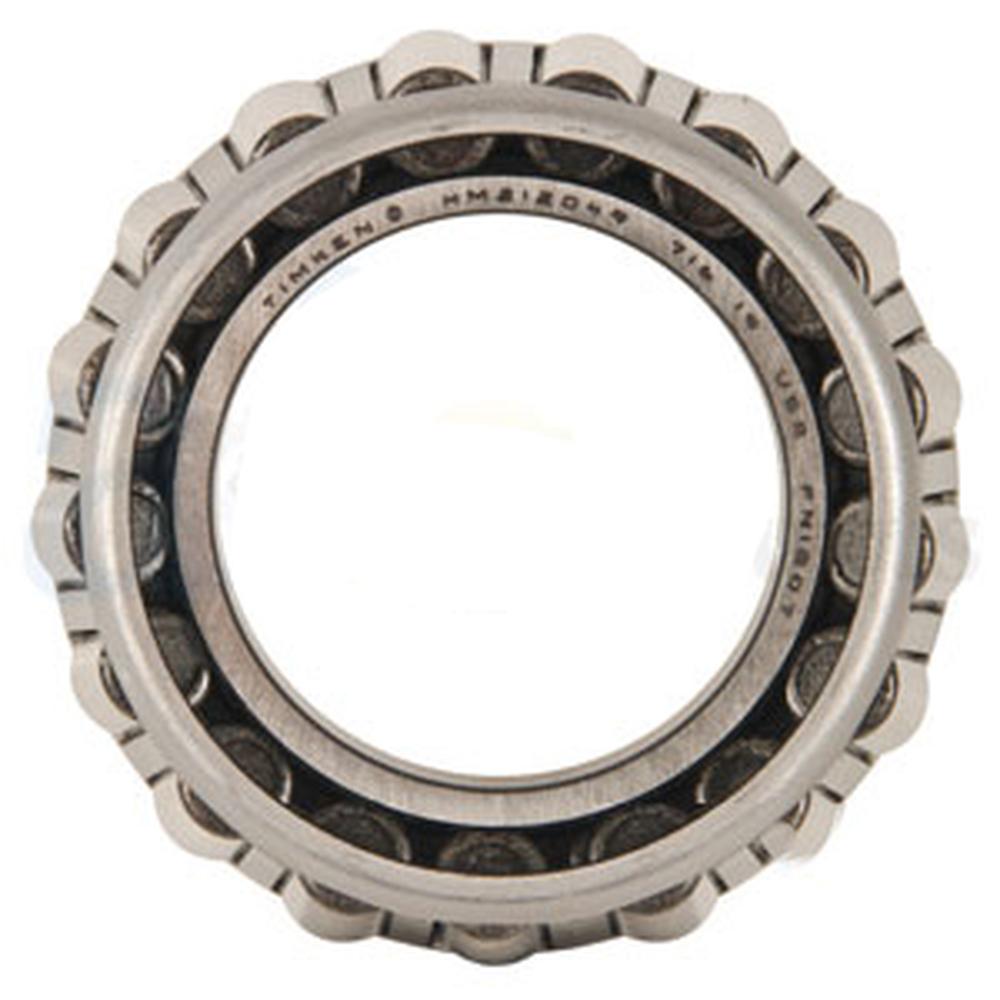

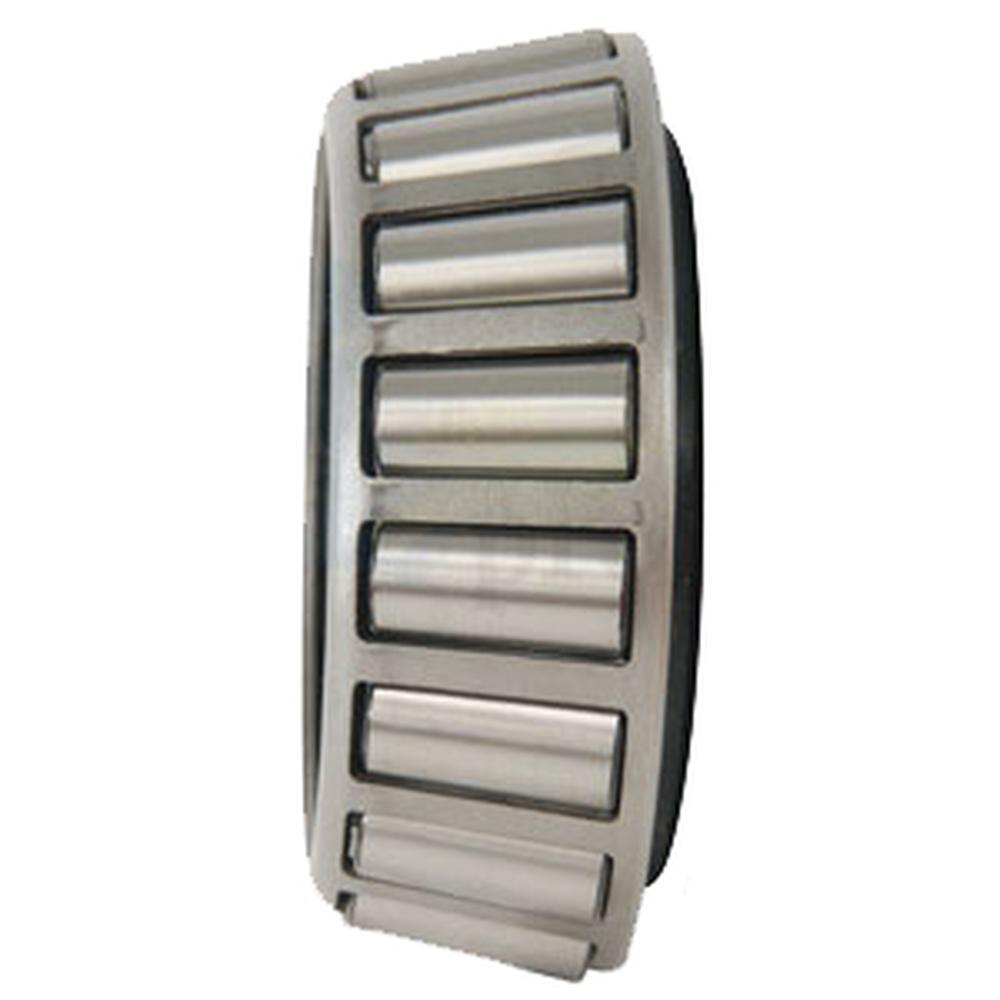

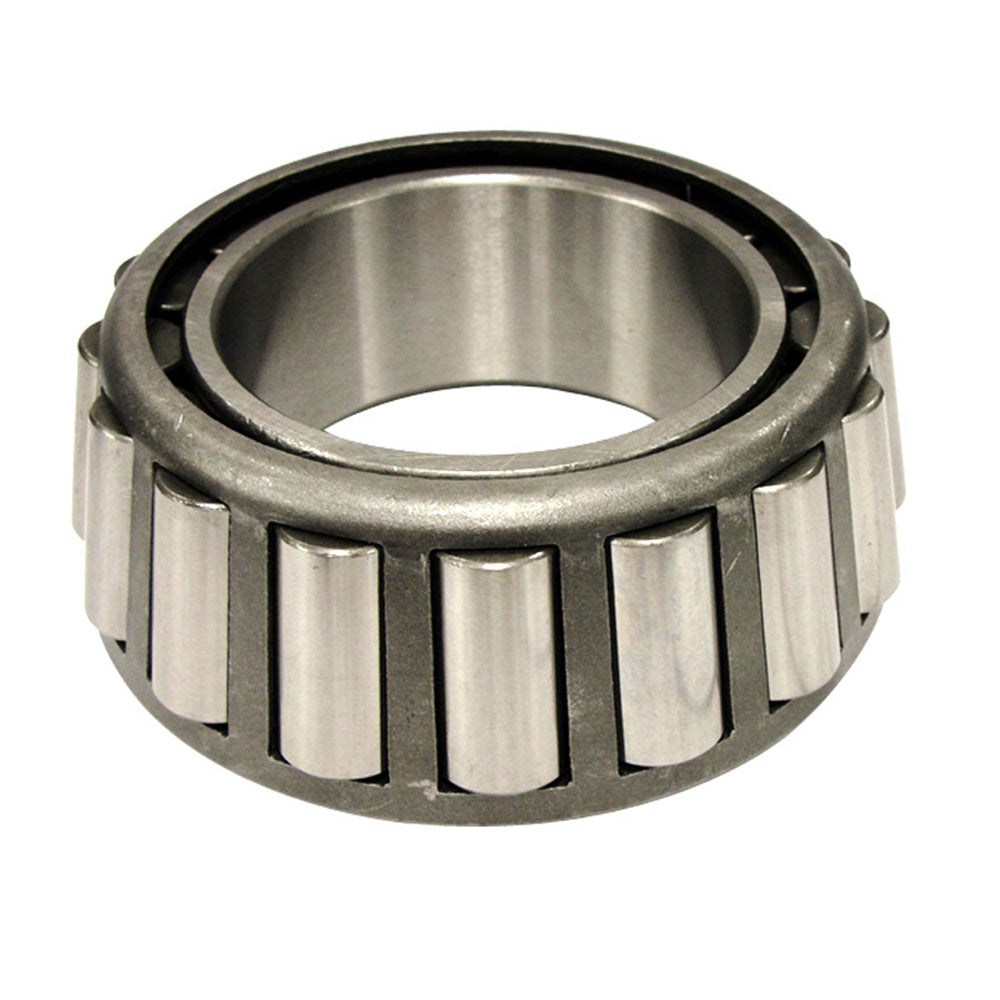

A-HM212049-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Cone, Tapered Roller Bearing - HM212049

This tapered roller bearing cone (inner ring assembly) is a heavy-duty, single-row tapered roller bearing designed to support combined radial and axial loads. It pairs with the HM212011 cup (outer ring, sold separately) to form a complete tapered roller bearing assembly. Widely used in axle, wheel-end, and drivetrain applications across agricultural, construction, and industrial equipment from Allis Chalmers (FIAT), Case/International Harvester, Caterpillar, Allison/Twin Disc, and many other manufacturers.

Specifications

• Bore (Inner Diameter): 2.625 in (66.68 mm)
• Width: 1.510 in (38.1 mm)
• Fillet Radius: 0.14 in (3.6 mm)
• Outer Diameter (cup mate HM212011): 4.8125 in (122.24 mm)
• Type: Single-row tapered roller bearing cone - imperial series
• Mates with cup: HM212011

Compatible Equipment

Allis Chalmers: Multiple tractor and industrial equipment models

Case / Case IH / International Harvester: Multiple tractor and crawler models

Caterpillar (Cat): Multiple construction and industrial equipment models

Allison / Twin Disc: Transmission and drivetrain assemblies

Universal / Multi-Brand: Also used in heavy-duty truck, trailer, and semi-trailer wheel-end applications across many manufacturers

Replaces Part Number(s):

70033105, 70684816, 76848162, 6848162, 5P8088, 7K0394, 7K394, 4255711, 6I8849, 851-IM212049, 913-HM212049, 931012, MA585C, ST2110, 182271H1, 204811R91, 380217R91, 5013283B21, 895872C91, A136003

Aftermarket Interchange Numbers

HM212049, BHM212049, BOWHM212049, HM212049TRB, IMHM212049, 531-IMHM212049, SET413, TWDHM212049, OTRHM212049, 212049, 1228N404

New aftermarket replacement part - not remanufactured, not used.
