A-H146636-AI Belt, Rotary Screen Drive
A-H146636-AI Belt, Rotary Screen Drive
Regular price
$30.00 CAD
Regular price
Sale price
$30.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

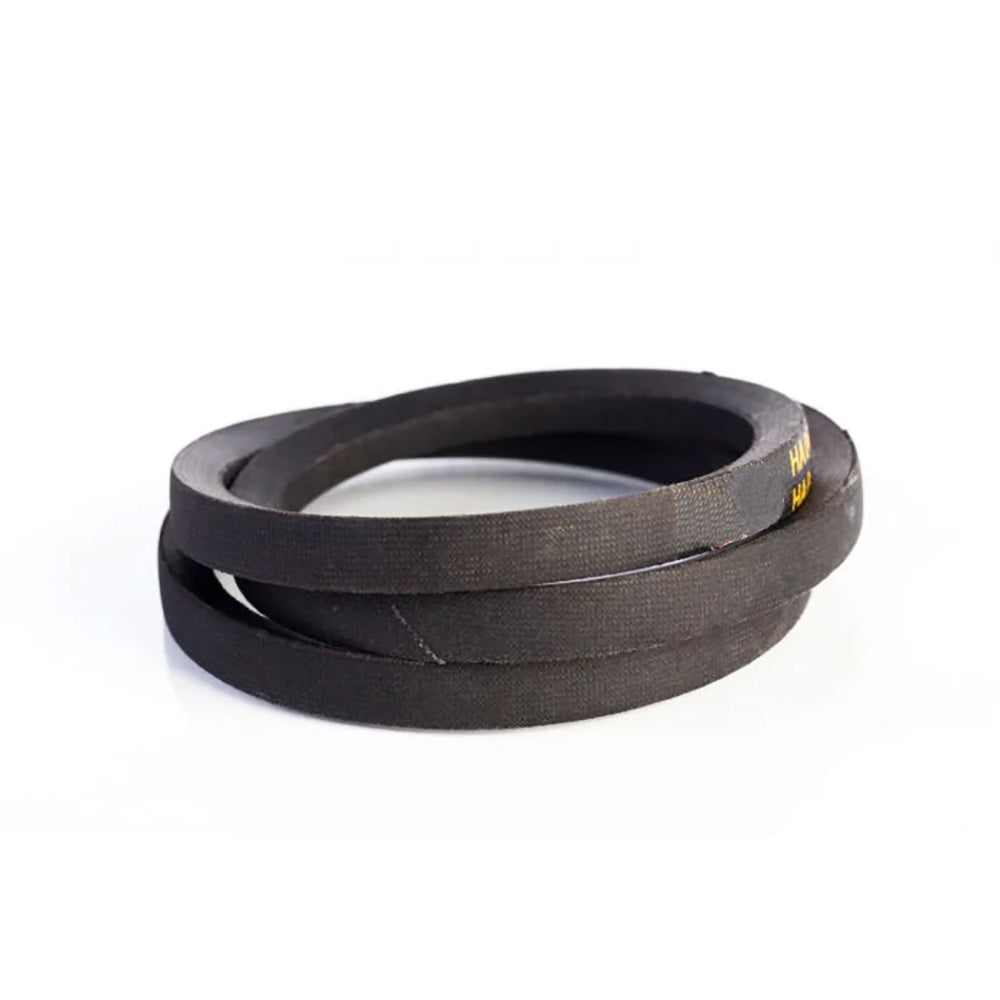

One New Aftermarket Replacement Rotary Screen Drive Belt Fits John Deere (Fits JD) Combines
This V-belt drives the rotary screen on Fits John Deere 9 Series and CTS combines, keeping the chaffer and cleaning system free of debris during harvest. It is an A-section V-belt with a 1/2-inch top width and 40-inch outside length, replacing OEM part number H146636.
Specifications
- Belt Type: A-section V-belt (HA section)
- Top Width: 1/2 inch (12.7 mm)
- Outside Length: 40 inches (1016 mm)
Compatible Models
Fits John Deere Combines:
- 9400 (ASN 640506 and above)
- 9410
- 9450
- 9500 (ASN 642579 and above)
- 9500SH (ASN 642579 and above)
- 9510
- 9600 (ASN 645301 and above)
- 9610
- 9650 (ASN 695301 and above)
- 9650CTS (ASN 695401 and above)
- 9660
- 9660CTS
- CTS (ASN 645511 and above)
Replaces Part Number(s):
H146636, 301-D146636
Aftermarket Interchange Numbers
A-H146636, A38K, P-H146636, QPH146636, COB40-0705
New aftermarket replacement part - not remanufactured, not used.
