A-CL41-AI 41 Connector Link (USA)
A-CL41-AI 41 Connector Link (USA)
Couldn't load pickup availability

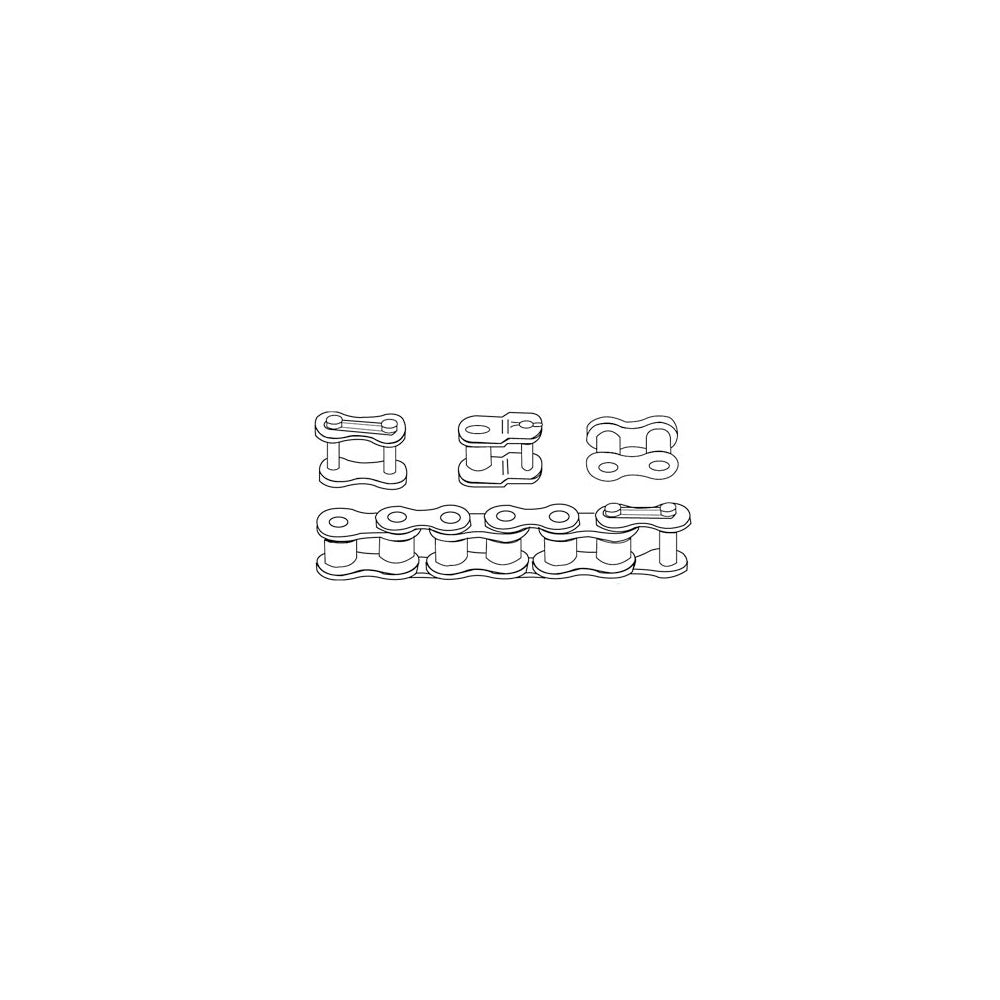

One New Aftermarket Replacement #41 Roller Chain Connector Link (Master Link) -
This #41 connector link (also called a master link) is used to connect two ends of ANSI #41 single-strand roller chain together, making it an essential part for chain repair and assembly on agricultural, lawn and garden, and light industrial equipment. The spring clip design allows for quick installation and removal without special tools.
Specifications
- Chain Size: #41 Single Strand
- Pitch: 1/2 in.
- Overall Width: 0.573 in.
- Pin Diameter: 0.141 in.
- Link Plate Height: 0.330 in.
- Link Plate Thickness: 0.050 in.
- Roller Diameter: 0.306 in.
- Roller Width: 1/4 in.
- Type: Spring Clip
- Strands: Single
- Meets ANSI B29.1 Standards
- Made in USA
Compatible With
Universal Fit: Fits all standard ANSI #41 single-strand roller chain applications, including agricultural equipment, lawn and garden machinery, go-karts, conveyor systems, and general power transmission drives.
Replaces Part Number(s):
A-CL41-AI, CL41, 202-1041, 41-1CL4, 809-203C, ACL41IMP, CL41IMP, CS-4341CL-00, SWC41CO, C4341CL-00-P, 41-1 CL, CL 41-1, PHC 41-1 C/L, RS41-1 CL, 085A-1 CL, CL 085A-1
New aftermarket replacement part - not remanufactured, not used.
