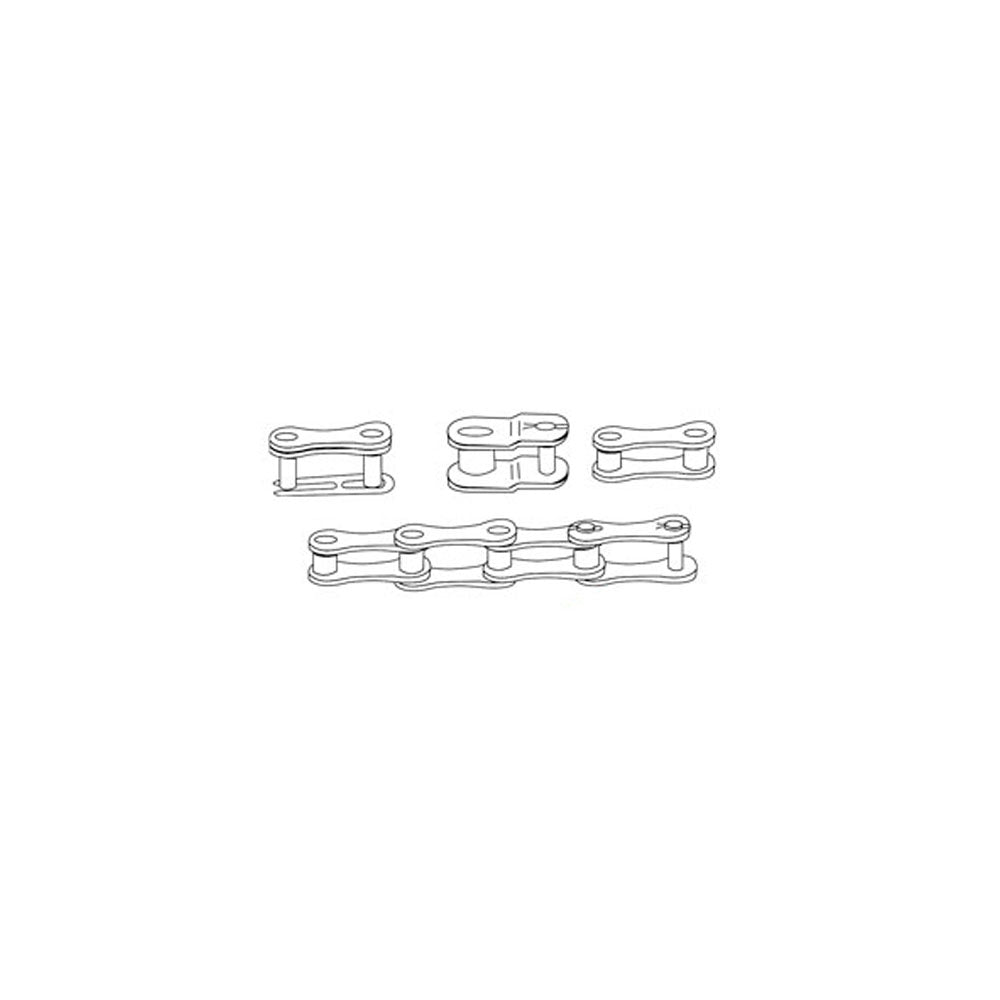

A-CL2040-AI 2040 Extended Pitch Connector Link (USA)

One New Aftermarket Replacement #2040 Extended Pitch Connector Link (USA) for Agricultural and Industrial Chain Applications

This #2040 extended pitch connector link (also called a master link) is used to join the ends of A2040 extended pitch roller chain, completing the chain loop in conveyor, elevator, planter, combine, and other agricultural or industrial drive applications. The spring clip design allows for easy installation and removal without special tools. This is a USA-made connector link conforming to ANSI B29.1 standards, compatible with any standard A2040 extended pitch roller chain.

Specifications

• Chain Size: #2040 Extended Pitch (Double Pitch)
• Pitch: 1 in.
• Roller Width: 5/16 in. (0.3125 in.)
• Overall Width: 0.700 in.
• Pin Diameter: 0.156 in.
• Link Plate Thickness: 0.060 in.
• Clip Type: Spring Clip
• Material: Carbon/Alloy Steel
• Standard: ANSI B29.1
• Origin: USA

Compatible Applications

Agricultural Equipment: Planters, combines, grain drills, conveyors, elevators, and other equipment using #2040 extended pitch roller chain. Fits John Deere, Fits Case IH, AGCO, and other brands using A2040 chain.

Replaces Part Number(s):

A-CL2040-AI, ACL2040, A-CL2040, A2040CL, SW2040COUS (Fits John Deere), RCCLA2040 (EDCOR), 673-CL2040, 457113R91, 56ACL2040, CL2040, 2040CL

New aftermarket replacement part - not remanufactured, not used.
