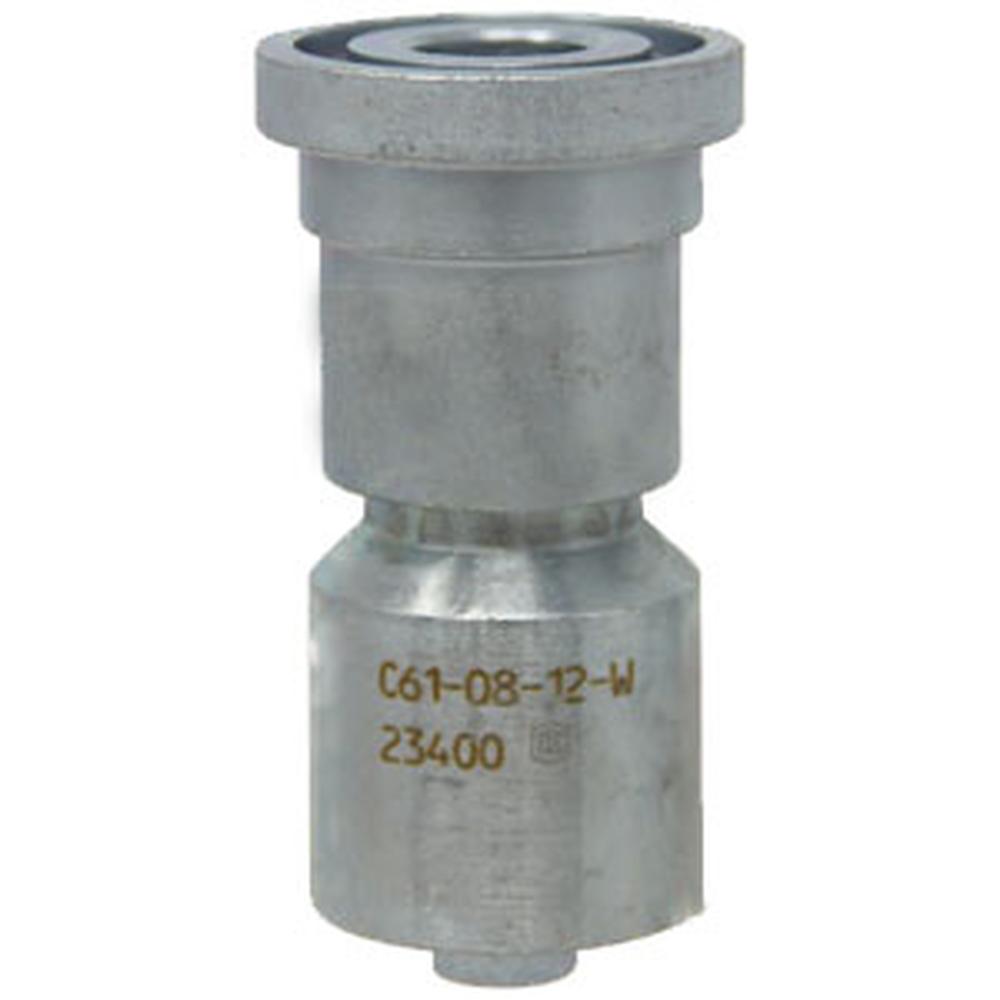

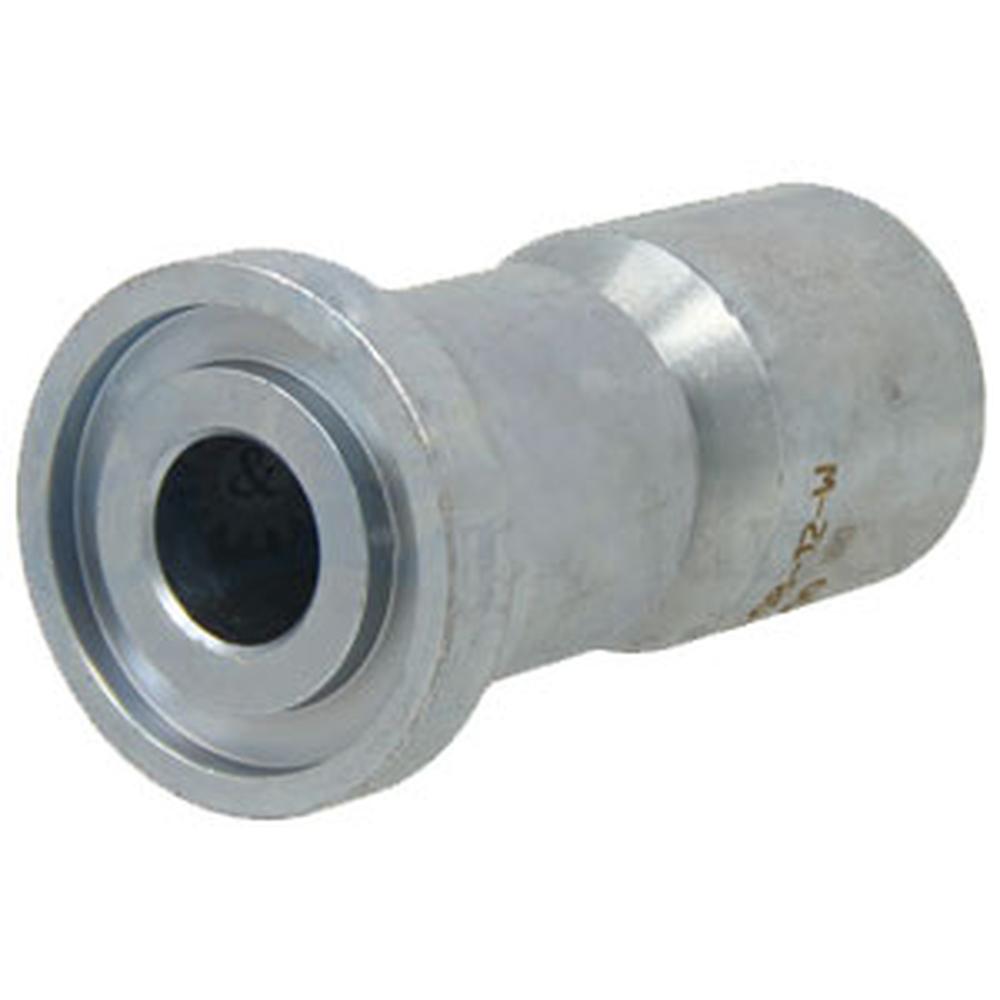

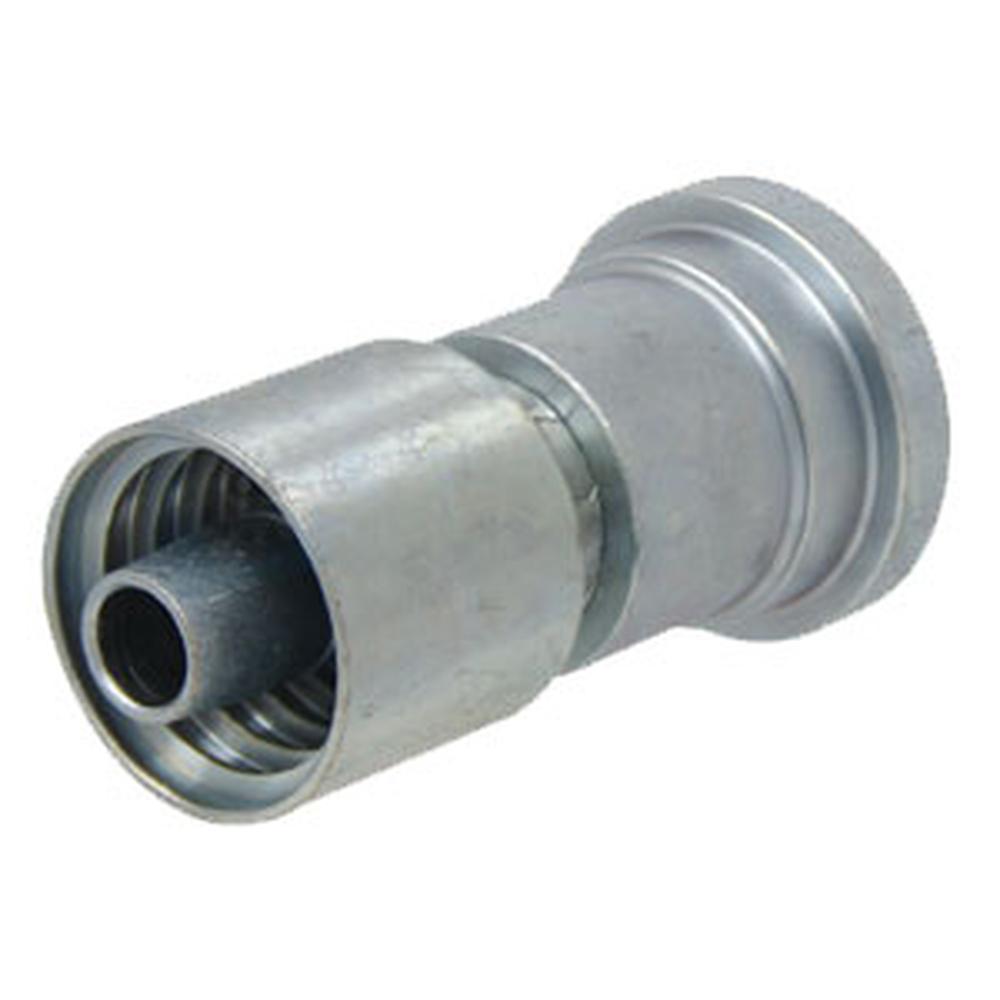

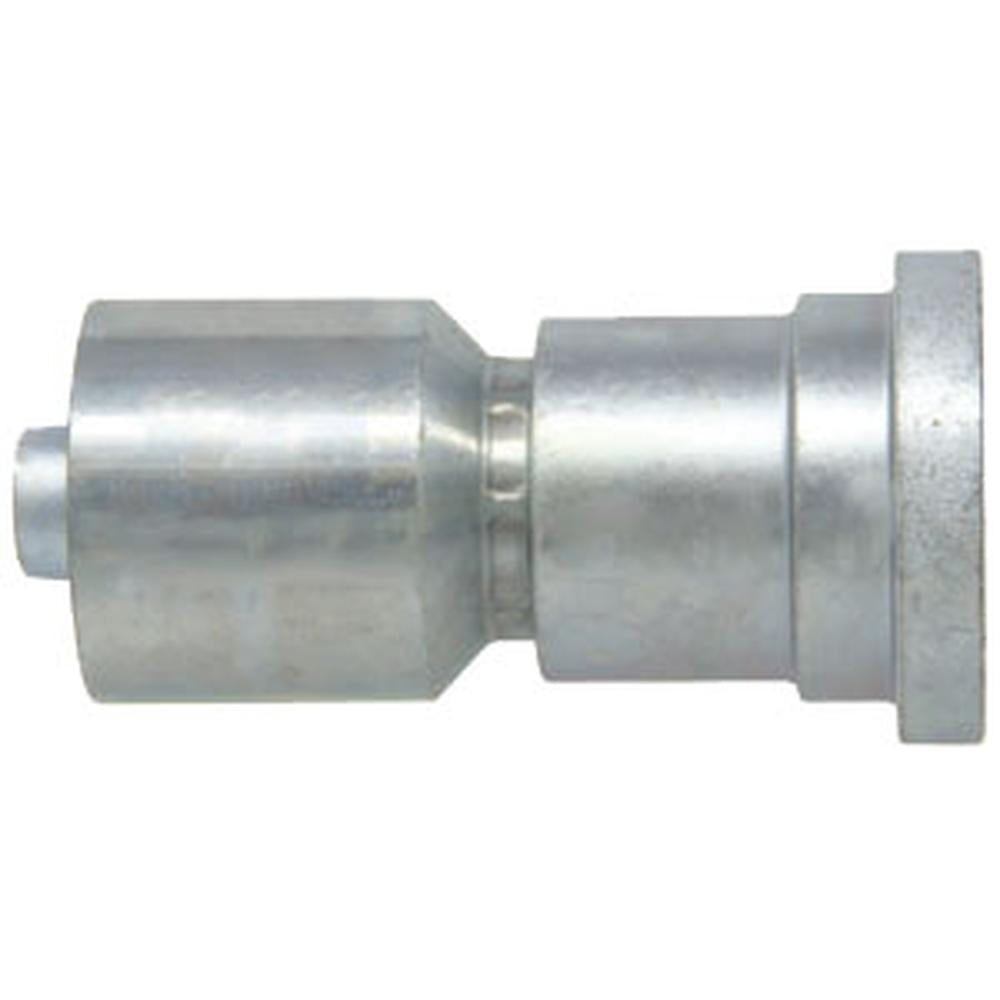

A-C61-08-12-W-AI (HW-C61) Code 61 Flange Head - Straight

One New Aftermarket Replacement Code 61 Flange Head Straight Crimp Fitting - 1/2" Hose x 3/4" Flange Port

This Code 61 (SAE J518 / ISO 6162) straight flange head crimp fitting connects 1/2" (dash-8) hydraulic hose to a 3/4" (dash-12) Code 61 four-bolt flange port. The fitting uses an O-ring seated in a groove on the flange head to seal against a smooth-face female port, held secure by four bolts in a rectangular pattern. Designed for use in standard-pressure hydraulic circuits, Code 61 fittings are rated for working pressures up to 3,000 PSI and are widely used on pumps, motors, valve blocks, and hydraulic manifolds in agricultural, construction, and industrial equipment.

Specifications

• Type: Code 61 SAE J518 / ISO 6162 Flange Head - Straight (0 degree)
• Hose End: 1/2" ID (Dash -08) crimp-on
• Flange Port: 3/4" (Dash -12) Code 61 four-bolt
• Orientation: Straight / Rigid
• Series: W-Series (AI designation)
• Seal: O-ring face seal
• Working Pressure: Up to 3,000 PSI (Code 61 standard)
• Compatible Hose: SAE 100R1AT, SAE 100R2AT, SAE 100R16, 1-wire and 2-wire braided hydraulic hose
• Material: Carbon steel

Compatible Applications

This is a universal hydraulic fitting suitable for use on tractors, combines, skid steers, excavators, loaders, and other agricultural and construction equipment using 1/2" hydraulic hose with Code 61 flange ports. Common applications include loader circuits, three-point hitch hydraulics, auxiliary circuits, and hydraulic pump and motor connections.

Aftermarket Interchange Numbers

Interchanges with Weatherhead U Series, Aeroquip FJ Series, Dayco SB Series, Dayco-Eastman HY Series, and Imperial-Eastman HU Series Code 61 flange fittings. Part number C61-08-12.

New aftermarket replacement part - not remanufactured, not used.
