A-BP8160003FF3-A Batwing Mower Wing Shafts
A-BP8160003FF3-A Batwing Mower Wing Shafts
Couldn't load pickup availability

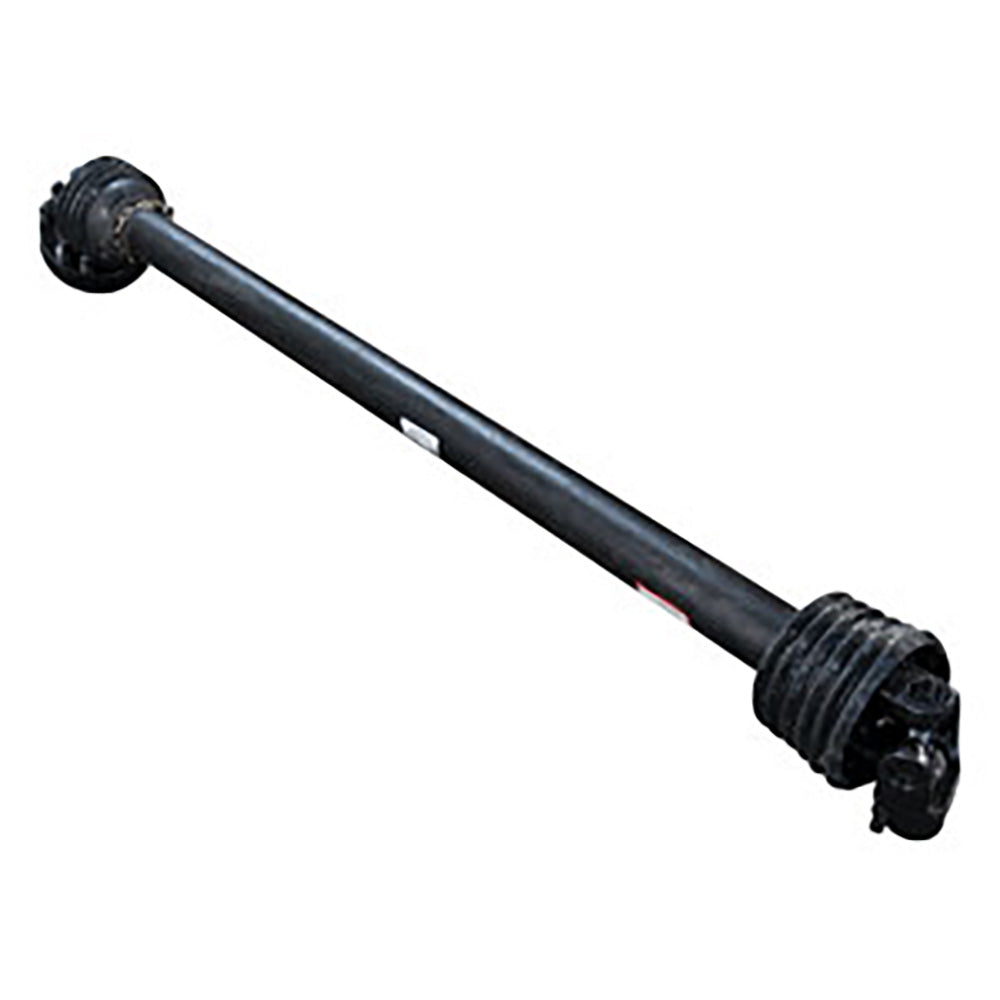

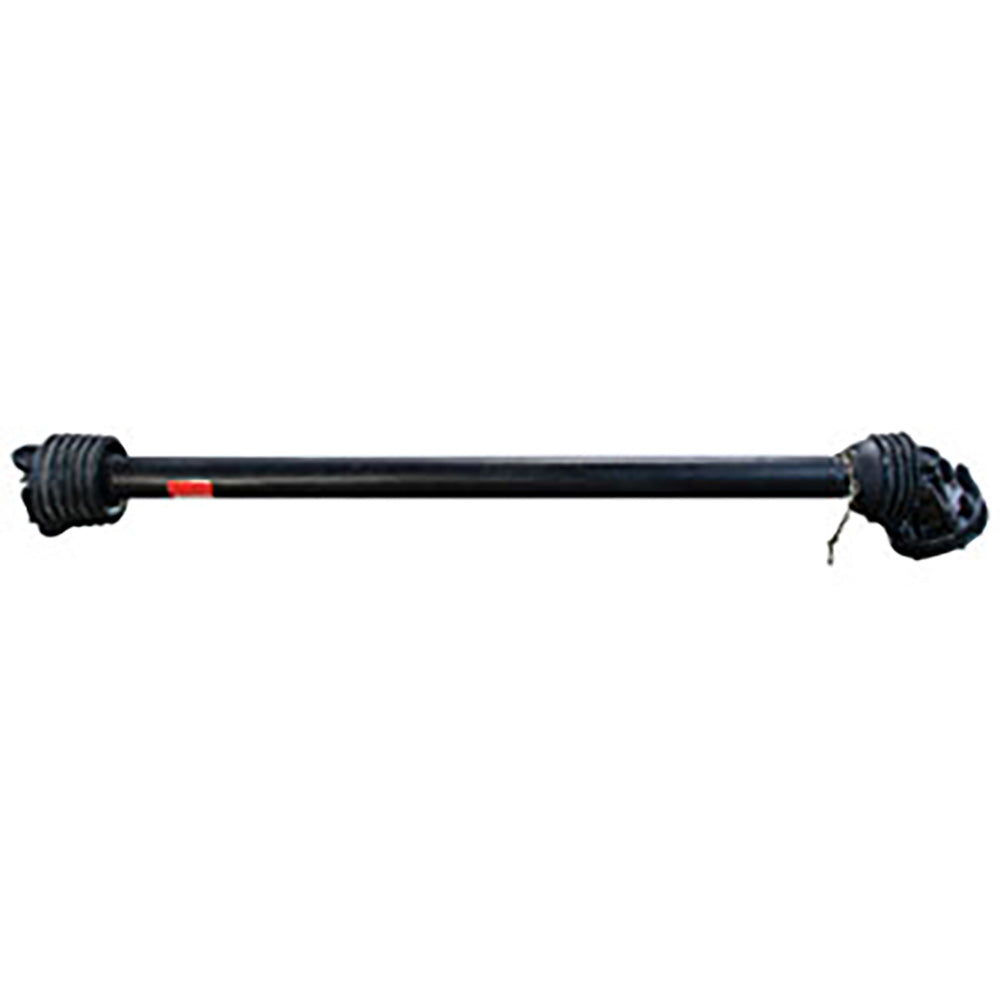

One New Aftermarket Replacement Batwing Mower Wing Shaft for Bush Hog Flex-Wing Rotary Cutters
This size 8 batwing mower wing shaft is a complete driveline replacement for the wing sections of Bush Hog flex-wing rotary cutters. It transfers PTO power from the gearbox to the wing cutting deck and features an integral slip clutch on the implement end for overload protection. This is a complete replacement unit -- original equipment components will not interchange with this shaft.
Specifications
- Shaft Size: 8
- Minimum Center-to-Center Length: 67 in. (1710 mm)
- Maximum Center-to-Center Length: 87 in. (2210 mm)
- Overall Collapsed Length: 80 in. (2026 mm)
- Tractor Yoke: 1-3/4 in., 20 splines
- Implement Yoke: 1-3/4 in., 20 spline slip clutch
Important Installation Note
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Compatible Models
Bush Hog Flex-Wing Rotary Cutters: 3710, 3715, 13710, 13715
Replaces Part Number(s):
BP8160003FF3-A, BP8160003FF3, SW37768, 50058537, A-50058537
New aftermarket replacement part - not remanufactured, not used.
