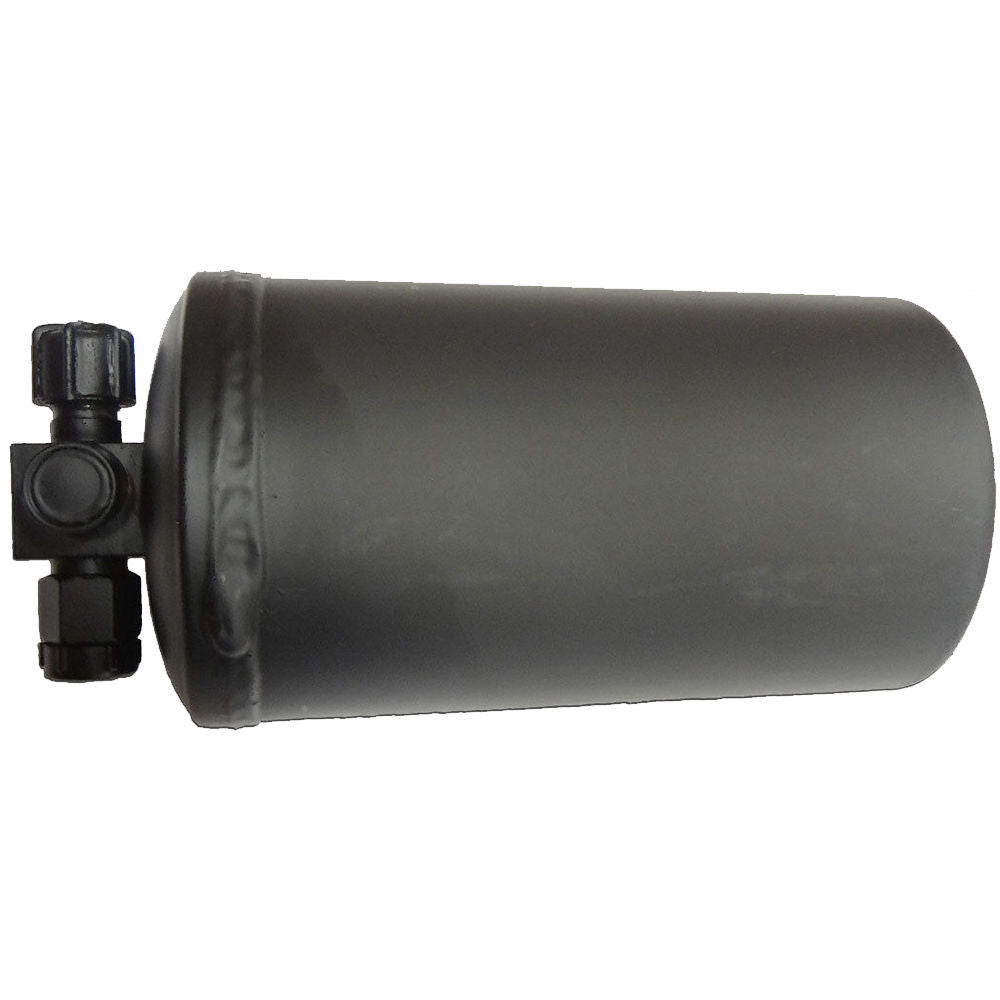

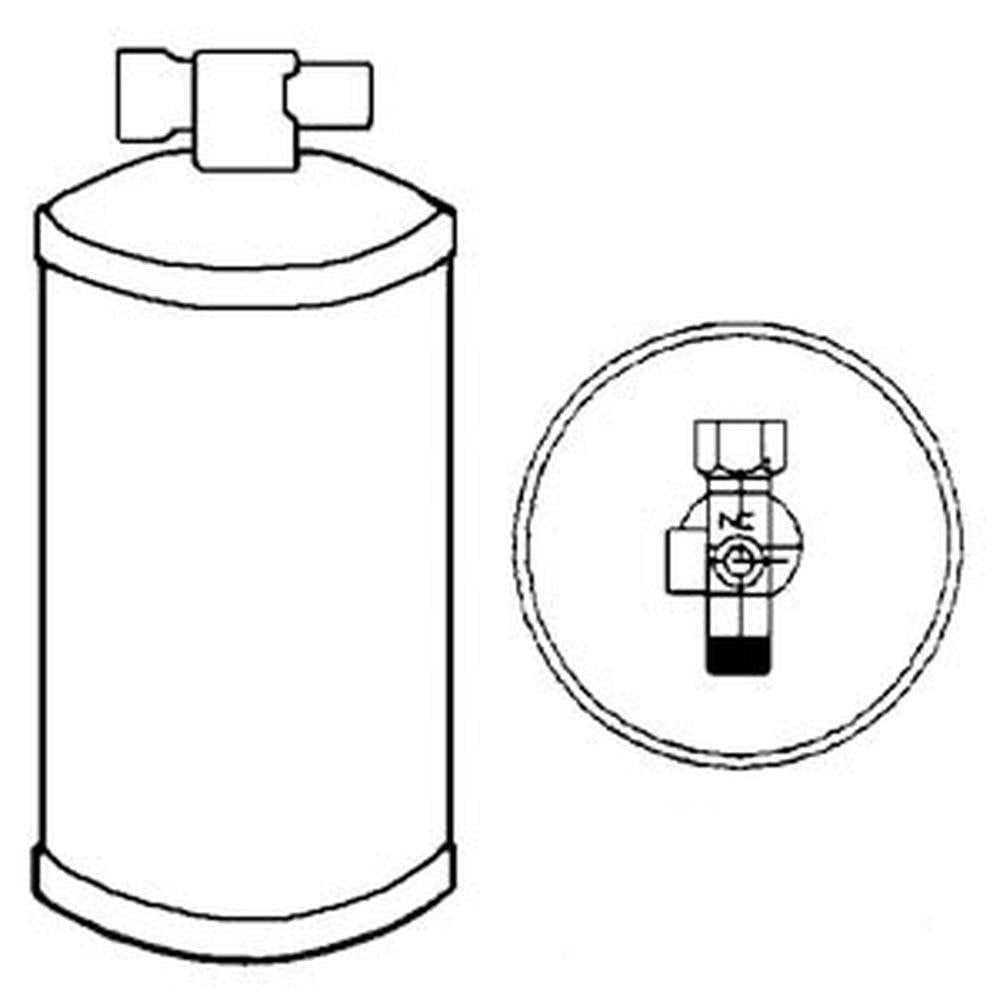

A-AT162848-AI Receiver/Drier

One New Aftermarket Replacement Receiver/Drier Fits John Deere Equipment

This aftermarket replacement A/C receiver/drier fits a wide range of Fits John Deere agricultural, construction, and forestry equipment. The receiver/drier is a critical component of the air conditioning system, containing desiccant to remove moisture from the refrigerant and filter media to capture contaminants such as wear metals from the compressor. Compatible with both R12 and R134a refrigerant systems. Features a top/side sight glass and moisture indicator. Replace the receiver/drier whenever the A/C compressor is replaced, any time the system has been open to atmosphere, or at minimum annually.

Specifications

• Canister Diameter: 4"
• Overall Height: 9"

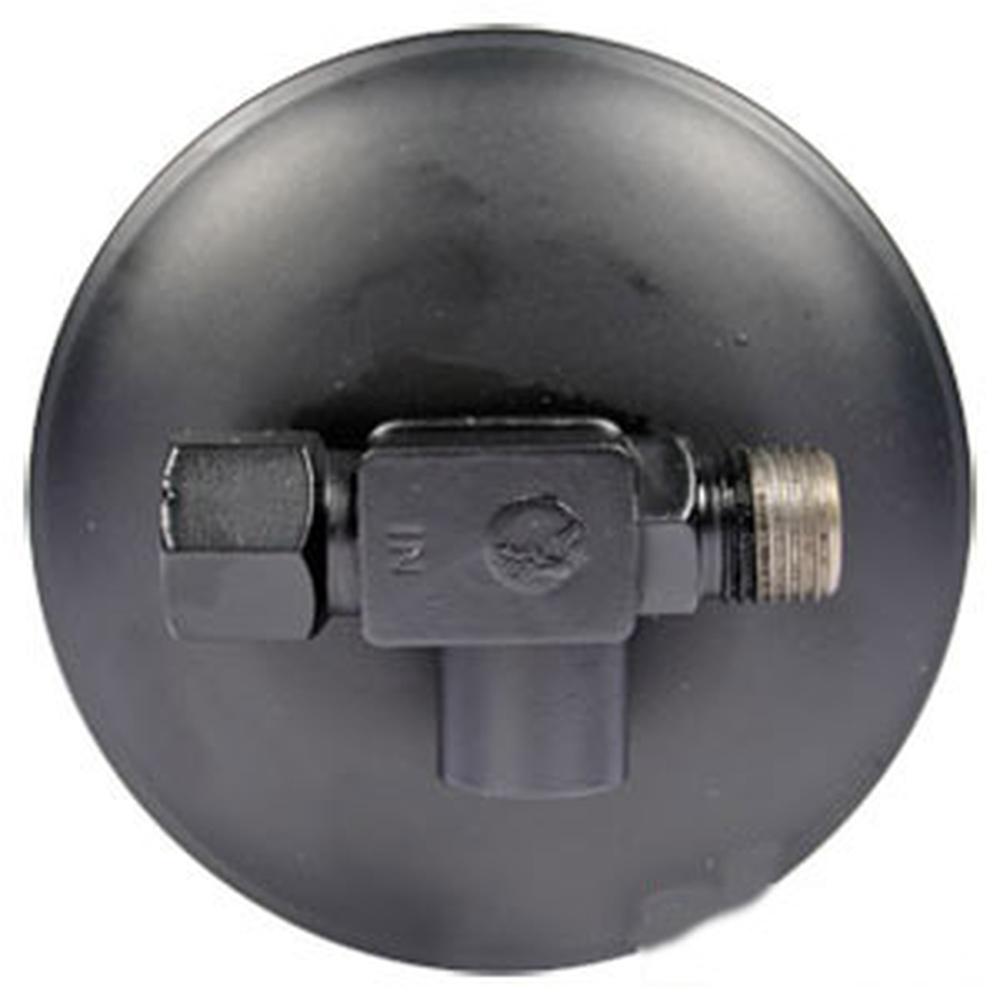

• Inlet: #6, 3/8" Female O-Ring
• Outlet: #6, 3/8" Male O-Ring
• Refrigerant: R12 and R134a Compatible
• Sight Glass: Top/Side with Moisture Indicator
• Mounting Position: Vertical/Upright

Compatible Models

Fits John Deere Combines: CTS (SN 610401>), CTS II, 2054, 2056, 2058, 2064, 2066, 4425, 4435, 6620 (SN 600001>), 6620 Titan II, 6622, 7720 (SN 600001>), 7720 Titan II, 7722, 8820, 8820 Titan II, 9400, 9410, 9450, 9500, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9560 STS, 9600, 9610, 9640, 9650, 9650 CTS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9680, 9760, 9760 STS, 9770 STS, 9780 CTS, 9780HM CTS, 9860 STS, 9870 STS, 9880 STS, 9940, 9950, 9960, 9965, 9970, 9976, 9986, 9996

Fits John Deere Backhoes: 300D, 310C, 310D, 310E, 310G, 310SE, 310SG, 315C, 315D, 315SE, 315SG, 325, 410B, 410D, 410E, 410G, 510B, 510C, 510D, 710D, 710G

Fits John Deere Tractors: 7200, 7250, 7300, 7350, 7400, 7450, 7500, 7550, 7700, 7750, 7800, 7850, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410

Fits John Deere Motor Graders: 670B, 670C, 670CH, 670D, 672B, 672CH, 672D, 726B, 750C, 750C II, 762, 770B, 770BH, 770C, 770CH, 772B, 772BH, 772CH, 772D, 850C, 850C II, 870D, 872D

Fits John Deere Crawlers/Dozers: 450H, 450J, 550H, 550J, 650H, 650J, 700H, 750C, 750C II, 750J, 850C, 850C II, 850J

Fits John Deere Wheel Loaders: 444H, 444J, 524K, 544E, 544G, 544J, 624E, 624G, 624J, 644G, 644H, TC44H, TC54H

Fits John Deere Skid Steer Loaders: 317, 320, 325, 328, 332, CT322, CT332

Fits John Deere Forestry/Skidders: 540E, 540G, 548E, 548G, 640E, 640G, 648E, 648G, 740E, 740G, 748E, 748G

Fits John Deere Forage Harvesters: 5720, 5730, 5820, 5830, 6610, 6650, 6710, 6810, 6910, 7400, 7500, 7800

Fits John Deere Articulated Dump Trucks: 260E, 310E, 360DC, 360DG, 410D, 460DC, 460DG

Fits John Deere Cotton Pickers/Strippers: 9986, 9996

Fits John Deere Sprayers/Other: 3430, 3800, 3830, 4700, 4710, C670

Replaces Part Number(s):

AT162848, AT151981, AT125596, AT63170, AT114865, AH162848, AH114865, AH137486, AH211387, AH234099, AXE53638, 804-1890

Aftermarket Interchange Numbers

07-5032A, 804-532, 825-5176, 800-5316, 7392, 37-13541, 37-13541-AM, 37-13739, 60-1-0004

New aftermarket replacement part - not remanufactured, not used.
