A-AR71591-AI Piston Liner Kit

One New Aftermarket Replacement Piston Liner Kit Fits John Deere Tractors, Crawlers, and Industrial Equipment

This aftermarket replacement piston liner kit Fits John Deere engines equipped with the 3.152 diesel engine and is used during engine rebuilds to restore cylinder bore integrity and compression. The kit includes all components needed for one cylinder: a piston, piston rings, piston pin, cylinder liner, and pin retainers. This kit is designed for engines with O-rings in the block -- verify your block marking before ordering, as liner and O-ring placement differ between early and late engine variants.

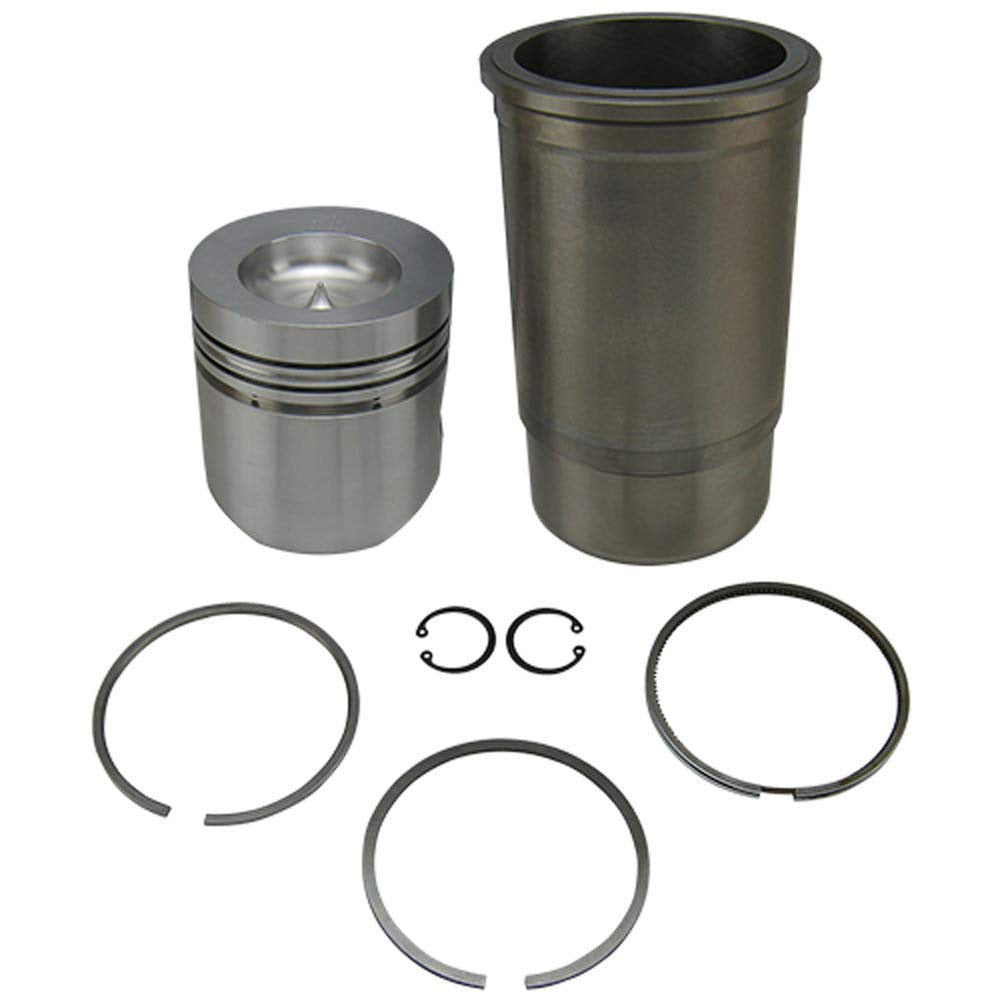

Kit Contents (Per Cylinder)

• Piston (T23481)
• Piston Ring Kit - 3 rings (AR70633)
• Piston Pin (T23482)
• Cylinder Liner (T32340)
• Pin Retainers (R51112) x2

Specifications

• Piston Diameter: 98 mm
• Number of Piston Rings: 3
• Weight: 9.63 lb
• For use with engine blocks marked: R53240, R55100, R72967, T32339
• O-rings seat in block (not on sleeve)

Compatible Models

Fits John Deere Tractors: 1020, 1030, 2020, 2120, 2510, 820

Fits John Deere Industrial / Construction: 300, 300A, 300B, 300C, 300D, 301, 301A, 302, 302A, 350A, 350B, 380 (SN 154766 and above, with 3.152 engine), 400, 440 Skidder, 480 Forklift

Fits John Deere Windrowers: 830

Note: Serial number restriction applies to some models -- 380, 350A, 350B, 301A, 300/300A/300B require SN 154766 and above with 3.152 engine. Verify engine block marking before ordering.

Replaces Part Number(s):

AR71591, A-AR71591, NAR71591, NAR-71591, ABAR71591

New aftermarket replacement part - not remanufactured, not used.
