A-AR62401-AI RE-MFG. ALTERNATOR
A-AR62401-AI RE-MFG. ALTERNATOR
Couldn't load pickup availability

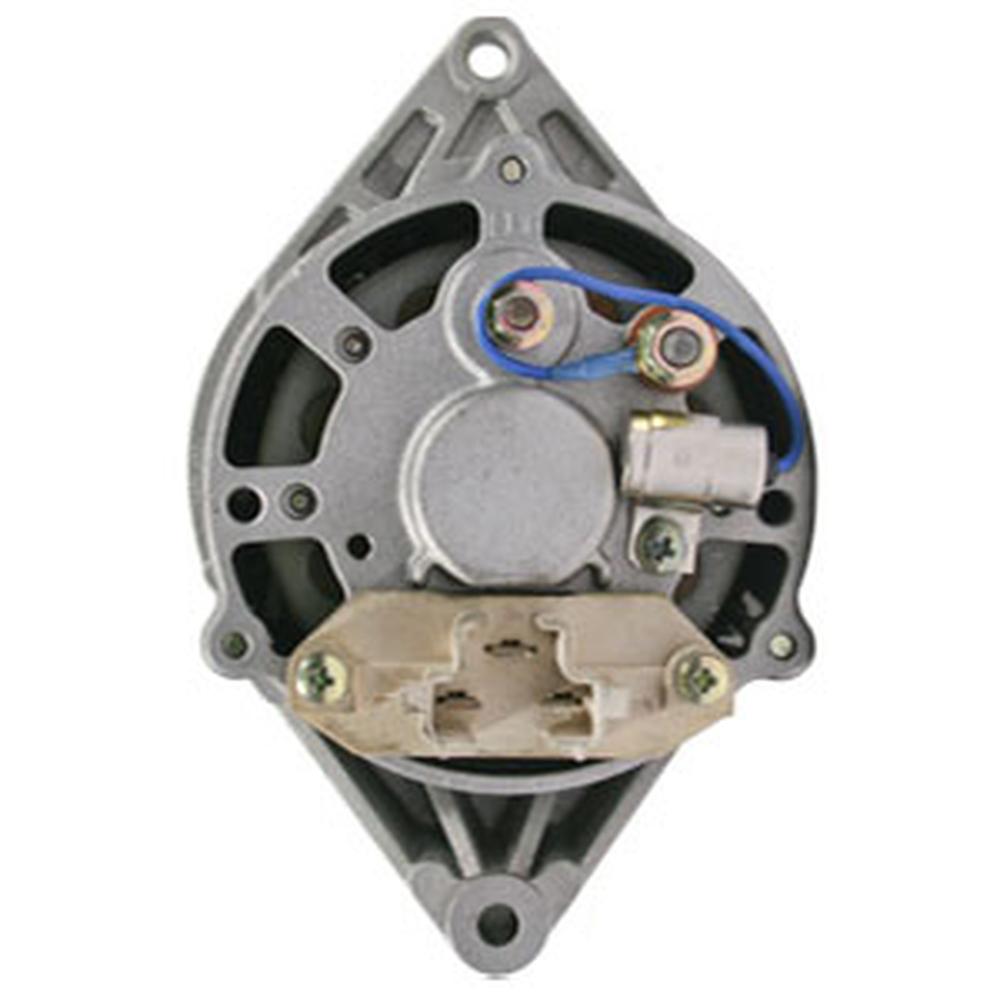

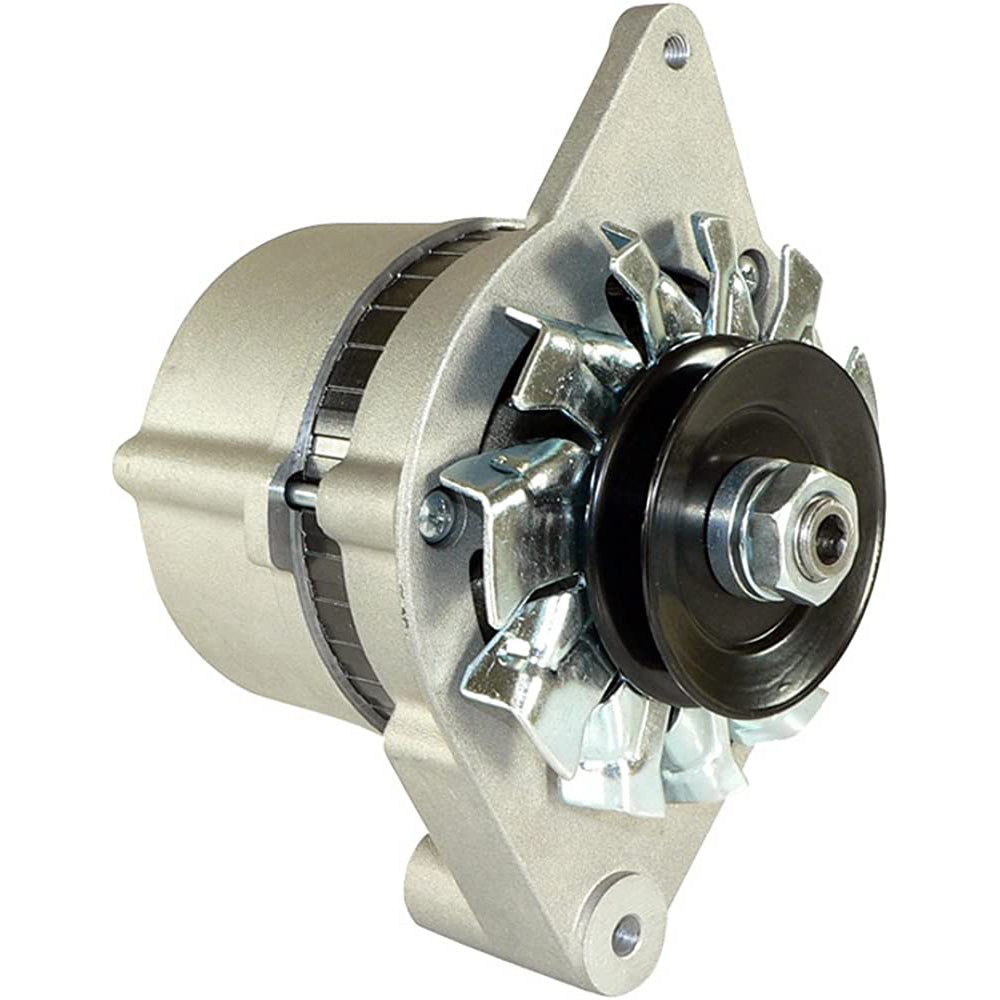

One New Aftermarket Remanufactured Replacement Bosch-Style Alternator for John Deere Tractors
This remanufactured Bosch-style alternator (John Deere part AR62401) is a direct replacement for the charging system on a wide range of John Deere utility and compact tractors produced from the late 1960s through the mid-1980s. The unit features an external voltage regulator design with clockwise rotation and a single-groove V-belt pulley, making it a precise fit for tractors originally equipped with the Bosch-type charging system.
Specifications
- Voltage: 12V
- Amperage: 28 Amps (rated)
- Rotation: Clockwise (CW)
- Regulator: External
- Fan: External
- Pulley: Single-groove V-belt
- Style: Bosch
- Polarity: Negative ground
Compatible Models
John Deere (JD) Utility Tractors: 820, 830, 920, 1020, 1030, 1120, 1530, 1830, 2020, 2030, 2040, 2120, 2130, 2240, 2840, 2940, 3120
Note: This alternator is designed for tractors equipped with an external voltage regulator. Verify your original unit configuration before ordering.
Replaces Part Number(s):
AR62401, AT31414, TY6605, TY25948, TY6651, AL19129, AL36391
Aftermarket Interchange Numbers
Bosch: 0-120-300-535, 0-120-300-538, 0-120-300-539, 0-120-300-562 | Delco Remy: DRA0110 | Lucas: LRA01046, A0313 | Arrowhead: ABO0223
Remanufactured replacement unit - not new, not used without reconditioning. Core charge applies.
