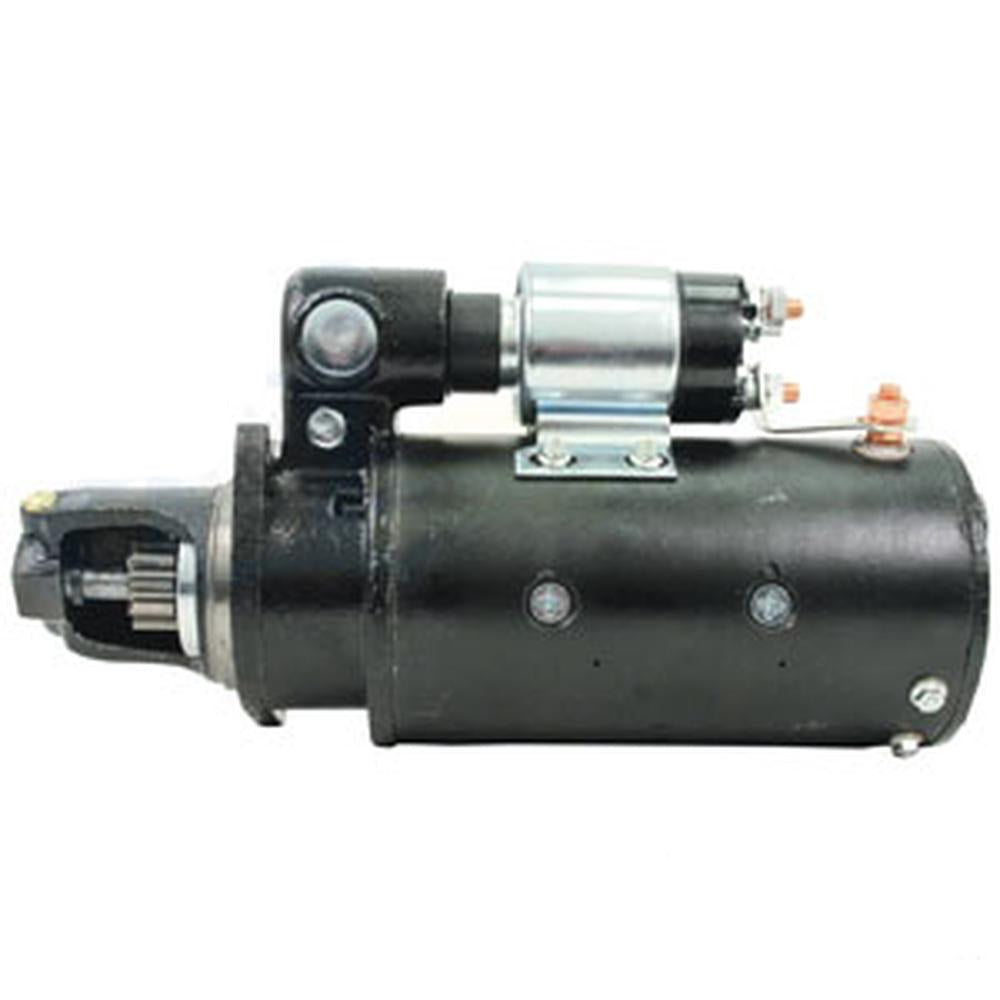

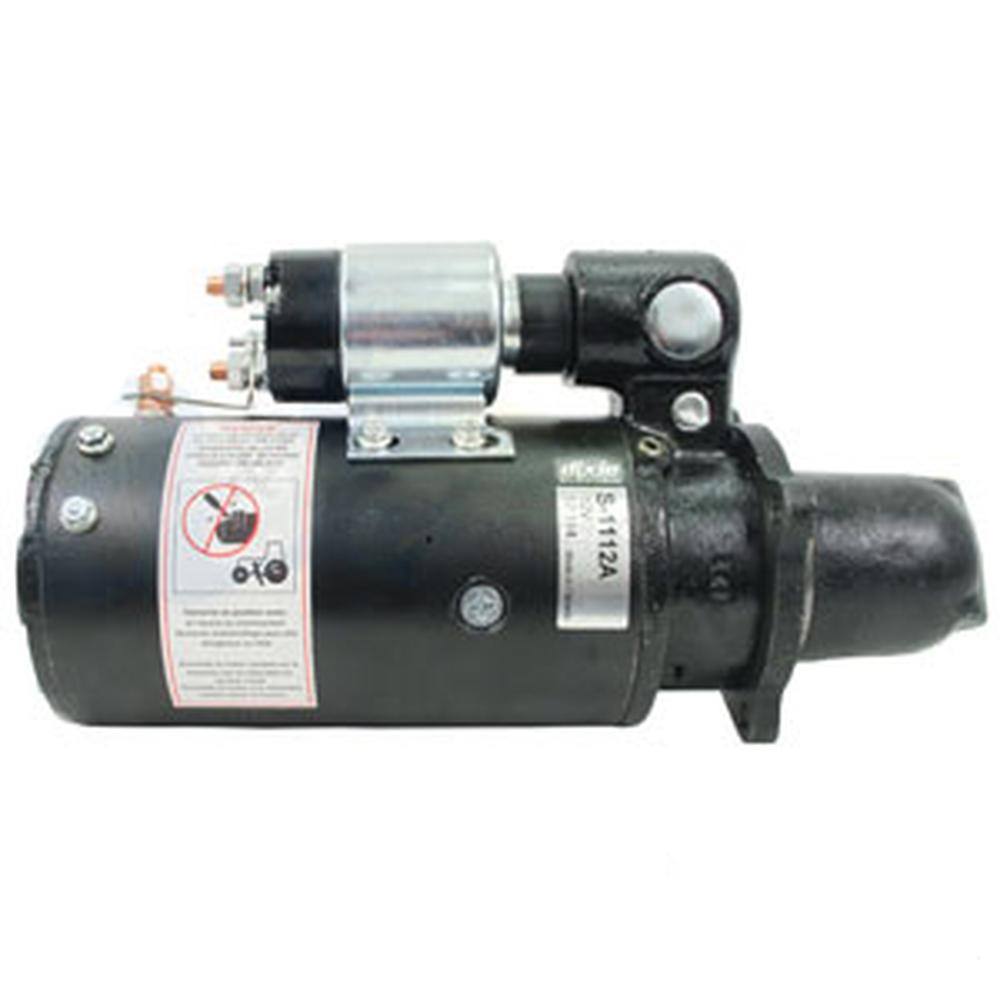

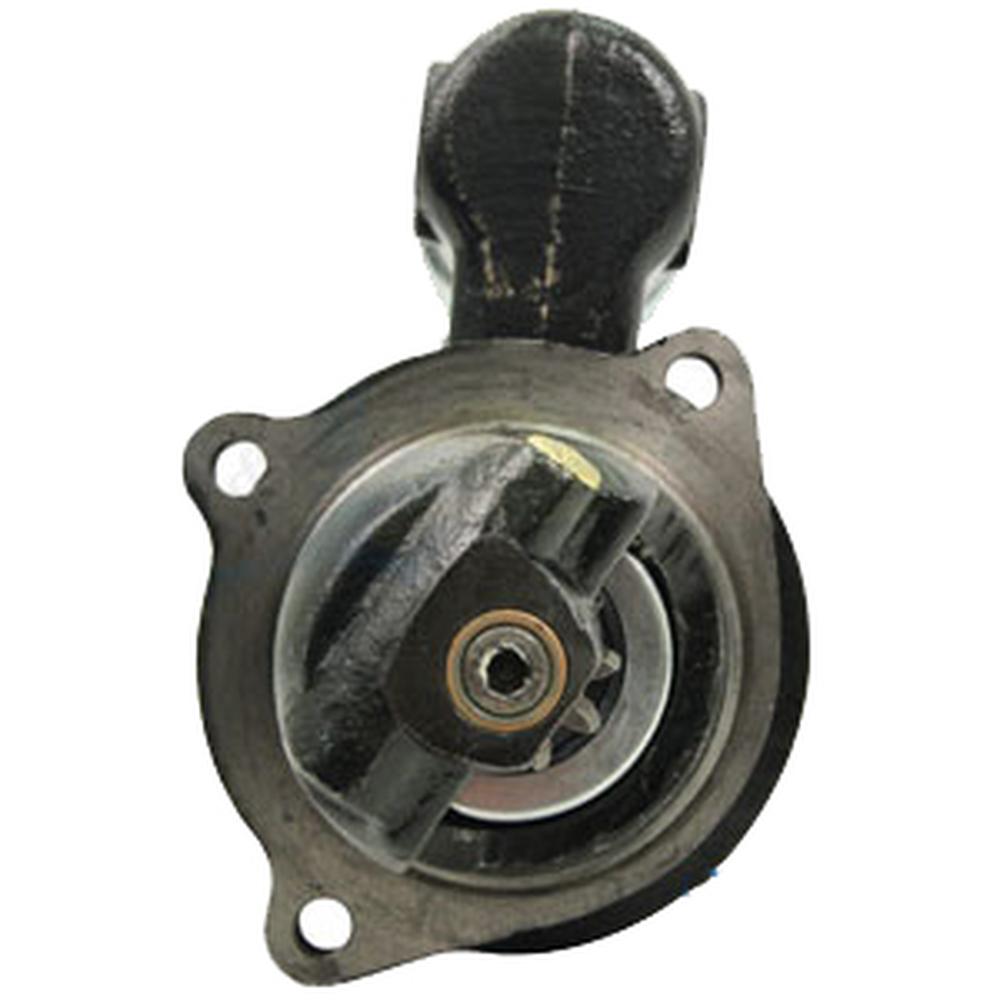

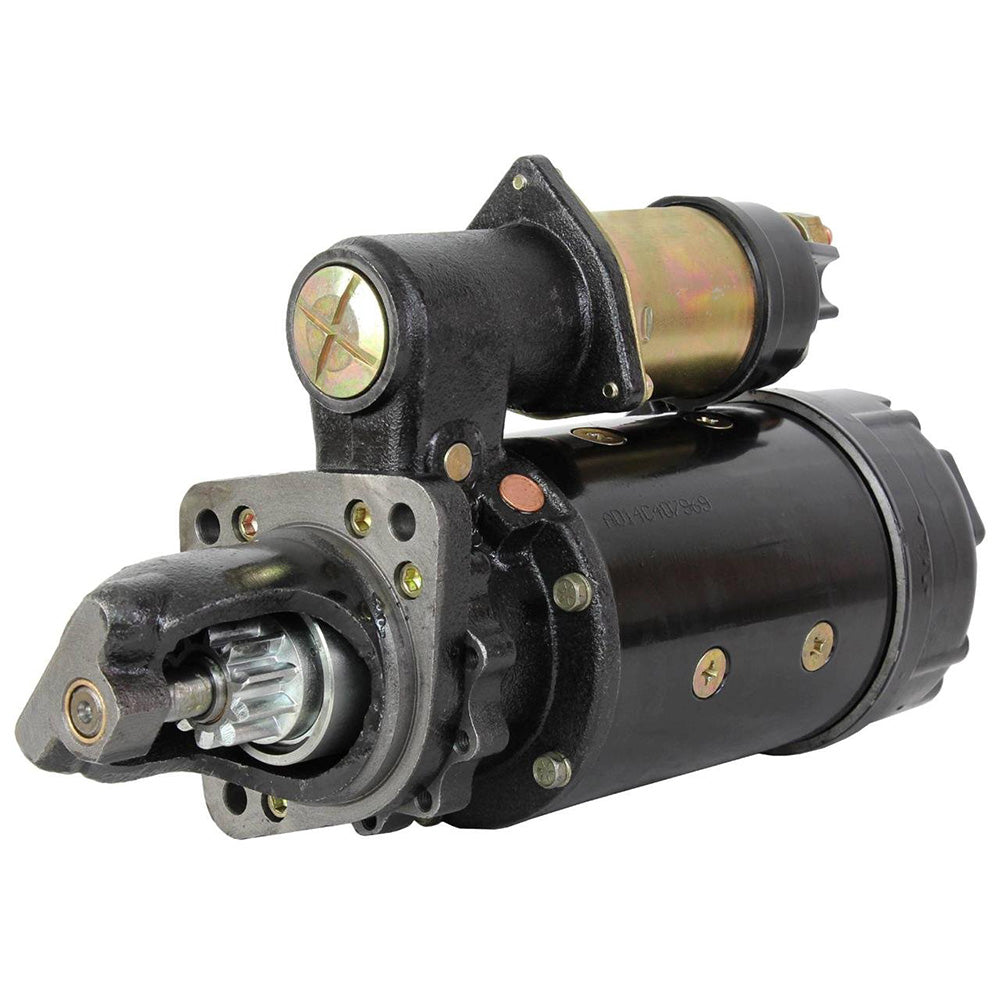

A-AR55638-AI Starter, DR35MT

One New Aftermarket Replacement Starter (DR35MT) for John Deere Tractors and Power Units

This aftermarket replacement starter fits a wide range of John Deere (JD) diesel tractors and power units from the late 1960s through the mid-1970s. It is a direct-drive (DD), Delco-type unit mounted at the engine flywheel housing and replaces the original Delco 35MT-style starter. Note: check clearance on models equipped with a drop-type intake manifold, as starter motor height may cause interference.

Specifications

• Type: Direct Drive (DD) - Delco 35MT
• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth: 10
• Pinion/Drive OD: 39.9mm / 1.571 in
• Mounting Holes: 3 x 10.0mm ID, unthreaded

Compatible Models

John Deere Farm Tractors: 3020 (4-270 Diesel, 1969-1972), 4000 (404 Diesel, 1969-1972), 4020 (404 Diesel, 1969-1972), 4030 (329 Diesel, 1973-1974), 4230 (6-404 Diesel, 1973-1975), 4320 (6-404 Diesel, 1969-1973), 4430 (6-404 Diesel, 1973-1975), 4520 (6-404 Diesel, 1969-1973), 4620 (6-404 Diesel, 1969-1973), 4630 (6-404 Diesel, 1973-1975), 7020 (404 Turbo Diesel, 1971-1975)

John Deere Power Units: 404 Diesel (1970), 500 Diesel (1978-1983)

John Deere Industrial: 500C Diesel (1967-1976), 510 (1967-1976)

Massey Ferguson Crawlers: MF-300 (Perkins A4-248 Diesel, 1971-1977), MF-3366 (Perkins 4-300 Diesel, 1967-1970), MF-3366 (Perkins 4-302 Diesel, 1971), MF-400

Replaces Part Number(s):

AR55638, AR62267

Aftermarket Interchange Numbers

Delco: 1113402, 1113650, 1113656, 1113672; John Deere: AR34406, AR41627, RE501166, TY6667, TY6710; S-1112A, S1112A, W1227413, AMX34107

New aftermarket replacement part - not remanufactured, not used.
