A-AR103036-AI Pump, Hydraulic

Name: A-AR103036-AI Pump, Hydraulic
SKU: A-AR103036-AI
Price: 1249.0 USD
Availability: InStock

A-AR103036-AI Pump, Hydraulic

$1,249.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Hydraulic Pump Fits John Deere (Fits JD) Tractors, Cotton Pickers, Cotton Strippers, and Industrial/Construction Equipment

This aftermarket replacement axial piston hydraulic pump fits a wide range of Fits John Deere (Fits JD) agricultural and industrial equipment. The pump is a single-type, 8-piston axial piston design rated at 23 cc displacement and 2600 max PSI, with a keyed shaft drive. It supplies hydraulic pressure to the tractor's lift and hydraulic systems. When replacing this pump, the hydraulic system should be fully flushed and refilled with clean, fresh fluid prior to installation.

Specifications

Pump Type: Single, Axial Piston (8 Pistons)
Displacement: 23 cc (1.4 ci)
Max PSI: 2600
Drive Type: Keyed Shaft (7/8" Shaft O.D.)

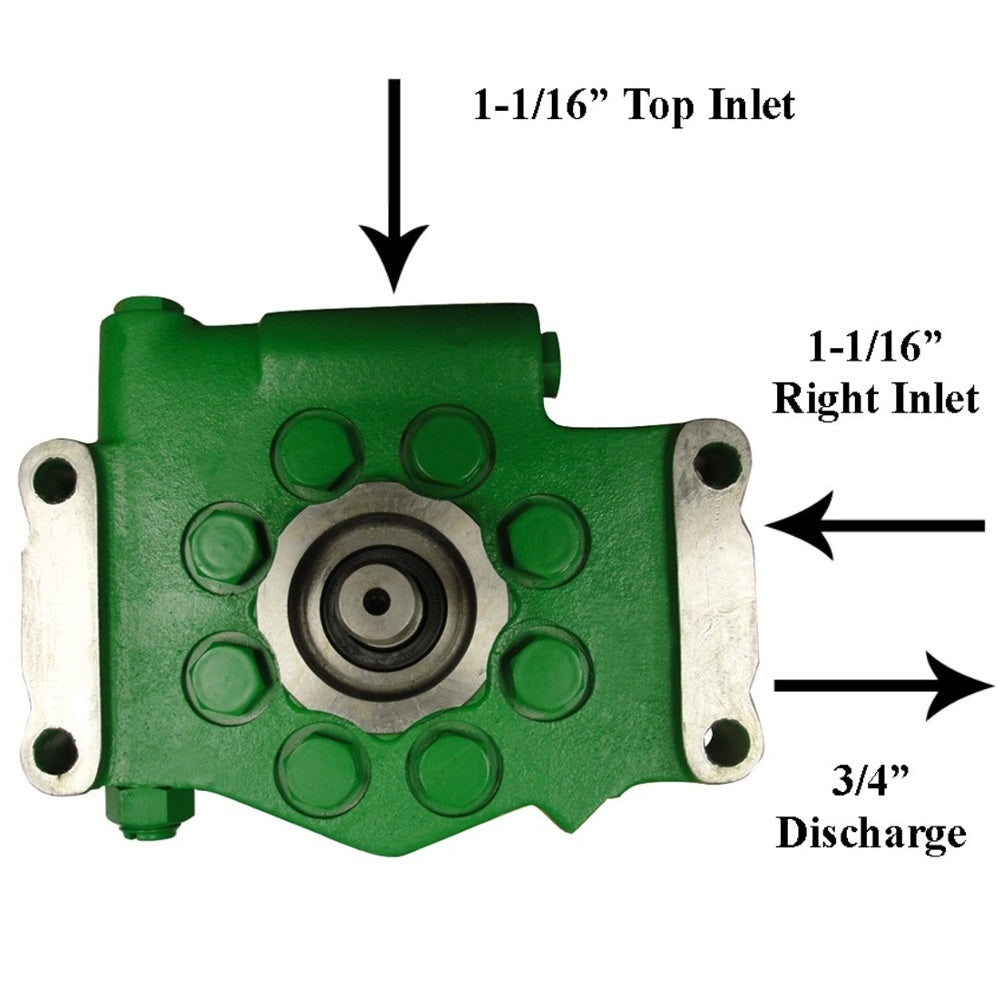

Top Inlet: 1-1/16"
Right Inlet: 1-1/16"
Discharge: 3/4"
Relief Valve: Included

Compatible Models

Fits John Deere Tractors: 830 (3 cylinder), 840, 930, 940, 1020, 1030, 1030OU, 1035, 1035EF, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1350, 1520, 1530, 1550, 1630, 1630OU, 1635, 1635EF, 1640, 1750, 1830, 1840, 1850, 1950, 1950N, 2020, 2030, 2035, 2040, 2040S, 2120, 2130, 2135, 2140, 2150, 2155, 2240, 2250, 2255, 2350, 2355, 2355N, 2440, 2450, 2550, 2555, 2630, 2640, 2650, 2750, 2755, 2840, 2850, 2940, 2950, 3030, 3040, 3050, 3120, 3130, 3135, 3140, 3150, 3340, 3350, 3640, 3650, 4030, 4040, 4230, 4240, 4250, 4430, 4440, 4450, 4630, 4640, 4650, 4840, 4850, 8450

Fits John Deere Cotton Pickers: 9920, 9930, 9940, 9950

Fits John Deere Cotton Strippers: 7440, 7445

Fits John Deere Industrial/Construction: 300 (S/N 045200 and up), 301, 301A (S/N 352536 and up), 302 (S/N 352536 and up), 400 (S/N 045200 and up), 401, 401B (S/N 352536 and up), 401D

Replaces Part Number(s):

AR103036, AR103036-A, AR103033, AR103033-A, AR89064, AR39019, AR39168, AR39168-A, AR103035, AR89061, AL70641, 640-217B

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

301, 7445, 1130, 2120, 4030, 830, 401, 1030, 1840, 1850, 2020, 2140, 2650, 1750, 8450, 4440, 2135, 3030, 1040V, 2855N, 1040, 1140, 1140V, 1635EF, 302, 2755, 4230, 4630, 2940, 1020, 3350, 1630OU, 2030, 4640, 2240, 1640, 7440, 3120, 3135, 2840, 2155, 2630, 9930, 3040, 1830, 2355, 4040, 1520, 4240, 1030OU, 1035, 301A, 2950, 2555, 1035EF, 1635, 3150, 2250, 4250, 2035, 1530, 4840, 4850, 9920, 1120, 2550, 1550, 2355N, 2640, 940, 300, 4430, 2040S, 401D, 4050, 840 940 1040 1140 1350 1550 1640 1750 1840 1850 1950 1950N 2040 2040S 2140 2150 2155 2250 2255 2350 2355 2355N 2450 2550 2555 2650 2750 2755 2850 3040 3050 3140 3350 3640 3650, 9950, 2750, 3650, 2150, 2440, 4650, 1630, 830 3 cylinder, 401B, 4450, 1950, 3050, 400, 840, 3340, 2255, 2450, 3640, 2130, 2850, 9940, 2040, 1140F, 930, 2350, 3130, 3140, 1950N, 1350

Additional Information:

Keyed shaft The system needs be flushed and replaced with clean, new fluid Drive Type Keyed Max PSI 2600 Pump Type Single Relief Valve Included Volume 23 cc

Reference Numbers:

AR103036, AR89064, AR103033, AR103036, AR103033, AR103036, AR39019, AR39168, AR89064, AR39168, AR103035, AR103036, AR89064, AR39019, AR103033, AR89061, AL70641, 640-217B
