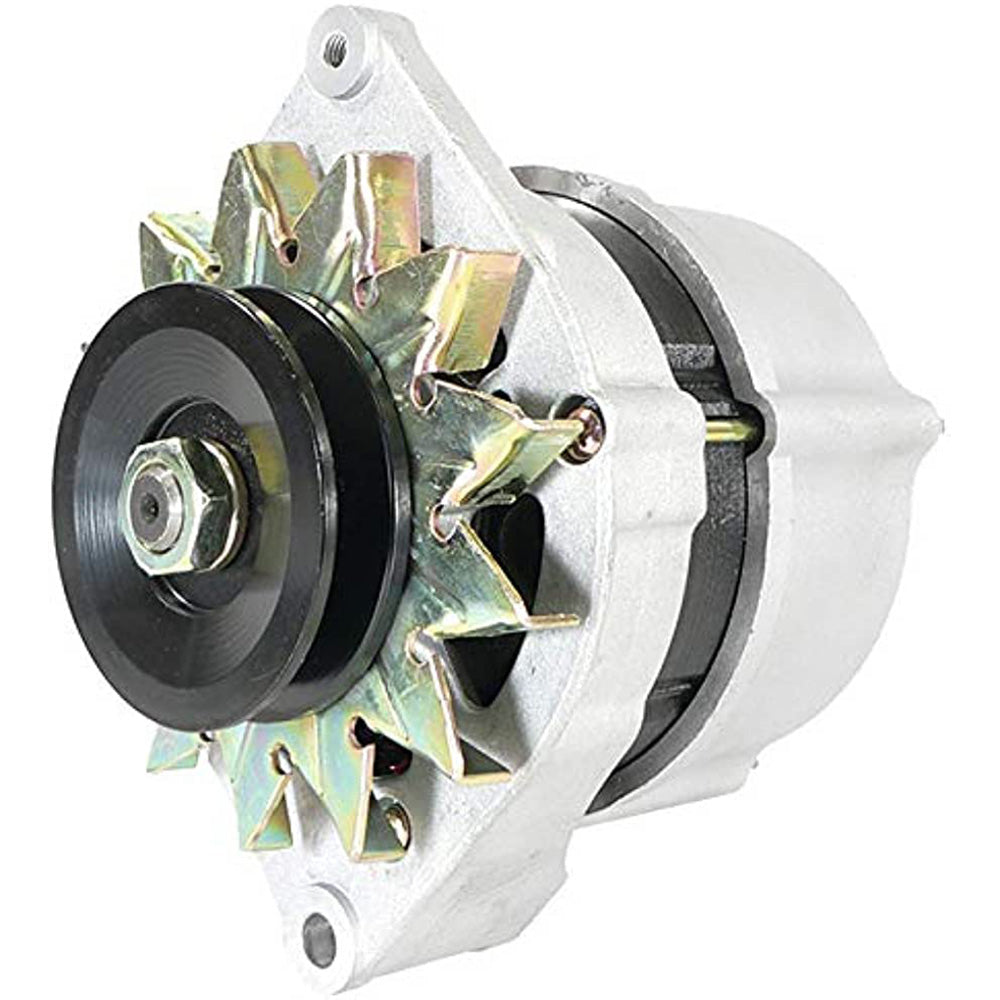

A-AL67175-AI Alternator, Fits Bosch

One New Aftermarket Replacement Alternator Fits John Deere Tractors - Fits Bosch Style

This aftermarket replacement alternator is a Fits Bosch-style unit designed to replace the original charging system alternator on a wide range of Fits John Deere agricultural tractors. It features an external fan, internal voltage regulator, and clockwise rotation, making it a direct drop-in replacement for the original Fits Bosch alternator assembly used across Fits John Deere's 800 through 6000 series tractor lines.

Specifications

• Voltage: 12V
• Amperage: 55A
• Rotation: Clockwise (CW)
• Fan Type: External
• Regulator: Internal
• Pulley: Single V-groove (V1), solid
• Pulley O.D.: 3.224 in / 81.9 mm
• Clock Position: 12
• Polarity: Negative ground
• Weight: approx. 12.6 lbs / 5.73 kg

Compatible Models

Fits John Deere Agricultural Tractors: 830 (1972-1975), 840, 930 (1972-1979), 940, 1030 (1970-1982), 1040, 1130 (1970-1982), 1140, 1350, 1550, 1630 (1973-1982), 1640, 1750, 1750V, 1830, 1840, 1850, 1850F, 1850V, 1950, 1950F, 1950N, 2030, 2040S, 2130, 2140, 2150 (1982-1987), 2155 (1987-1992), 2240 (1976-1982), 2250, 2250F, 2255 (1983-1987), 2350 (1983-1986), 2355 (1986-1992), 2355N, 2450, 2450F, 2550 (1982-1987), 2555 (1987-1992), 2650, 2650F, 2650N, 2750 (1983-1986), 2755 (1987-1992), 2840 (1977-1979), 2850, 2855N (1987-1993), 2950 (1983-1986), 2955 (1987-1992), 3040 (1980-1984), 3050, 3130, 3140, 3150 (1985-1987), 3350, 3640, 3640S, 6100, 6200, 6200L, 6300, 6300L, 6400, 6400L, 6500, 6500L

Replaces Part Number(s):

Fits John Deere: AL67175, AL78689, AL60033, AL67176, AL78690, AL81436, AL81437, TY6778, TY6779, TY6792
Fits Bosch: 0-120-488-217, 0-120-488-218, 0-120-488-267
Letrika / Iskra: IA0592, IA0453
Magneton: 9-513-170, 9-513-071, 9-515-531, 9-515-530
Prestolite: 20110293
Arrowhead: ABO0198
Fits Mahle: MG277
Cargo: 110105
Lester: 13195
Remy: 50957
J&N: 400-24016

New aftermarket replacement part - not remanufactured, not used.
