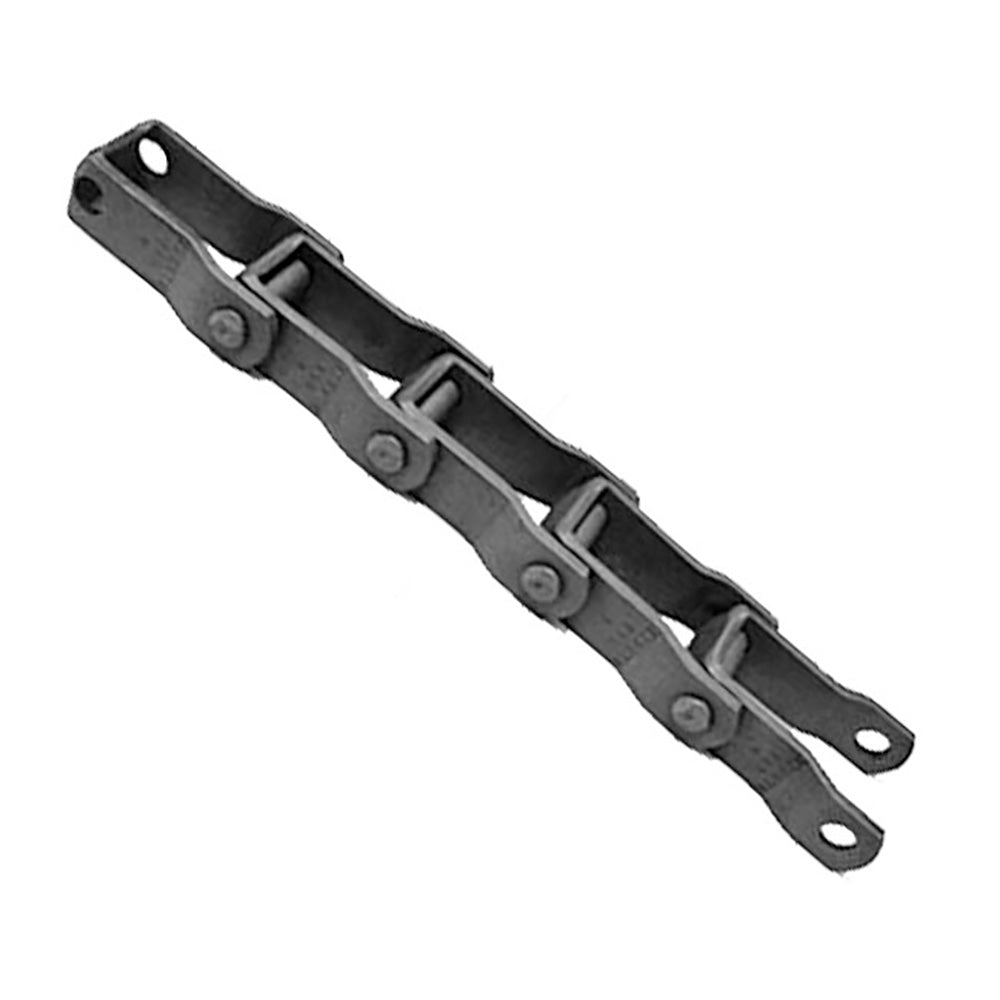

A-AL662-AI AL662 Pintle Chain, 10 ft

One New Aftermarket Replacement AL662 Steel Pintle Chain - 10 ft

The AL662 is a standard 600-class steel pintle chain sold in a 10-foot section, commonly used as a conveyor apron chain in manure spreaders, fertilizer spreaders, salt and sand spreaders, bunk feeders, and hay handling equipment. Its open barrel design reduces material buildup at the sprocket root, and all components are heat-treated for strength and wear resistance in demanding agricultural and industrial conveying applications. Suitable Fits New Holland, Fits Case IH, and other brand manure spreaders. Does not include attaching links for the apron - verify your existing chain before ordering.

Specifications

• Chain Size: 662 Pintle Chain
• Pitch: 1.664 in.
• Inside Width: 29/32 in.
• Overall Width: 1-5/8 in. (1.720 in.)
• Pin Diameter: 0.281 in.
• Side Bar Height: 0.720 in.
• Side Bar Thickness: 0.125 in.
• Links per 10 ft: 72
• Weight per 10 ft: 10.5 lbs.
• Minimum Average Tensile Strength: 8,500 lbs.
• Length: 10 ft

Compatible Applications

Agricultural Equipment: Manure spreader aprons (Fits New Holland, Fits Case IH, and other brands), fertilizer spreaders, salt and sand spreaders, bunk feeders, hay handling equipment

Industrial Equipment: Conveyor systems and material handling equipment requiring 662-class pintle chain

Replaces Part Number(s):

AL662, A-AL662, PC662, PL662

New aftermarket replacement part - not remanufactured, not used.
