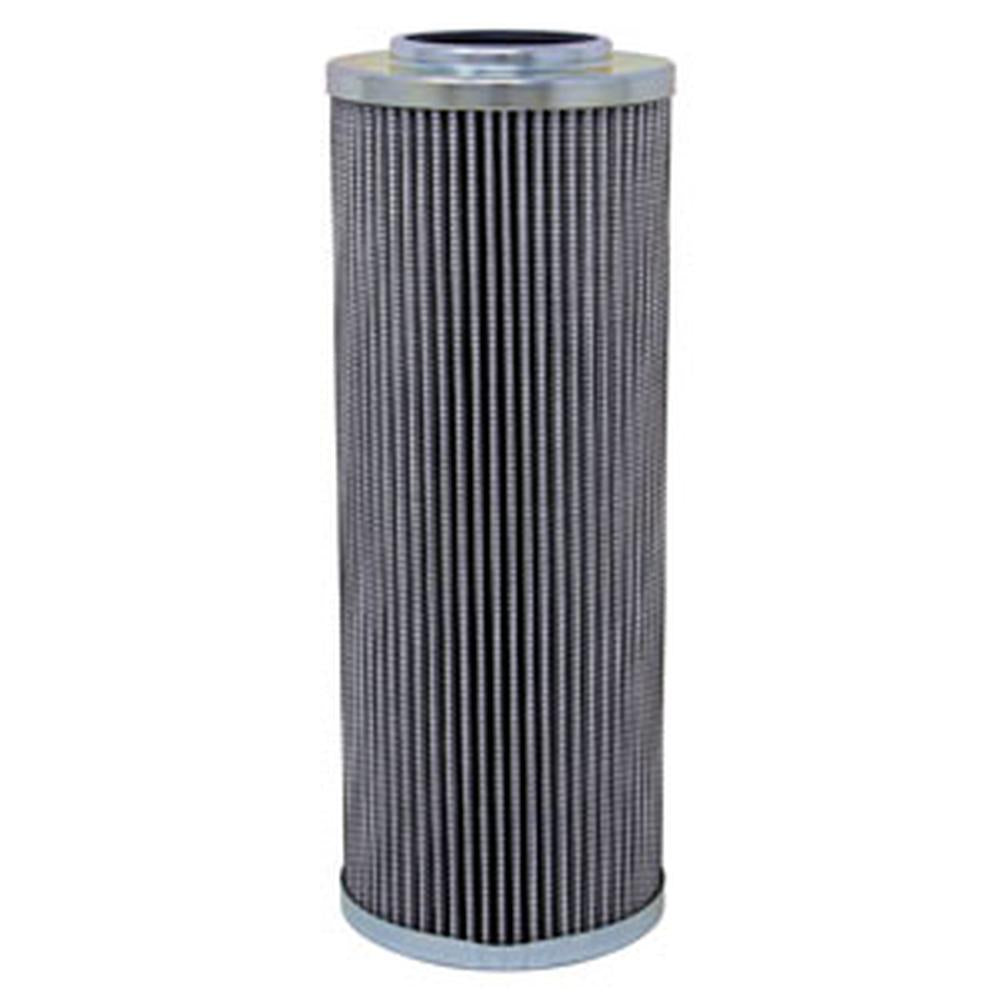

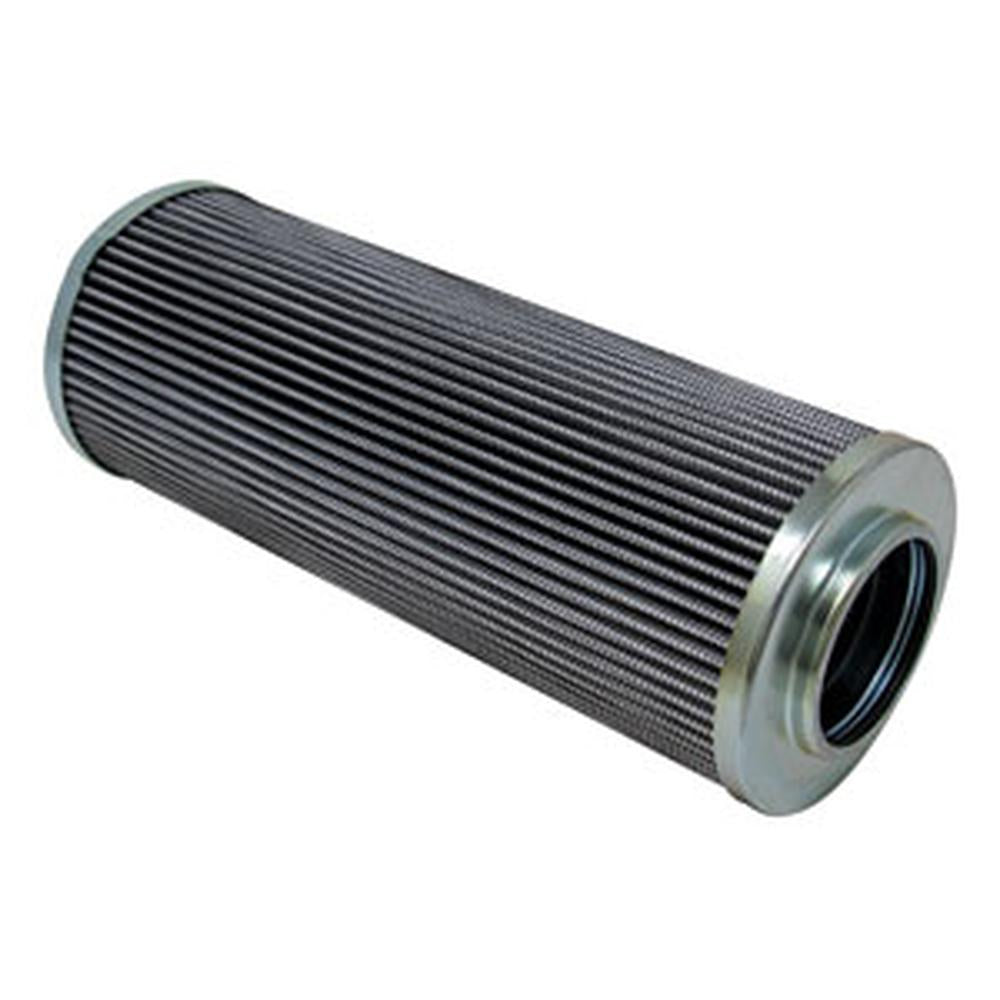

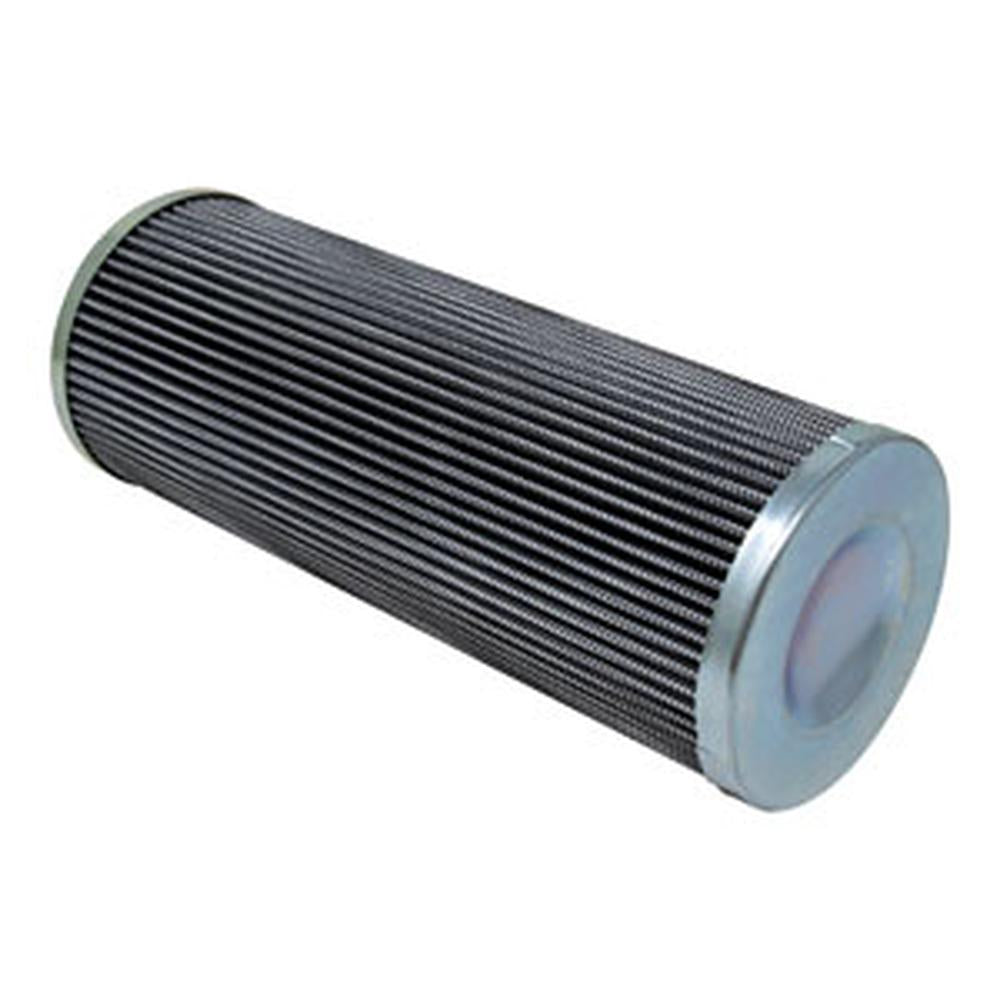

A-AL203060 Filter, Oil
A-AL203060 Filter, Oil
Couldn't load pickup availability
One New Aftermarket Replacement Hydraulic Oil Filter Element Fits John Deere Tractors and Self-Propelled Harvesters
This cartridge-style hydraulic oil filter element replaces OEM part number AL203060 and fits the hydraulic and transmission oil filter circuits on a wide range of Fits John Deere (Fits JD) agricultural equipment. It is a pressure-line filter designed to remove contaminants from hydraulic fluid and protect hydraulic system components from wear. This filter supersedes the previous Fits John Deere part number AL112936.
Specifications
- Filter Type: Hydraulic Pressure Line, Cartridge Style
- Outer Diameter: 78.74 mm (3.09 in)
- Inner Diameter: 43.18 mm (1.72 in)
- Length: 203.96 mm (8.22 in)
- Micron Rating: 10 micron (Beta Ratio 200)
- Fluid Type: HH / HL / HM / HV
Compatible Models
Fits John Deere Tractors: 6010, 6020, 6110, 6120, 6205, 6210, 6215, 6220, 6310, 6320, 6405, 6415, 6420, 6510, 6520, 6520, 6605, 6615, SE6010, SE6020, SE6100, SE6320, SE6510
Fits John Deere Self-Propelled Harvesters/Forage Equipment: 7180, 7250, 7280, 7350, 7380, 7450, 7480, 7550, 7580, 7750, 7780, 7850, 7950, 7980, 6081HZ013, 6125HZ009
Fits John Deere Telescopic Handlers: 3200, 3215, 3220, 3800
Replaces Part Number(s):
AL203060, A-AL203060, AL112936
Aftermarket Interchange Numbers
Fits Donaldson P164174, Fleetguard HF30697, Fleetguard HF30747, Big Filter BFS-EAD5, Fits Donaldson 6005022975CL
New aftermarket replacement part - not remanufactured, not used.
