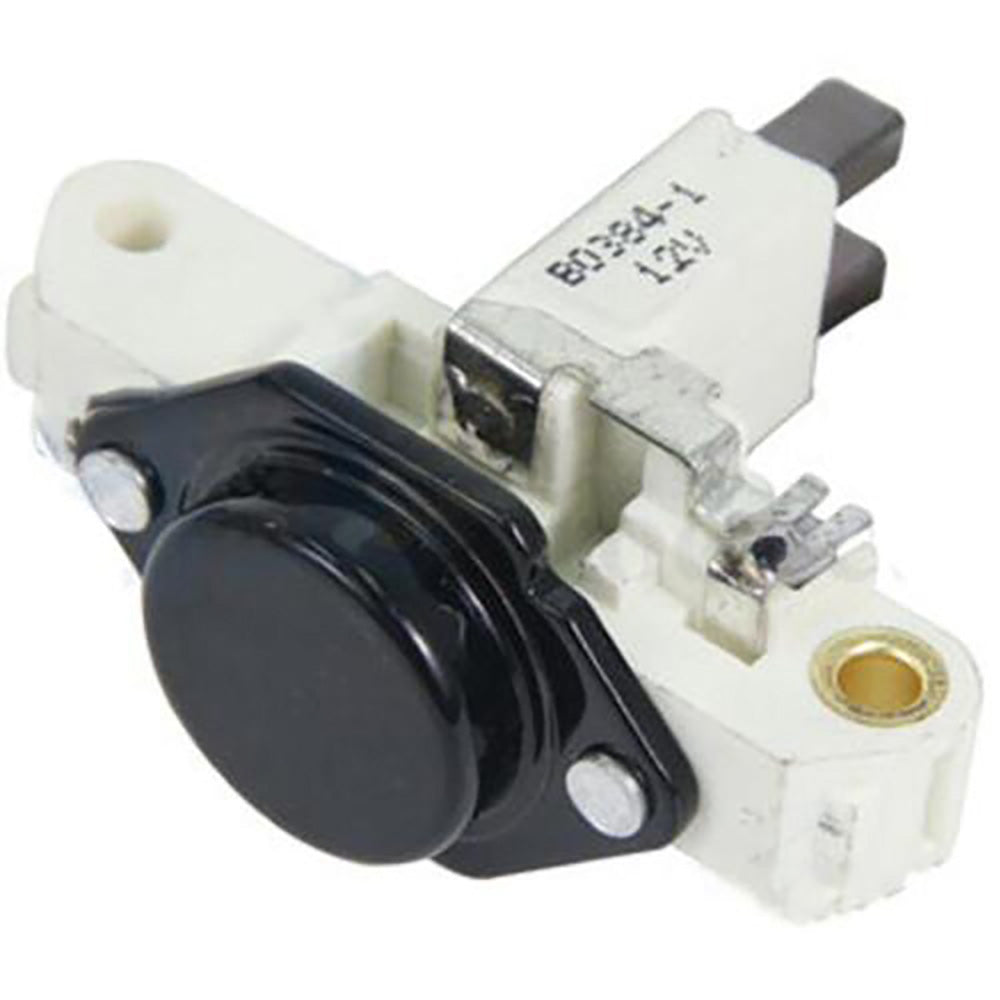

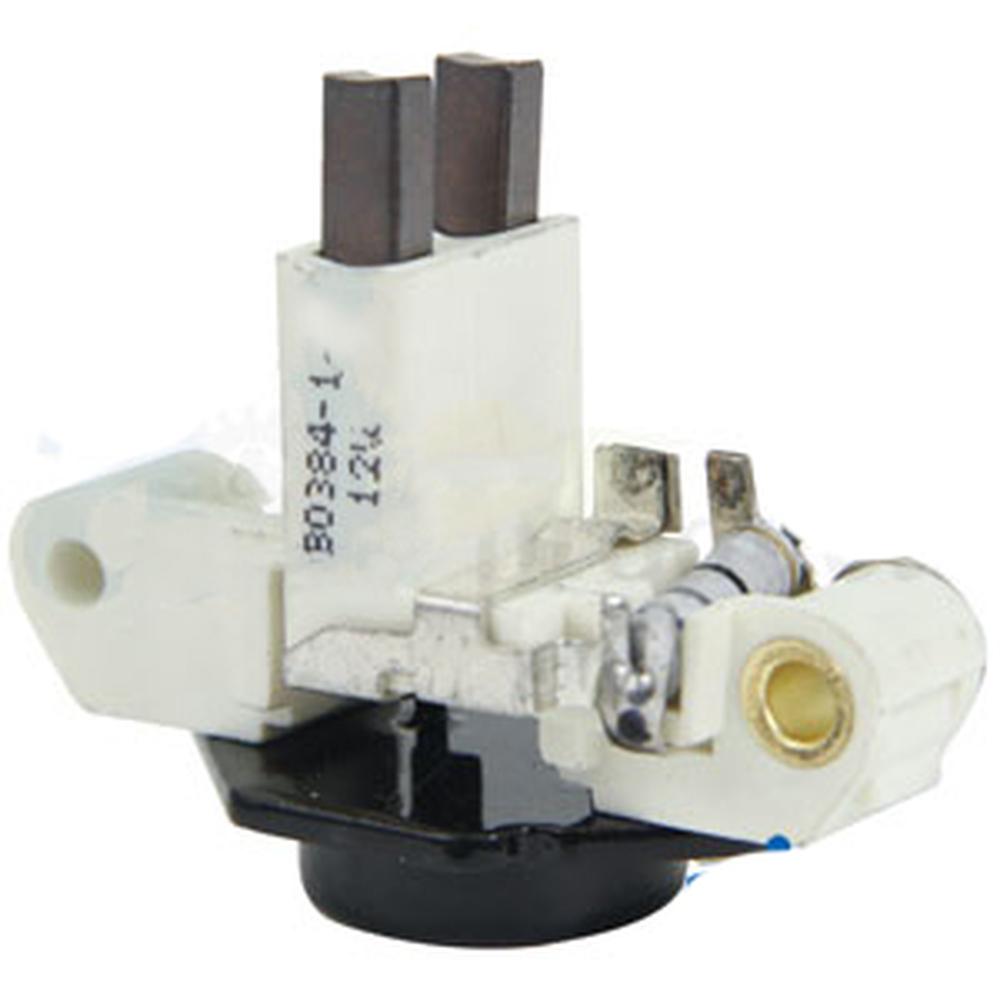

A-AL155404-AI Regulator, Voltage

One New Aftermarket Replacement Voltage Regulator Fits John Deere 6000/6010/6020 Series Tractors

This alternator voltage regulator replaces OEM part number AL155404 and is used on Fits John Deere 6000, 6010, and 6020 Series tractors. The regulator mounts within the Fits Bosch alternator assembly and controls charging voltage output to protect the tractor's electrical system. Specifications include 12-volt operation, a voltage set point of 14.6V, negative polarity, ignition-activated circuit, non-adjustable design, and includes a brush holder with a 14mm slip ring.

Specifications

• Voltage: 12V
• Voltage Set Point: 14.6V
• Polarity: Negative
• Activation: Ignition
• Circuit: A
• Adjustable: No
• Includes: Brush holder with 14mm slip ring

Compatible Models

Fits John Deere 6010 Series: 6010, 6110, 6110L, 6210, 6210L, 6310, 6310L, 6410, 6510, 6610, 6810, 6910

Fits John Deere 6010 Series (European Edition): SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, SE6610

Fits John Deere 6020 Series: 6120, 6120L, 6205, 6210L, SE6020, SE6120, SE6220, SE6320, SE6420, SE6520, SE6620

Fits John Deere 6000 Series: 6205

Other Fits John Deere: 6405

Replaces Part Number(s):

AL155404

Aftermarket Interchange Numbers

Fits Bosch: 1197311240, 1-197-311-240, 1197311241, 1197311512, 1-197-311-512, 1197311551, 1-197-311-551, 1197311552, 1-197-311-553, 1987237076; Hella: 5DR004246-931; Lauber: CQ1010621; Fits Vapormatic: VPF4137; Same: 1026060; J&N: 230-24065

New aftermarket replacement part - not remanufactured, not used.
