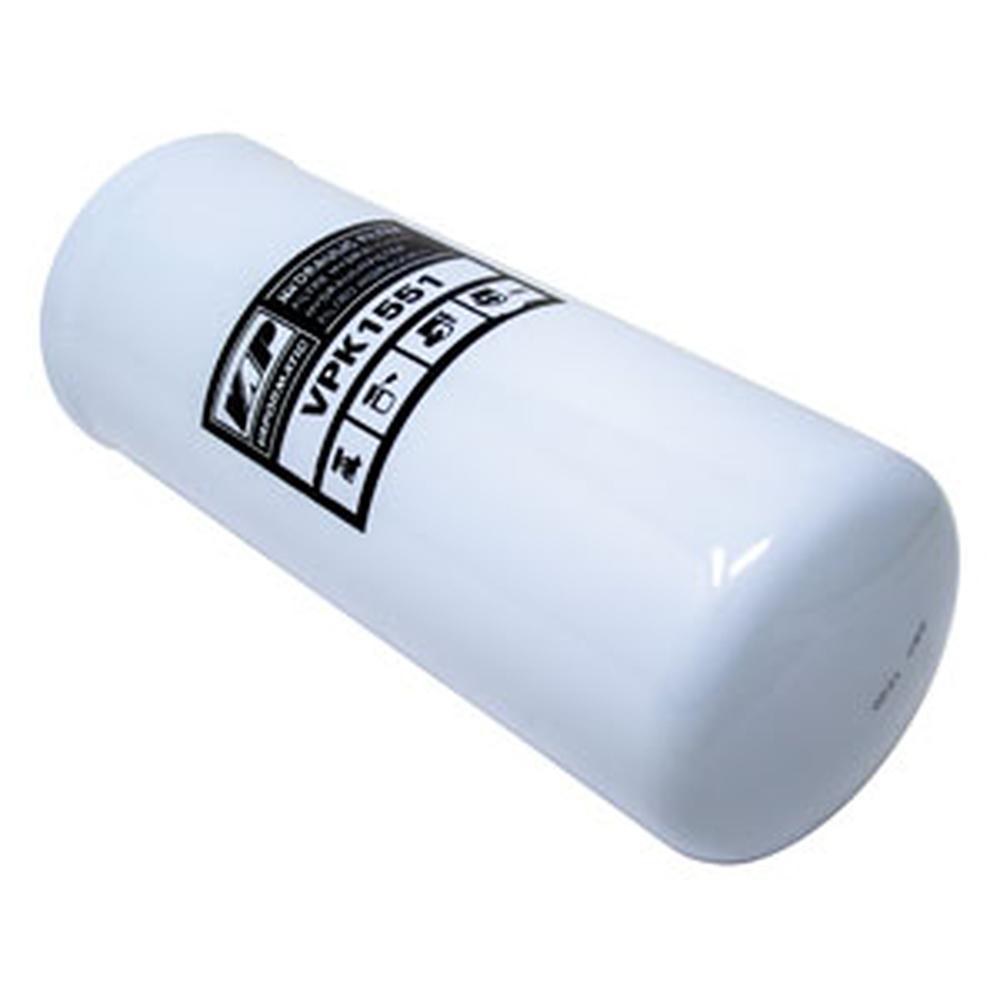

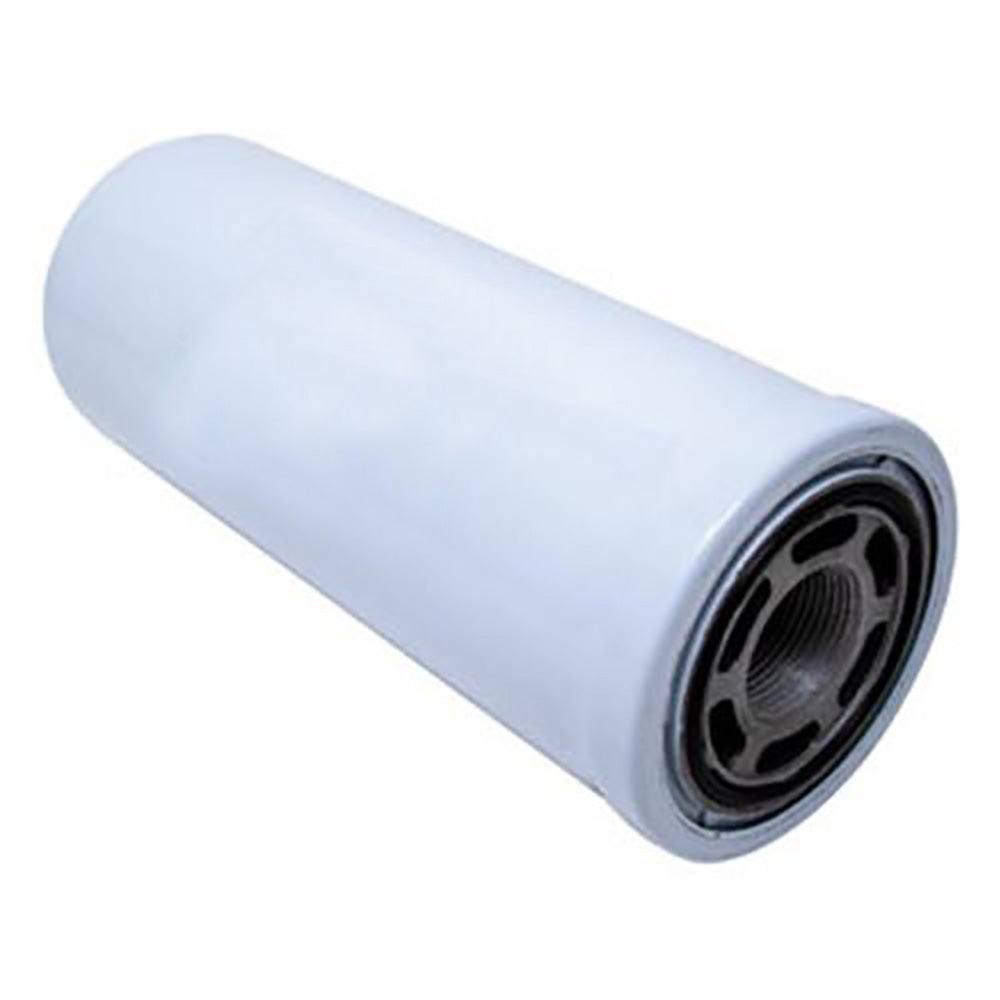

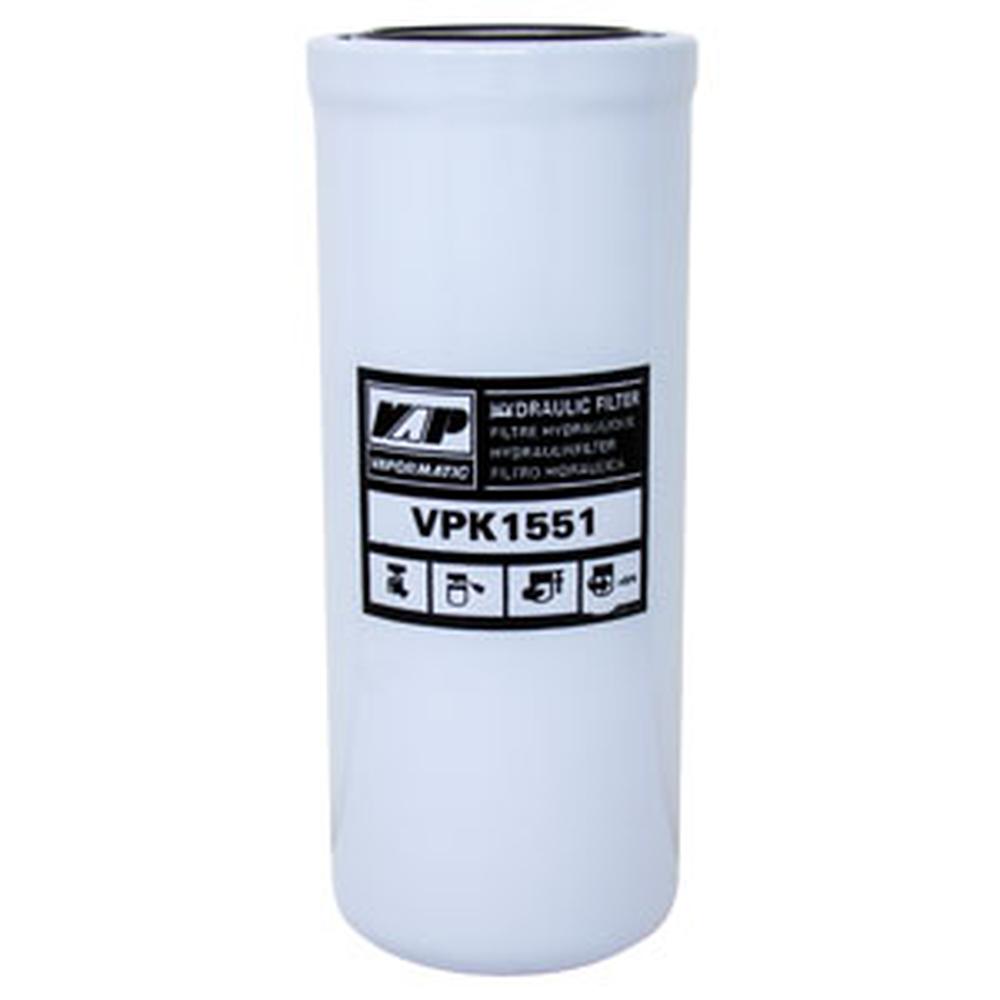

A-AL118036-AI Filter, Hydraulic

One New Aftermarket Replacement Hydraulic Filter Fits John Deere Tractors, Crawlers, Loaders, and Harvesters

This spin-on hydraulic filter replaces OEM part number AL118036 and serves the hydraulic system on a wide range of Fits John Deere (Fits JD) agricultural and construction equipment. It is a full-flow microglass filter designed to remove contaminants from hydraulic fluid and protect system components during normal service intervals.

Specifications

• Style: Spin-On Hydraulic Filter
• Service: Hydraulic (Full Flow)
• Media: Microglass
• Top O.D.: 3.810 in (95.3 mm)
• Height: 9.490 in (243.7 mm)
• Thread Size: 1-3/8 in - 12 UNF
• Bypass Valve Setting: None
• Burst Pressure: 1000 PSI
• Max Flow Rate: 24-28 GPM
• Nominal Micron Rating: 17

Compatible Models

Fits John Deere Tractors: 2204, 5080R, 5090R, 5090RN, 5100R, 5100RN, 5620, 5720, 5820, 6010, 6020, 6100, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6220, 6220L, 6300, 6300L, 6310, 6310L, 6310S, 6320, 6320L, 6400, 6400L, 6405, 6410, 6410L, 6410S, 6420, 6420L, 6420S, 6500, 6500L, 6506, 6510, 6510L, 6510S, 6520, 6520L, 6600, 6605, 6610, 6620, 6800, 6810, 6820, 6900, 6910, 6910S, 6920, 6920S, 7185J, 7195J, 7200, 7200J, 7205J, 7210, 7210J, 7215J, 7220, 7225J, 7230J, 7320, 7400, 7410, 7420, 7505, 7510, 7520, 7600, 7610, 7630, 7700, 7710, 7715, 7720, 7730, 7800, 7810, 7815, 7820, 7830, 7920, 7930, 9200, 9300, 9300T, 9400, 9400T, SE6920

Fits John Deere Cotton Pickers / Strippers: 7450, 7455, 7660, 7760, 9935, 9960, 9965, 9970, 9976, 9986, 9996, CP690, CS690

Fits John Deere Crawlers: 455G, 555G

Fits John Deere Dozers: 450G, 550G, 650G

Fits John Deere Forage Harvesters: 6610, 6650, 6710, 6750, 6810, 6850, 6910, 6950, 7180, 7200, 7250, 7280, 7300, 7350, 7380, 7400, 7450, 7480, 7500, 7550, 7580, 7700, 7750, 7780, 7800, 7850, 7950

Fits John Deere Fairway Mowers: 3215, 3215A, 3215B, 3225B, 3235, 3235A, 3235B

Fits John Deere Wheel Loaders: 244H, 624K, 624K-II, 624L, 624P, 644K, 644L, 644LH, 644P, 644X, 724K, 724L, 724P, 744K, 744L, 824K, 824L, 844L

Fits John Deere Skid Steer Loaders: 280

Replaces Part Number(s):

AL118036, AL118036-A, RE205726, RE34958, RE39390, RE39527, RE47313, AH114973, AH128449, T175002, VPK1551, LFH4910, F435202, F435510, TP-AL118036, TP-F435202, TP-F435510, TP-RE34958, TPRE34958, TP-AH128449

Aftermarket Interchange Numbers

HF1409, P164378, P164378-A, P164384, P164384-A, P177047, P177047-A, 1G-8878, 1G-8878-A, 1G8878, 1G8878-A, 9T5916, 9T5916-A, N9025, FII50-0017, 132575302, 1346028C1, 1931182, 303506819, 6598903, 6668819, 6668819-A, 6983021, 6983022

New aftermarket replacement part - not remanufactured, not used.
