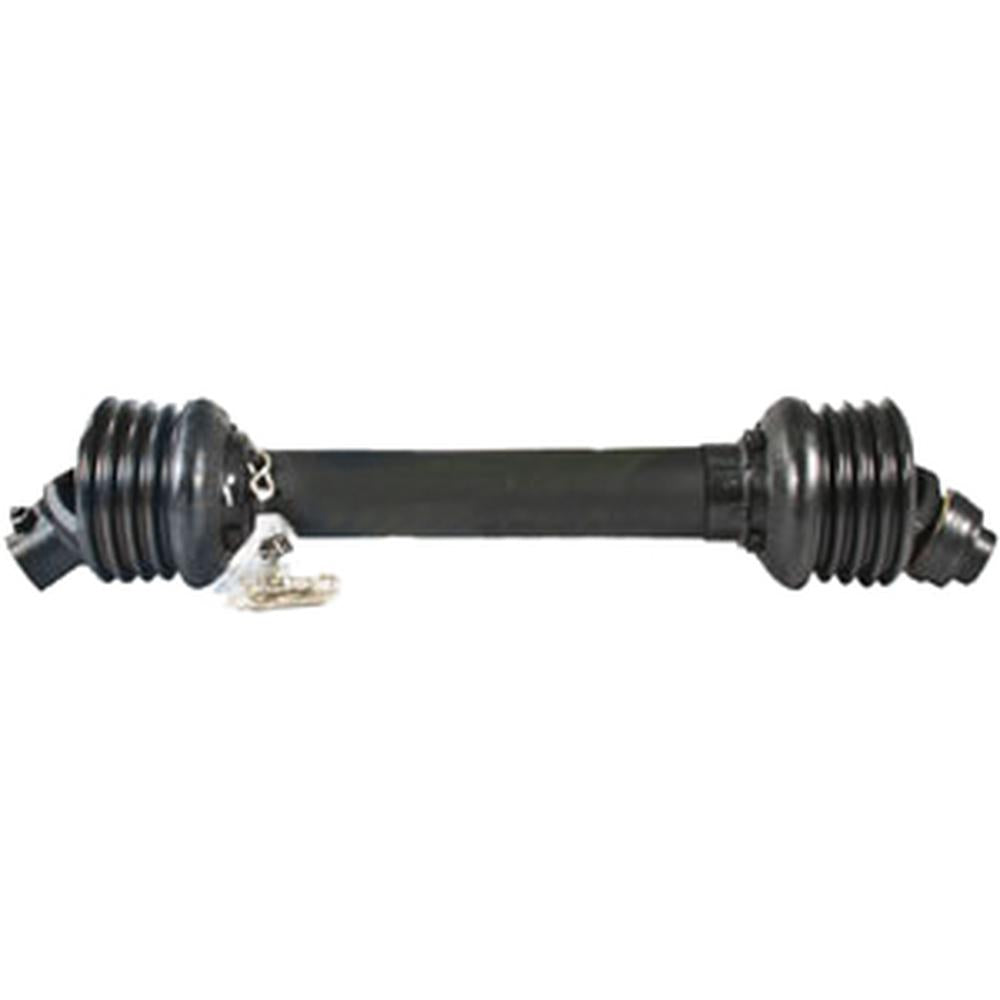

A-AH220096-A-AI Drive Shaft, Countour Master Header

One New Aftermarket Replacement Drive Shaft Fits John Deere Contour Master Headers

This aftermarket replacement Contour Master Header drive shaft (PTO driveline) transfers power from the combine to Fits John Deere grain headers, draper platforms, and corn heads. It is a Walterscheid W2400 series driveshaft featuring a 1-3/8" 21-spline slide collar on the tractor end and a 1-1/8" hex clamp on the implement end. Note: It may be necessary to cut this driveline to length -- verify sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Specifications

• Series: Walterscheid W2400
• Center-to-Center Length: 24 in. (610 mm)
• Tractor End: 1-3/8" 21-Spline Slide Collar
• Implement End: 1-1/8" Hex Clamp

Compatible Models

Fits John Deere Corn Heads (90 Series): 492, 493, 494, 592, 594, 692, 693, 694, 892, 893, 894, 1092, 1290, 1291, 1293

Fits John Deere Headers / Cutting Platforms: 900 Series, 900D, 900F, 900P, 918, 920, 922, 924, 925, 913, 915

Fits John Deere Draper Platforms: 925D, 930D, 936D

Note: Requires 2 drivelines per head.

Replaces Part Number(s):

AH220096, AH220096-A, AH141283, AH154737, AH155077, AH155077-A

Aftermarket Interchange Numbers

A-AH220096, A-AH220096-A-AI, 14007631, 14007631-A, PM14007631, W243319, W243329

New aftermarket replacement part - not remanufactured, not used.
