A-AA62808 Scraper Arm Kit, LH/RH

One New Aftermarket Replacement Tungsten Carbide Scraper Arm Kit (LH/RH) Fits John Deere Planters

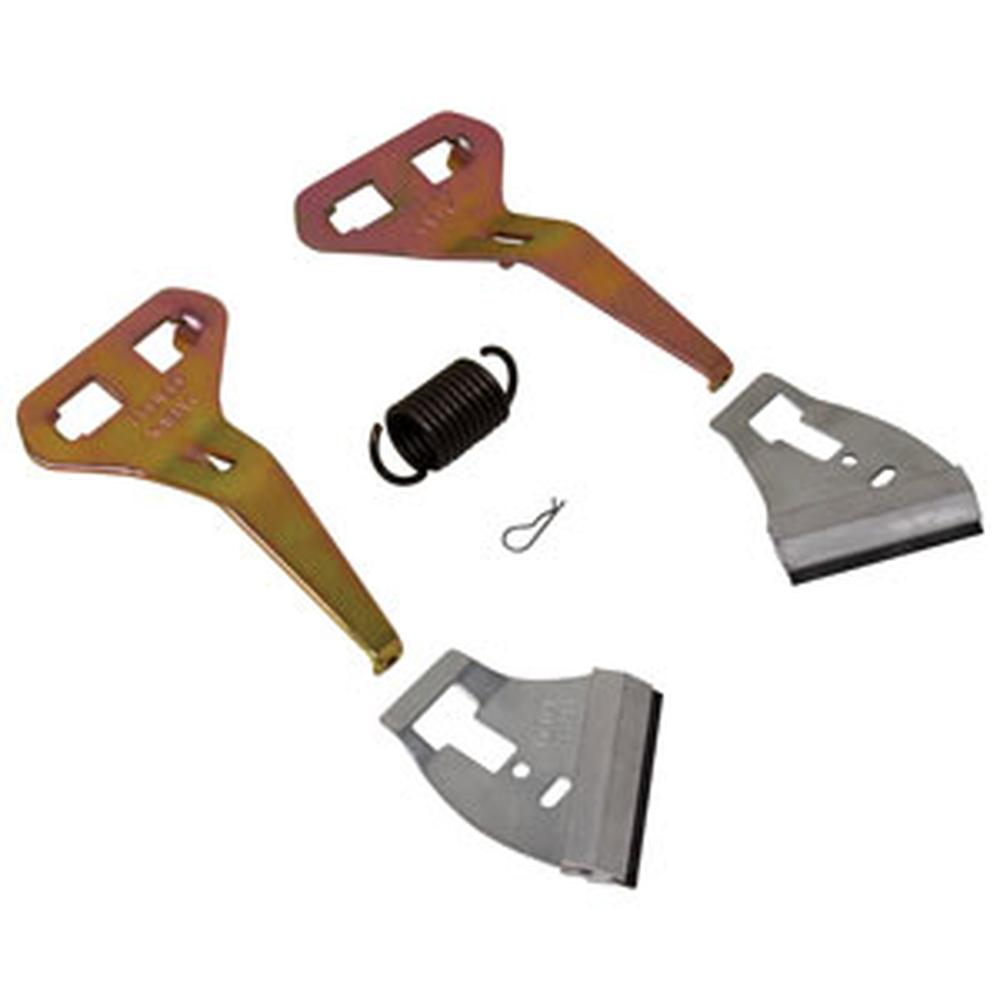

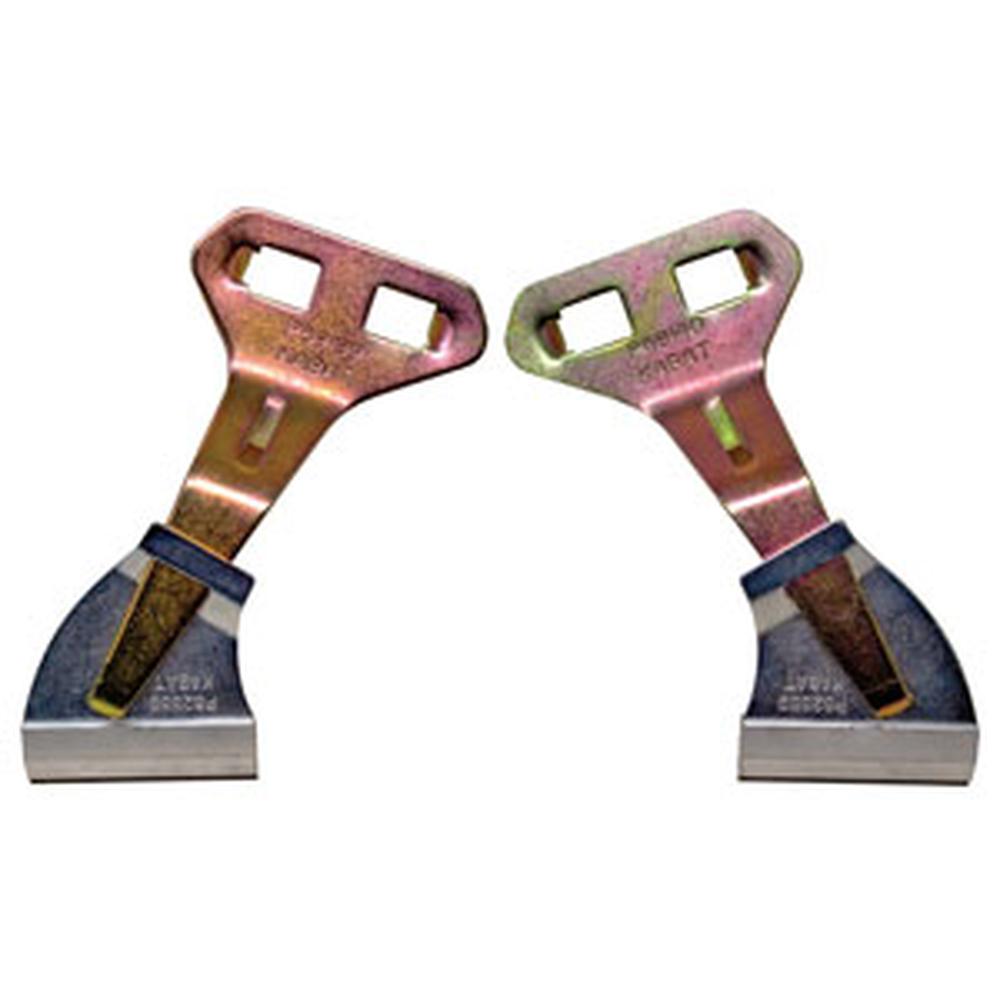

This tungsten carbide scraper arm kit mounts on the disc opener row unit to keep soil from building up on the opener blades during planting, especially in sticky or moist soil conditions. The kit provides both left-hand (LH) and right-hand (RH) coverage for a single row unit. The scraper blades feature a special tungsten carbide cutting edge for superior abrasion resistance and long-lasting durability, while the stainless steel arms resist corrosion. Kit includes two scraper arms (one LH, one RH), two tungsten carbide scraper blades, one spring, and two hairpin clips - all hardware for one row.

Specifications

• Weight: 0.942 lb
• Height: 1.5 in
• Width: 6.8 in
• Length: 9 in
• Blade material: Tungsten carbide cutting edge with stainless steel arms
• Kit covers: One row (LH and RH arms included)

Compatible Models

Fits John Deere Max-Emerge / Max-Emerge 2 / MaxEmergePlus Planters: 1700 Series, 7000 Series (Max-Emerge), 7100, 7200, 7240, 7300, DB60

Also fits (with template DSPI6625 for retrofit on original Max-Emerge): Kinze planters, Fits Case IH (C-IH) planters, White 6100 Series planters

Note: Planter units with worn gauge tires may require grinding on the lower portion of the gauge wheel arm to achieve proper gauge tire contact with the opener.

Replaces Part Number(s):

AA62808, AA58967

New aftermarket replacement part - not remanufactured, not used.
