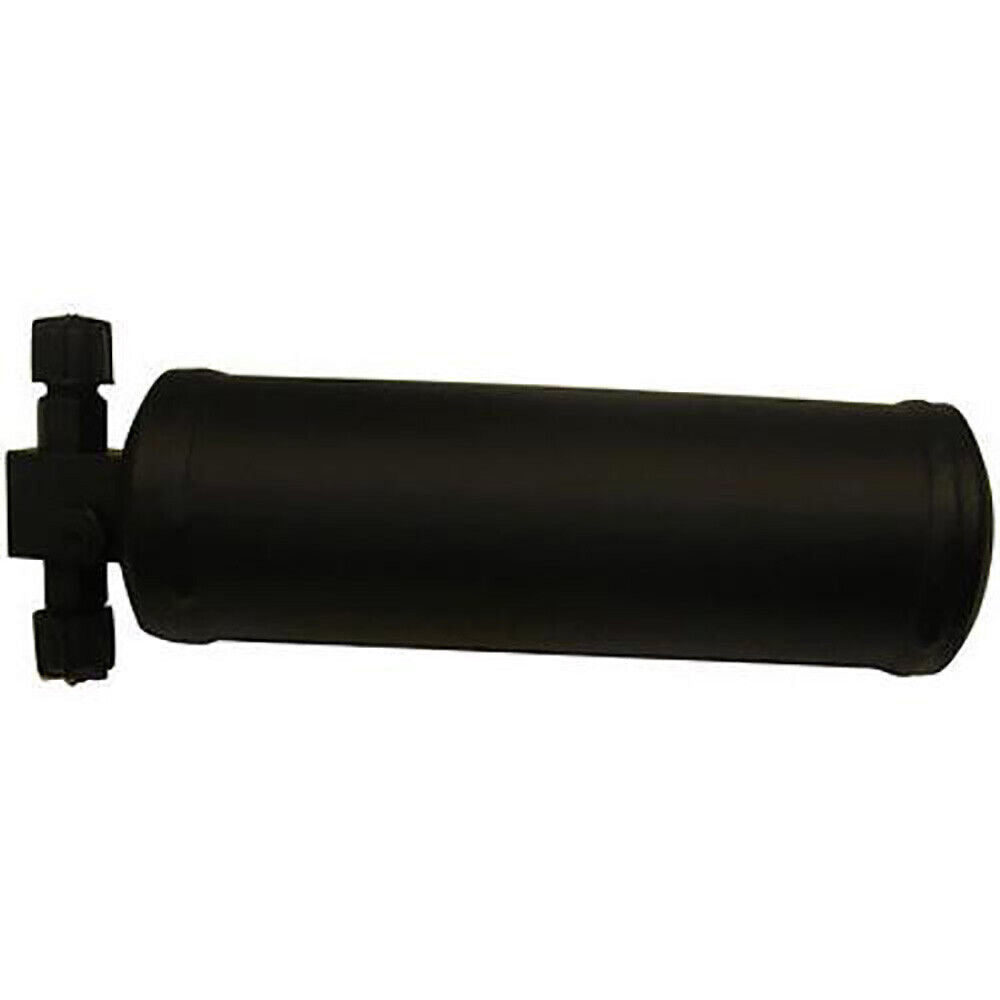

A-A76085-AI Receiver Drier

One New Aftermarket Replacement A/C Receiver Drier Fits Case and Fits Case IH Tractors and Construction Equipment

This aftermarket replacement A/C receiver drier services the air conditioning system on a wide range of Fits Case, Fits Case IH, CLAAS, and David Brown equipment. Located on the high-pressure side of the A/C system, the receiver drier stores liquid refrigerant from the condenser, filters solid contaminants, and uses an internal desiccant to remove moisture from the refrigerant circuit. It should be replaced any time the A/C system is opened for service.

Specifications

• Length: 10-1/4 in.
• Diameter: 2-3/4 in.
• Inlet: #6, 3/8 in. Male O-Ring
• Outlet: #6, 3/8 in. Male O-Ring
• Switch Port: Female 3/8 in.-24 O-Ring
• Sight Glass: Top

Compatible Models

Fits Case Backhoe Loaders: 580, 580D, 580K, 580SD, 580SE, 680H, 680K, 780B, 780C

Fits Case Tractors: 770, 870, 970, 1070, 1090, 1170, 1175, 1270, 1294, 1370, 1394, 1470, 1490, 1494, 1570, 1594, 1690, 1896, 2090, 2094, 2096, 2290, 2294, 2390, 2394, 2470, 2590, 2594, 2670, 2870, 3294, 4490, 4494, 4690, 4694, 4890, 4894, 4994

Fits Case IH Tractors: 1896, 2096, 2294, 2394, 2594, 3294, 3394, 3594, 4494, 4694, 4894, 4994

CLAAS: JA1090, JA1120

David Brown Tractors: 1294, 1394, 1490, 1494, 1594, 1690

Replaces Part Number(s):

A76085, A61688, A76312, T39837, 804-349, 920003, 3039149M1

New aftermarket replacement part - not remanufactured, not used.
