A-A29977-AI CUP

Name: A-A29977-AI CUP
SKU: A-A29977-AI
Price: 38.0 USD
Availability: InStock

A-A29977-AI CUP

$38.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Tapered Roller Bearing Cup for Agricultural Equipment, Tractors, and More

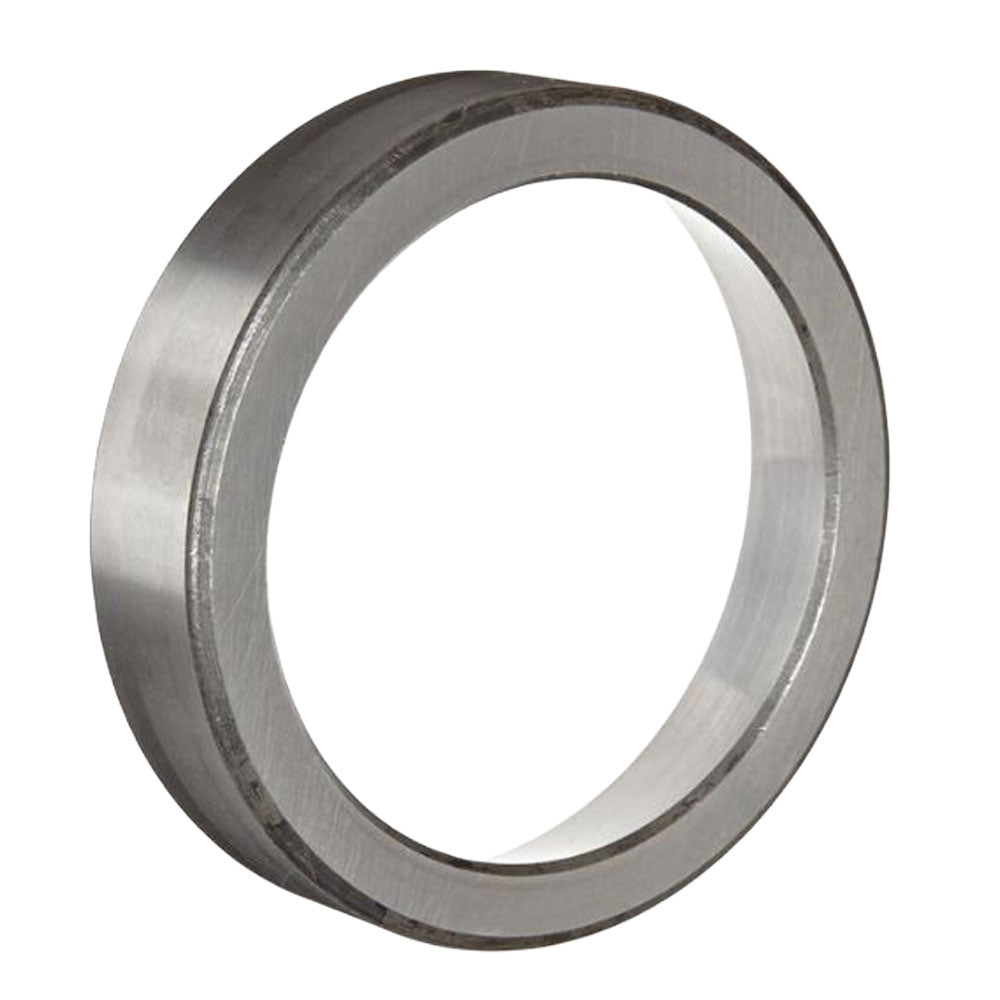

This is a tapered roller bearing cup (outer race) identified by industry-standard number 14276. The cup is the outer ring of a tapered roller bearing assembly, seated in the housing and providing the precision raceway surface on which tapered rollers travel. It handles both radial and axial loads and is used across a wide range of agricultural equipment, tractors, combines, rotary cutters, disc harrows, balers, and other machinery. Commonly paired with cones such as 14117A, 14125A, 14137A, 14138A, and 14139, among others. OEM part number A29977 (Fits Case IH / Fits New Holland).

Specifications

Type: Single Tapered Roller Bearing Cup (Outer Race)
Outside Diameter: 2.717 in
Width: 0.625 in
Fillet Radius: 0.050 in
Material: Fits Case Carburized Steel
Flange Type: Non-Flanged
Compatible Cones: 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, 14139

Compatible Models

Fits Case IH Combines: 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2366, 2377, 2388, 2577, 2588

Fits Case IH Other: 715, 815, 1400, 615

Minneapolis-Moline Tractors: G1000, Jet Star 3, Jet Star 4, 5 Star, M5, 335, 445, 670

Fits Allis Chalmers: 303, 403, 403F, 403G, 504C, 504F, 504G, 504H, 504I, 504I Silage, 504L, 505I, 505L, 503, 503I, 602

Hesston / Fits Massey Ferguson: 554XL, 555XL, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL

Fits John Deere: 82, 84, 95, 715, R-21, R-23

Vermeer Round Balers: 504G, 605G (series)

Additional Equipment: Rotary Cutters (Bush Hog, Rhino, Fits Woods, Taylorway), Disc Harrows (Amco, Krause, Kewanee), Drivelines, Rakes, Bale Wagons, Compact Tractors, Excavators (Fits Caterpillar)

Also fits models: 5400 Rebel, 5500 Rebel, 4901-4938

Replaces Part Number(s):

A29977, 14276, 14276TIM, 526WD, 7069WD, 203021, 70209890, 74253284, 710350, 54628A, 113BH, 80105, 016234X1, 8J0422, 1715019, 9N744, 116210, W10A7575, JD7409, 520031, 70025, W33, X5623, 10261

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1666, 815, 605G, 504I SILAGE, 605K, 403F, JET STAR 4, 5 STAR, 2577, 5400 REBEL, 504F, 335, 303, 1660, 715, 95, 403, 604L, 1640, 503I, R-23, G1000, 2377, M5, 503, 2344, 1400, 602, 2588, 605J, 2166, 82, 555XL, JET STAR 3, 504H, 1644, 504L, 2366, 5500 REBEL, Outer Ring Of A Tapered Roller Bearing, 554XL, 504G, 604J, 1688, 615, 605F, R-21, 4901-4938, 604XL, 505L, 445, 605XL, 403G, 505I, 605H, 670, 605L, 84, 504C, 2188, 504I, 1680, 604K, 2388

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625"

Reference Numbers:

70025, W33, 14276, A29977, 526WD, 7069WD, 70209890, 74253284, 113BH, 54628A, 9N744, 116210, 710350, 520031, JD7409, X5623, 1715019, 016234X1, 80105, 203021, 10261, 14276TIM, 8J0422, W10A7575
