One New Aftermarket Replacement Spline Bore Implement Yoke for Agricultural PTO Drivelines

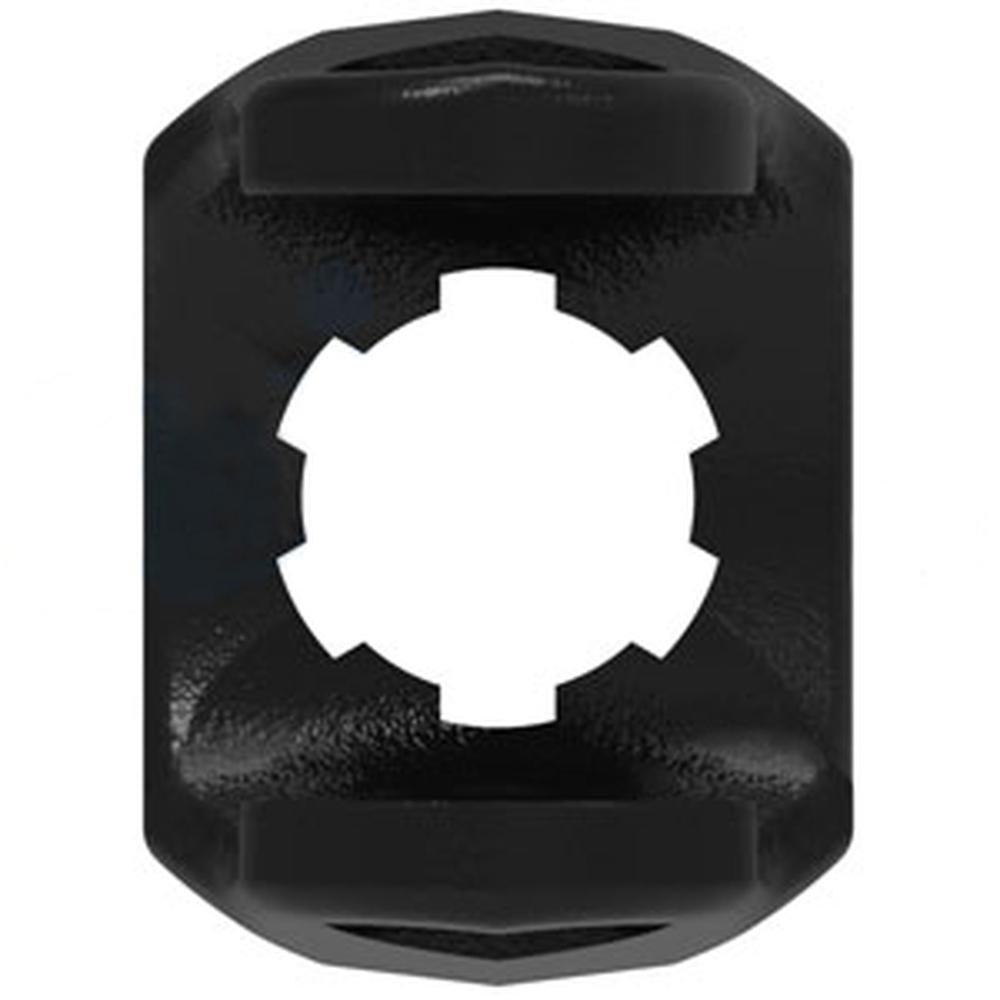

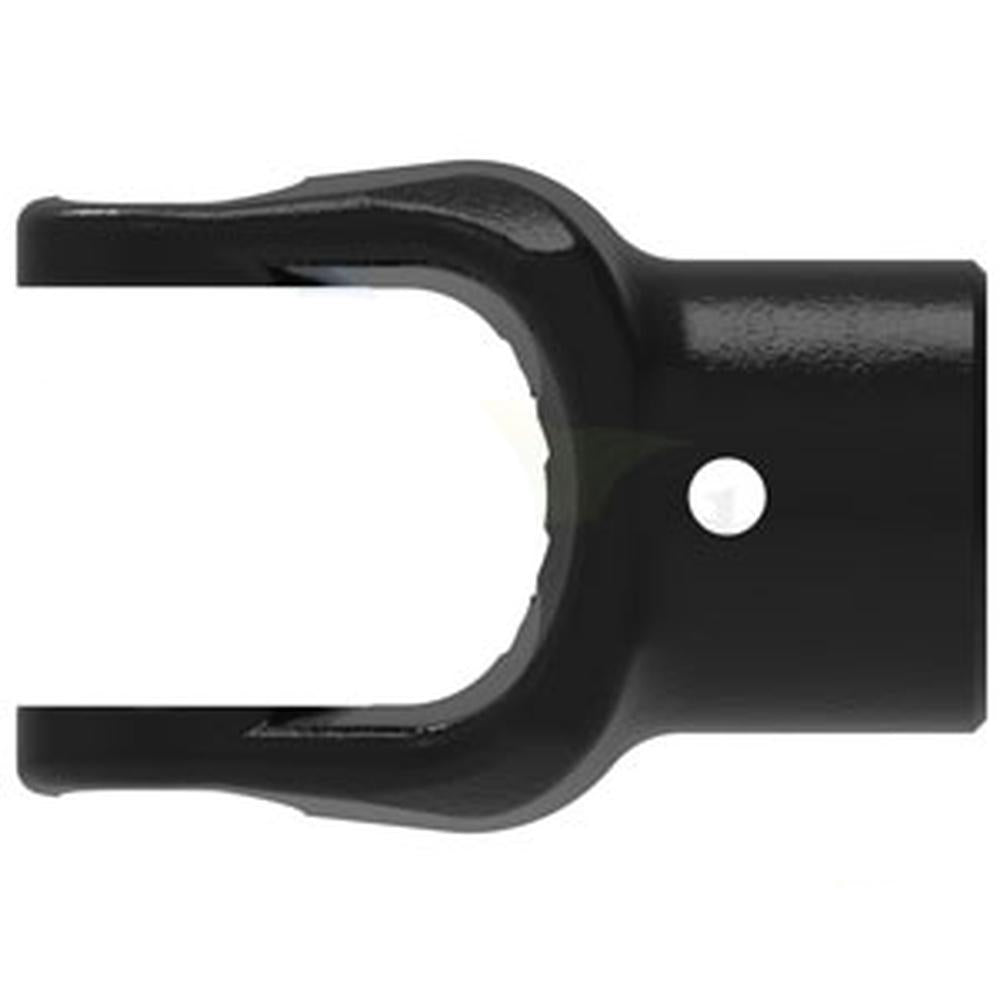

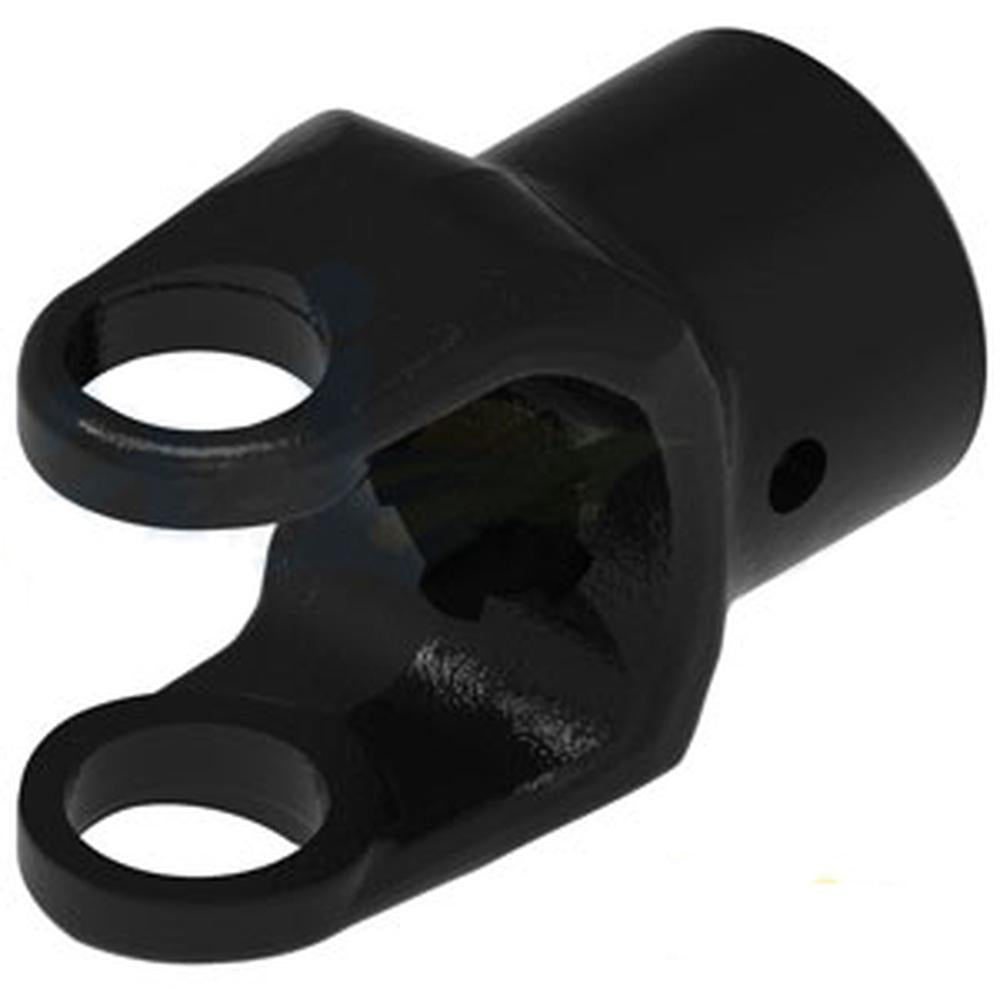

This 6 Series implement yoke serves as the final connection point between a PTO driveline and the driven implement. It features a 1-3/8" x 6 spline bore and is secured with a 1/4" pin connection, making it a standard Category 1 agricultural PTO component used across a wide range of tractor-powered implements including mowers, tillers, augers, and spreaders.
Specifications
- Series: 6 Series (North American AG style)
- Bore: 1-3/8" x 6 Spline
- Connection Type: Pin (1/4" Pin Hole)
- HP Rating @ 540 RPM: 19 HP
- HP Rating @ 1000 RPM: 35 HP
- Weight: 1.08 lbs
- Height / Length: 2.50 inches
Compatible Applications
Universal fit for 6 Series North American AG PTO drivelines. Compatible with any implement or tractor driveline assembly using a 1-3/8" 6-spline (ASAE Category 1) implement yoke connection with pin retention.
Replaces Part Number(s):
801-0606, A-801-0606-AI
Aftermarket Interchange Numbers
16-6187
New aftermarket replacement part - not remanufactured, not used.
