A-700713317-AI Compressor w/ Clutch

A-700713317-AI Compressor w/ Clutch

$309.00 CAD
$309.00 CAD
Sale Sold out
Shipping calculated at checkout.

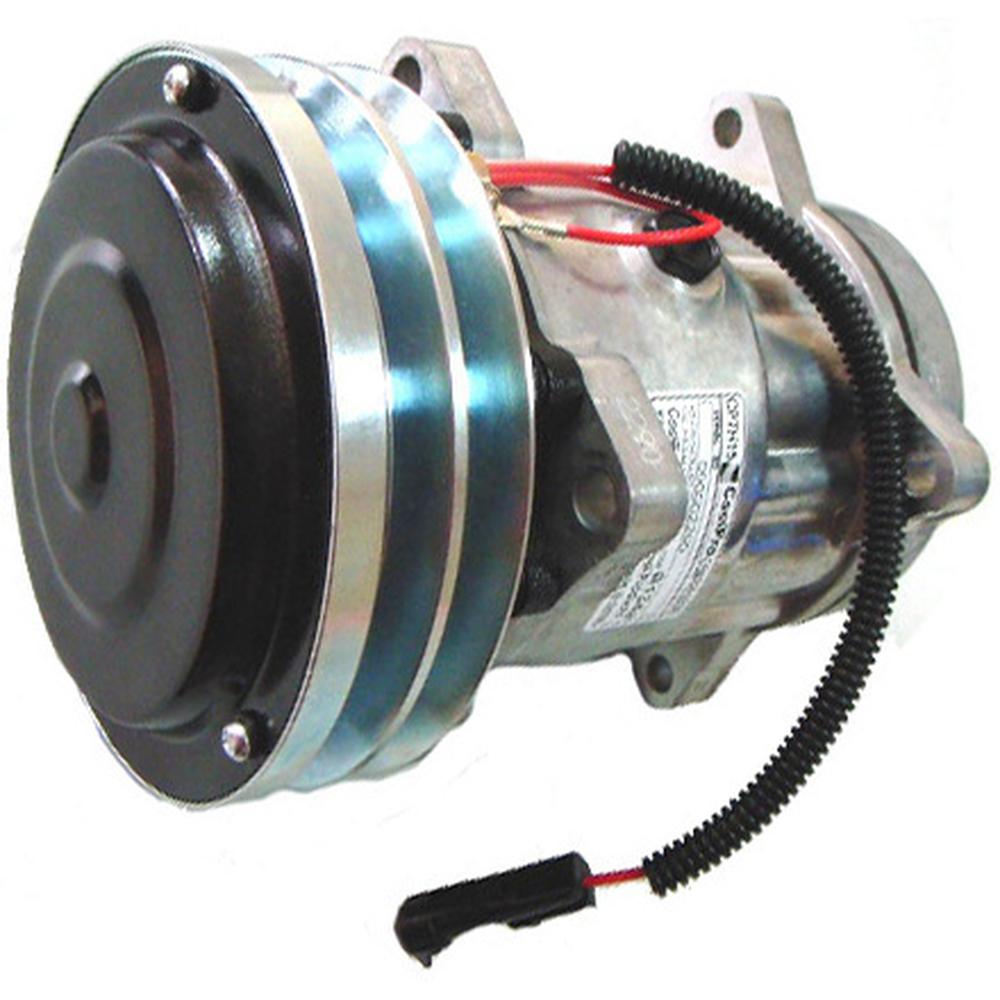

One New Aftermarket Replacement A/C Compressor with Clutch for Case IH, New Holland, Massey Ferguson, and More

This Sanden SD7H15-style aftermarket replacement air conditioning compressor with clutch is a direct-fit A/C compressor for a wide range of agricultural tractors, combines, sprayers, construction equipment, and windrowers across multiple major brands. It mounts via ear-style brackets, uses R-134a refrigerant, and features horizontal tube-O-ring fittings. The 6-inch, 2-groove clutch pulley is driven off the engine to pressurize the cab A/C system.

Specifications

  • Compressor Type: Sanden SD7H15 Style
  • Voltage: 12V
  • Cylinder Head: MD
  • Clutch Diameter: 6"
  • Grooves: 2
  • Coil Position: 12:00
  • Mount Type: Ear
  • Fittings: Horizontal 1" Tube-O-Ring (Horiz. O-ring 1"x1")
  • Refrigerant: R-134a
  • Oil Type: PAG-100, 9.6 oz.

Compatible Models

Case IH Tractors: C70, C80, C90, C100, CS78, CS94, CS100, CS110, CS120, CS130, CS150, CVX120, CVX130, CVX150, CVX170, CVX1135, CVX1145, CVX1155, CVX1170, CVX1190, CVX1195, CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX105, CX110, CX140, Magnum 180, Magnum 190, Magnum 200, Magnum 210, Magnum 220, Magnum 225, Magnum 240, Magnum 250, Magnum 260, Magnum 310, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX220, MX240, MX270, MTX110, MTX125, MTX140, MTX155, MTX175, MTX200, STX275, STX280, STX325, STX330, XTX215, ZTX230, ZTX260, ZTX280, 220, 220 XL, 580, 580L, 580M, 580SM, 580 Super K, 580SL, 590, 590L, 590SL, 590SM, 590 Turbo, 585, 595, 685, 695, 785XL, 885, 895, 895XL, 956XL, 995, 995XL, 1056XL, 1155E, 1255XL, 1455XL, 3220, 3230, 4210, 4230, 4240, 5120, 5130, 5140, 5220, 5230, 5240, 5250, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8110, 8200, 8400, 8500, 8825, 8825HP, 8830, 8850, 8860, 8860HP, 8870, 8880, 8880HP, 8910, 8920, 8930, 8940, 8950, 9210 (JEE0031850 and above), 9220 (JEE0031850 and above), 9230 (JEE0031850 and above), 9240 (JEE0031850 and above), 9250 (JEE0031850 and above), 9260 (JEE0031850 and above), 9270 (JEE0031850 and above), 9280 (JEE0031850 and above), 9310, 9330, 9340, 9345, 9350, 9365, 9370, 9380, 9390, 9420, 9425, 9430, 9435, QUADTRAC, T9010, T9020

Case IH Combines: 1620, 1640, 1644, 1660, 1666, 1670 Hillside, 1680, 1682, 1688, 1800, 1822, 1844, 2022, 2044, 2055, 2144, 2155, 2166, 2188, 2344, 2366, 2377, 2388, 2555, 2577, 2588, 5088, 5140, 6088, 7088, CPX420, CPX610, CPX620, FLX3010, FLX3300B, FLX3330B, FLX3510, FLX4010, FLX4300, FLX4375, FLX4510, SPX3150 Patriot, SPX3185 Patriot, SPX3200, SPX3200B Patriot, SPX3200 Patriot, SPX3310, SPX3310 Patriot, SPX4260 Patriot, SPX4410, WR9725

Case IH Skid Steer Loaders: 85XT, 90XT, 95XT

Case Construction and Industrial: 521, 521B, 521C, 521D, 570LXT, 570LXT II, 570LXT Series II, 570MXT, 580L, 580M, 580SK, 580 Super L, 580SL, 580SM, 590, 590L, 590SL, 590SM, 590 Super L, 620, 621, 621B, 621C, 621D, 650G, 650H, 650K, 680L, 720, 721, 721B, 721C, 750K, 780D, 820, 821, 821B, 821C, 850, 850E, 850G, 850H, 850K, 850L, 855E, 920, 921, 921B, 921C, 1150E, 1150G, 1150H, 1150K, 1650L, W110TC

Case Backhoes: 580L, 580M, 580SM, 580 Super K, 580SL, 580 Super L, 590, 590SL, 590SM, 590 Turbo, 590 Super L, 590 Super M

Case Crawlers/Dozers: D75, D75B, D85, D85B, D95, D95B, 650G, 650H, 650K, 750K, 850, 850E, 850G, 850H, 850K, 850L, 1150E, 1150G, 1150H, 1150K, 1650L

Case Wheel Loaders: 521, 521B, 521C, 521D, 621, 621B, 621C, 621D, 721, 721B, 721C, 821, 821B, 821C, 821G, 921, 921B, 921C, LW110.B, LW130.B

Case Titan / Patriot Series: 3020 Titan, 3150 Patriot, 3185 Patriot, 3210 Patriot, 3520 Titan, 4020 Titan, 4420 Patriot, 4520 Titan

New Holland Tractors and Equipment: TJ275, TJ280, TJ325, TJ330, T9010, T9020, LV80, U80, 220, 220XL, 625, 8250, 8250S, 8450, 8550, 8550S, 8820, 8825, 8860HP, 8880, 8880HP, A8000, A8800, X60.20, X60.30, X60.40, X60.50

New Holland Combines: 1666, 1688, TR86, TR88, TX

Challenger Windrowers/Sprayers: SP80, SP85B, SP110, SP115B, SP115C, SP165, SP185B, SP185C

Massey Ferguson Tractors: 1455XL, 220 XL, 785XL, 795XL, 895, 895XL, 956XL, 995, 995XL, 1056XL, 1155E, 1255XL

McCormick Tractors: MC80, MC90, MC95, MC100, MC105, MC115, MC120, MC125, MC130, MC135

Hesston / Hesston-Fiat Windrowers: 8800 series

New Idea Hay Equipment: 5830, 5830X, 5840, 5850

AGCO: 9365

Kubota: LV80

Ford/New Holland: 8160, 8260, 8360, 8560

Note: Case IH 9210-9280 series requires serial number JEE0031850 and above. Verify compatibility before ordering.

Replaces Part Number(s):

1-34-684-458, 194121A1, 194121A1COMPRESSOR, 199755C3, 1977958C1, 1977959C1, 1990755C3, 1990760C1, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 20252-20010, 2025220010, 4478, 4609, 47050714, 47109148, 47773024, 500-7000, 500-7005, 700712705, 700713317, 83934C91, 86983967, 86983967R, 86992613, 86993462, 86993462R, 97179C2, 97204C1, 97273C2, 8804478NEW, AG325732, AMX10125, B509660, U4478, U4609

Aftermarket Interchange Numbers

ACA10-0004, X10125, 97204C1-A, 1977959C1-A, 199755C3-A, 1999755C3-A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

SPX3150 Patriot, 8860, 580M, FLX3510, 580SM, CVX1170, 5850, 850G, 850H, 330, 9350, 590SL Series II, FLX4510, 625, 921, MX200, 8870, CX100, 1666, CS150, 3030 Titan, 9390, 9340, CX80, CVX130, 2388, 9265, 7120, D75, 5150, QUADTRAC, CS100, MTX110, Magnum 310, SP80, MX270, C90, CX75, 7220, 995XL, 8200, MC95, CX95, 590 Turbo, 3020 Titan, 620, CS130, TJ280, SPX3200, 2366, C80, 1455XL, 4420 Patriot, SP185B, 8930, X60.30, 1644, 4240, STX330, CVX1135, CX90, MC90, T9010, CX70, 3210 Patriot, 1680, C100, 9220, Magnum 260, 9365, CVX170, 5130, 5230, CVX1190, MX170, 921B, 580SL, 7210, 885, 200 Magnum, 8910, 821G, 850E, 570LXT II, CPX610, 9210, 1640, MX180, 9270, SP165, 335, U80, MX220, CVX1195, MX100C, 190 Magnum, Magnum 200, Magnum 250, 695, 995, CS110, 1822, MC105, 521D, 7088, MC100, 580 Super K, 8500, 8825HP, MC130, 1682, 590, 2022, MTX175, TJ275, MC80, CVX120, 8840, MX80C, Magnum 180, 7250, 220XL, MC135, SPX4410, FLX3300B, SP85B, 1255XL, STX280, D95B, 9420, 9380, Magnum 225, 4020 Titan, 8825, 1620, X60.20, FLX4010, 9260, 2188, 721, 580L, 621B, 1844, 650G, 85XT, 210 Magnum, CVX150, 1150E, 3230, 850K, 8880HP, FLX4300, 9280, 895, D75B, 280, 225 Magnum, 2377, CVX1155, MX240, SP115C, W110TC, SPX3200B Patriot, XTX215, 9430, SPX3200 Patriot, MC120, 1056XL, 821B, 6088, 7110, MTX140, 240 Magnum, Magnum 190, LV80, 855E, 821, CS78, 2155, 680L, 420, 650H, CX60, 2166, 721C, 590SM, 4520 Titan, D85, 7240, 8920, 5140, 5088, 7230, 5240, MC125, MTX125, T9020, 7150, 685, 850L, A8000, 3220, MC115, X60.50, Magnum 210, 8950, LW130.B, SP185C, 570MXT, 8830, D95, 9225, 3185 Patriot, 8880, 8450, 1150G, 8550S, 4230, 1688, TJ330, 5840, 220, 180 Magnum, 921C, 7130, 570LXT Series II, SP110, CPX420, 5120, 8850, CX50, 2588, 8250, MX90C, Magnum 220, LW110.B, 821C, MX100, MTX155, FLX4375, ZTX260, MX135, CX105, 8550, 621D, 8860HP, ZTX230, 5250, MX120, MX150, TJ325, SPX4260 Patriot, SPX3310, 9370, 2144, SPX3310 Patriot, 90XT, 570LXT, 9425, 7140, 590L, 95XT, 795XL, CS94, Magnum 240, 3150 Patriot, 9345, 220 Magnum, D85B, CPX620, 9435, SPX3185 Patriot, 5220, STX275, WR9725, FLX3330B, 9310, 2555, 8250S, 621C, 1800, 9230, 585, 1622, CX140, A8800, 1670 Hillside, CS120, 1155E, 4210, 9330, CVX1145, X60.40, 2344, CX85, 750K, 5830X, 650L, 721B, 5830, 750L, 9250, 621, 2044, SP115B, 8110, 220 XL, 2577, CX110, 895XL, 650K, MTX200, 1150H, C70, 2055, 590SL, 3520 Titan, 1660, 1150K, 9635, 595, 9240, 8820, 785XL, 8940, 8400, 1650L, STX325, FLX3010, 780D, MX110, 956XL, ZTX280

Additional Information:

Volt -12 Compressor Type - Sanden Cylinder Head - MD Grooves - 2 Clutch Diameter - 6" Fittings - Horizontal 1" Tube-O Mount Type - Ear Coil Position - 12:00 Refrigerant - R134A Oil Type - PAG-100, 9.6 oz. Fitting Description - Horiz. O-ring 1"x1"

Reference Numbers:

47109148, 47773024, 86993462, 1343925C1, 194121A1, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 4478, 86983967, 86983967R, 86992613, 86993462, 86993462R, 97179C2, 97204C1, 97273C2, U4478, U4609, 4609, 8804478NEW, 700713317, 700713317, 700713317, 4609, 8804478NEW, U4478, U4609, 1-34-684-458, 1343925C1, 194121A1, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 4478, 47109148, 47773024, 500-7000,500-7005, 700712705, 83934C91, 86983967, 86993462, 86993462R, 97204C1, 97273C2, AG325732, B509660, 1977959C1, 1-34-684-458, 1343925C1, 194121A1, 1977958C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 4478, 47050714, 47773024, 700712705, 83934C91, 86983967, 86983967R, 86992613, 86993462, 86993462R, 97179C2, 97204C1, 97273C2, AG325732, AMX10125, B509660, U4478, U4609, 20252-20010, 2025220010, 1-34-684-458, 1343925C1, 194121A1COMPRESSOR, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 4478, 47109148, 47773024, 500-7000,500-7005, 700712705, 83934C91, 86983967, 86993462, 86993462R, 97204C1, 97273C2, AG325732, B509660, 1990760C1, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 4478, 4609, 47050714, 47773024, 700713317, 86983967, 86983967R, 86992613, 86993462, 86993462R, 97179C2, U4478, U4609, 1-34-684-458, 1343925C1, 194121A1, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 4478, 47109148, 47773024, 700712705, 83934C91, 86983967, 86993462, 86993462R, 97204C1, 97273C2, AG325732, B509660, 1977959C1, 1990760C1, 1999755C2, 1999755C3
