A-70045-AI Bearing (LM48548)

Name: A-70045-AI Bearing (LM48548)
SKU: A-70045-AI
Price: 24.0 USD
Availability: InStock

A-70045-AI Bearing (LM48548)

$24.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

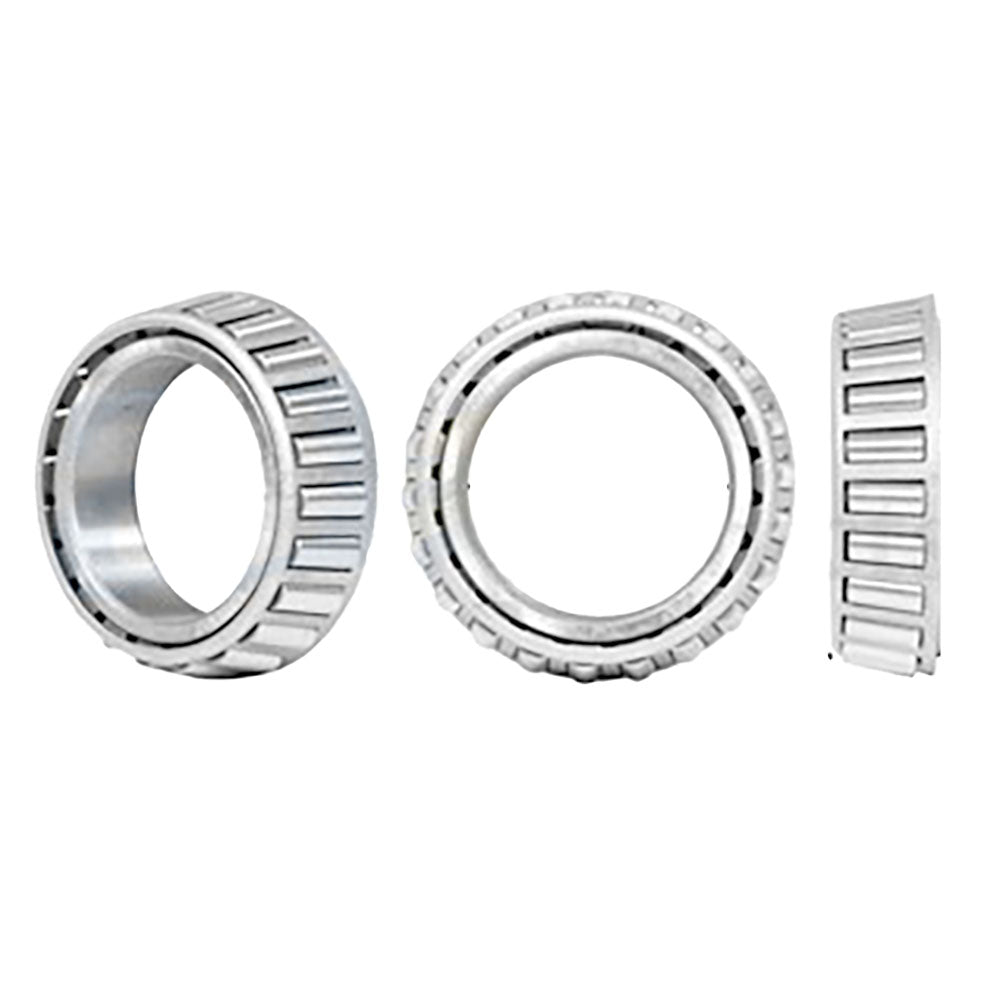

One New Aftermarket Replacement Bearing Cone (LM48548) for Agricultural and Industrial Equipment

This tapered roller bearing cone (LM48548) is a widely used imperial-series single-row tapered roller bearing component designed to handle both radial and axial loads. It is commonly found in front axle wheel hubs, steering components, planter units, disc harrows, and a broad range of other agricultural and industrial implement applications. The LM48548 cone pairs with the LM48510 cup (outer race) and is typically mounted in opposing pairs on a shaft for maximum load capacity and smooth rotation.

Specifications

Bearing Type: Tapered Roller Bearing Cone (single row)
Bore (Inner Diameter): 1.375 in (34.925 mm)
Width: 0.720 in (18.03 mm)
Outer Diameter: 2.5625 in (65.09 mm)
Casting Number: H6606/6182 CTD
Compatible Cup: LM48510
ABMA Precision Rating: Class 2

Compatible Models

Fits Case / Fits Case IH: 460, 504, 544, 560, 574, 584, 606, 615, 620, 621, 631, 641, 651, 656, 666, 674, 684, 686, 706, 756, 766, 784, 786, 806, 815, 820 (3 CYL), 826, 830 (3 CYL), 856, 886, 915, 930, 940, 966, 986, 990, 990A, 990B, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK, 1026, 1040, 1066, 1080, 1085, 1086, 1130, 1140, 1206, 1256, 1390, 1394, 1420, 1440, 1456, 1460, 1466, 1468, 1470, 1480, 1486, 1530, 1550, 1566, 1568, 1586, 1620, 1630, 1640, 1644, 1660, 1666, 1680, 1688, 1705, 1715, 1725, 1730, 1735, 1750, 1822, 1830, 1844, 2022, 2044, 2144, 2155, 2166, 2188, 2255 (SWEPT BACK), 2300, 2344, 2355 (MID-HI AXLE), 2366, 2377, 2388, 2500, 2500A, 2550, 2555 (MID-HI AXLE), 2577, 2588, 2600, 2600N, 2600R, 2600V, 2610V, 2630, 2640, 2656, 2706, 2755 (MID-HI AXLE), 2756, 2826, 2856, 2930, 3055, 3088, 3288, 3300, 3488 Hydro, 3500, 3688, 4031, 4121, 4131, 4190, 5088, 5288, 5488, 6088, 7088, 7340, Hydro 70, Hydro 86, Hydro 100, Hydro 186, I-544, 21026

Fits John Deere: 20, 20C, 20D, 20F, 82, 150, 175, 180, 200, 202, 203, 204, 205, 230, 230A, 231, 233, 234, 235, 240, 245, 250, 255, 265, 268, 269, 272, 273, 275, 276, 300, 300B, 303, 310, 315, 333, 334, 335, 364, 384, 385, 395, 403, 415, 420, 425, 430, 431, 451, 454, 461, 470, 475, 480, 484, 485, 490, 495, 500, 500B, 503, 530, 531, 541, 543, 600B, 611, MaxEmerge, MaxEmerge 2

Fits Massey Ferguson: 135, 165, 185, 203, 230A, 240, 250, 265, 275, 285, 595, 595XL, 685, 685XL, 695, 695XL, 880, 880B, 885, 885Q, 885SK, 895, 1085, 1190, 1290, 1294, 1390, 1394

Fits Ford/New Holland: 2000, 2010, 2030, 2040, 2100, 2110, 2120, 2130, 2150, 2240, 2300A, 2310, 2350 (LOWPROFILE), 2400A, 2450, 2550, 2600, 2610, 2640, 2810, 2830, 2910, 3000, 3100, 3110, 3120, 3150, 3190, 3288 (see Fits Case IH), 3310, 3330, 3488, 3550, 3600, 3600N, 3600R, 3600V, 3610, 3610V, 3688 (see Fits Case IH), 3900, 3910, 3910H, 3910R, 3910V, 3930, 4000, 4030, 4040, 4100, 4110, 4110NO, 4110O, 4110TR, 4120, 4130, 4130AP, 4130N, 4140, 4200, 4330, 4340, 4410, 4410SU, 4500, 4600, 4610, 4610N, 4610NO, 4610O, 4610SU, 4630, 4830, 4830N, 5030, 5030O, 6000, 7000, 7000 Series, 7100, 7200, 7240, 7300

Fits Allis Chalmers: 160, 170, 175, 180, 185, 190, 200, 210, 220

David Brown: 990, 990A, 990B, 1190, 1194, 1290, 1294, 1390, 1394

Leyland: 154, 245, 255, 270, 272, 282, 384, 485, 502, 602, 702, 704

Additional compatible brands: Vermeer, Amco, Kewanee, Hesston, Rhino, GEHL, Krause, Fits Woods, Speeco, Bush Hog, Fits Caterpillar, Sidewinder -- see models metafield for full list.

Replaces Part Number(s):

520047, 16076SW, 10353, 710475, 913-LM48548, AT320692, JD8194, JD9099, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, G57451, G57452, 86516468, 3043869R91, 3043871R91, 70045, 1716071, 146241BH, 573BH, 4096588, 70227665, 70430421, 70929628, 74254317, 0227665, 1766918, 227665, 254317, 40460, 4254317, 430421, 530474, 851-IM48548, 9091, LM48548, 2717WD, X5656, 48977, 80340634, 81854752, 83400377, 83992408, BE22140, GHB144, 41112, 005-0471, 0050471, 050471, 791265M91, 831078M1

Aftermarket Interchange Numbers

4T-LM48548, LM48548J, LM48548C, LM48548L, LM48548A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

560, 7000, 3910R, 1294, 2300, 2120, 335, 205, 641, 966, 395, 500B, 461, 695, 2588, 2020, 2044, 530, 770, 996SK, 4830N, 543, 3910H, 2031, 7200, 484, 501, 584, 415, 3600N, 202, 1730, 1020, MaxEmerge, 2000, 541, 20C, B414, 990Q, 615, 2155, 885SK, 431, 4040, 1520, 175, 4140, 2600, 3000, 300B, 3910V, 2355 (MID-HI AXLE), 7088, 686, 3930, 3300, 2550, 940, 1470, 2010, 990SK, 3610, 504, 230A, 3910, 585, 856, 631, 200, 1844, 1735, 3688, 4500, 1420, 403, 245, 1466, 5030O, 384, 185, 2130, 595XL, 5030, 930, 1256, 231, 4600, 685, 2856, 21026, 451, 7240, 2577, 240, 715, 3900, 1030, 1705, 990A, 1390, 2110, 1720, 2500, 674, 1140, 6000, 4031, 4340, 996, 1080, 4130AP, 2255 (SWEPT BACK), 656, 995SK, 4130N, 485, 7000 Series, 895, 1640, 3550, 230, 990B, 685XL, 1725, 684, 2826, 2610V, 3600R, 4610NO, 544, 880, 2188, 255, 1394, 5488, 651, 4110O, 4100, 2500A, 1620, 285, 1190, 276, 3110, 1206, 1026, 2300A, 4610N, 3500, 666, 1568, 2388, 1586, 250, 2150, Hydro 70, 1700, 606, 310, 460, 4410SU, 601, 1194, 2166, 354, 2144, 695XL, B275, 5288, 4130, 2810, 3330, 1710, 4610, 1290, 6088, 1130, 995Q, 4030, 2910, 180, 420, 3190, 503, 2344, 475, 880B, 1750, 2610, 2022, 5088, 272, 756, 2756, 71 Flexi, 885Q, 1456, 4000, 915, 4630, 986, 235, 2030, 269, 82, 1715, 885, 4110TR, 2630, 3610V, 2400A, 2755 (MID-HI AXLE), 1830, 3488 Hydro, 600B, 1086, 470, Hydro 100, 611, 20D, 996Q, 2350 (LOWPROFILE), 334, 233, 3150, 1480, 995, 20F, 1822, 886, 2656, 1550, 3088, 300, 1440, 2600R, 150, 621, 815, 2600V, 786, 4190, 820 (3 CYL), 234, 1688, 364, 7300, 4610O, 2040, 135, 4110NO, 425, 430, 574, 1680, 7100, 784, Hydro 186, 2830, 766, 1850, 203, 500, 2135, 2366, 826, 265, 3310, 20, 4830, 706, 1566, 1486, 1040, 480, 204, 1666, 1085, 2240, MaxEmerge 2, 303, 4330, 3288, 2377, 3120, 990, 4120, I-544, 385, 1644, 2310, 315, 531, 1460, 454, 4610SU, 782, 3600, 4200, 3100, 275, 620, Hydro 86, 595, 806, 2606, 1530, 4410, 1120, 2640, 1468, 3055, 1066, 273, 4110, 2930, 2131, 268, 495, 1630, 1660, 830 (3 CYL), 3600V, 2555 (MID-HI AXLE), 333, 490, 165, 4131, 2100, 2111, 4121, 2600N, 2706, 7340, 760

Additional Information:

Bore - 1.375" Width - 0.720" Casting Number - H6606/6182 CTD Radius - Spcl. Bearing Type - Tapered Cup/Cone

Reference Numbers:

710475, 70045, BE22140, 4096588,70227665,70430421,70929628,74254317, 2717WD, 16076SW, 0227665,1766918,227665,254317,3043869R91,40460,4254317,430421,530474,851-IM48548,9091,LM48548, 41112, X5656, 1716071, 48977, 80340634, 81854752, 83400377, 83992408, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, G57451, G57452, 86516468, 3043869R91, 3043871R91, 10353, 791265M91, 831078M1, 146241BH,573BH, 520047, GHB144, 005-0471,0050471,050471, 913-LM48548, AT320692, JD8194, JD9099
