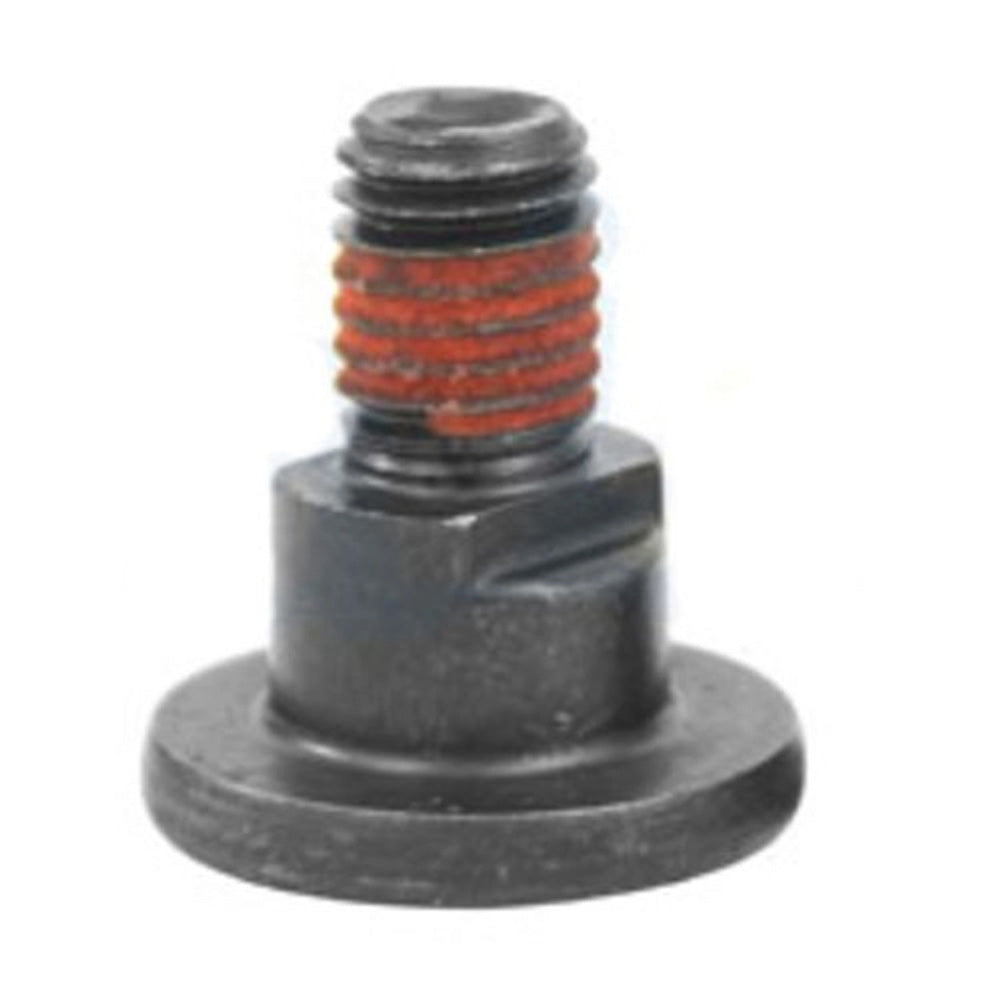

A-56115800KN-AI BOLT, DISC MOWER BLADE

One New Aftermarket Replacement Disc Mower Blade Bolt & Nut Kit for Kuhn, Fits John Deere, Fits New Holland, Gehl, and Hesston Disc Mowers

This aftermarket replacement disc mower blade bolt and nut kit (pack of 10) secures cutting blades to the disc mower rotor. The M12 round-head bolt with locking nut is a standard wear item on rotary disc mowers and is designed for use with 4 mm (5/32 in.) thick blades.

Specifications

• Thread: M12
• Overall Length: 34 mm
• Head Diameter: 30 mm (round head)
• Collar Diameter: 18 mm
• Shoulder Length: 6 mm
• Shoulder Diameter: 17.8 mm (45/64 in.)
• Nut: 19 mm x 10 mm
• For use with 4 mm (5/32 in.) thick blades
• Pack of 10 bolts and 10 nuts

Compatible Models

Kuhn Disc Mowers: ALTERNA 400, ALTERNA 500, FC200, FC202, FC243, FC250, FC280, FC283, FC300, FC3000, FC301, FC302, FC303, FC313, FC350, FC3500, FC352, FC353, FC4000, FC813, FC883, GA300GT, GA381GT/GM, GMD283TG, GMD350, GMD400, GMD44HD, GMD500, GMD500S, GMD55HD, GMD600, GMD600GII, GMD600HD, GMD600G2, GMD602, GMD602F, GMD66HD, GMD700, GMD700GII, GMD700G2, GMD700HD, GMD702, GMD702F, GMD77HD, GMD800, GMD800GII, GMD800HD, GMD801, GMD802, GMD802F, GMD902

Fits John Deere Disc Mowers: 265, 275, 525, 530, 535, 625, 630, 635, 730, 735, 830, 835, 910, 915, 916, 920, 925, 926, 930, 935, 936, 945, 946, 955, 956, 990, 1350, 1360, 1460, 1470

Fits New Holland Disc Mowers: 408, 411, 412, 415, 463, 465

Gehl Disc Mowers: DC2340, DC2345, DC2360, DC2365, DC2412, DC2415, DC2418, 1165

Hesston Disc Mowers: 870, 1320, 1340, 1360, 1365, 8500

Replaces Part Number(s):

Kuhn: 56115800, 561-158-00, 56115800KN | Fits New Holland: 697552 | Fits John Deere: CC19994 | Gehl: 125448

New aftermarket replacement part - not remanufactured, not used.
