A-53206040-AI BEARING, CLUTCH PILOT

One New Aftermarket Replacement Clutch Pilot Bearing for Agricultural Tractors

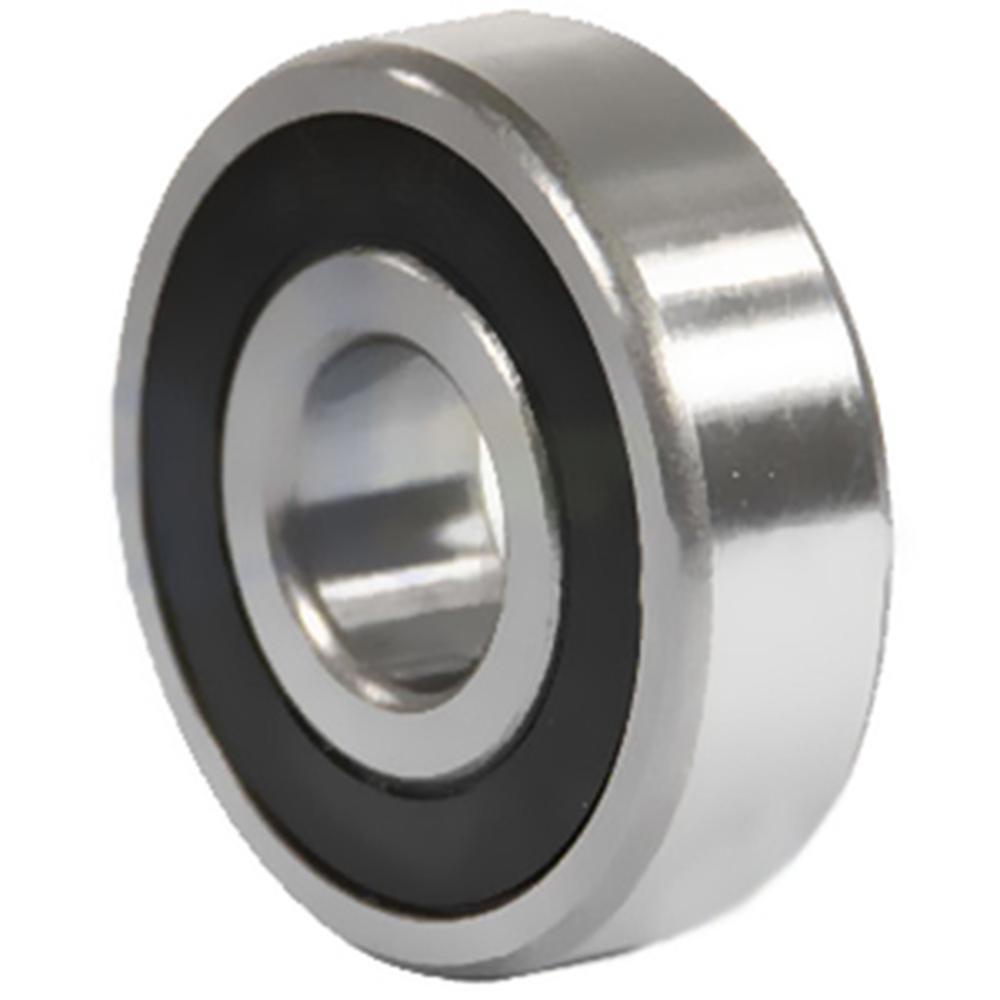

This sealed deep-groove ball bearing serves as the clutch pilot bearing in the clutch/flywheel assembly of a wide range of agricultural tractors. Installed in the rear of the engine crankshaft bore or the center of the flywheel, it supports and centers the transmission input shaft, allowing the input shaft to rotate independently when the clutch is disengaged. Replacing this bearing during any clutch service is recommended best practice.

Specifications

• Bearing Type: Single-row deep-groove ball bearing, double rubber-sealed (2RS)
• Inner Diameter (ID): 21/32 in.
• Outer Diameter (OD): 1-9/16 in.
• Height/Width: 15/32 in.
• Dimensions (metric): 17 mm ID x 40 mm OD x 12 mm wide
• Seals: Rubber seals on both sides, pre-greased

Compatible Models

Fits John Deere Tractors: 135, 150, 165, 175, 180, 202, 230, 231, 233, 234, 250C, 260C, 333, 420, 600, 700, 800, 900, 1800, 2000, 2010, 2030, 2110, 2110 LCG, 2120, 2130, 2300, 2310, 2355, 2440, 2510, 2600, 2610, 2810, 2910, 3000, 3010, 3020, 3055, 3100, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3910, 3930, 4000, 4010, 4020, 4031, 4100, 4110, 4120, 4121, 4130, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 445, 445A, 455, 515, 535, 540, 540A, 540B, 545, 340A, 340B, 345C, 345D

Fits Ford/New Holland Tractors: NAA, 9N, 2N, 8N, 600, 800, 900, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2100, 2110, 2120, 2150, Dexta, Super Dexta, Major, Super Major

Fits Massey Ferguson / AGCO Tractors: TO35; AGCO/Fits Allis Chalmers 160, 5020, 6040, 8745, 8765, LT70, LT85, ST35, ST45, ST45H, ST55

Challenger Tractors: MT295, MT297, MT444, MT454, MT455, MT464, MT465

Fits International Harvester / Fits Case IH and additional multi-brand agricultural tractor applications

Replaces Part Number(s):

6203-2RS, 6203-2RS-I, 53206040, JD9449, JD9394, JD92, C5NN7600A, 828123M2, 832953M3, 832960M3, 836203, ESL10692, CLB10-0018, TPJD9281, TP-JD9449, 741-0524, 741-0524P, 201-019, M04-25-01, VPG5010

New aftermarket replacement part - not remanufactured, not used.
