A-520019-AI Bearing (3920)

A-520019-AI Bearing (3920)

$56.00 CAD
$56.00 CAD
Sale Sold out
Shipping calculated at checkout.

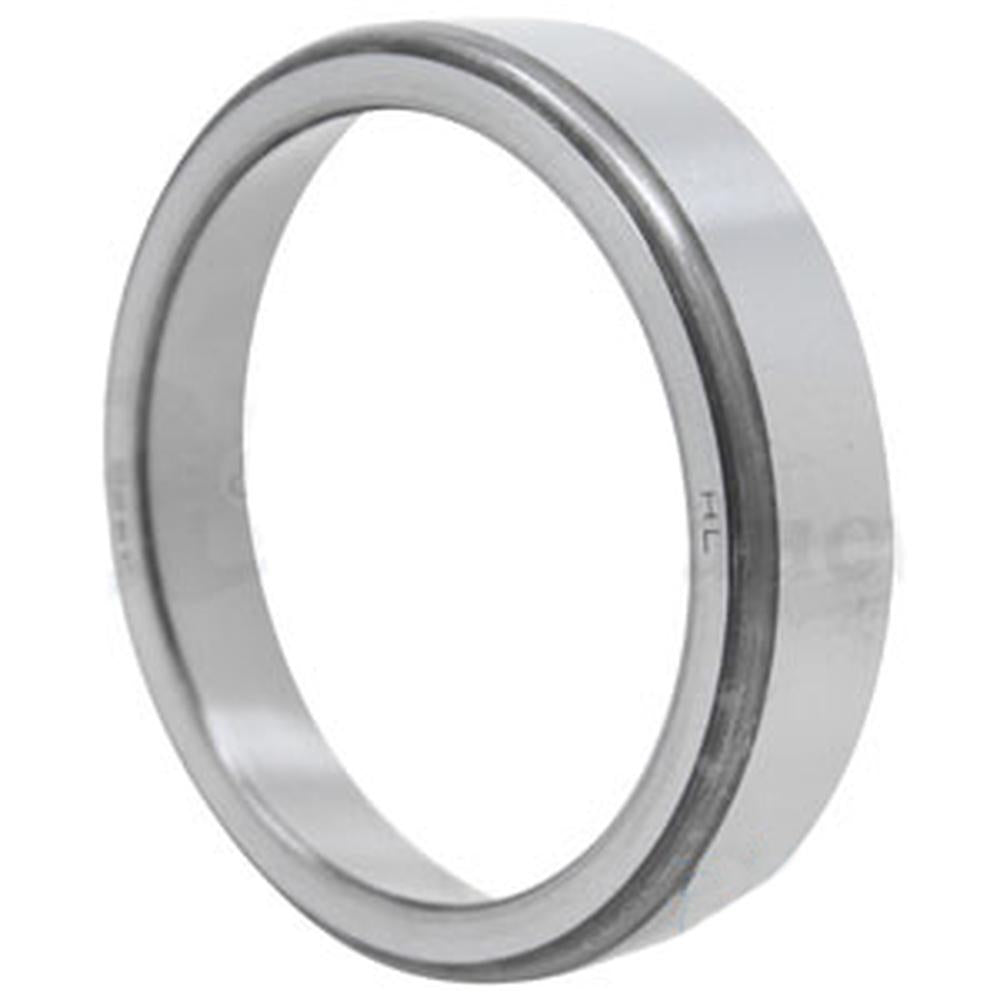

One New Aftermarket Replacement Bearing (Cup) - Timken 3920

This is a tapered roller bearing cup (outer ring) identified by the industry-standard number 3920. The 3920 is a single cup used in tapered roller bearing assemblies, typically paired with a matching cone (inner ring assembly) and mounted in opposing pairs on a shaft to handle both radial and axial loads across a wide range of agricultural, construction, and industrial equipment applications.

Specifications

  • Type: Tapered Roller Bearing - Single Cup (Outer Ring)
  • Outside Diameter: 4.4375 in (112.71 mm)
  • Overall Width: 0.9375 in
  • Material: Chrome Steel
  • Finish: Uncoated
  • Lubrication Hole: None
  • ABMA Precision Rating: Class 2

Compatible Cones

The 3920 cup is compatible with the following cone part numbers: 390, 390A, 392, 395, 395-S, 395A, 3977, 3977X, 3978, 3979, 3980, 3981, 3982, 3984, 3992, 3994, 399A, 399AS, JM511945, JM511946

Replaces Part Number(s):

3920, A-520019-AI

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

7010, 30B, 4600O, 1644, 205, 3930NO, 7710, 4630, 4040, 50A, 3900, 3910H, 5900, 6810S, CS SERIES IV, 531, 50C, 4200, Final Drive / Drive Axle Supports, KP1325, 298, 4610O, 3610V, 1440, 601, 7810, 30E, 3910N, 9690, 4110N, 1470, 621, 7810O, 290, KM SERIES IV, 202, PT270, 5110, 3610, KS SERIES IV, 9795, 3600, 670B, KM325, 4110NO, 3910, KR1280, 660, 3600V, 4140, 4830N, 20D, 4110V, 4131, 600, 9695, 9790, 20C, 5030O, SUPER 90, 4630N, 204, DEXTA, NAA, 7840, TE20, 2310, SM SERIES IV, TO30, 333, 6810, 2135, 7810S, 2130, 3500, 7910, 4330, CM360, 3910R, 699, 631, 6610S, TO35, PANTHER 1000 POWERSHIFT, 4130NO, 4600NO, 20, 6000, 2110, COUGAR III, 4110TR, 3910V, 431, 2166, 3930, 1666, 4121, CM325, 8680, 3610NO, PTA280, PTA270, 2144, 3230, 150, 2111, 165, 65, BEARCAT IV, 1080, 5030, 304, 250, 175, 620, 690, 660B, 3600N, Steering Knuckles, 7840O, 640, 4100, 3550, 7610S, Implement Hubs, 4110O, 501, 2610V, 4630O, Differential Pinions, 4130, 650, 230, 2500, 4000, 31, 231, 1640, 2600R, 334, 2120, 9N, 233, 4600, Rear & Front Axle Wheel Bearings, PTA251, 4031, 135, 611, 240P, 1480, 4610NO, 5640, 4830, 6640, 1680, 2150, 698, 1482, 8010, 4120, 2366, 8N, COUGAR IV, 255, BEARCAT 1000 SERIES, BEARCAT III, 641, 6500, 1085, 180, 1460, PANTHER III, 234, 5610S, 3165, 84, CP1360, 5610, TO20, 245, SP80, 4500, 7610O, 275, 670, 7610, 2810, 2600N, 2131, 2610, 4610N, 4110, 630, 35, 261, COUGAR 1000 POWER SHIFT, 335, 2100, 40B, 541, 7700, 8340, 235, CR1225, 1682, 285, 30, 6610O, 651, 40, 4600SU, KM280, CM SERIES IV, 7410, T7 SUPER, ST251, 240, COUGAR I, 4030, KS280, 2000, 85, 265, 88, PANTHER IV, 7740O, 2N, 3930N, 3055, 2600V, 8210, 282, 2188, 270, 2031, 4410, 203, 302, 50D, 3600R, 6710, 2200, CR1280, ST270, 4340, CS360, LION 1000 POWERSHIFT, 2600, 2300, 4630NO, 50E, 4190, 1660, 1688, 2344, 50, 30D, 2910

Additional Information:

Outside Diameter: 4.438" Radius: .13" Width: .938"

Reference Numbers:

70202584, 73007247, 3920, 713040, BB4222, BB4222B, 510892, JD7292, 40008, 13363D, 195160M1, 520019, 14105WD, 2A4576, 6V956

Product Sub Group:

Other Steering Components
