A-510884-AI BEARING

Name: A-510884-AI BEARING
SKU: A-510884-AI
Price: 60.0 USD
Availability: InStock

A-510884-AI BEARING

$60.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Tapered Roller Bearing Cone Fits Ford/New Holland, Fits Case/IH, Fits Massey Ferguson, Fits John Deere, and More

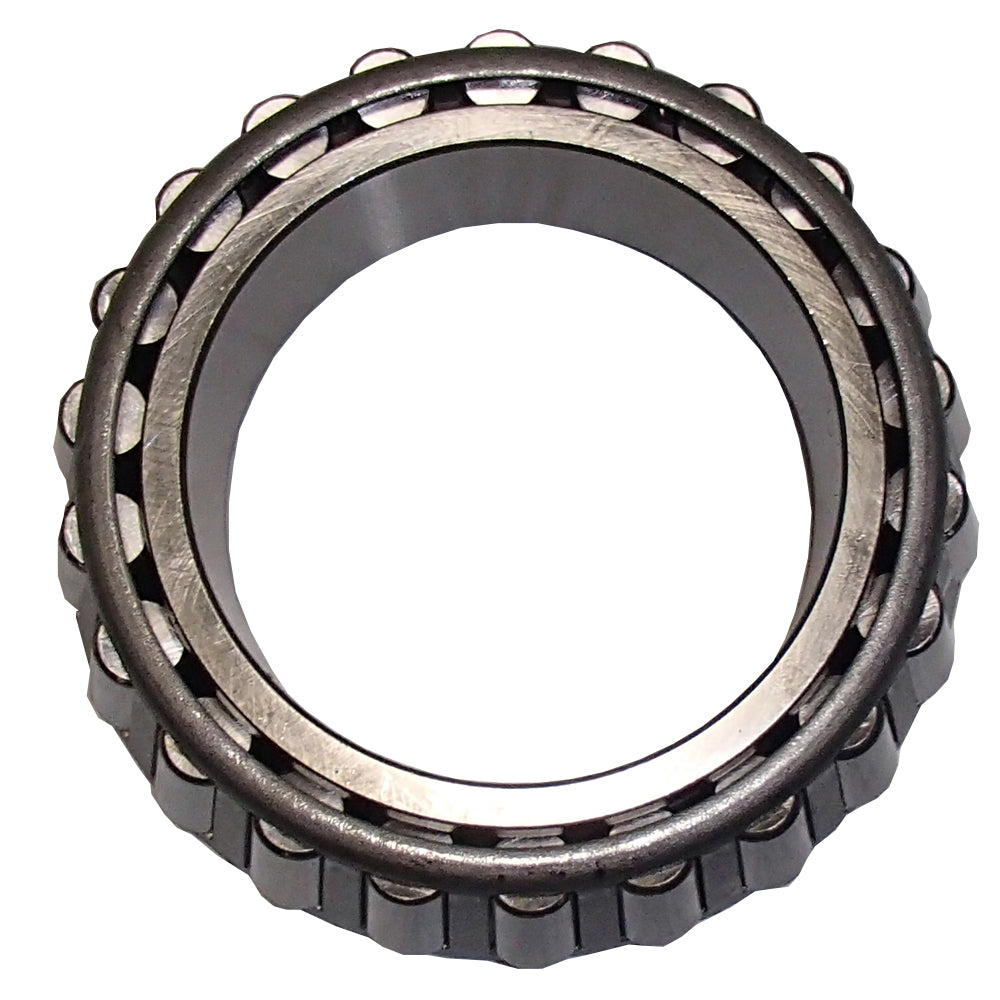

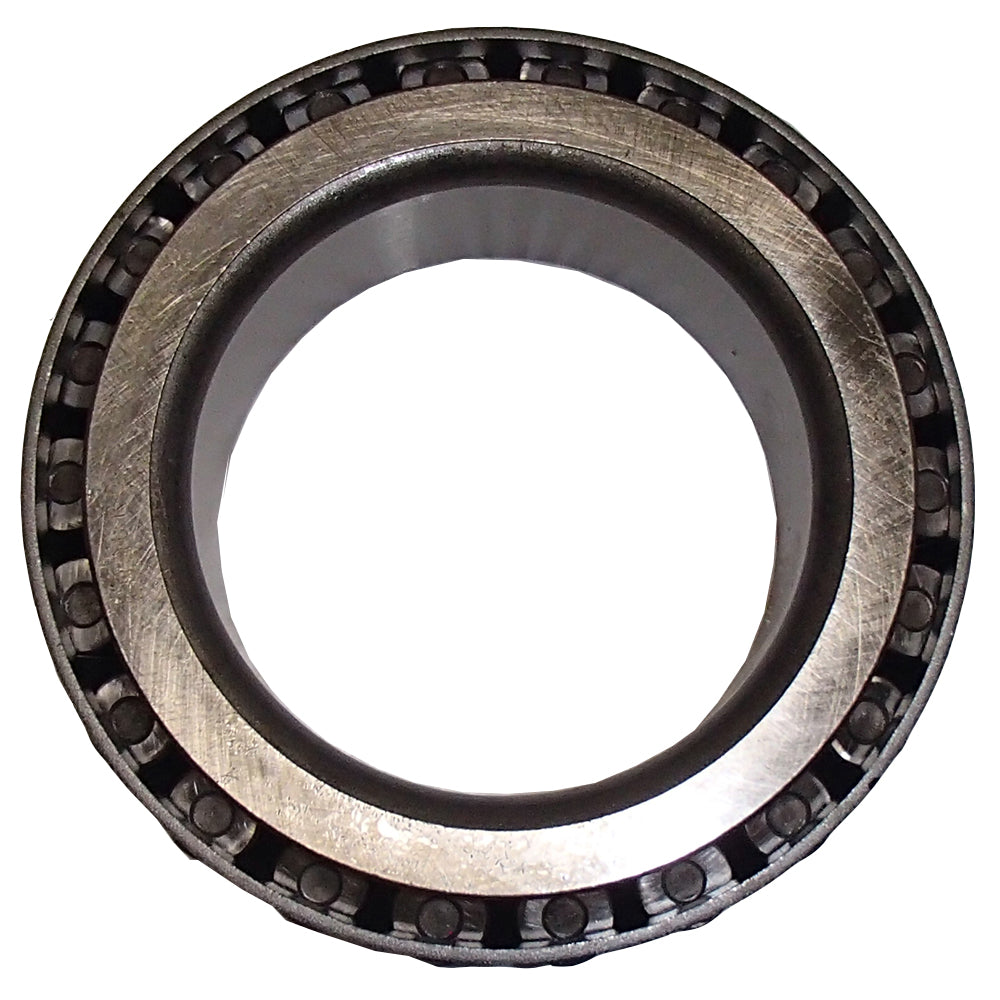

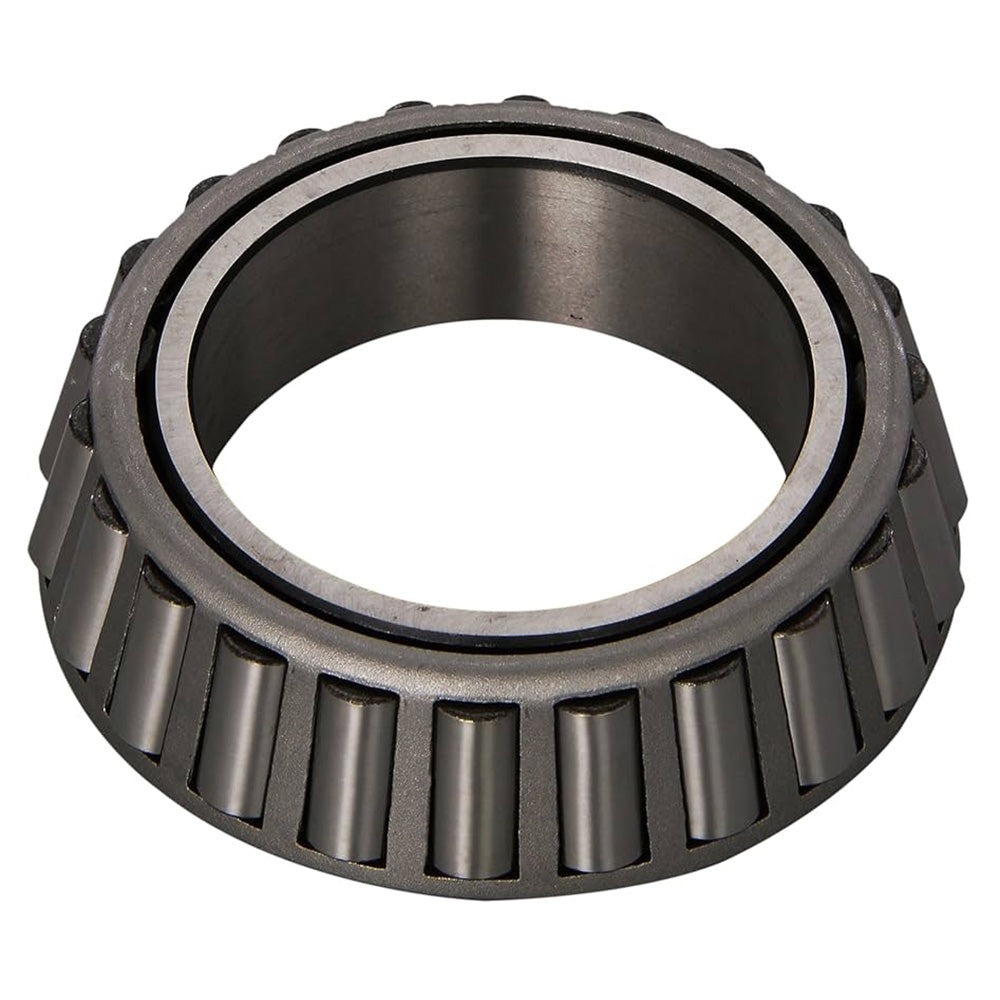

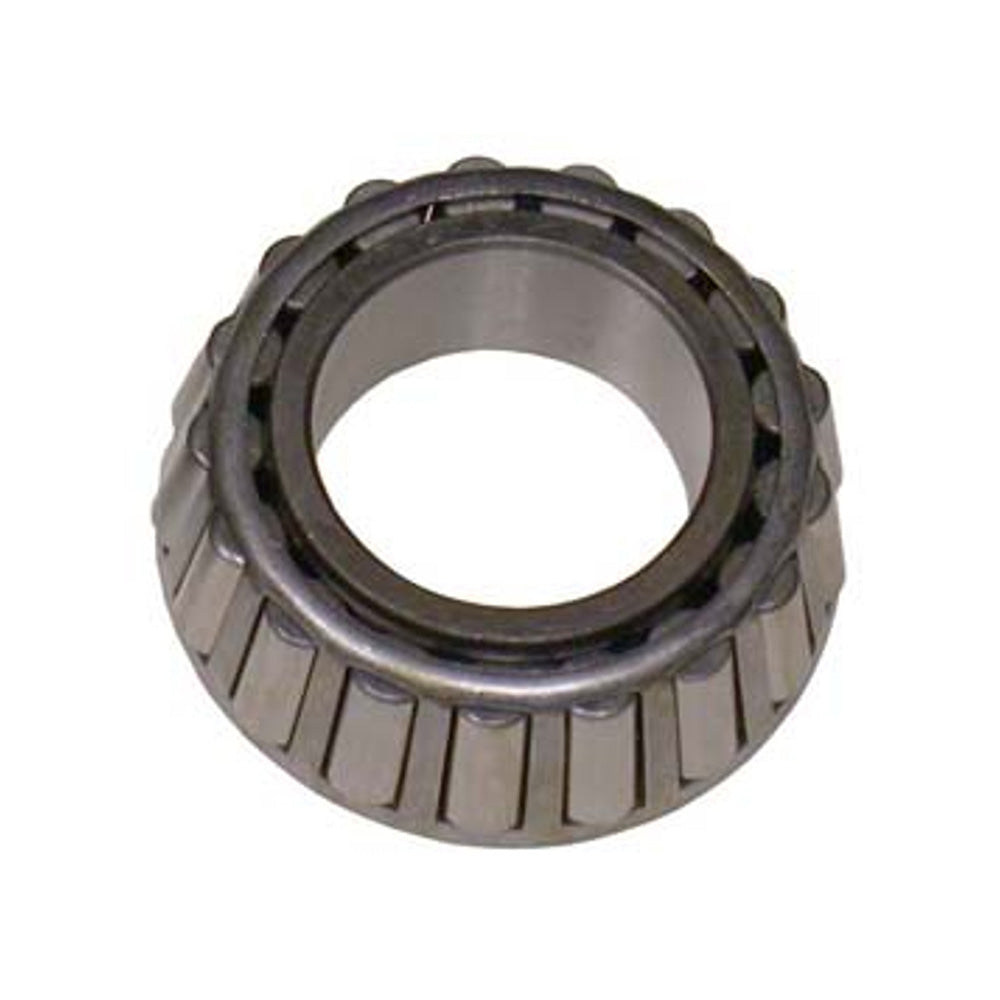

This tapered roller bearing cone (Timken 3984 series, Type TS) is a precision-machined inner ring assembly used in wheel hubs, front axles, final drives, differential pinions, steering knuckles, and implement hubs across a wide range of agricultural and construction equipment. The cone pairs with the 3920 cup (outer ring, sold separately) to form a complete tapered roller bearing capable of handling both radial and thrust loads.

Specifications

Type: Tapered Roller Bearing Cone (Inner Ring Assembly)
Bore (I.D.): 2.625 in (66.675 mm)
Outside Diameter: 3.46 in (87.9 mm approx.)
Cone Width: 1.183 in (30 mm)
Maximum Shaft Fillet Radius: 0.14 in
Series: Timken 3900 Type TS
Cage: Stamped steel
Pairs with cup: 3920

Compatible Models

Fits Ford/New Holland Tractors: 2000, 2031, 2100, 2110, 2120, 2130, 2150, 2200, 2300, 2310, 2500, 2600, 2600N, 2600R, 2600V, 2610, 2610V, 2810, 2900, 2910, 3000, 3055, 3165, 3230, 3500, 3550, 3600, 3600N, 3600R, 3600V, 3610, 3610NO, 3610V, 3900, 3910, 3910H, 3910N, 3910R, 3910V, 3930, 3930N, 3930NO, 4000, 4030, 4031, 4040, 4100, 4110, 4110N, 4110NO, 4110O, 4110TR, 4110V, 4120, 4121, 4130, 4130NO, 4131, 4140, 4190, 4330, 4340, 4410, 4500, 4600, 4600NO, 4600O, 4600SU, 4610N, 4610NO, 4610O, 4630, 4630N, 4630NO, 4630O, 4830, 4830N, 5030, 5030O, 5110, 5610, 5610S, 5640, 5900, 6000, 6500, 6610O, 6610S, 6640, 6710, 6810, 6810S, 7410, 7610, 7610O, 7610S, 7700, 7710, 7740O, 7810, 7810O, 7810S, 7840, 7840O, 7910, 8010, 8210, 8340, 9N, 8N, 2N, NAA, DEXTA

Fits Massey Ferguson Tractors: 35, 50, 65, 85, 88, 135, 150, 165, 175, 180, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 240P, 245, 250, 255, 261, 265, 270, 275, 282, 285, 290, 298, 302, 304, 333, 334, 335, 531, 541, 596, 620, 621, 630, 631, 640, 641, 650, 651, 660, 670, 690, 698, 699, 766, 1080, 1085, TO30, TO35, SUPER 90

Fits Case/International Harvester Tractors: 234, 481, 491, 492, 501, 600, 611, 966, 1066, 1466

Fits John Deere Combines: 6620, 7700, 8820

Challenger/AGCO: MAGNUM 275, MAGNUM 280, MAGNUM 290, MAGNUM 305, MAGNUM 310, MAGNUM 315, MAGNUM 335, MAGNUM 340, MAGNUM 370, MAGNUM 380, MX80C, MX90C

Steiger: PANTHER III, PANTHER IV, PANTHER 1000 POWERSHIFT, COUGAR I, COUGAR III, COUGAR IV, COUGAR 1000 POWER SHIFT, BEARCAT III, BEARCAT IV, BEARCAT 1000 SERIES, LION 1000 POWERSHIFT

GEHL: KM280, KM325, KM SERIES IV, KR1280, KS280, KS SERIES IV, CP1360, CR1225, CR1280, CM SERIES IV, CM360, CM325, CS360, CS SERIES IV, KP1325, PT270, PTA251, PTA270, PTA280, SP80, ST251, ST270

Fits Allis Chalmers: 20C, 20D, 30, 30B, 30D, 30E, 40, 40B, 50A, 50C, 50D, 50E, 84, 261, 270

Application Notes: Used in front wheel hubs, implement hubs, axle assemblies, final drives, differential pinions, and steering knuckles. Cone only - compatible cup 3920 sold separately.

Replaces Part Number(s):

510884, JD7378, ST2007A, 3984, 73007252, 74251113, BB4221B, 520020, 3984TIM, 195159M1, 14104WD, 3F9839, 4M2529, 5L9656, 9F9830, 9F9839

Aftermarket Interchange Numbers

Timken 3984; pairs with cup 3920. Additional cross-references: ST2007, ST2139, 185775M1, 195053M1, 25695HO, BR3984, 3984MAF, 3984TRB, BB4221BOWB, TDAR1244A, CFT18206, E27N4221

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5110, 3610V, 3910R, 7740O, CR1225, COUGAR I, 235, KM280, 2310, 3910N, KS SERIES IV, 4000, 4120, SM SERIES IV, 2200, 7410, 4030, 6810S, 641, 7810, 20C, 7910, PTA270, 7010, 5900, MAGNUM 280, 3000, 481, 6640, 3230, 631, 50D, 1466, 7810S, SUPER 90, BEARCAT IV, 6500, 30, 7840, 4110V, ST251, 50E, 3930NO, 298, 5610S, 4110TR, DEXTA, 30D, 7610S, 1080, 4121, 6620, 596, 492, 180, CM SERIES IV, 8820, 4630O, KM325, 600 Series, 3600N, 6810, 203, Differential Pinions, 4110, BEARCAT 1000 SERIES, PTA280, 7840O, 2150, 30B, 175, 766, 601, Final Drives, 5030, KP1325, 670, 620, MAGNUM 315, 240P, 4610O, MAGNUM 310, 690, 285, 135, 234, 660, 2610, MAGNUM 290, 6610O, 7610O, 255, ST270, 334, 250, 265, 3055, 3930N, 2600, 4130NO, 4630NO, KS280, 2610V, 4330, 40B, 541, 7610, 205, 231, 2135, 1085, 2111, 4110N, 4131, CP1360, 2131, MAGNUM 340, 85, 4830, Axle Assemblies, 50, 5030O, 3930, 233, 2000, 35, 2120, 3600R, 4610N, SP80, 150, Implement Hubs, 4600, 8340, COUGAR III, 50A, 165, NAA, 4600SU, 4410, 4140, 50C, 4630N, 5640, 270, 4610NO, 5610, 6710, 8210, PANTHER IV, 611, 621, 7810O, 20, 230, 699, 3550, 2600N, 650, 7710, MX90C, 245, 4190, 2110, PTA251, 1066, 4110O, COUGAR 1000 POWER SHIFT, MAGNUM 275, 3600V, 4110NO, 9N, CM325, CM360, CR1280, 88, 531, 2600R, 3910H, 491, 3610NO, 30E, PANTHER III, 600, MX80C, 4130, 501, 698, 4500, 3610, 6000, TO30, 7700, 966, 333, 335, 4630, 8N, 65, TO35, 2N, 40, 2031, 2810, 31, 4600NO, PANTHER 1000 POWERSHIFT, 4200, 3165, BEARCAT III, 6610S, KM SERIES IV, 3900, 3600, 640, 2600V, COUGAR IV, 2100, LION 1000 POWERSHIFT, 302, 204, 3910, 261, 84, KR1280, CS SERIES IV, 4100, 3500, 630, 304, PT270, 202, 4031, MAGNUM 305, MAGNUM 380, CS360, 2130, 4600O, 2300, 4040, Steering Knuckles, MAGNUM 370, 4340, 8010, 651, 290, MAGNUM 335, 3910V, 20D, 282, Front Wheel Hubs, 2500, 4830N, 240, 2910, 275
