A-50X60-AI Sprocket
A-50X60-AI Sprocket
Couldn't load pickup availability

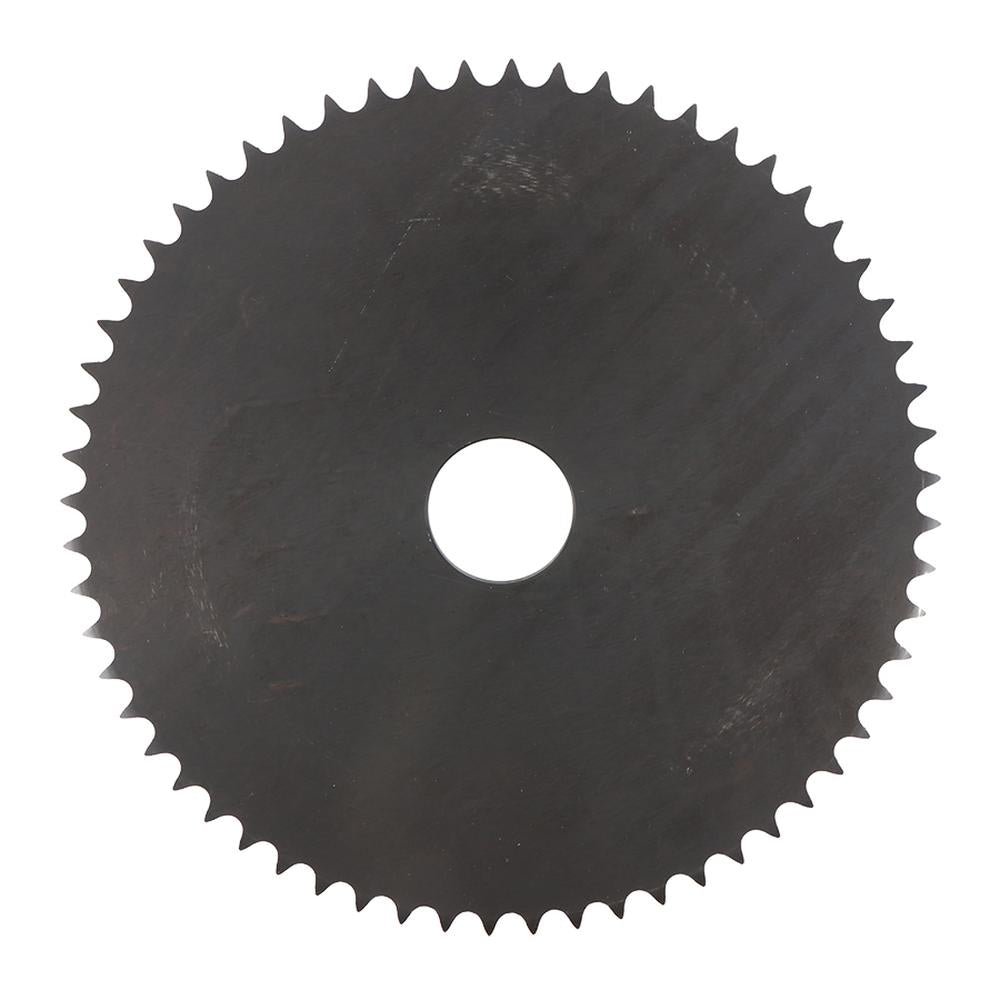

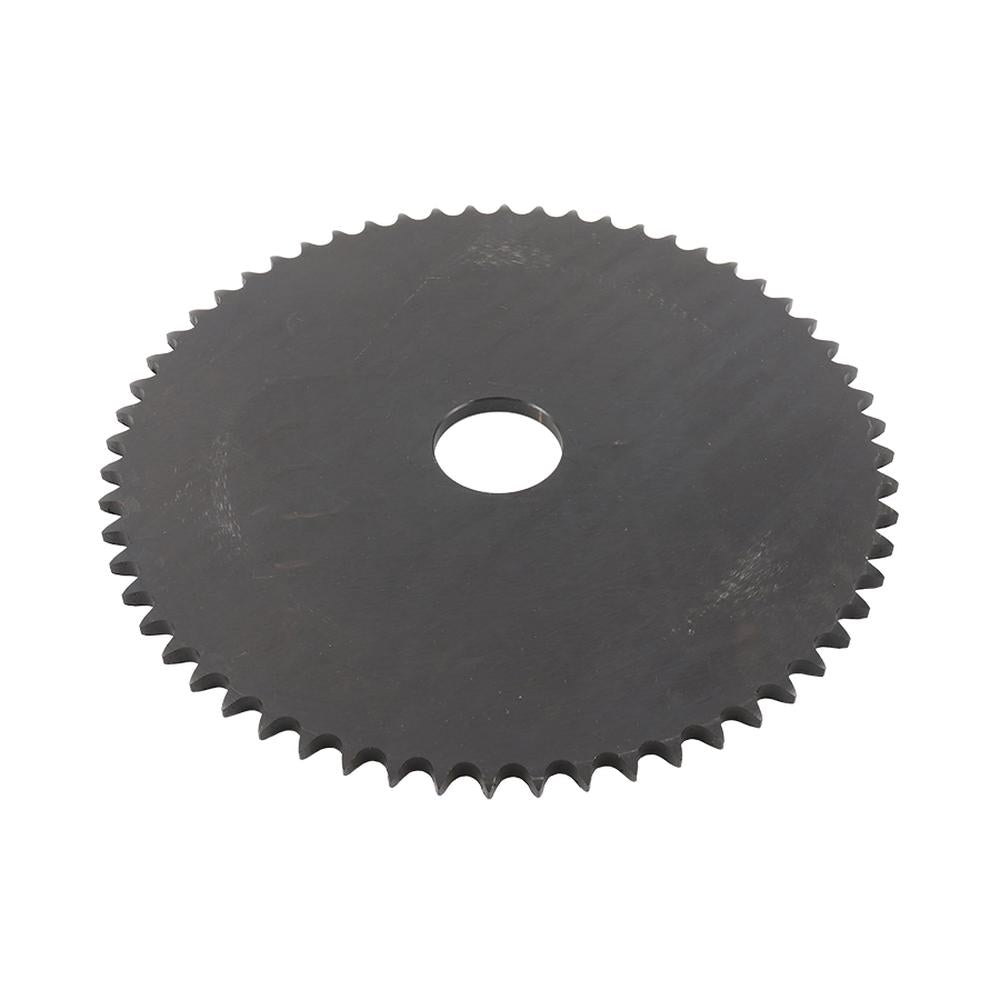

One New Aftermarket Replacement #50 Roller Chain Weld-On Sprocket - 60 Tooth X-Series Hub
This 60-tooth weld-on sprocket is designed for use with ANSI standard #50 roller chain (5/8" pitch) in agricultural drive and conveying applications. The sprocket is hubless -- it mounts by welding directly to any compatible X-Series weld-on hub (hub not included, sold separately). Common applications include planters, balers, grain handling equipment, conveyors, and other agricultural machinery using #50 drive chain. Manufactured to ANSI B29.1 standards for dimensional compatibility with all ANSI #50 roller chain.
Specifications
- Chain Size: #50 ANSI Roller Chain (5/8" pitch)
- Number of Teeth: 60
- Outside Diameter: 12.306"
- Hub Bore (center): 2"
- Hub Type: X-Series Weld-On (hub required, not included)
- Sprocket Style: Hubless flat plate weld-on
Hub Compatibility Note
This sprocket requires a separately purchased X-Series weld-on hub. It is compatible with any standard X-Series weld-on hub with a 2" bore. Do not attempt to install without a proper hub.
Replaces Part Number(s):
WSS105060
Aftermarket Interchange Numbers
00105060, 971-20005060, 20005060, 50X60, A-50X60-AI
New aftermarket replacement part - not remanufactured, not used.
