A-50W12-AI Sprocket
A-50W12-AI Sprocket
Regular price
$23.00 CAD
Regular price
Sale price
$23.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

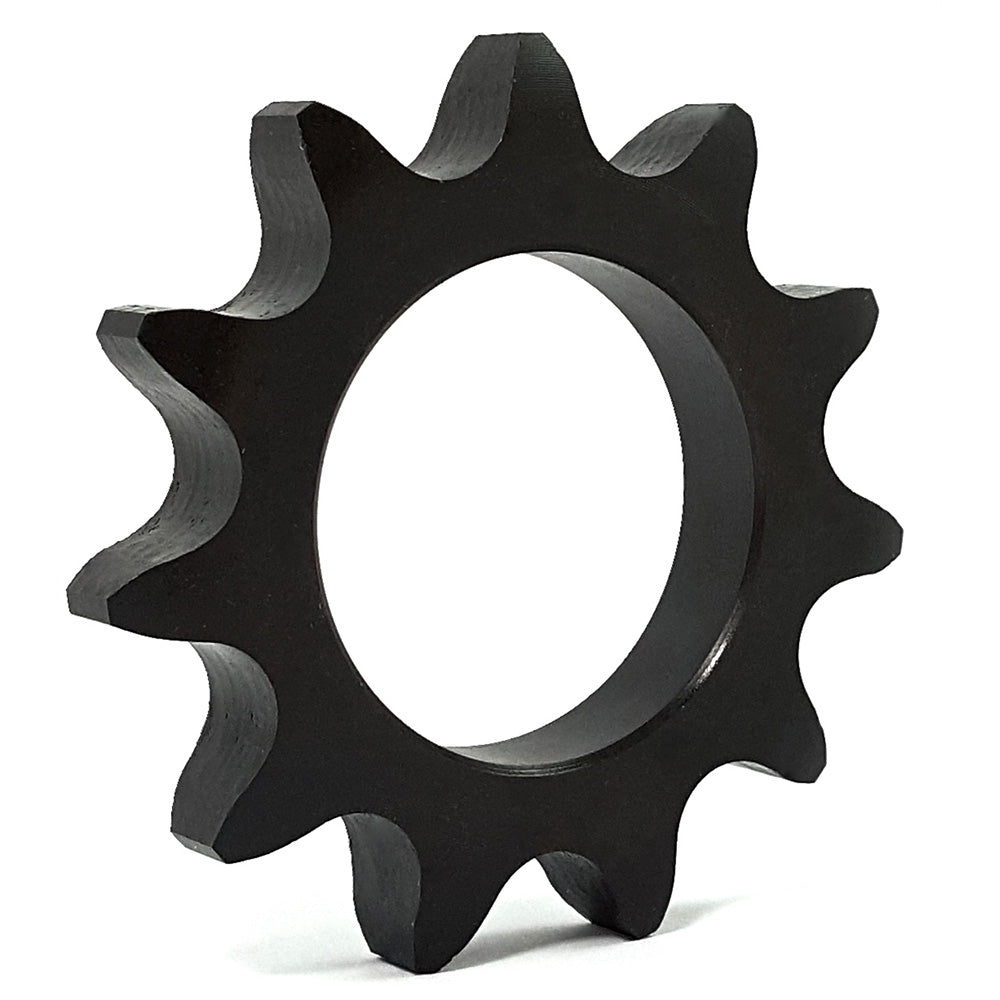

One New Aftermarket Replacement Weld-On Sprocket for #50 Roller Chain - W-Series Hub, 12 Tooth
This flat plate steel weld-on sprocket is designed for use with #50 ANSI roller chain and mates to W-series weld-a-hub assemblies. The sprocket is supplied hubless -- a W-series weld hub (sold separately) is required to complete the assembly. The letter "W" in the part number designates the compatible hub series. With heat-treated teeth for durability, this is a dependable aftermarket replacement for agricultural, industrial, and power transmission applications that rely on #50 chain drives.
Specifications
- Part Number: A-50W12-AI (also known as 50W12)
- Chain Size: #50 ANSI Roller Chain
- Chain Pitch: 5/8"
- Teeth: 12
- Inside Diameter (Bore): 1-5/8" (1.625")
- Outside Diameter: 2.708" - 2.710"
- Pitch Diameter: 2.415"
- Material: Carbon steel with heat-treated teeth
- Hub Required: W-Series Weld Hub (sold separately)
Replaces Part Number(s):
50W12, 00105012, 20005012, 971-20005012, WSS105012
New aftermarket replacement part - not remanufactured, not used.
